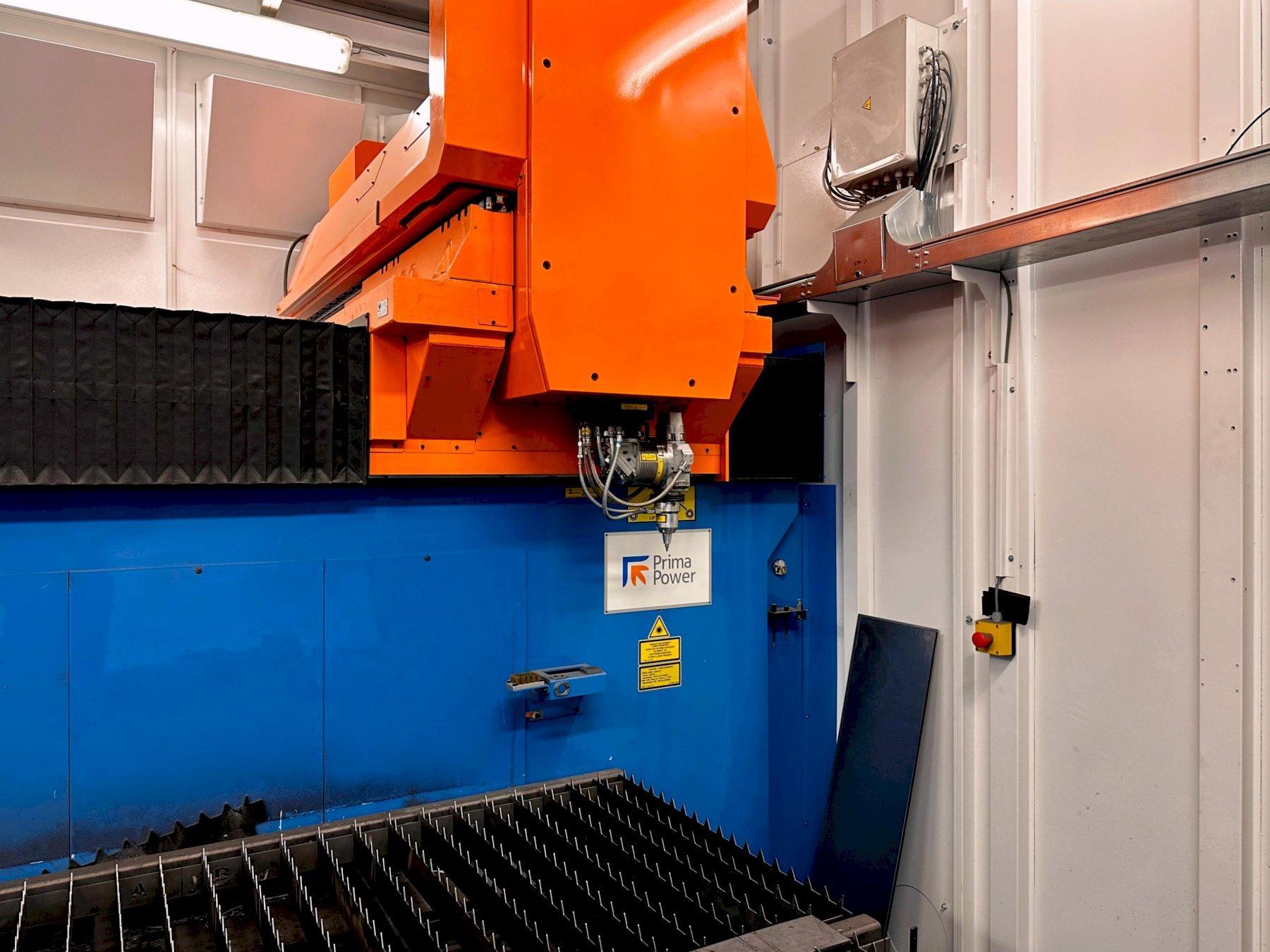

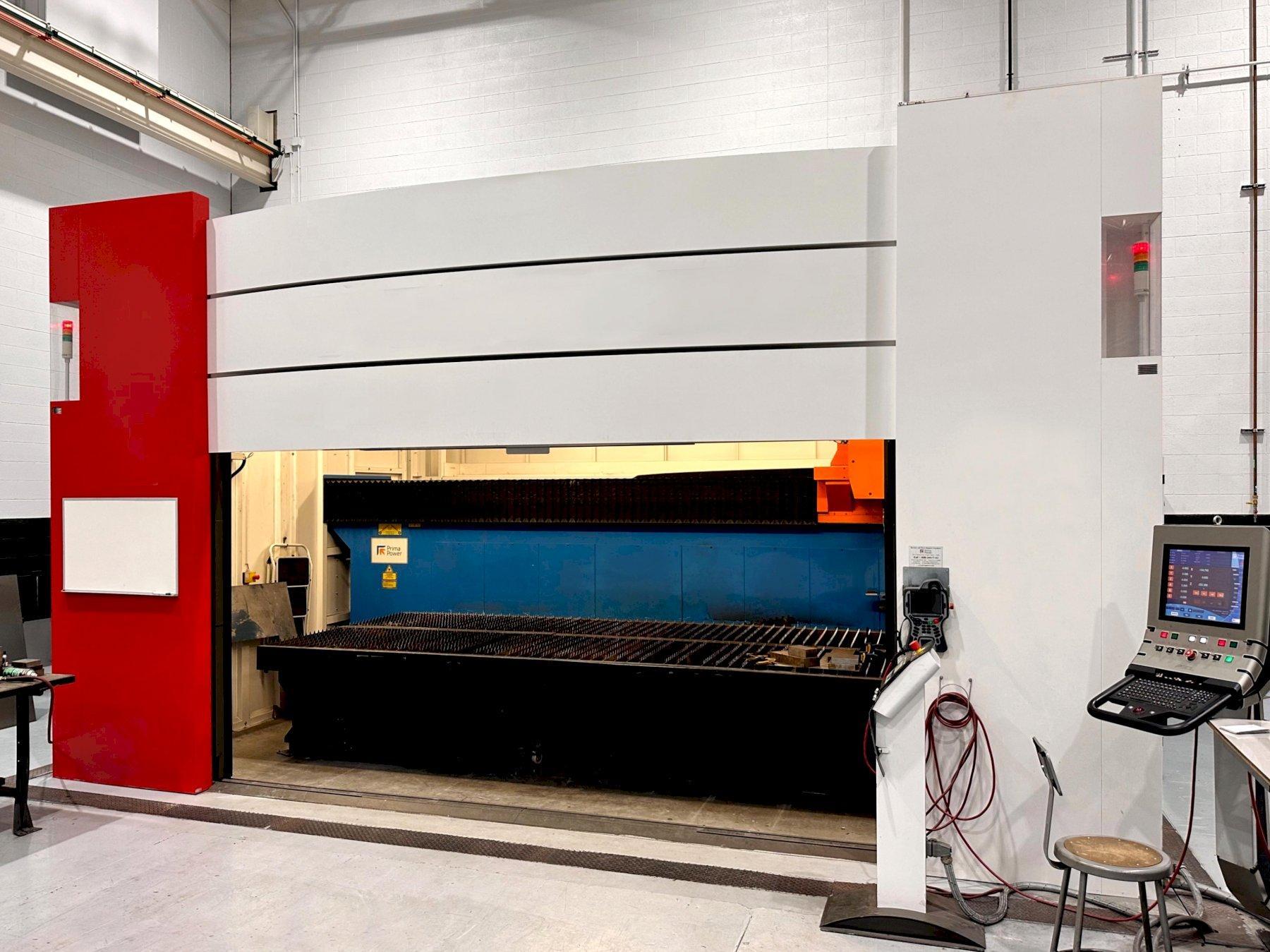

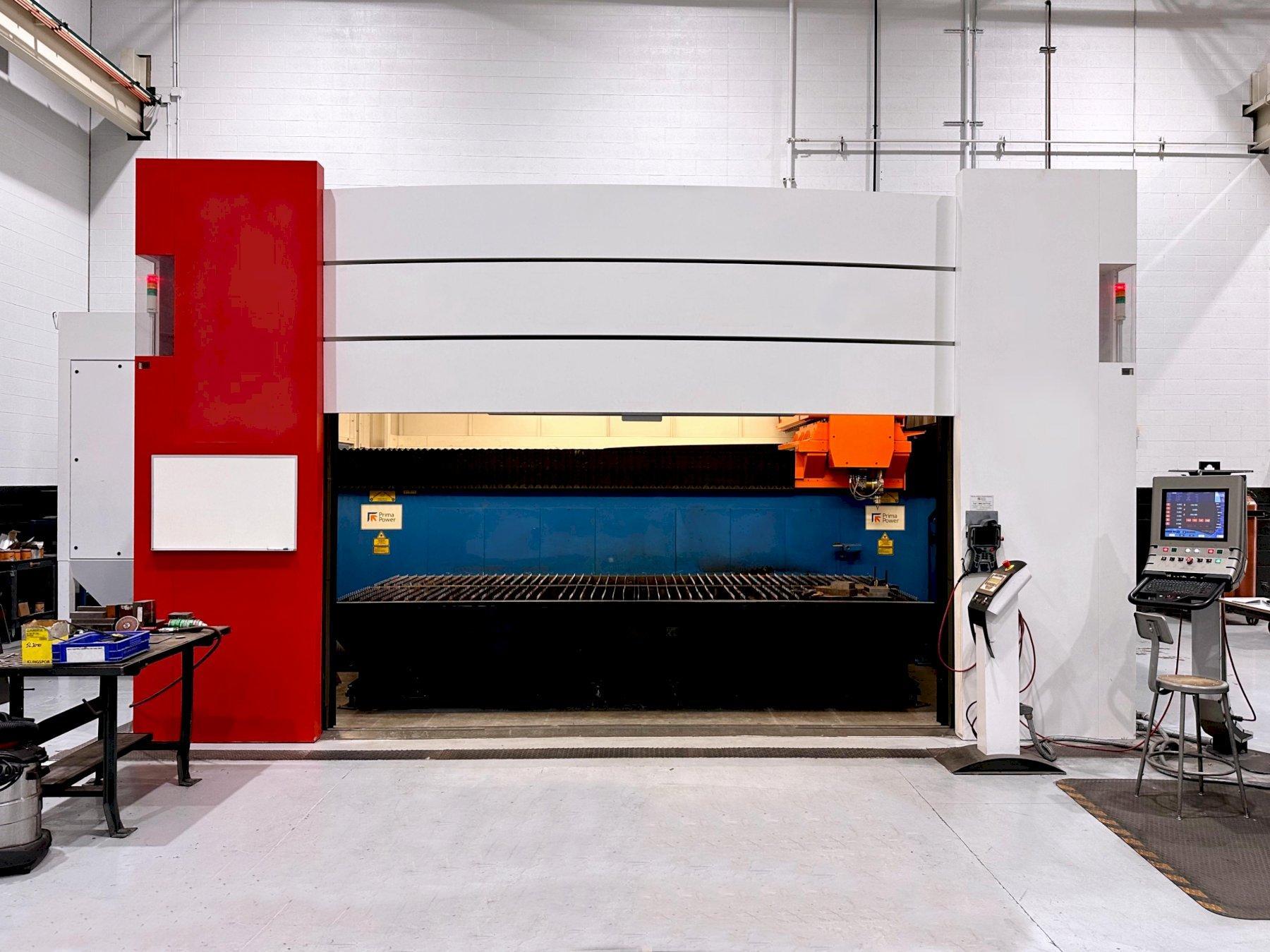

Prima Rapido Evo 2 5-Axis Fiber Laser
Brand
Category
Type
Model
Rapido Evo 2 Fiber
Stock #
100386
Year
2016
Condition
Excellent
Location
Not specified

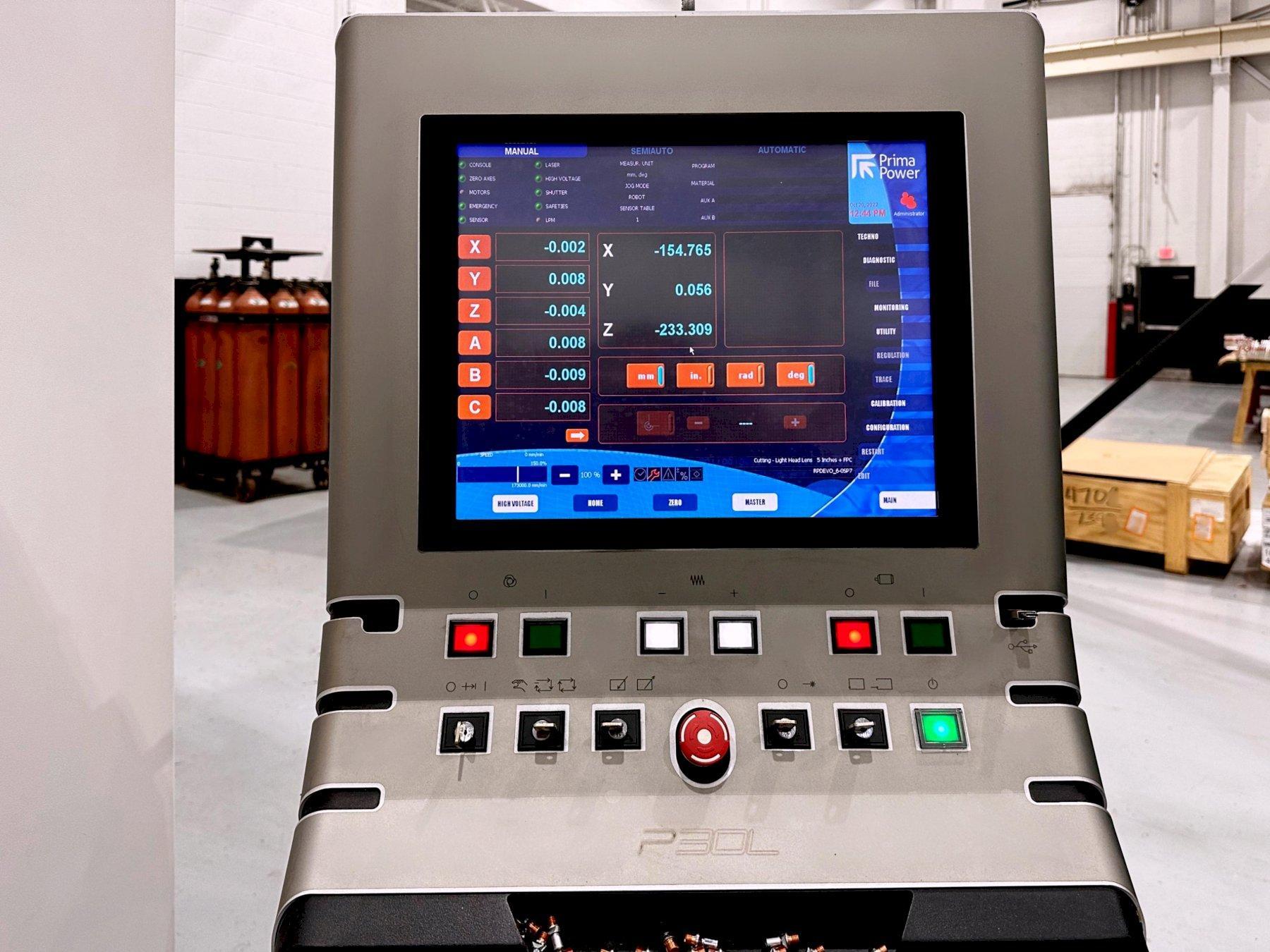

| Control | P30L CNC |
| Screen | 17” LCD Touch Screen |
| Power Type | Fiber |

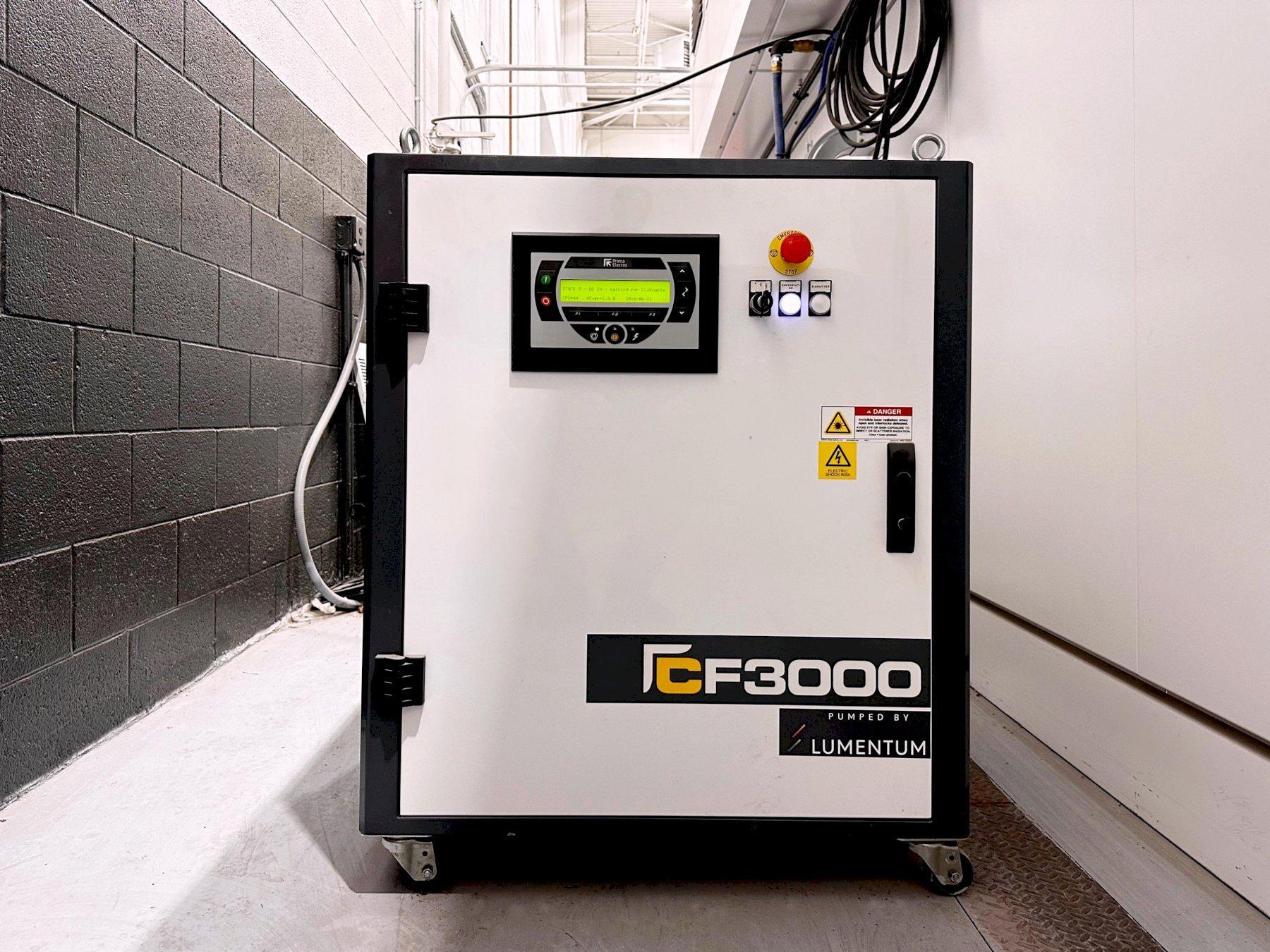

| Power Source | CF3000 (Lumentum) |
| Power Output | 3 kW (3,000 Watts) |

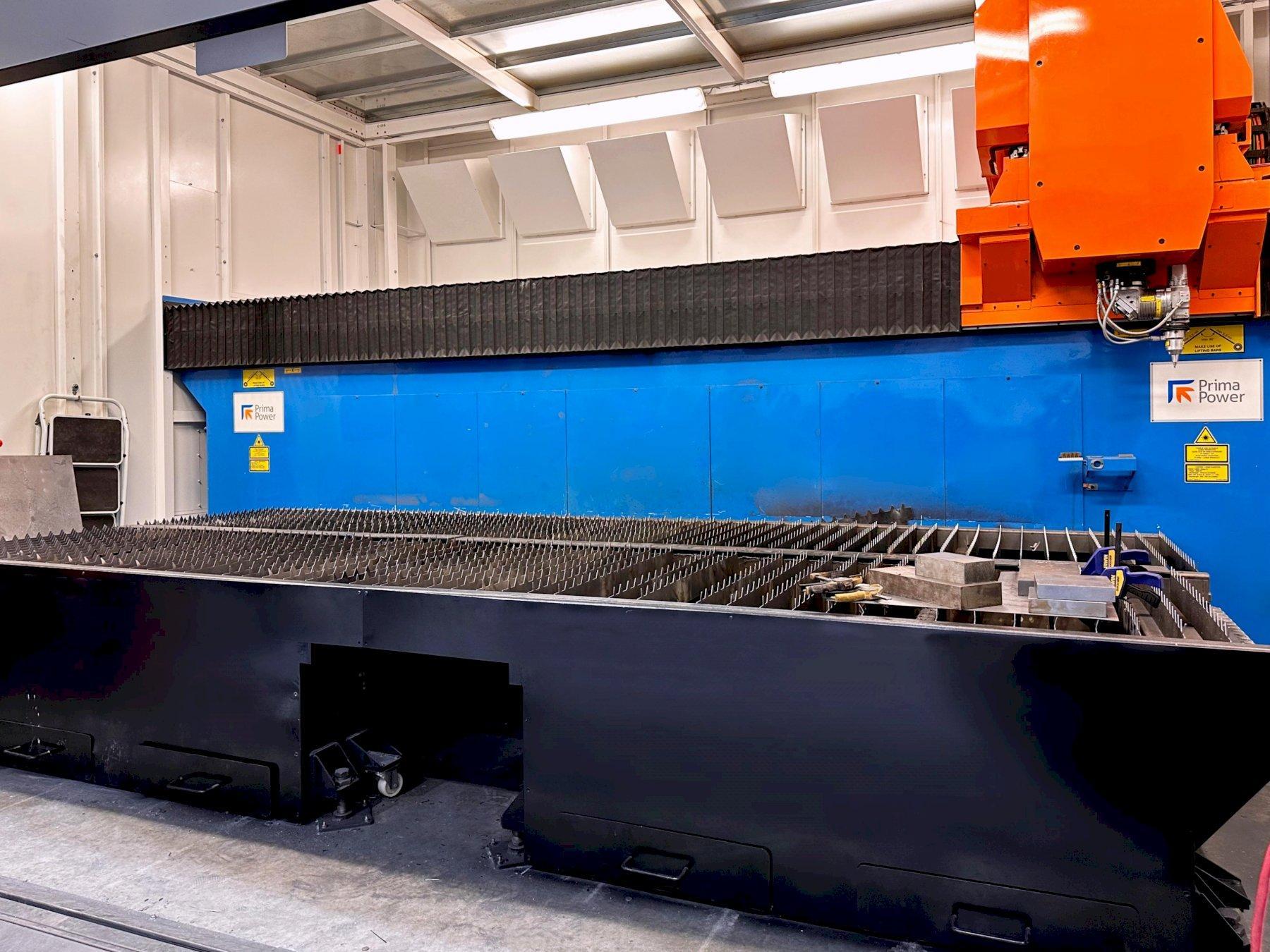

| Table Size | L 160” x W 60” x H 30” |
| X Axis Travels | 160.62” |
| Y Axis Travels | 60.23” |
| Z Axis Travels | 30.11” |
| A Axis Travels | 360° |
| B Axis Travels | ±135° |
| Axis speed X, Y, Z | 3,937 IPM |
| Axis Speed Trajectory | 6,889 IPM |
| Axis speed A, B | 1.5 rev/s |
| Acceleration Trajectory | 1.4 G |
| Acceleration X/Y/Z | 1.4 G |
| Acceleration A/B | 60 rad/s2 |
| Linear Axis Resolution | .0000393” |
| Head Axis Resolution | .00006 Deg. |
| Pos. Accuracy (Pa) X/Y/Z | .00118” |
| Pos. Accuracy (Pa) A/B | .005 Deg. |
| Pos. Repeatability (Ps) X/Y/Z | .00118” |
| Pos. Repeatability (Ps) A/B | .005 Deg. |
| Dimensions | L 273” x W 222” x H 147” |
| Weight | 41,226 Lbs. |
| Laser Power Consumption | 12 kW |
| Chiller Power Consumption | 6 kW |
|

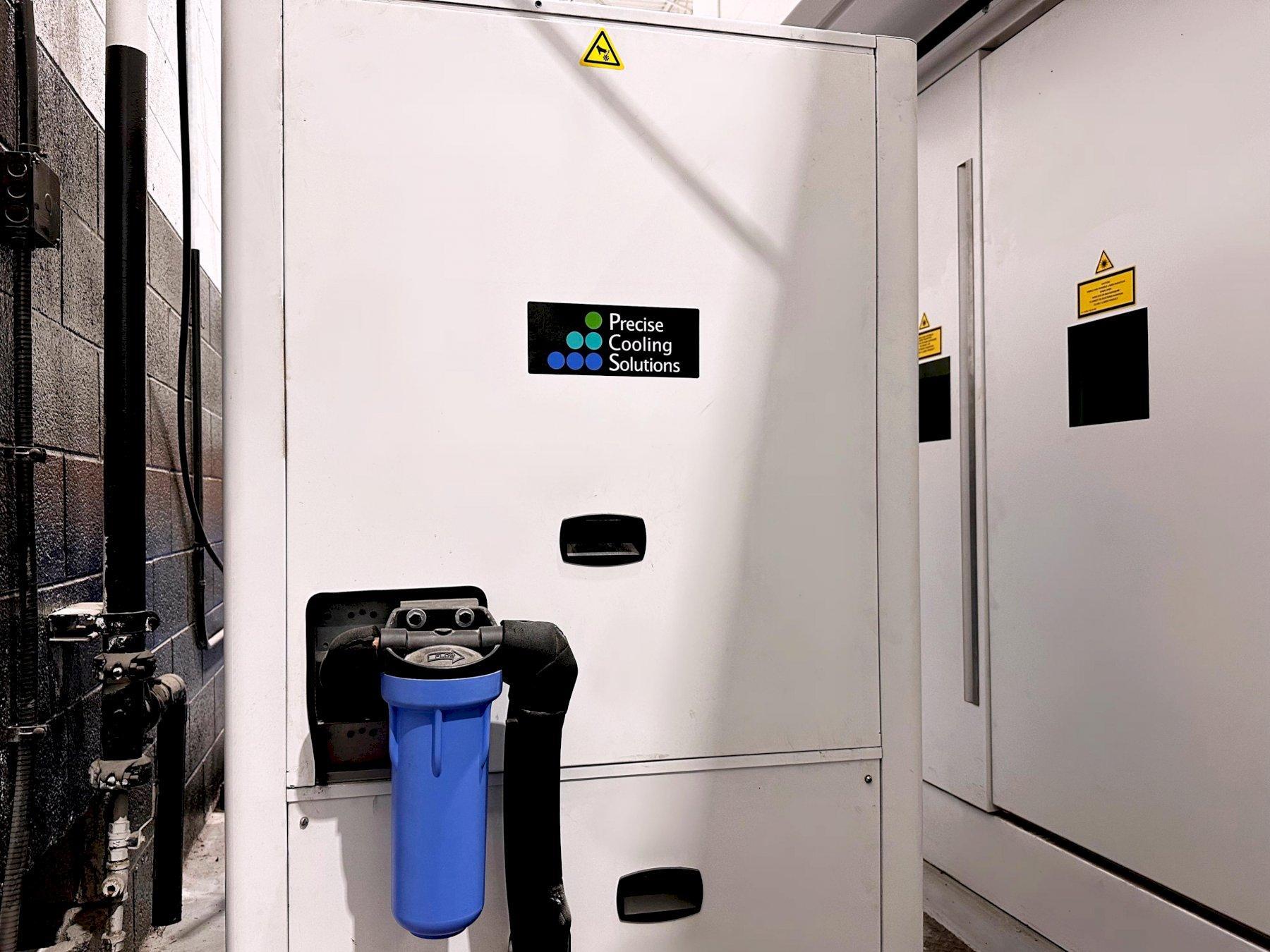

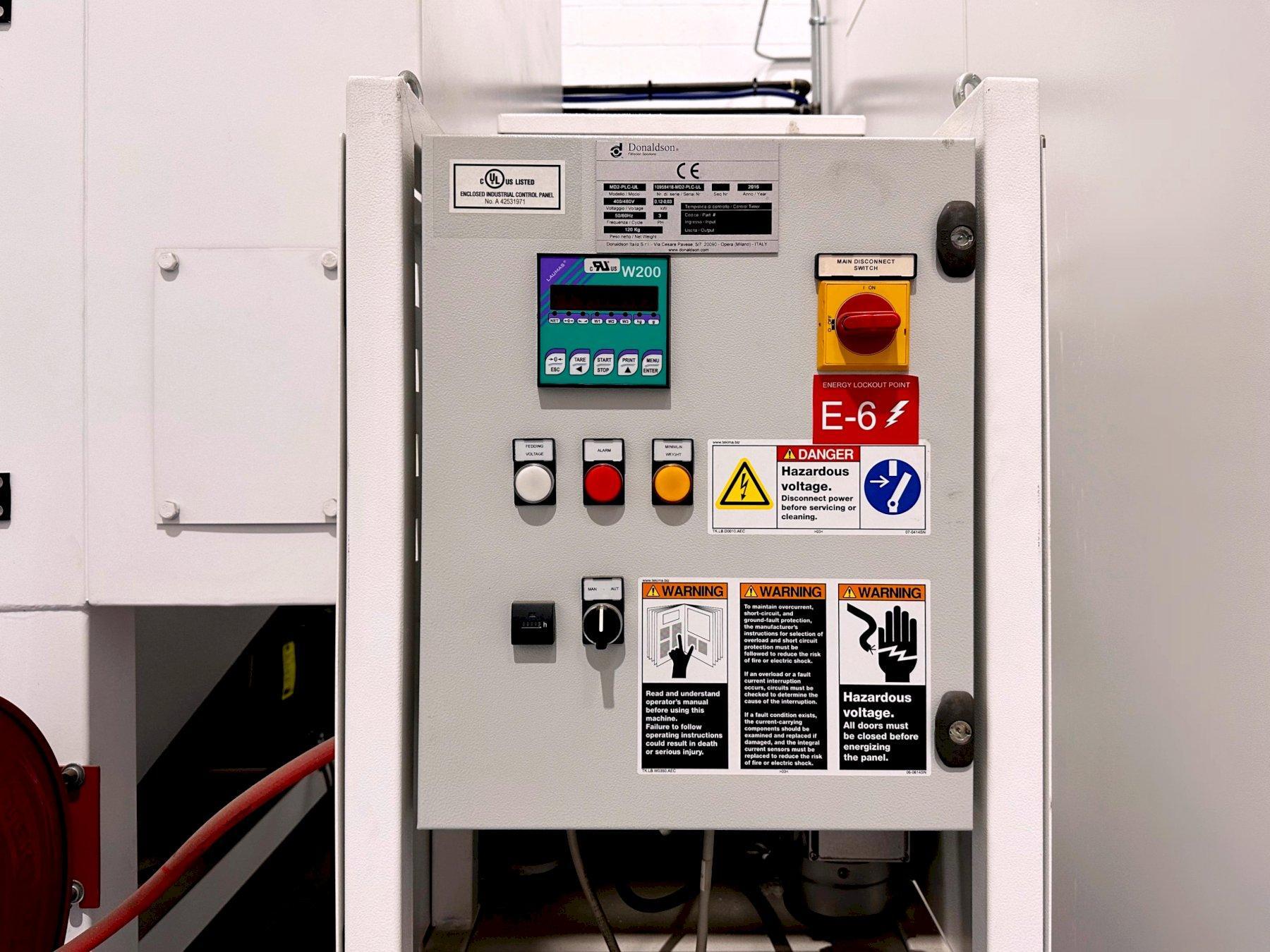

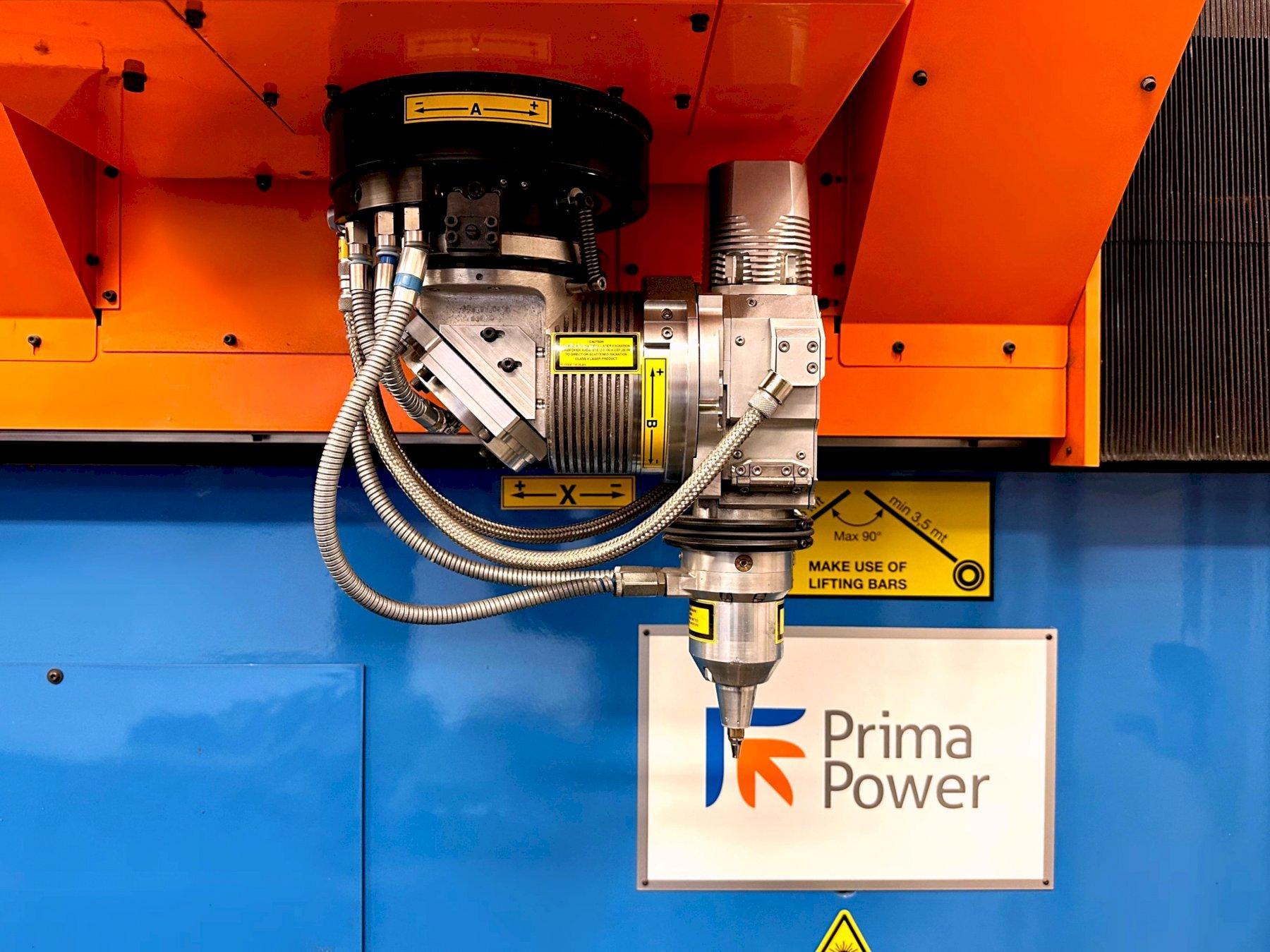

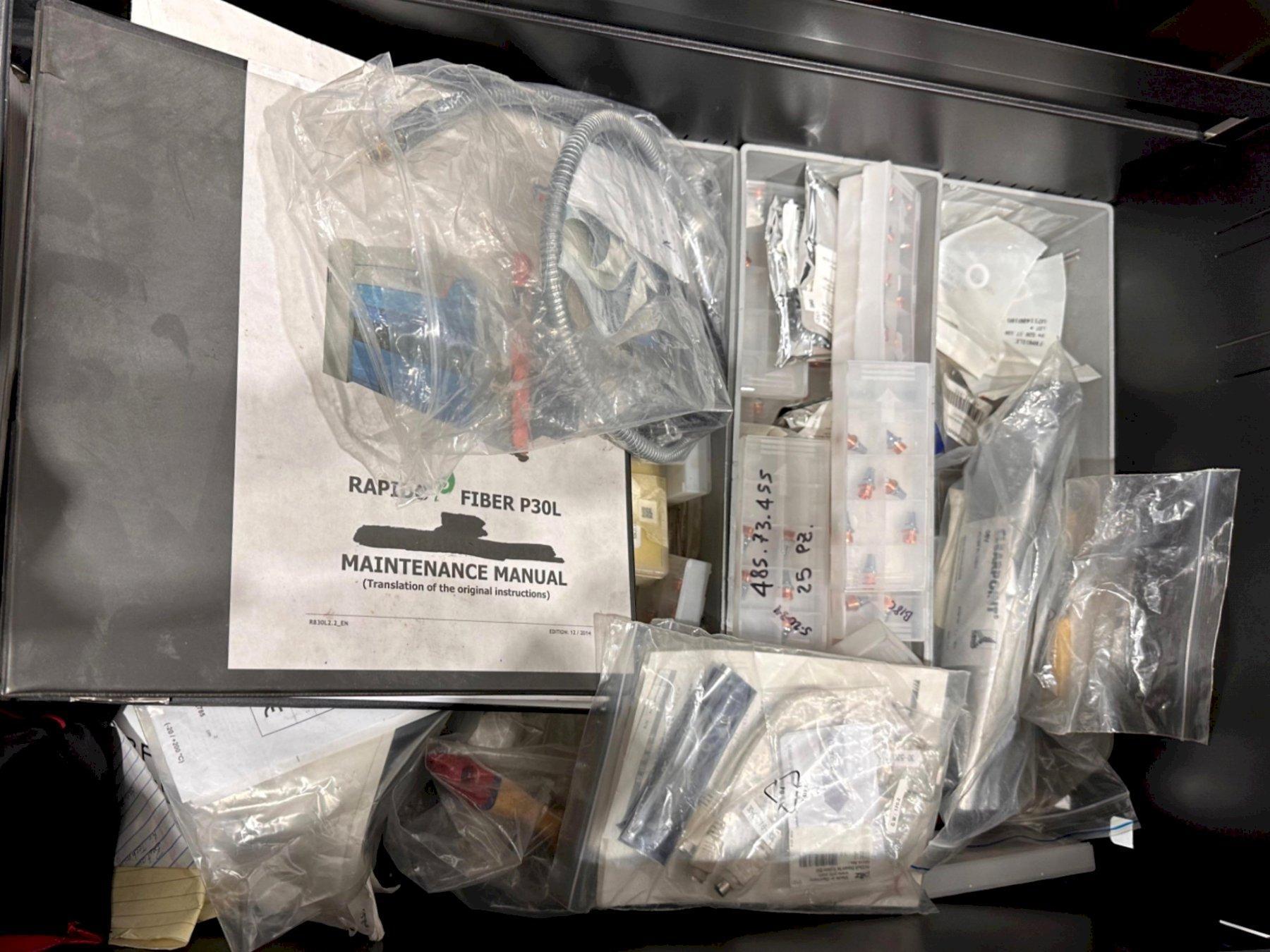

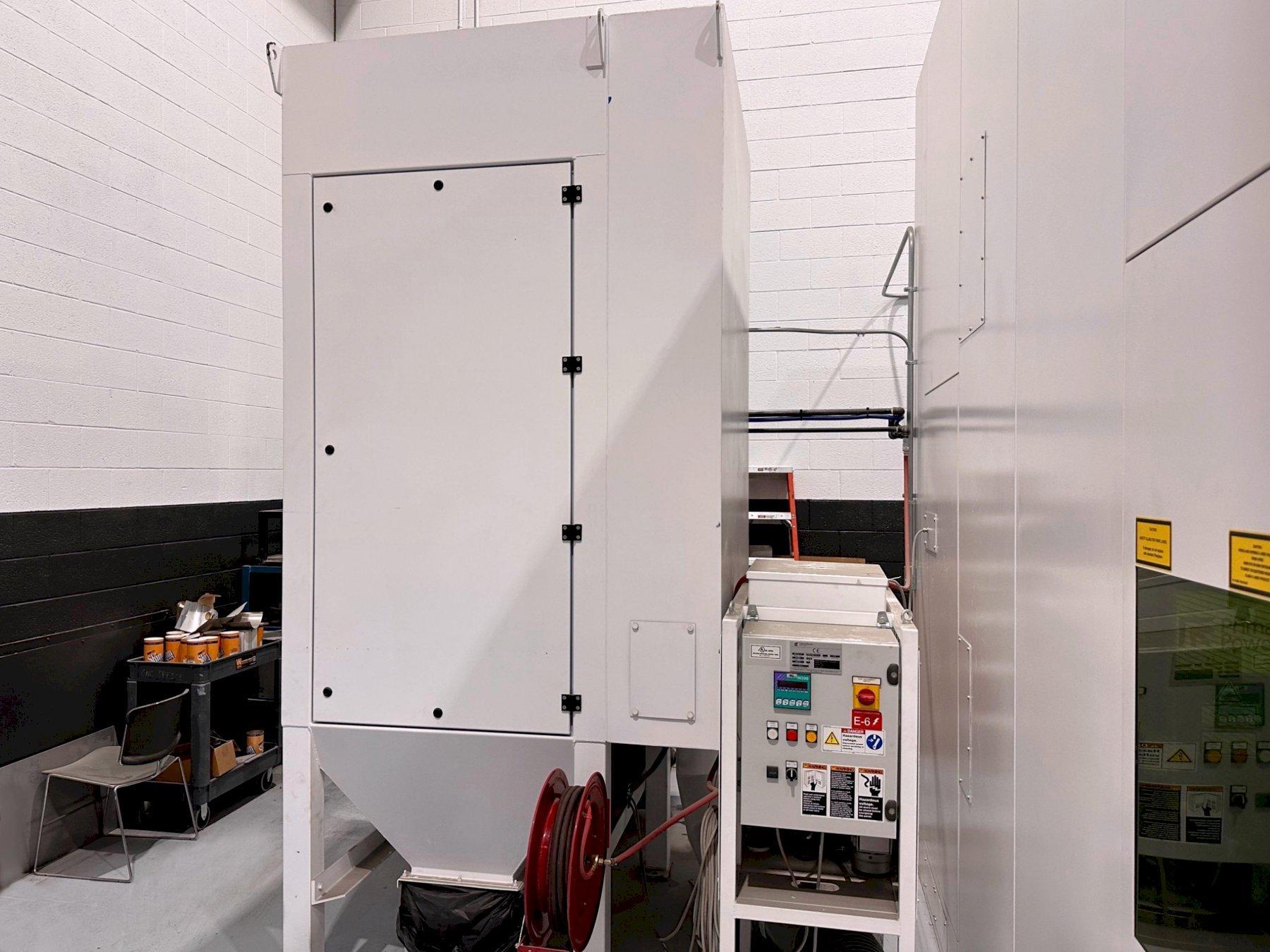

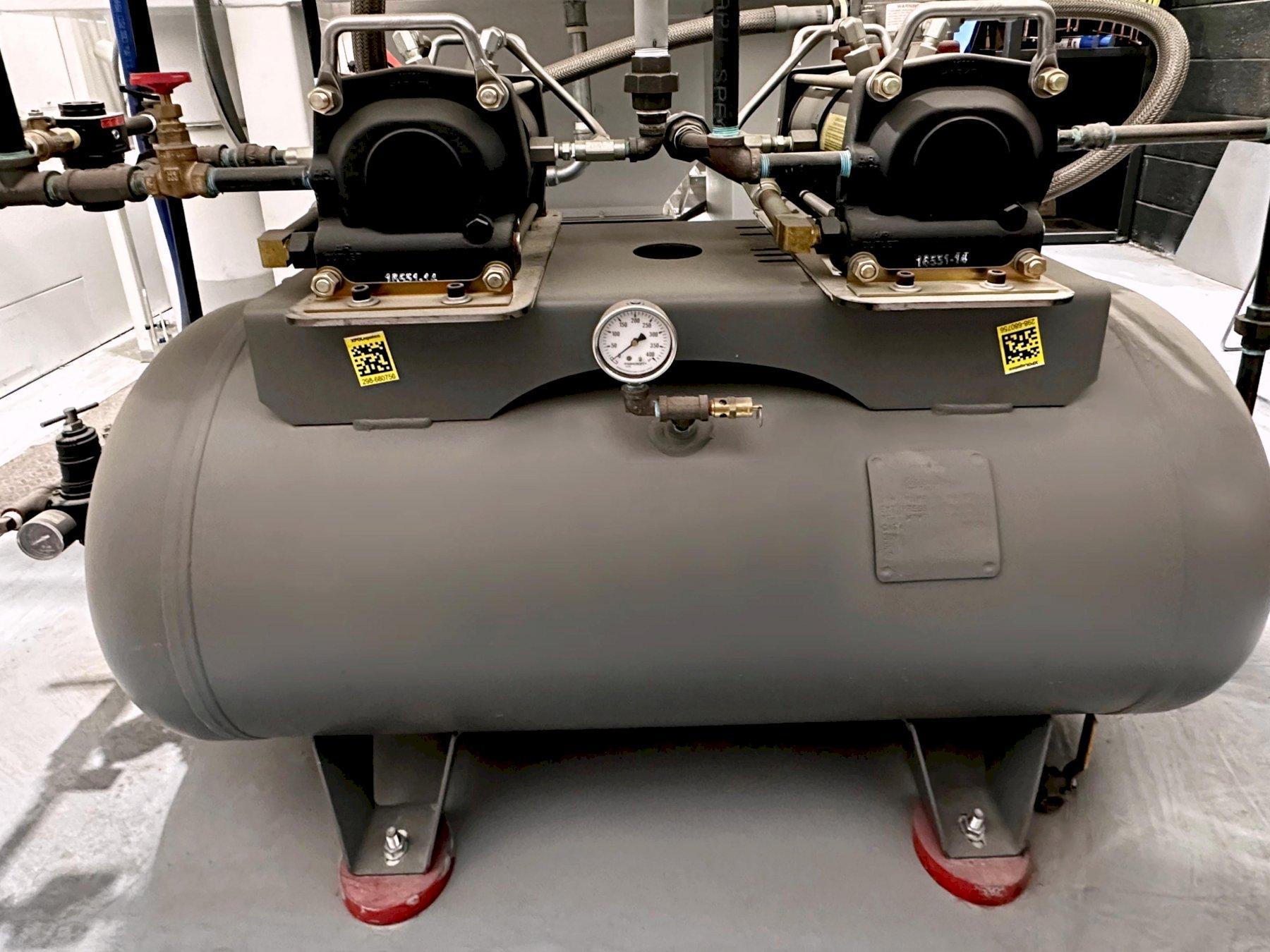

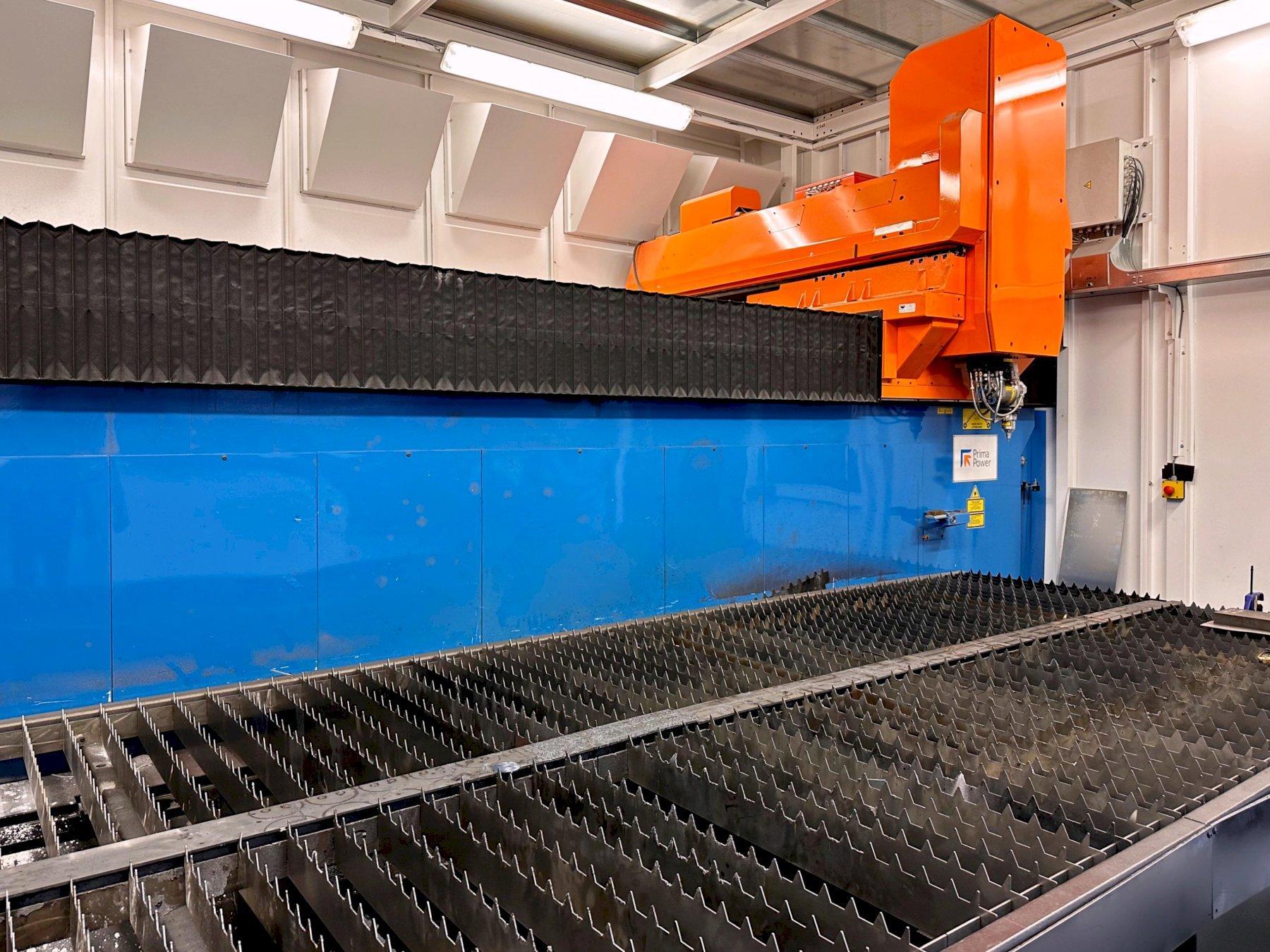

Equipped With: Prima P30L CNC Control 17” LCD Touch Screen CF3000 (Lumentum) Power Source 3D Anti-Crash Cutting Head Remote Assistance Module Air Compressor Precise Cooling Systems Chiller Donaldson DFPRO8 Dust Collector Misc. Consumable and Spare Parts All Available Manuals |
|
