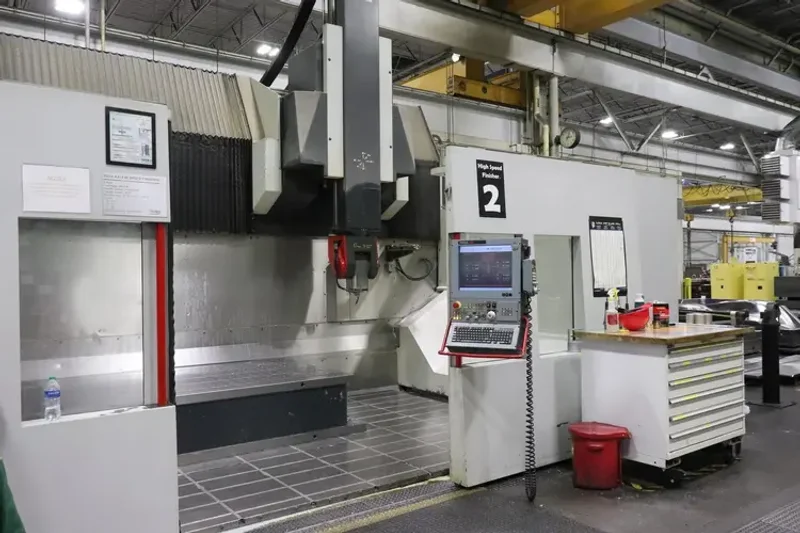

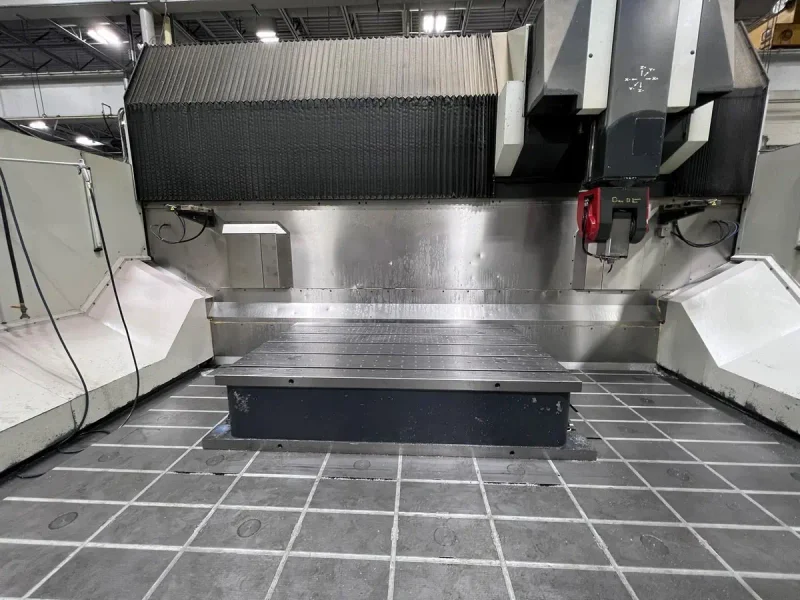

2005 FIDIA K 414 | Machining Centers, Gantry (incld. Bridge & Double Column)

2005 FIDIA K 414 | Machining Centers, Gantry (incld. Bridge & Double Column)

Brand

EREER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

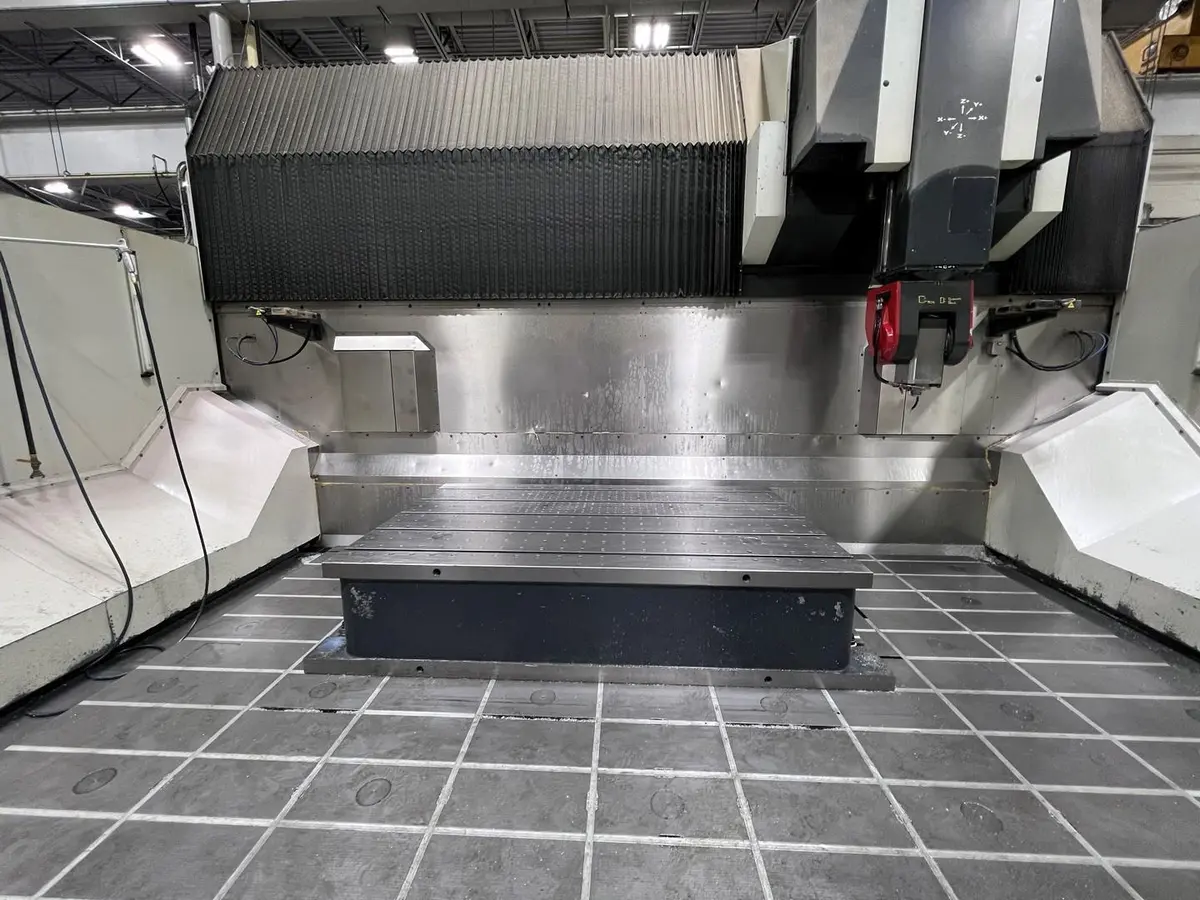

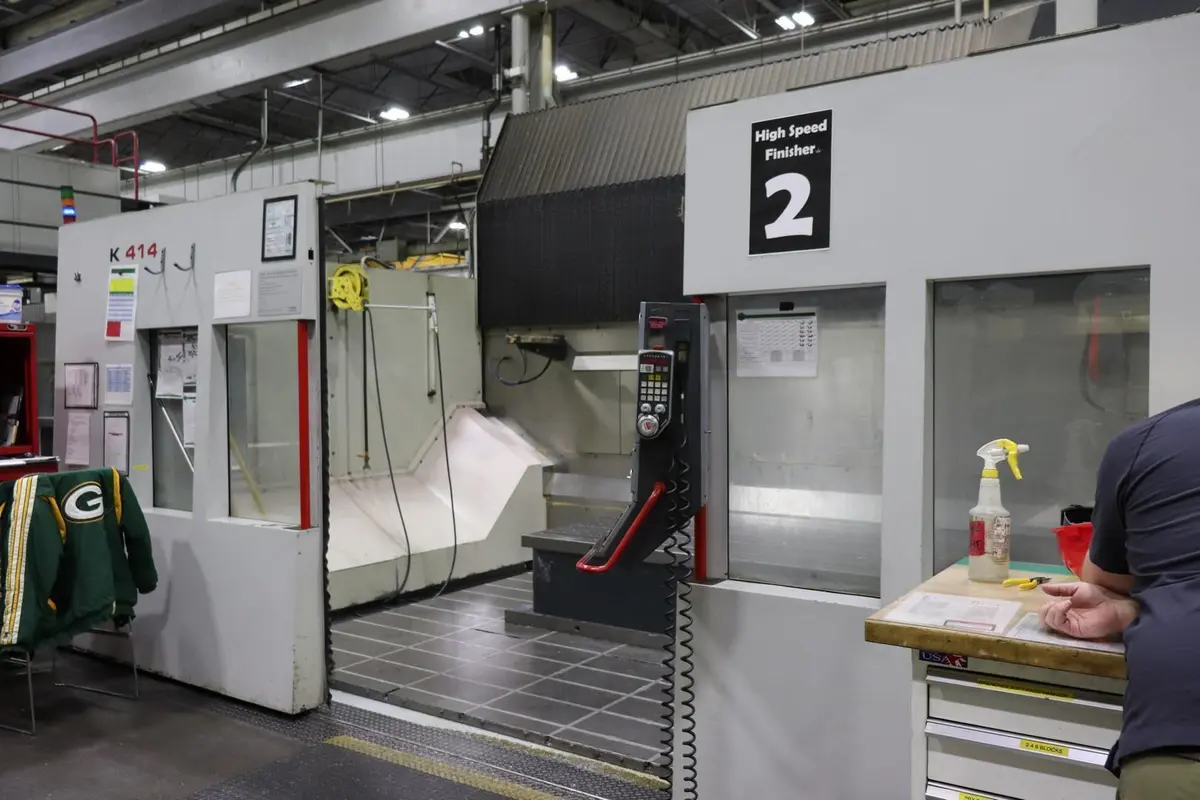

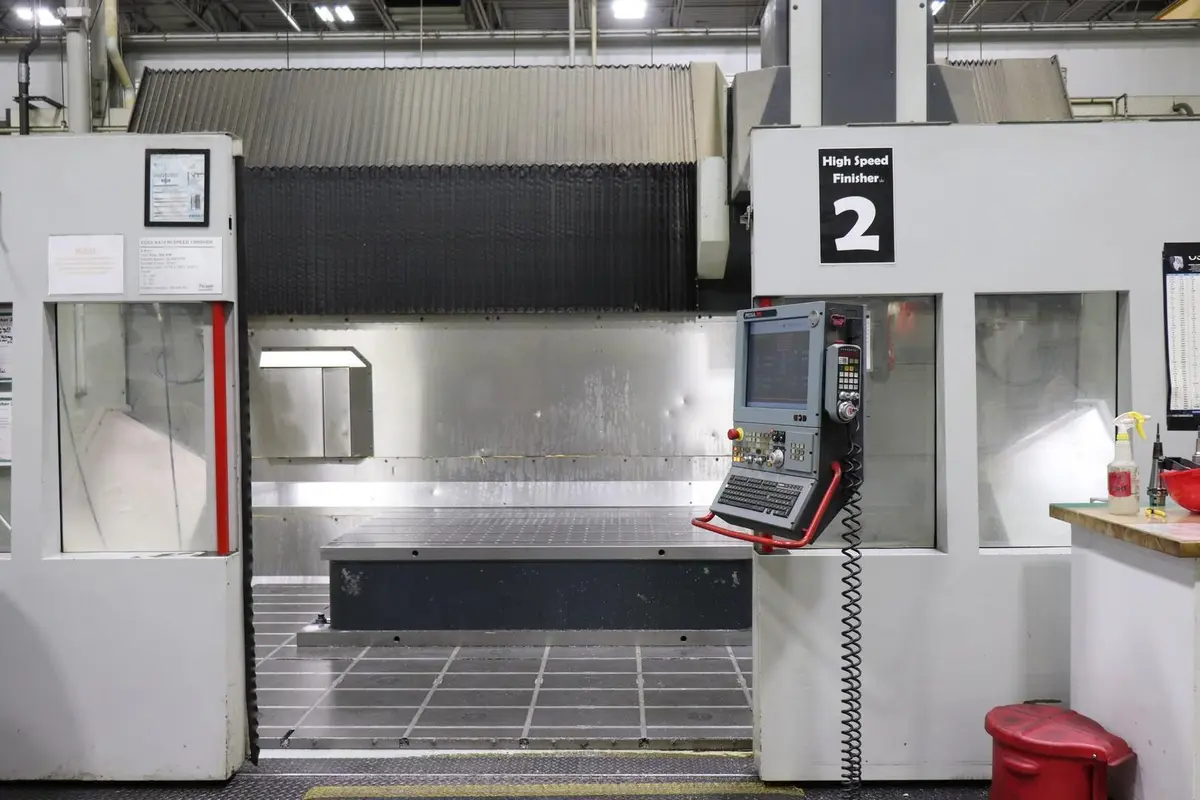

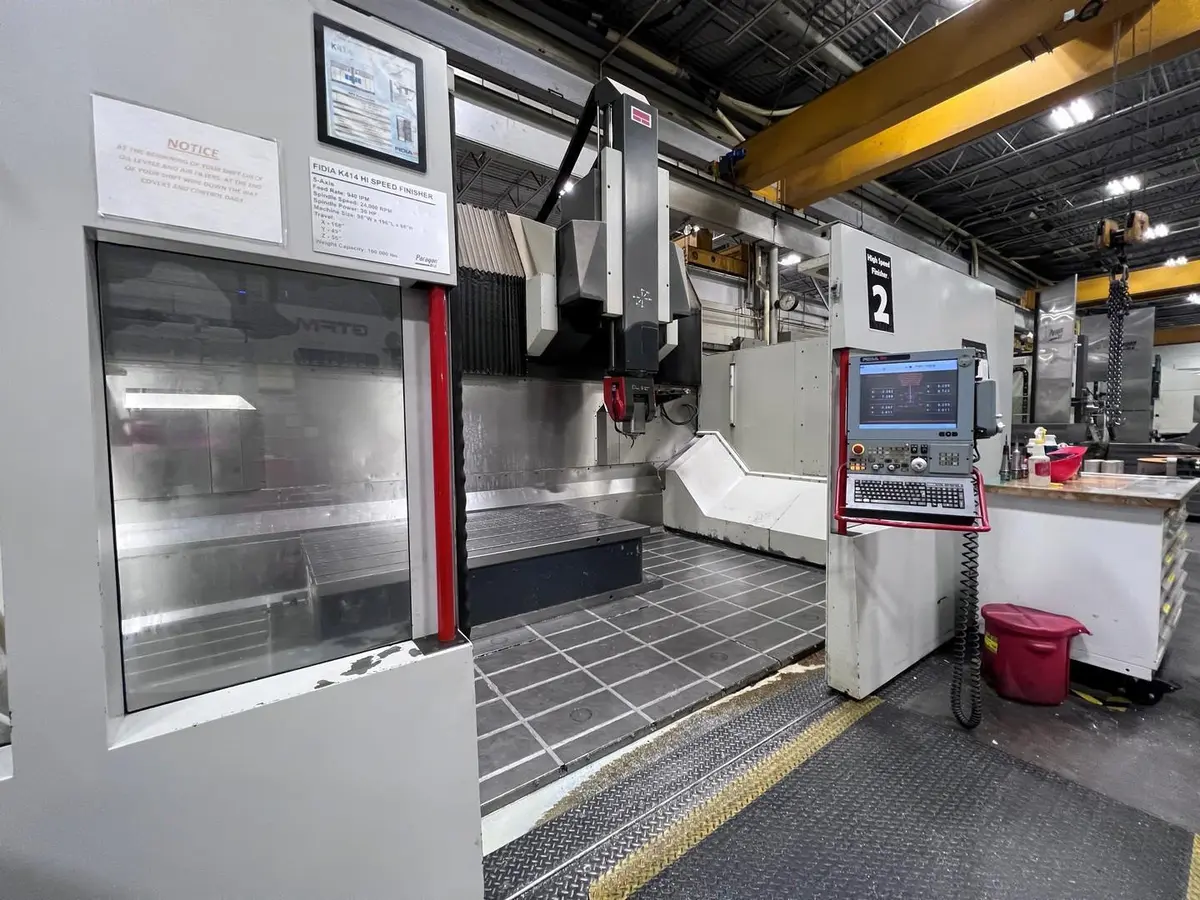

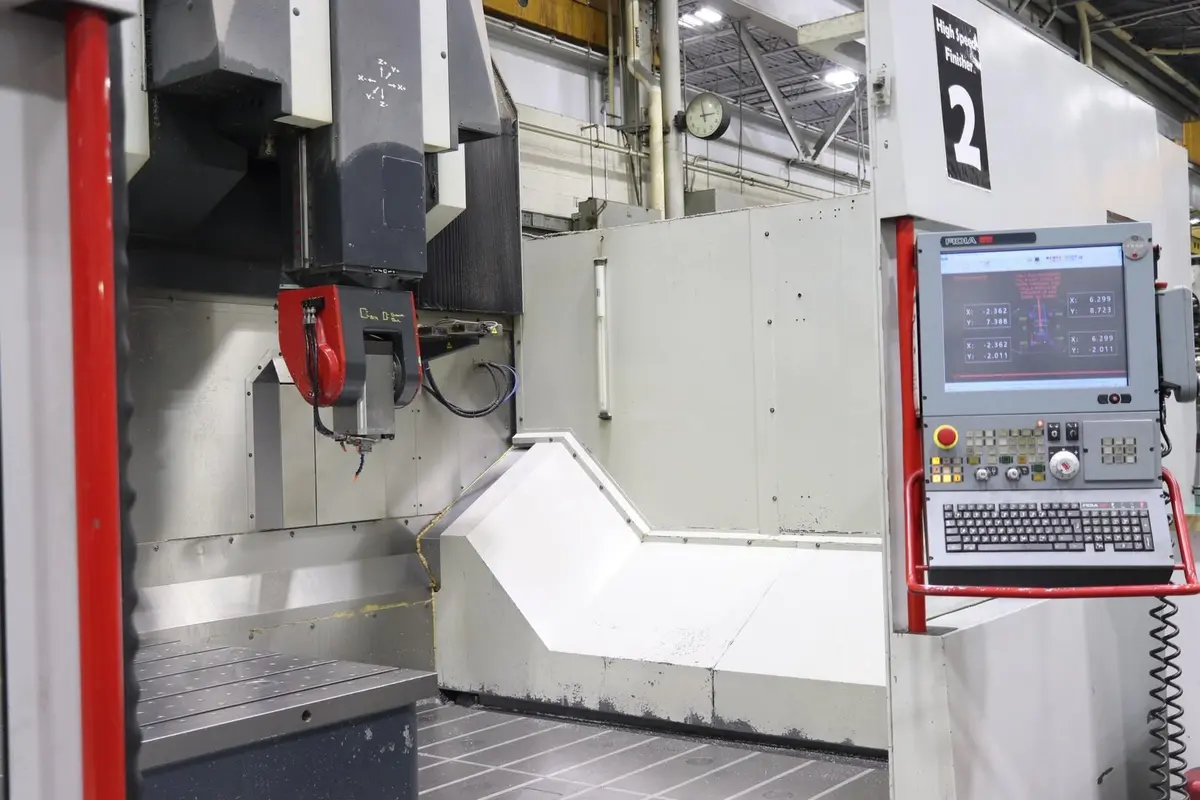

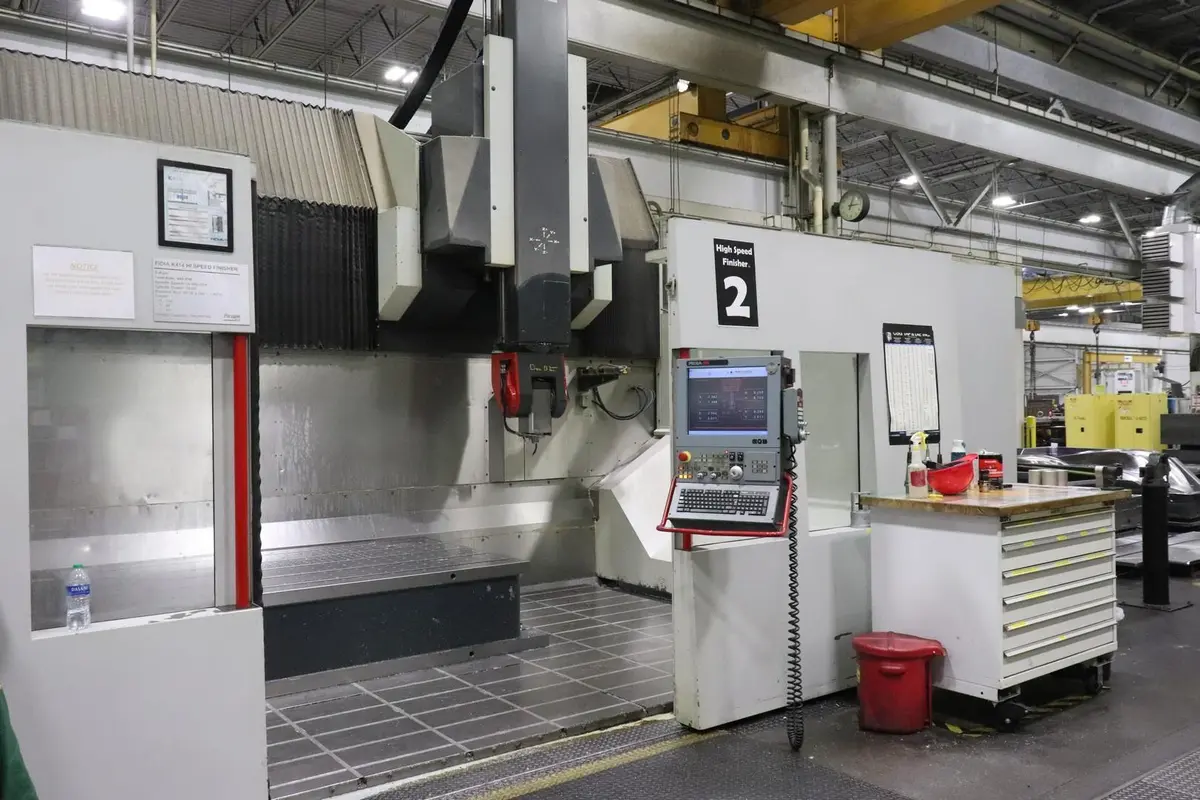

Fidia K414 5-Axis Machining Center

Specifications

Fidia K414 5-Axis Machining Center
New: 2005

Specifications:
Travels:
X-Axis: 168"
Y-Axis: 49"
Z-Axis: 55"
A-Axis: +110 - 94 degrees
C-Axis: +200 - 200 degrees
Daylight Under Spindle: 66-72"
Table Size: 198" x 118"
Table Weight Capacity: 100,000 lbs
Rapid Traverse Rate: 1100 IPM
Feed Rate: 940 IPM
Spindle Taper: HSK 63
Spindle KW: 55 KW
Tool Changer: 84
Spindle Speed: 24,000 RPM
Spindle Power: 30-70HP
Weight Capacity: 100,000 LBS

Equipped With:

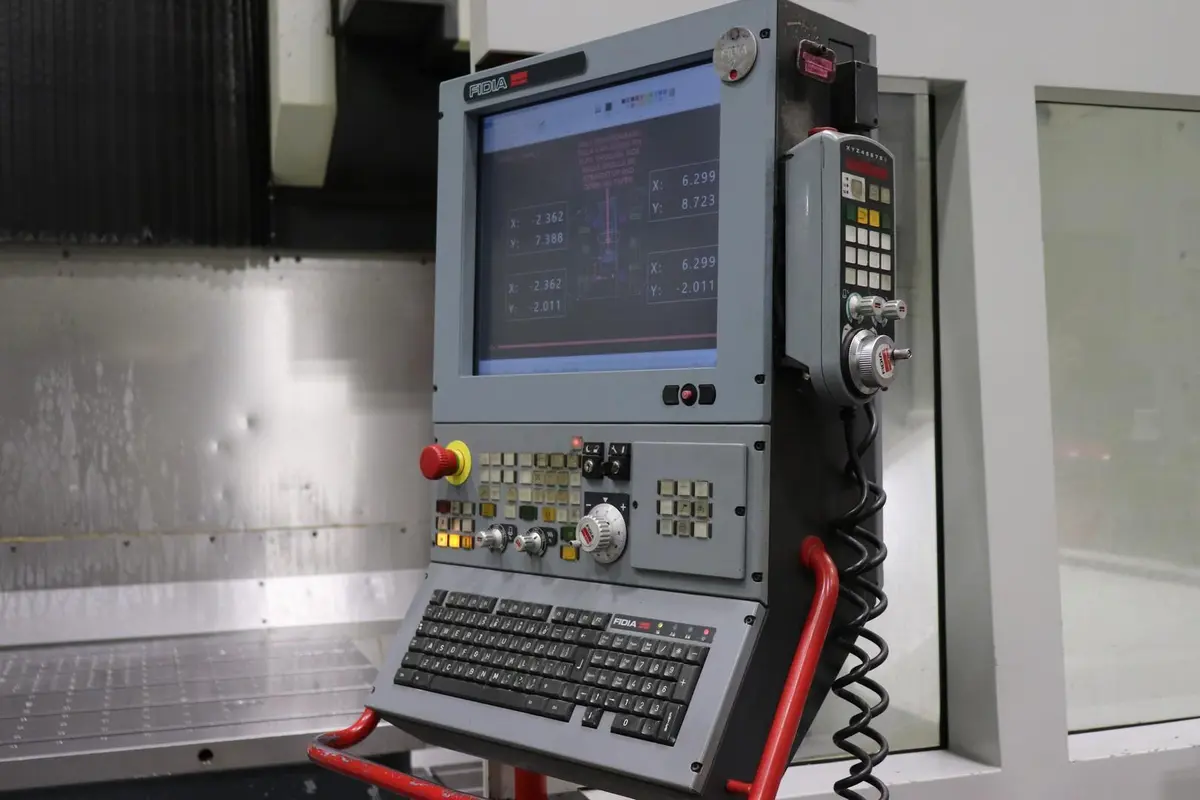

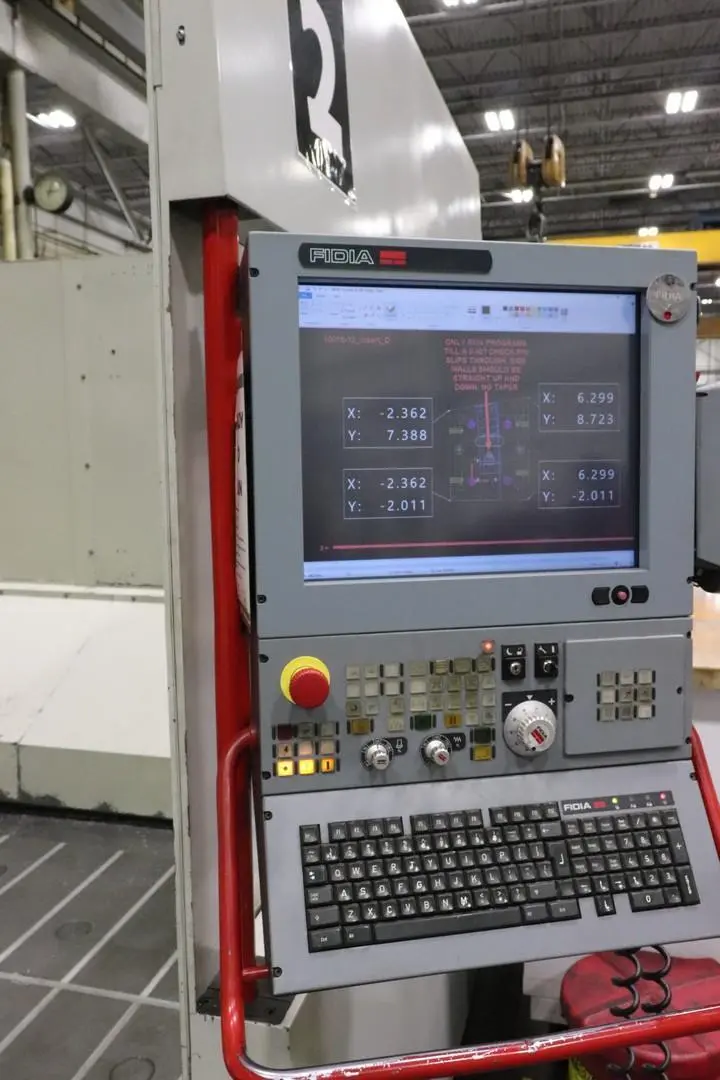

Fidia C-20X Control - Updated to WS5 with Touch Screen in 2021

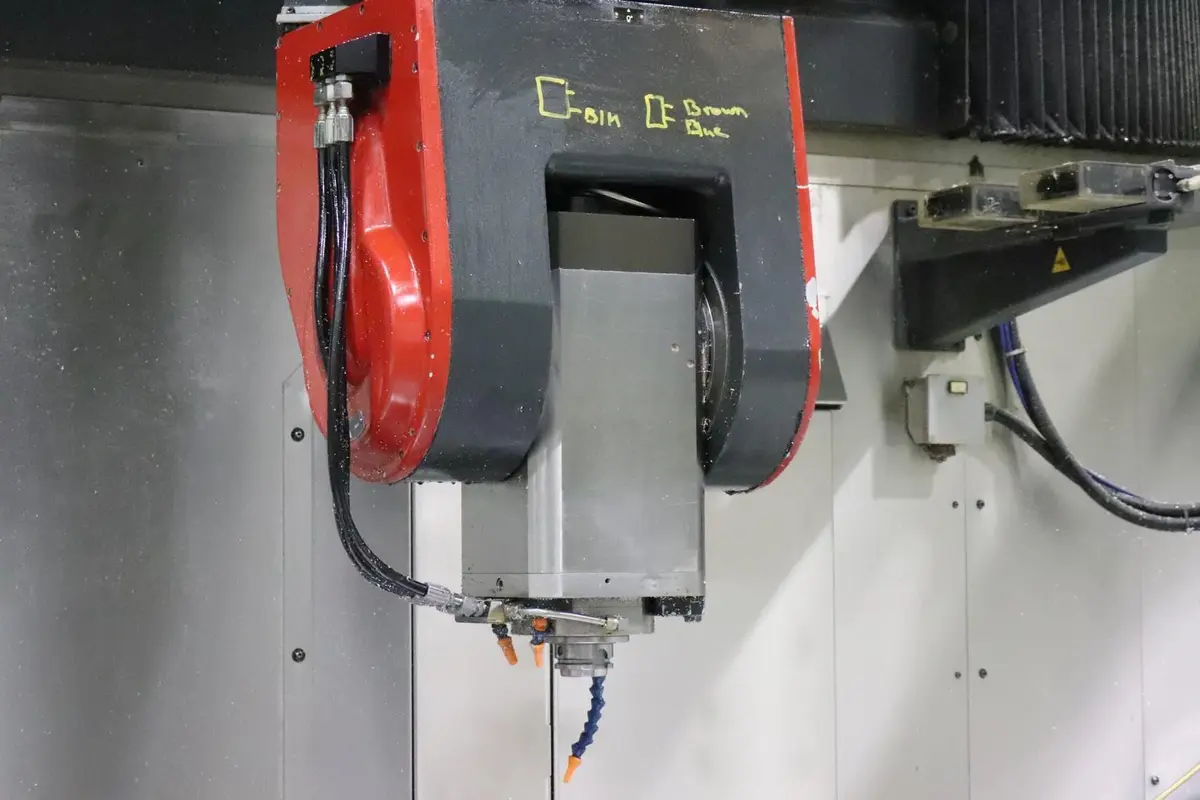

Continuous 5+2 Axis Head
Linear Ways
High Pressure Coolant Thru Spindle (1000 PSI)
Wired for Probe
Laser Tool Alignment
Tool Life M anagement Software
Special Fidia Logic
