Name: 2009 PROMAC ZEPHYR VTT 30 | Machining Centers, Gantry (incld. Bridge & Double Column)
Brand: PROMAC
SKU: 33402
Availability: InStock

Brand

PROMAC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Machining Centers, Gantry (incld. Bridge & Double Column)

Manufacturer:

PROMAC

Model:

ZEPHYR VTT 30

Year:

2009

Stock #:

33402

Description

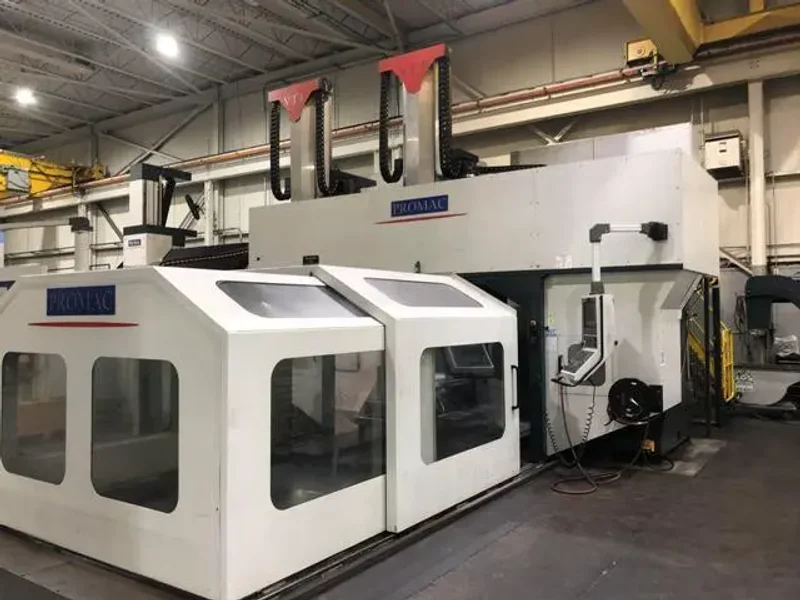

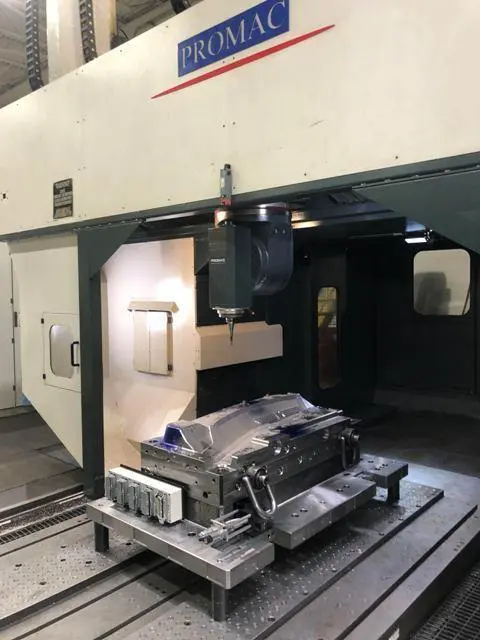

Promac Zephyr VTT 30 Dual Head Bridge Mill - New 2009!

Promac Zephyr VTT 30 Dual Head Bridge Mill
New: 2009
w/ (1) Roughing Head, (1) 5-Axis Finishing Head

Specifications:
Travels:
Longitudinal ......... X: 137"
Cross Travel Ram (1).. Y: 106"
Cross Travel Ram (2).. Y: 106"
Vertical Ram ......... Z: 47"
Distance Between Columns: 110"
Spindle Nose to Table...: 47"
Table Size..............: 118" x 79"
Table Max. Load.........: 55,000 Lbs.
Spindle Motor...........: 40 HP
Spindle Speed 5 Axis Head HSK 63...: 20,000 RPM
Spindle Speed Roughing Head HSK 100: 8,000 RPM

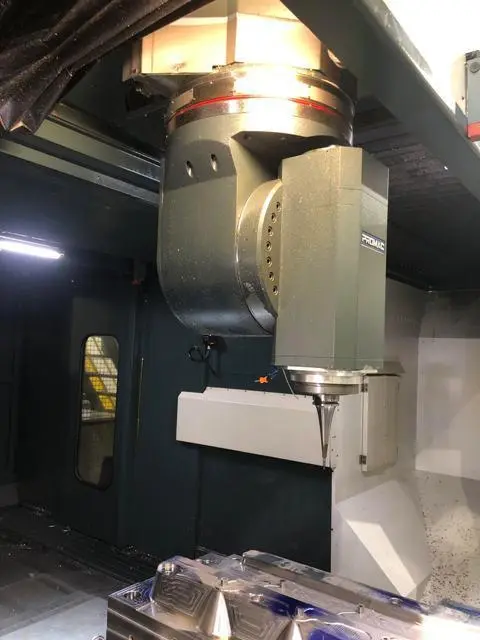

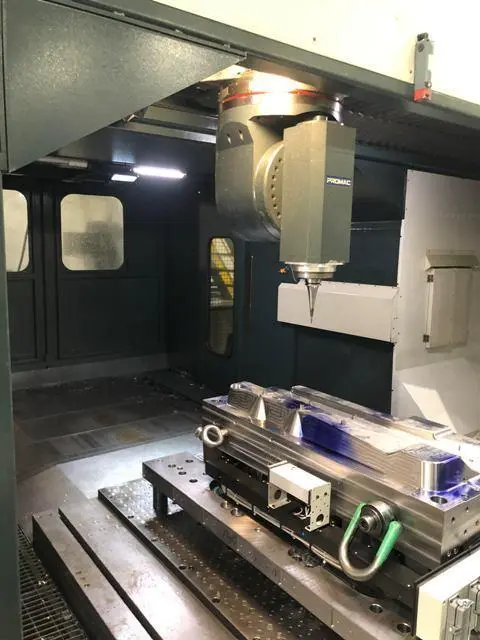

SPINDLE #1 (5) AXIS:
Spindle Speed: 20,000 RPM
Torque: 85Nm
Taper: HSK 63A
Max power: 40HP

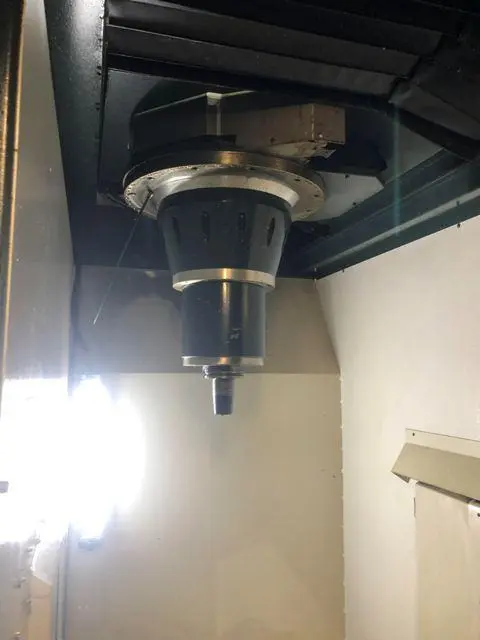

SPINDLE #2 ROUGHING HEAD:
Spindle Speed: 6000 RPM
Torque: 830 Nm
Taper: HSK 100
Max power: 73HP

No. of Tool Changers: 2
40 ATC HSK 63A
20 ATC HSK 100

Spindle Head #1 (5) Axis : A axis +/- 110 deg.
C axis +/- 360 deg.

Equipped With::

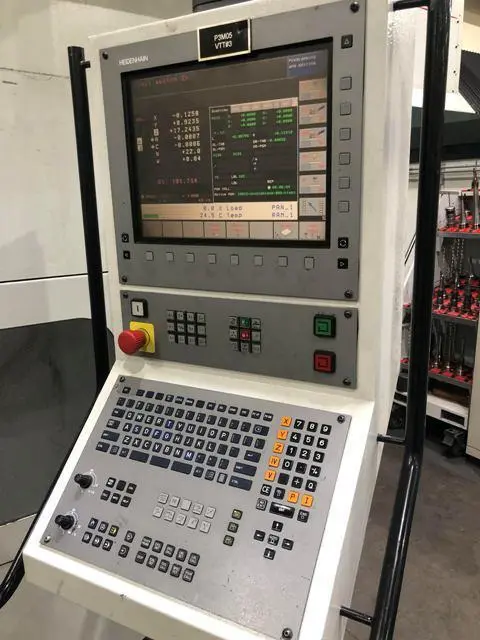

Heidenhain iTNC 530 CNC Control
(2) Full Length Chip Conveyors
Probe Reader with Software
T-Slotted Table
Sliding Door Enclosure
Remote Jog Handle All Axes
Chiller Units
400 Volt 60 Hz Electrics
