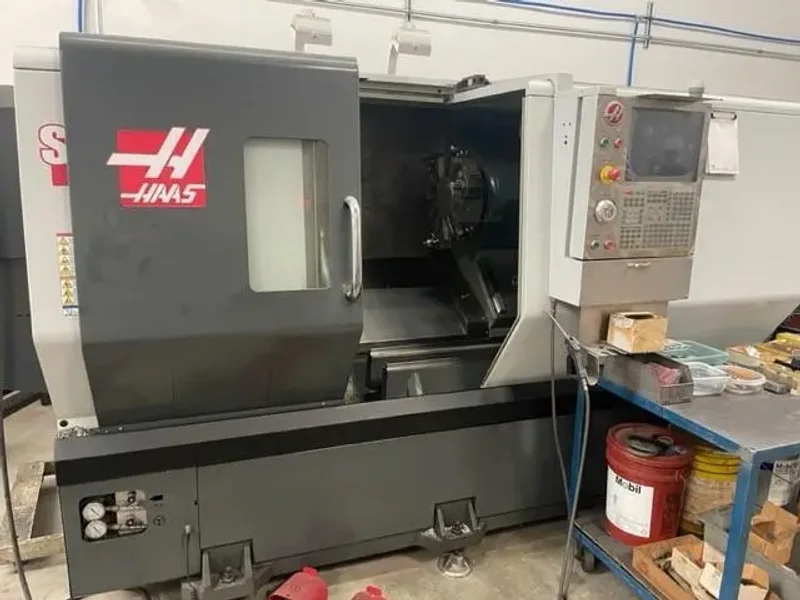

2014 HAAS ST-30 | Lathes, CNC

Name: 2014 HAAS ST-30 | Lathes, CNC
Brand: FRIAUL
SKU: 33468
Availability: PreOrder

Brand

FRIAUL

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Lathes, CNC

Manufacturer:

HAAS

Model:

ST-30

Year:

2014

Stock #:

33468

Status:

For Sale

Description

Haas ST-30 CNC Lathe

ImperialMetric

Swing	31"	787.4 mm
Machining Length	26"	660.4 mm
# Axis	2	2
Chuck Size	10"	254 mm
Bar Capacity	3"	76.2 mm
Power	30 hp	22.4 kW
Max RPM	3,400 RPM	3,400 RPM
Turning Dia	21"	533.4 mm
Tailstock	Yes	Yes
Live Tooling
Sub Spindle

Haas ST-30 CNC Turning Center
New: 2014

Specifications:
Bar Capacity: 3.0"

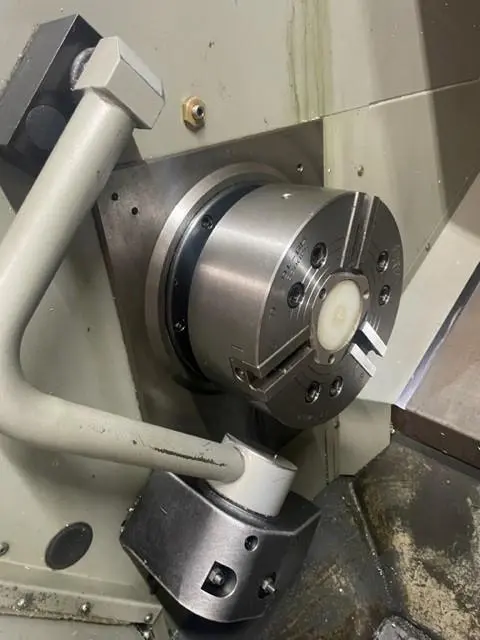

Chuck Size: 10"
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP
X-Axis Travel: 12.5"
Z-Axis Travel: 26"
Rapid Rates: 945 IPM
Turret: 12 Station
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Spindle Nose: A2-6

Equipped With::

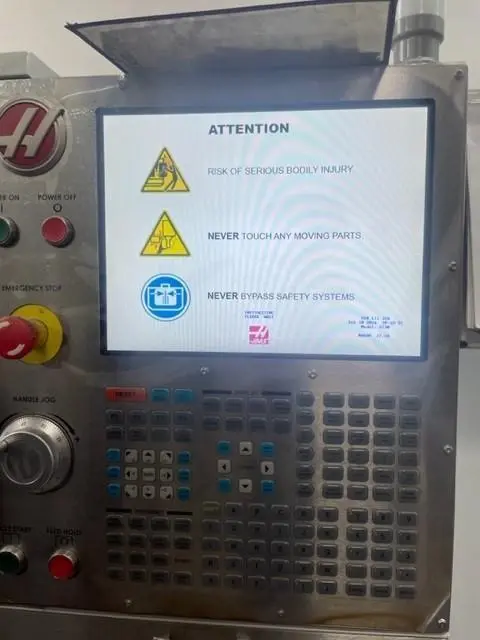

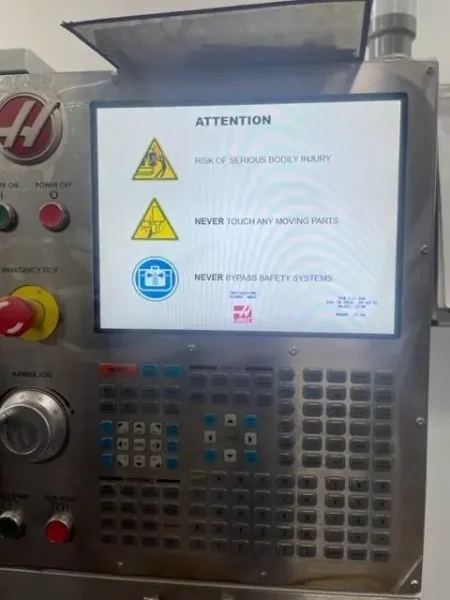

Haas CNC Control
3400 RPM Gear Drive Spindle
High Pressure Coolant (300 PSI)
Chip Conveyor (Belt-Type)
Programmable Tailstock
Auxiliary Coolant Filter
Automatic Tool Presetter
Bolt-On Style Turret
Expanded Memory
High Intensity Lighting
Rigid Tapping
Spindle Orientation
