2015 CHIRON FZ12 FX | Machining Centers, Vertical, (5-Axis or More)

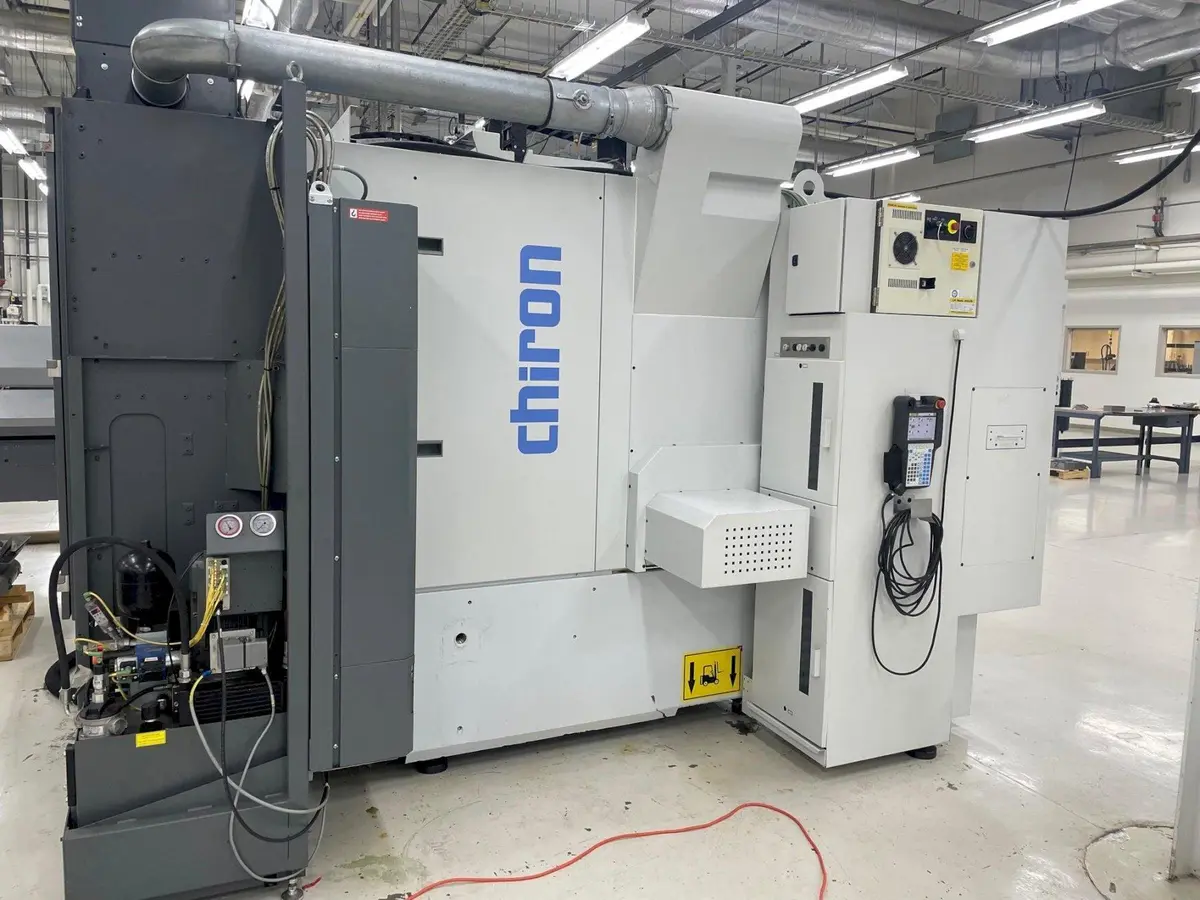

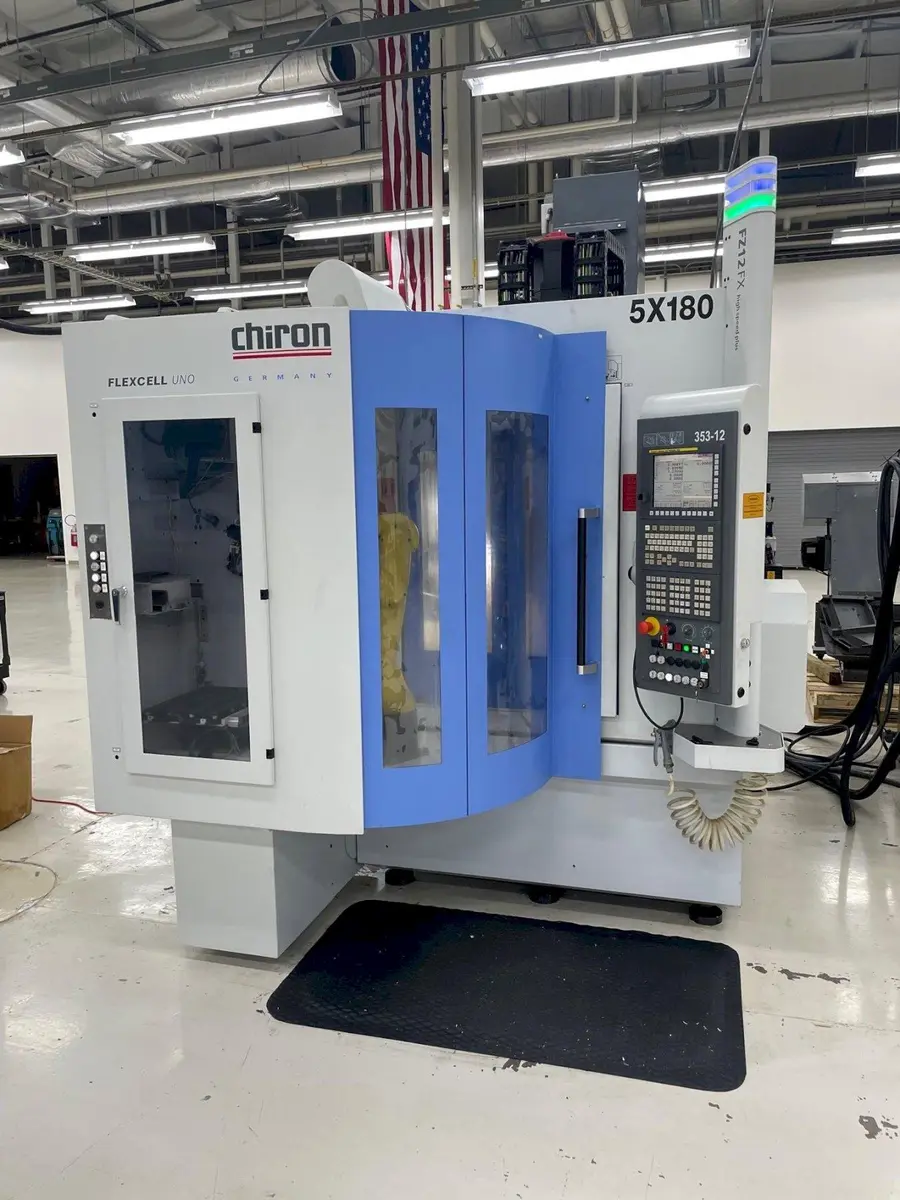

Chiron FZ12 FX CNC 5-Axis Vertical Machining Center
New: 2015

Specifications:

 Travels:
 X-Axis 21.654"
 Y-Axis 15.748"
 Z-Axis 15.748"
 # Axis 5
 Power 48.3 hp
 RPM 24,000 RPM
 # ATC 48
 Taper HSK50A
 Weight 15,500 lbs
 Control CNC (Fanuc 31IB5)

Equipped With::

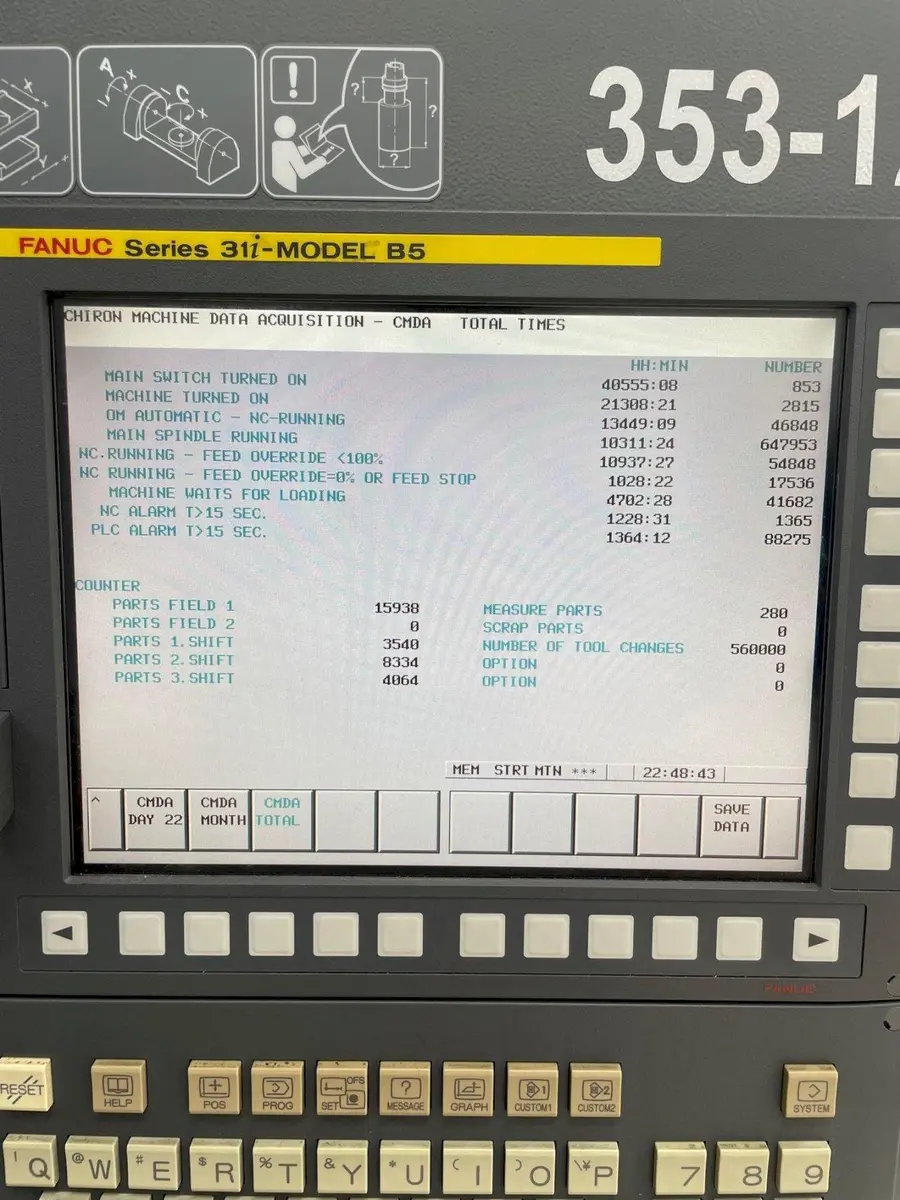

Fanuc 31i-B5 CNC Control

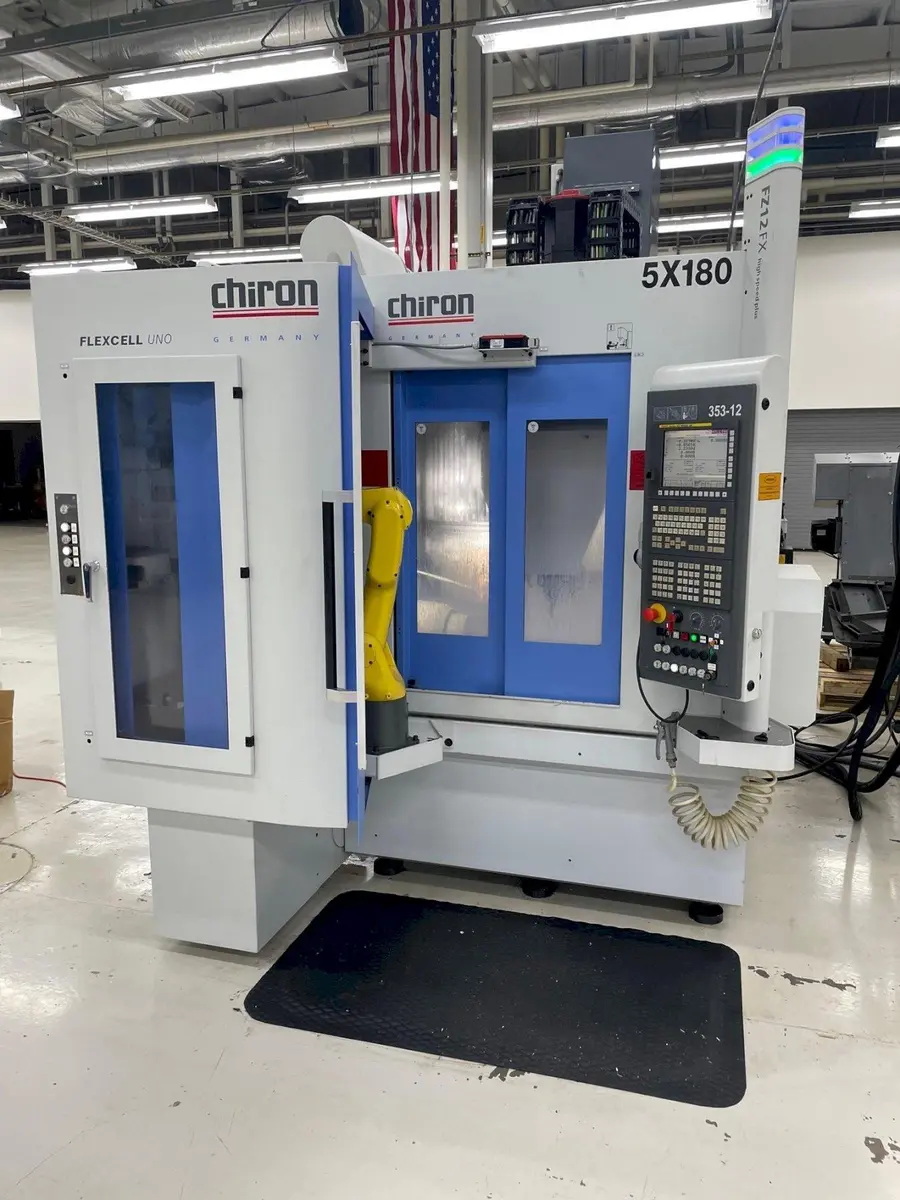

Chiron FZ12FX FlexCell Uno

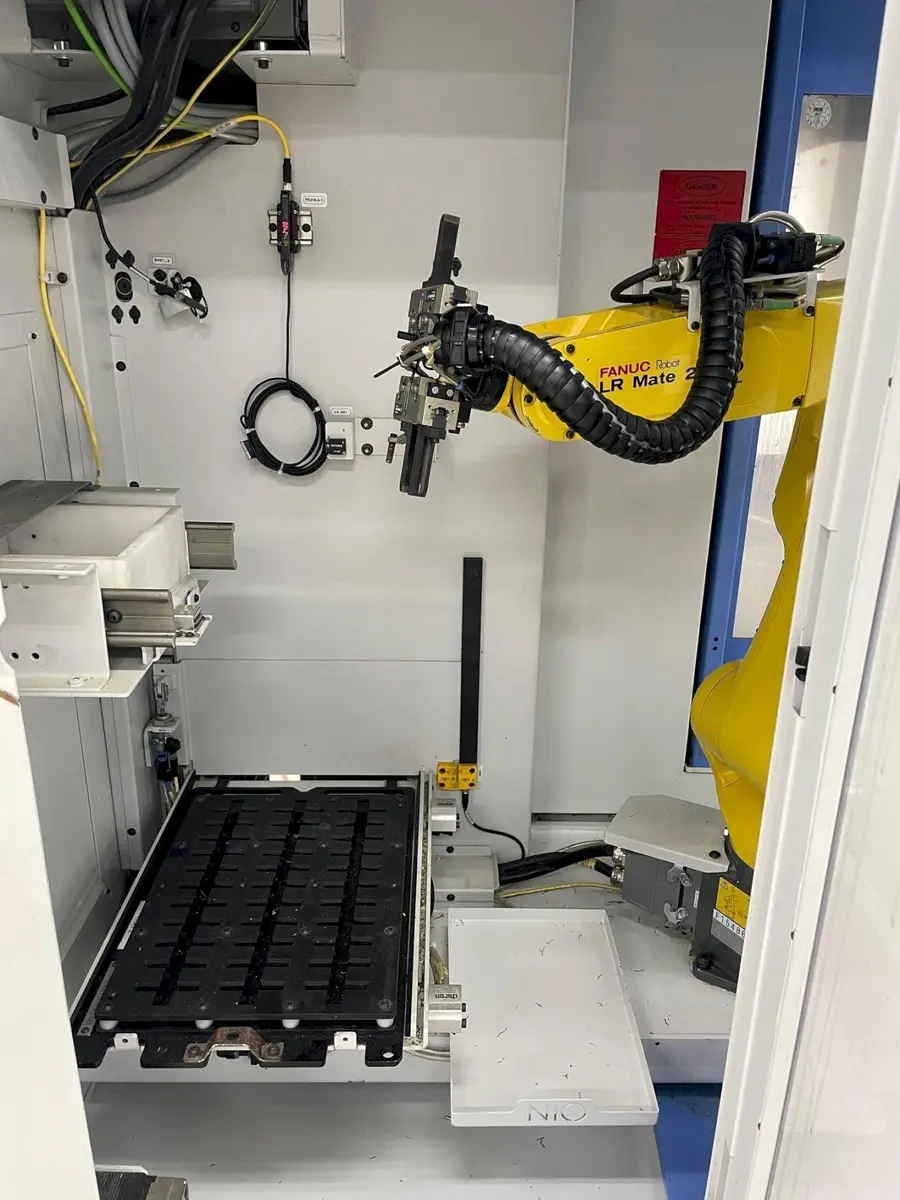

Integrated Fanuc Load/Unload Robot with Chiron tray loading system. Up to 24 pallets/trays.
24,000 RPM HSKA50
48 tool ATC
Glass Scale Feedback XYZ / Direct Feedback A/C
Shunk Hydraulic Vise (KSH 160)
Renishaw Probe (RLPQ40)
Renishaw Contact Tool Breakage Detection (TS27R)

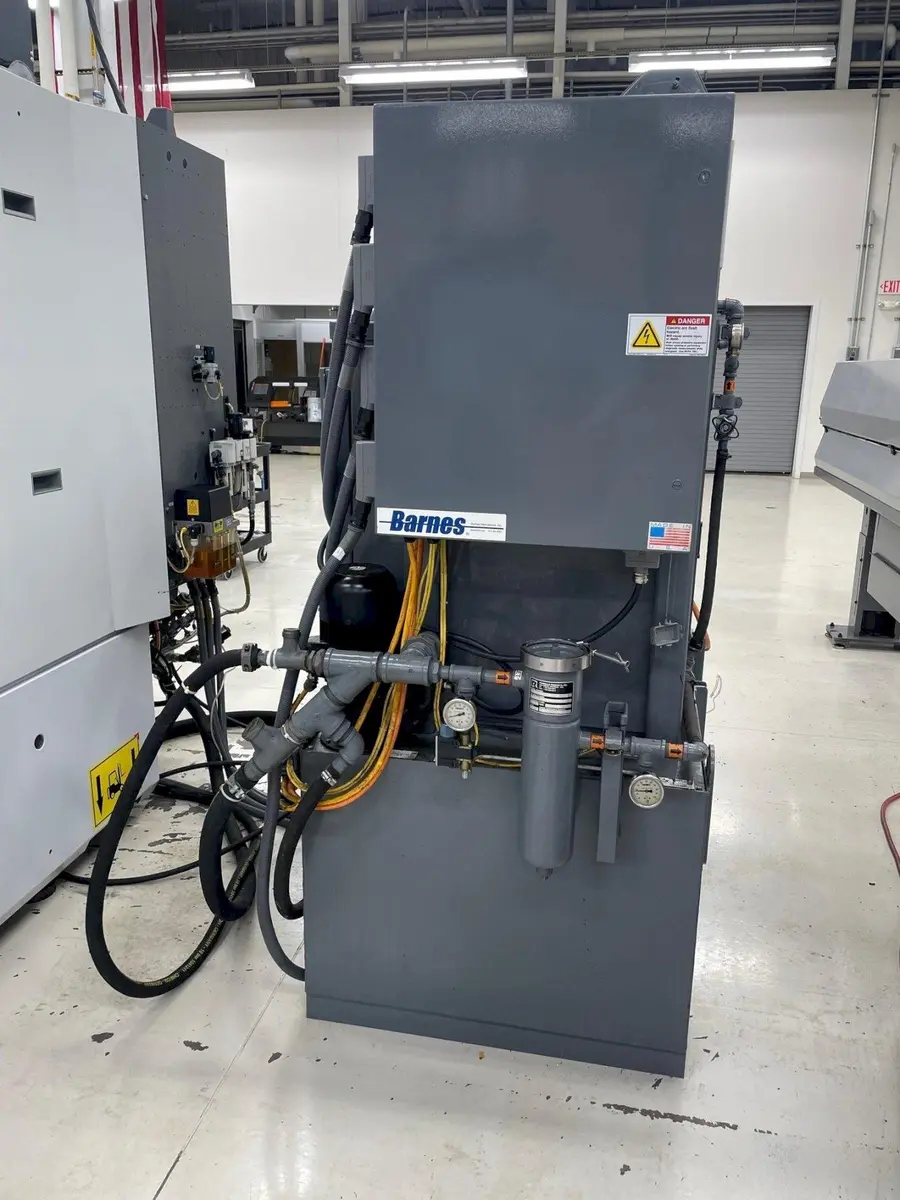

External coolant system with coolant chiller (Barnes S30C )

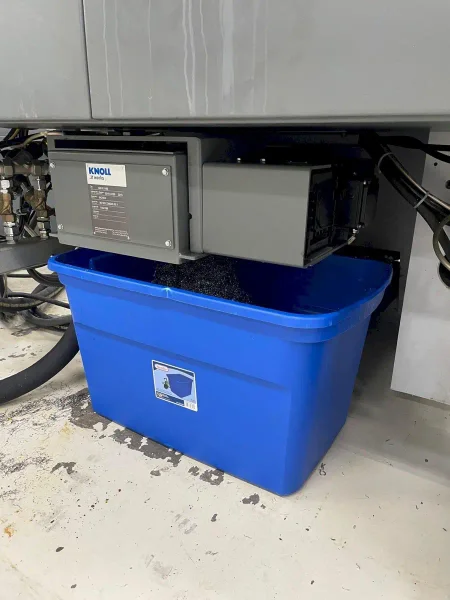

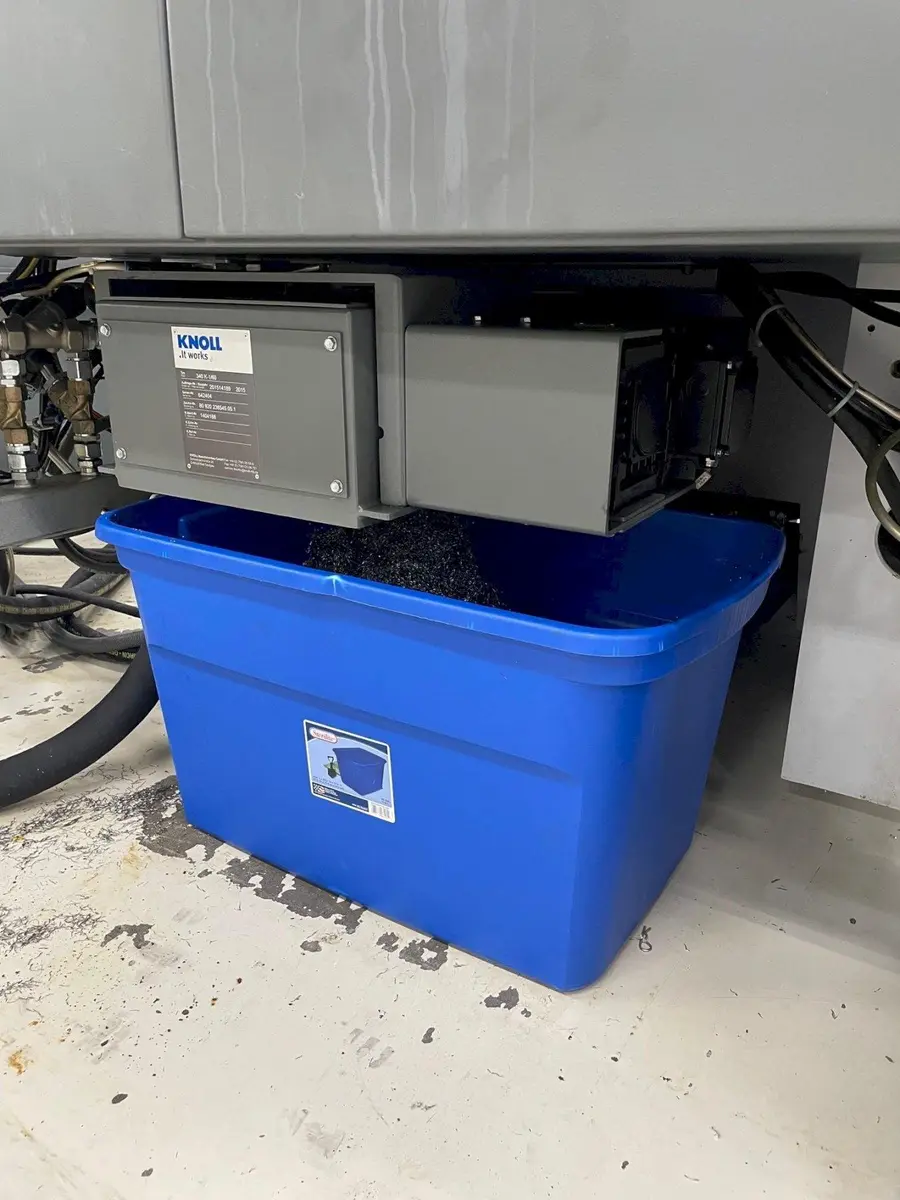

Chip conveyor
Mist collector
Wash down coolant, fixture washing
Thru Spindle Coolant
Rotary spin window
Includes about 30pcs of tool holders in excellent condition- shrink fits and collet chucks
200 bar hydraulic connection for table fixturing. 6-fold integrated into A/C axis table
Auto door

Replacement cost over $750,000!!

More Information:
Universal, automatic loading and unloading-system with 6-axis robot and pallet stack FLEXCELL UNO fully integrated, space-saving design.
Unlimited access to the working respectively loading area of the machine for changeover operations or manual loading through revolving door.
Integrated safety enclosure with drip pan for spilled coolant.
Including tray for NIO parts, machine equipment, loader interface and direct door switch in position 'door open'.
New raw part pallets respectively finished part pallets can be added respectively withdrawn without interruption.
Pallet stack prepared to contain pallets 300 x 400 mm.
Stack height: max. 24 pallets at a maximum of 20 mm (pallet with workpiece), if the pallets are higher, the number of pallets will reduce accordingly (12, 8 or 6 pallets at a maximum of 45 mm, 70 mm or 95 mm).
