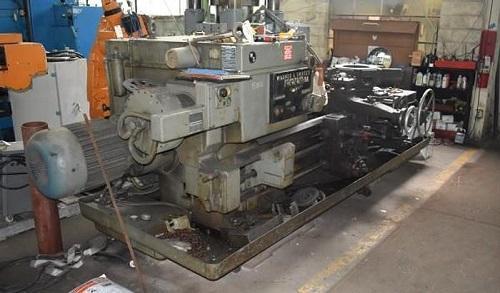

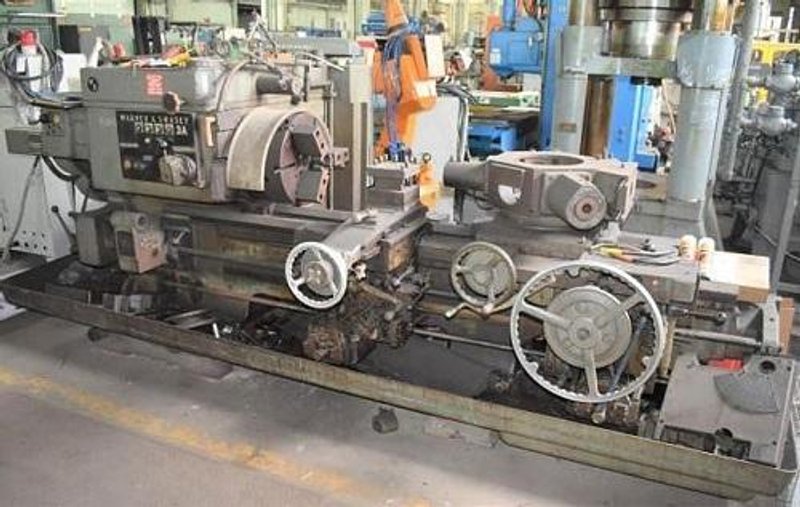

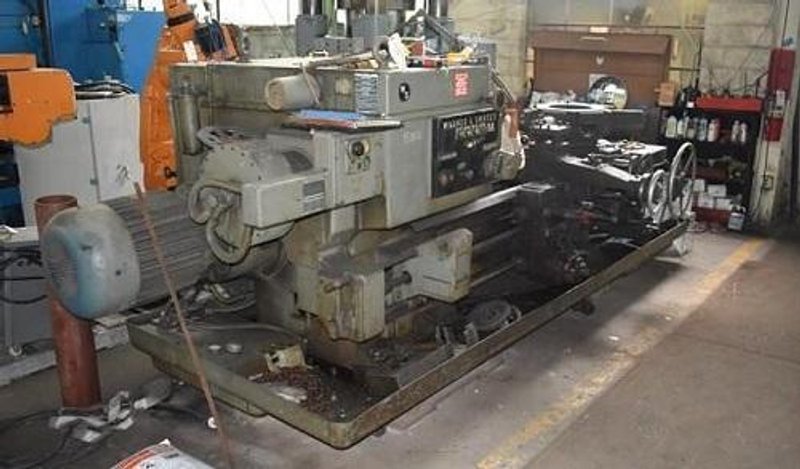

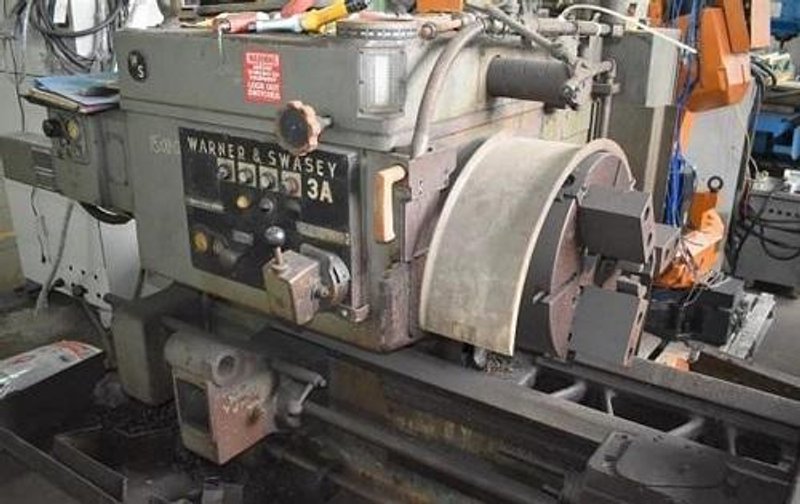

#3A WARNER & SWASEY "SQUARE-HEAD" HEAVY-DUTY SADDLE-TYPE TURRET LATHE W/CROSS SLIDING TURRET

#3A WARNER & SWASEY "SQUARE-HEAD" HEAVY-DUTY SADDLE-TYPE TURRET LATHE W/CROSS-SLIDING TURRET

CONDITION USED

SERIAL NUMBER 2344730.0

HOLE THRU SPINDLE 4.5"

CHUCK DIAMETER 21"

SWING OVER BED WAYS 24.5"

SWING OVER CARRIAGE WINGS 23.5"

SWING OVER CROSS-SLIDE 18"

CARRIAGE LONGITUDINAL TRAVEL (Z-AXIS) 51"

CROSS-SLIDE CROSS TRAVEL (X-AXIS) 14.375"

TURRET LONGITUDINAL TRAVEL (Z-AXIS) 51"

SPINDLE-FACE TO TURRET, MAXIMUM 59"

SPINDLE SPEEDS, RANGE 24 TO 851 RPM

CARRIAGE LONGITUDINAL FEEDS (Z-AXIS) .005 TO .167 IPM

CROSS-SLIDE CROSS FEEDS (X-AXIS) .0025 TO .167 IPM

TURRET LONGITUDINAL FEED (Z-AXIS) .005 TO .167 IPM

SPINDLE MOTOR, HORSEPOWER/RPM 40/20 HP

OVERALL DIMENSIONS, L X D 16'1" X 7'0"

WEIGHT, APPROXIMATELY 15500 LBS

DESCRIPTION

#3A WARNER & SWASEY "SQUARE-HEAD" HEAVY-DUTY SADDLE-TYPE TURRET LATHE

W/CROSS-SLIDING TURRET

SERIAL NO 2344730, SERIES M3500, LOT 63B

EQUIPPED WITH:

POWER OPERATED CROSS-SLIDING TURRET

4.5" HOLE THRU SPINDLE

18" 3-JAW AIR CHUCK W/JAWS

(4) FLANGED TOOL HOLDERS

(1) SLOTTED FLAT TOOL HOLDER

4-WAY TOOL POST

POWER RAPID TRAVERSE TO TURRET & CROSS-SLIDE
