2023 Lincoln Electric PythonX Structural
Brand
Category
Type
Model
PythonX Structural
Stock #
169298
Year
2023
Condition
Used
Location
Illinois
|

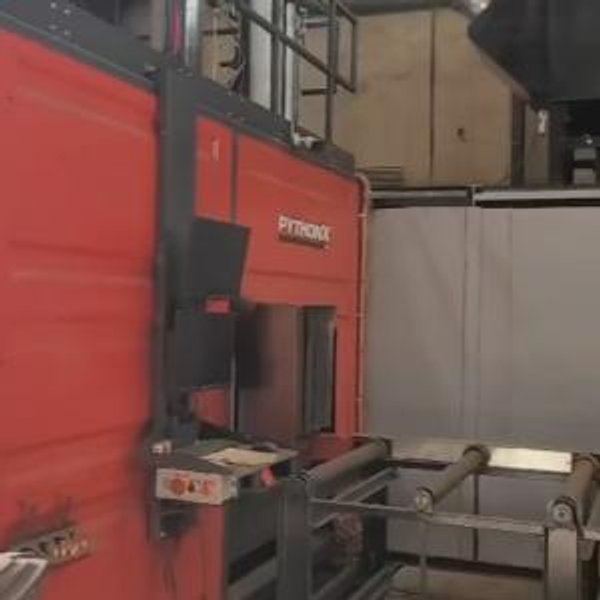

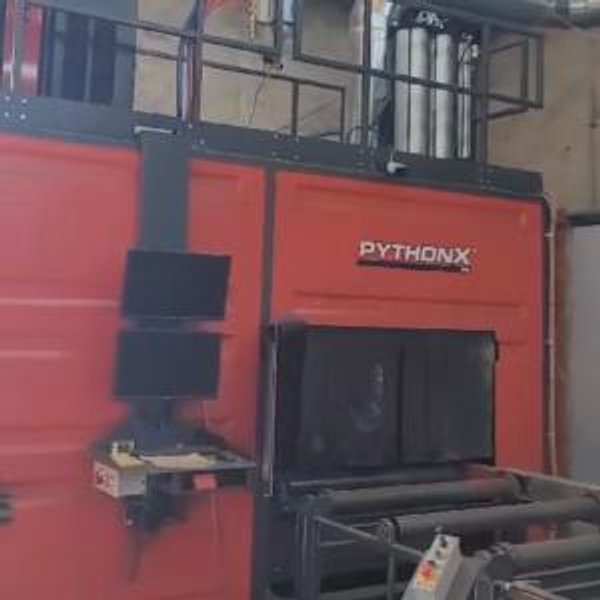

ROBOT STRUCTURE DIMENSIONS
Length: 8.4ft. [2.5m.] Width: 7.6ft. [2.3m.]
Height: 9.9ft. [3m.]
Pass height: 35in. [0.889m.]
Weight: 10,000lb.[4,536kg.]
These dimensions do not include any guarding or cylinders

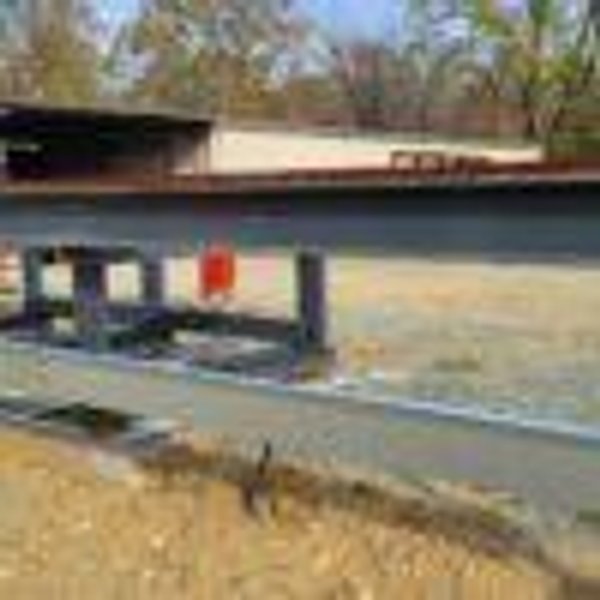

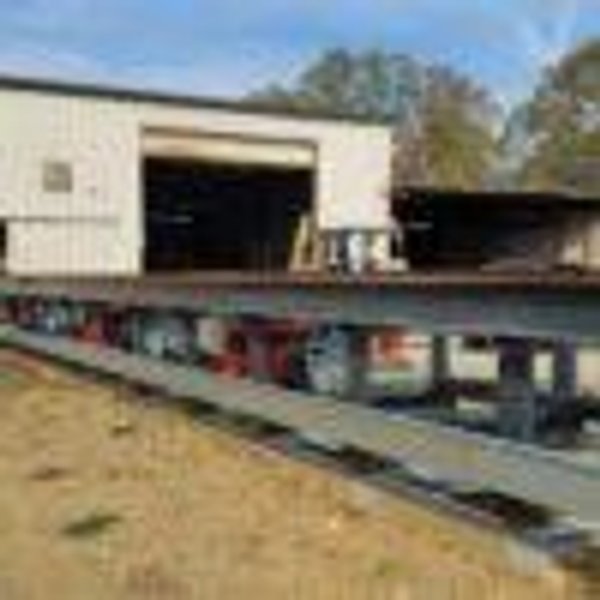

INFEED AND OUTFEED ROLLER CONVEYORS Infeed Conveyor Length: 48ft. [14.63m.] standard, 40ft. [12.2m.] usable, usually upgraded to 60ft. [18m] usable
Outfeed Conveyor Length: 40ft. [12.2m.] standard

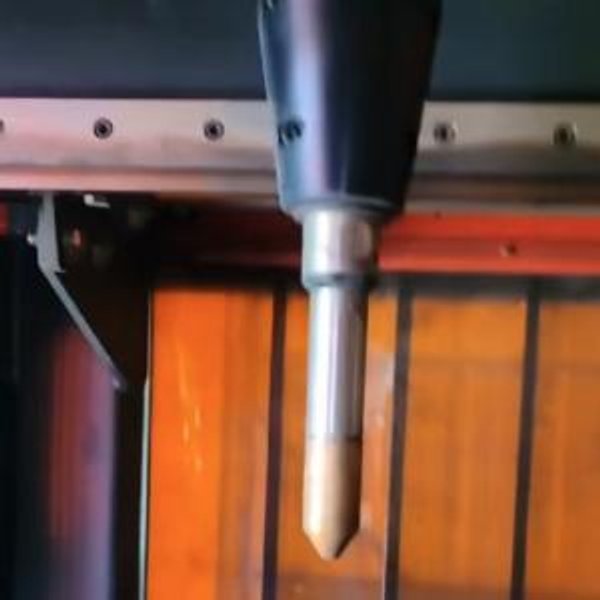

Roll spacing: 8in. [203.2mm.] 16in. [406 mm.] (within 96in. [2438 mm.] of plasma cutting arm) and 48in. [1219 mm.] elsewhere
Roll diameter: 4in. [101 mm.] seamless tubing
Drive: 7.5hp AC motor with variable speed, frequency drive
VENTILATION AND DUST COLLECTION Filter Area: 1140 sq. ft.[105 sq. m. ] Air-to-Media Ratio: 2.19: 1
Filter Cartridge Material: Ultra-Web® FR
Filter Quantity: 6
Design Condition: 2500 cfm [70cu.m.min]
Application: Plasma cutting

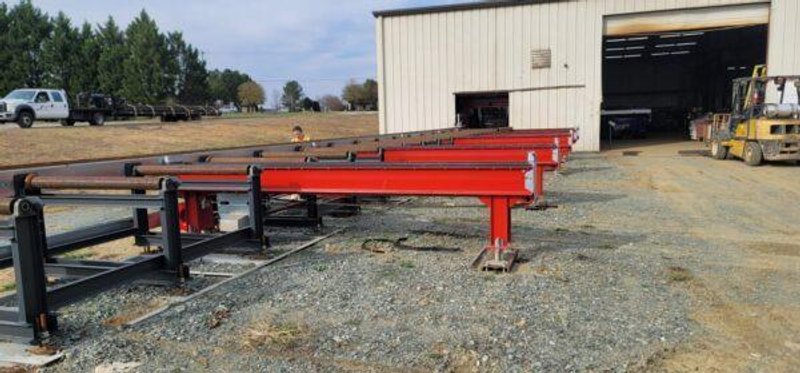

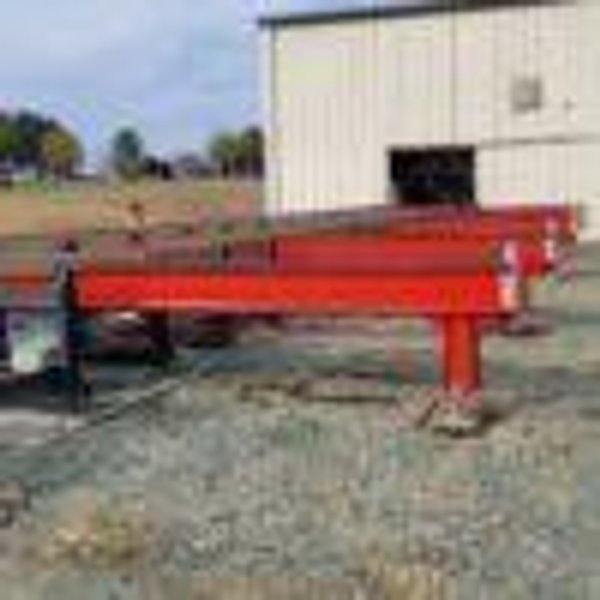

INFEED AND OUTFEED DRAG CROSS TRANSFERS Conveyor Length: 9ft. [2.74m.] usable storage + 4ft. 1.22m.] in rollers = 13ft. [4m.] total
Number of Strands: 4 chain strands recommended for 40ft. material, 5 strands recommended for 60ft. material
INFEED AND LIFT-AND-CARRY CROSS TRANSFERS Conveyor Length: 9ft. [2.74m.] usable storage + 4ft. [1.22m.] in rollers = 13ft. [4m.] total
Number of Strands: 4 chain strands recommended for 40ft. material, 5 strands recommended for 60ft. material
Lift and Carry Capacity: 2,000lbs. [910kg.] per strand lift capacity
Control: Push Button Control
Actuation: Pneumatic |
