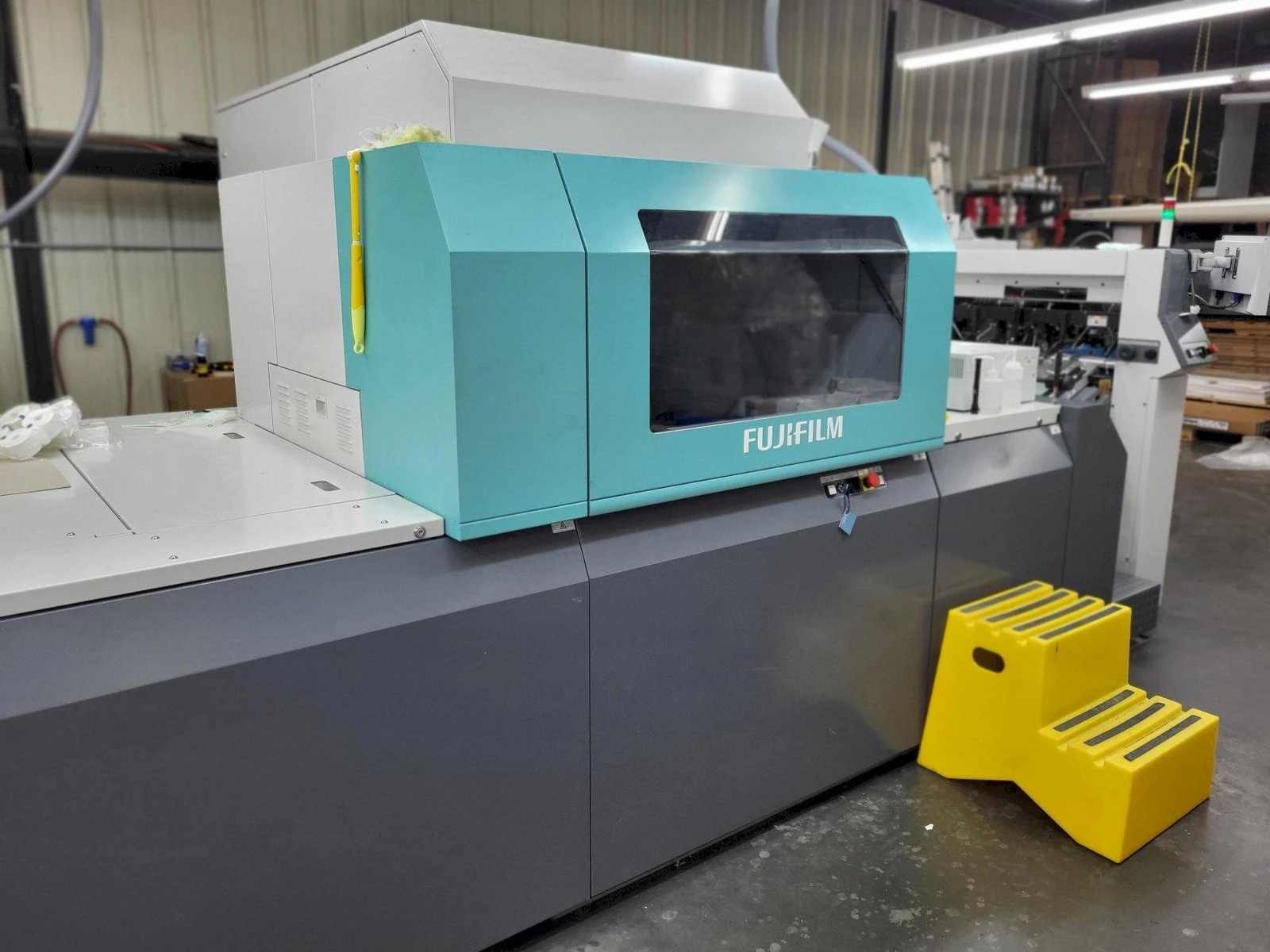

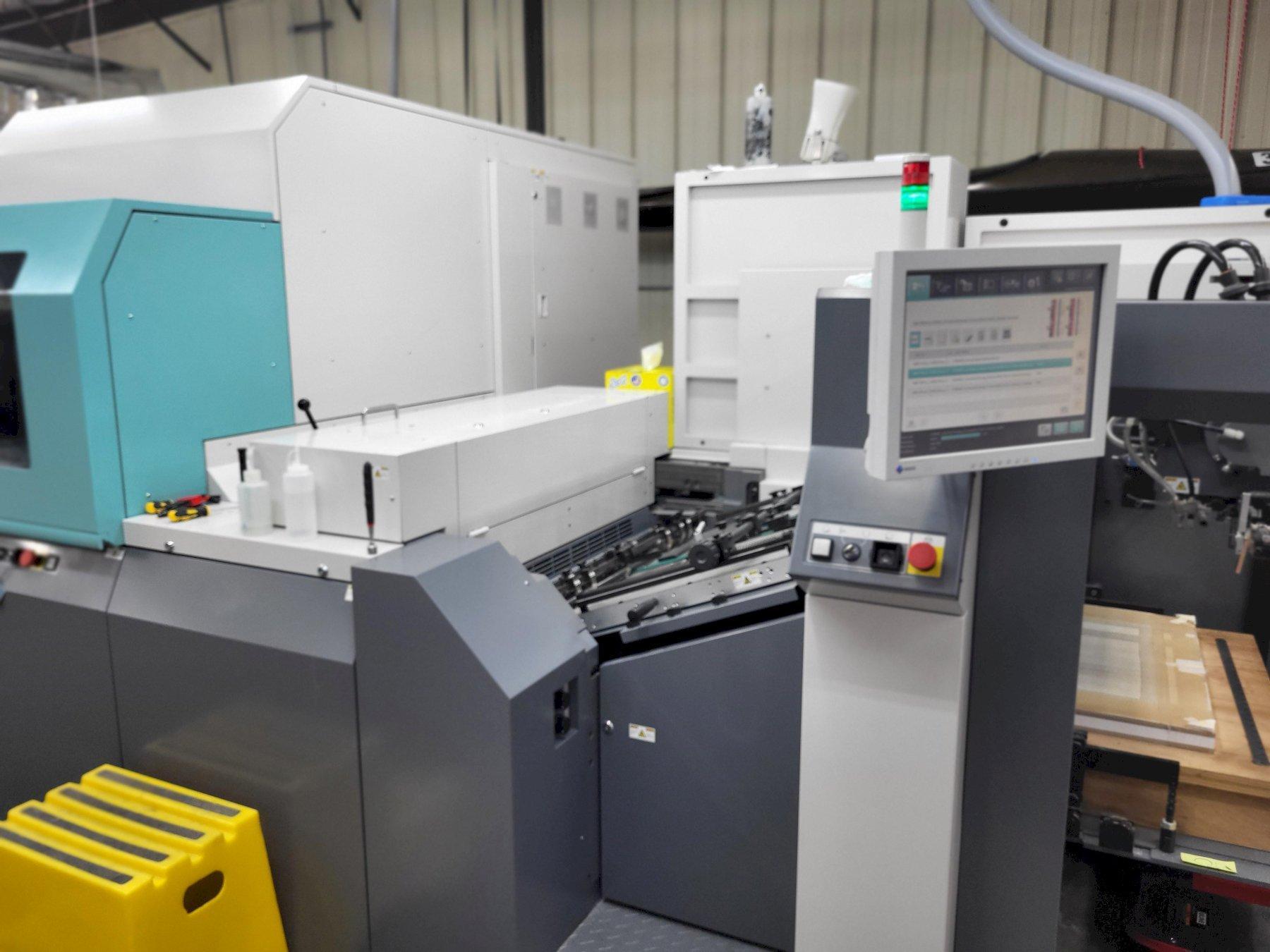

2018 Fujifilm J Press 720S Production Inkjet Press

Sheetfed four color high quality inkjet printing
B2 format, 2,700 sheets per hour
Sheet feeder with infeed head and vacuum feeder table
Full variable data printing at rated speed
RCP primer station with anilox roller and doctor blade
Fujifilm Dimatix Samba inkjet heads - 17 heads per color for full-width print array
Offset class cylinder and gripper sheet transfers
Drying station

Additional Inkjet Components:
Paper Conditioning Unit
Water Conditioning Unit
J Press 720S/750S Primer & Head Maintenance Kit
Dell J Press 720S Control Station with UPS and Server Rack
J Press 720S/750S Color Calibration PC, Windows 10
J Press 720S Thick Stock Jacket Kit with Swap Training


System Footprint 13’ (W) x 34’ (L) x 6.9’ (H) 296 cm (W) x 1,036 cm (L) x 210 cm (H)
Machine with work space 18’ (W) x 39’ (L) x 10’ (H) 548 cm (W) x 1,189 cm (L) x 305 cm (H)
Weight 30,865 lbs 14,000 kgs
Ink Type Fujifilm Vividia series Aqueous inks
Package 10 L (cyan, magenta, yellow, black)
Water Chilled water @ 22oC x 301/m, 30kW capacity
Environment Temperature - 20o-28oC or 68o-82oF (With no sharp change in the temperature) Humidity - 40 - 60% RH (With no condensation)
Power requirements - Press 3P3W+G 200 VAC 200A Connect via the following corresponding transformer: 3P4W208V -> 3P3W200V200A
Power requirements - Water Cooling Guide Temperature Controller 1P2W+G 208-230 VAC 17.0 A SMC model number: HRS050-A-20
Power requirements - Ink Temperature Controller 1P2W+G 208-230 VAC 8.7 A SMC model number: HRS012-A-20-B
Power requirements - Print PCs 1P2W+G 100-240 VAC 15A Power requirements - Curing Power Supply 3P3W+G 200 VAC 110 Amp Connect via a transformer
