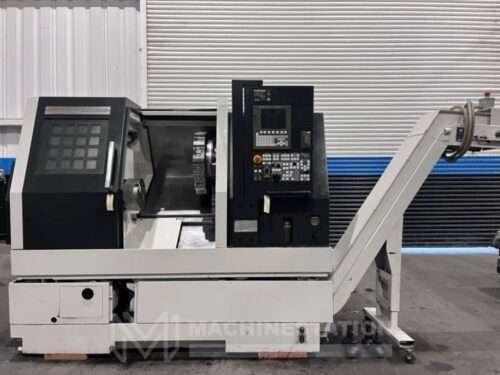

Mori Seiki DuraTurn 2050 CNC Turning Center

Mori Seiki DuraTurn 2050 CNC Turning Center

Brand

MORI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mori Seiki
Model:	DuraTurn 2050
Year:	2007
Condition:	Used – Good

Equipped With:

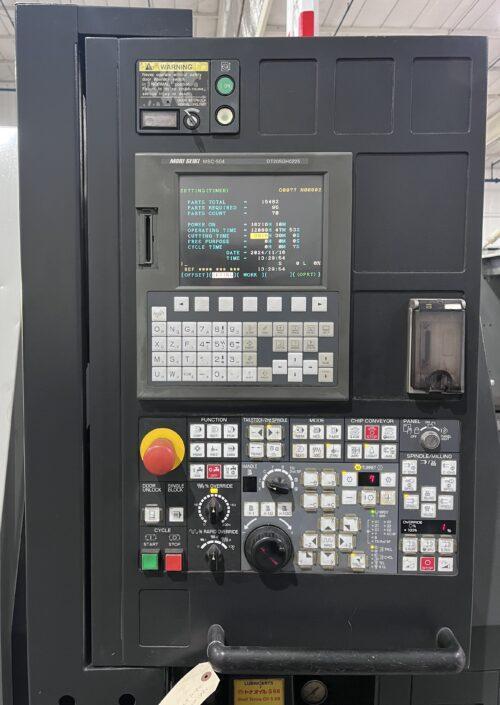

Mori Seiki MSC-504 CNC Control
10″ 3-Jaw Kitagawa Chuck
12 Station High Speed Turret
Programmable Tailstock
Automatic Tool Presetter
PCMCIA Card Slot & RS-232
Rigid Tapping
Coolant System
Chip Conveyor
Levelling Pads

Capacity:
Max Turning Diameter: 14.50″
Max Turning Length: 20.80″
Max Bar Capacity: 2.56″
Swing Over Bed: 24″
Swing Over Cross Slide: 18.90″

Travels:
X Axis Travel: 8.3″
Z Axis Travel: 22.4″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.9″
Spindle Speed: 4000 RPM
Spindle Motor: 18 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.1″
Tailstock Quill Travel: 3.14″

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 22 kva
Machine Dimensions: 86″ x 72″ x 69″ High
Machine Weight: 8378 lbs Approx.

Tags:DMG, DMG MORI, DMG Mori Seiki
