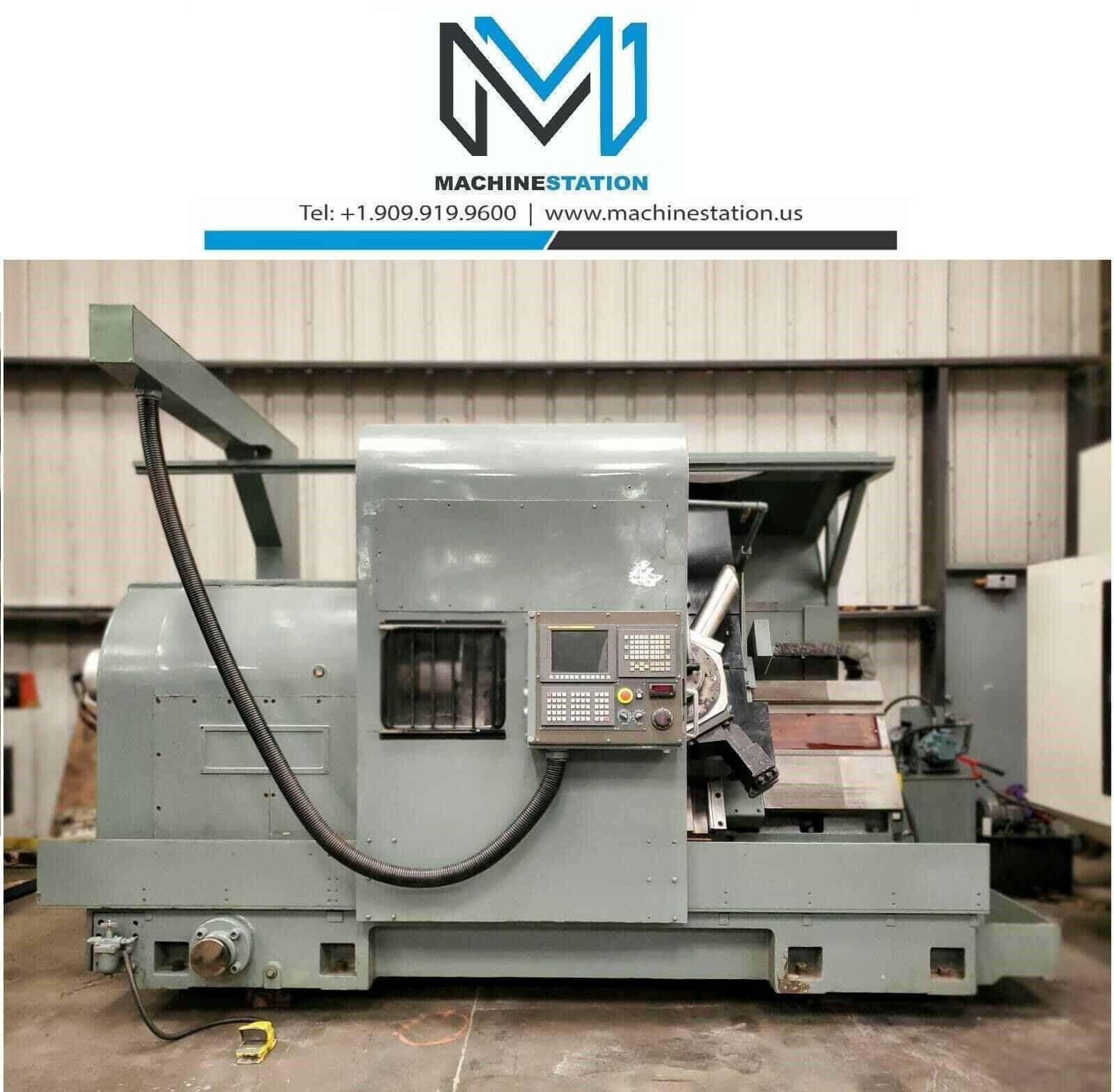

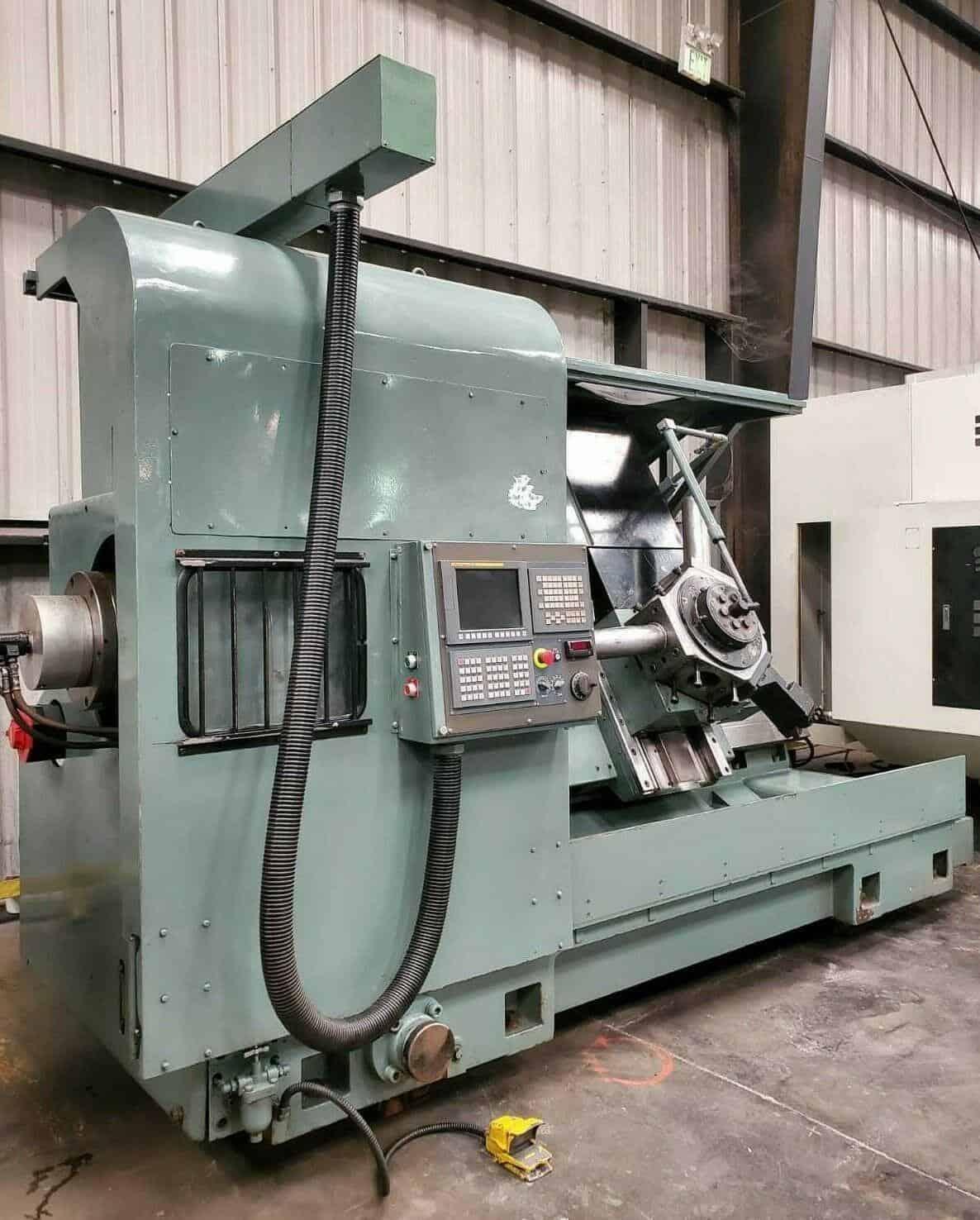

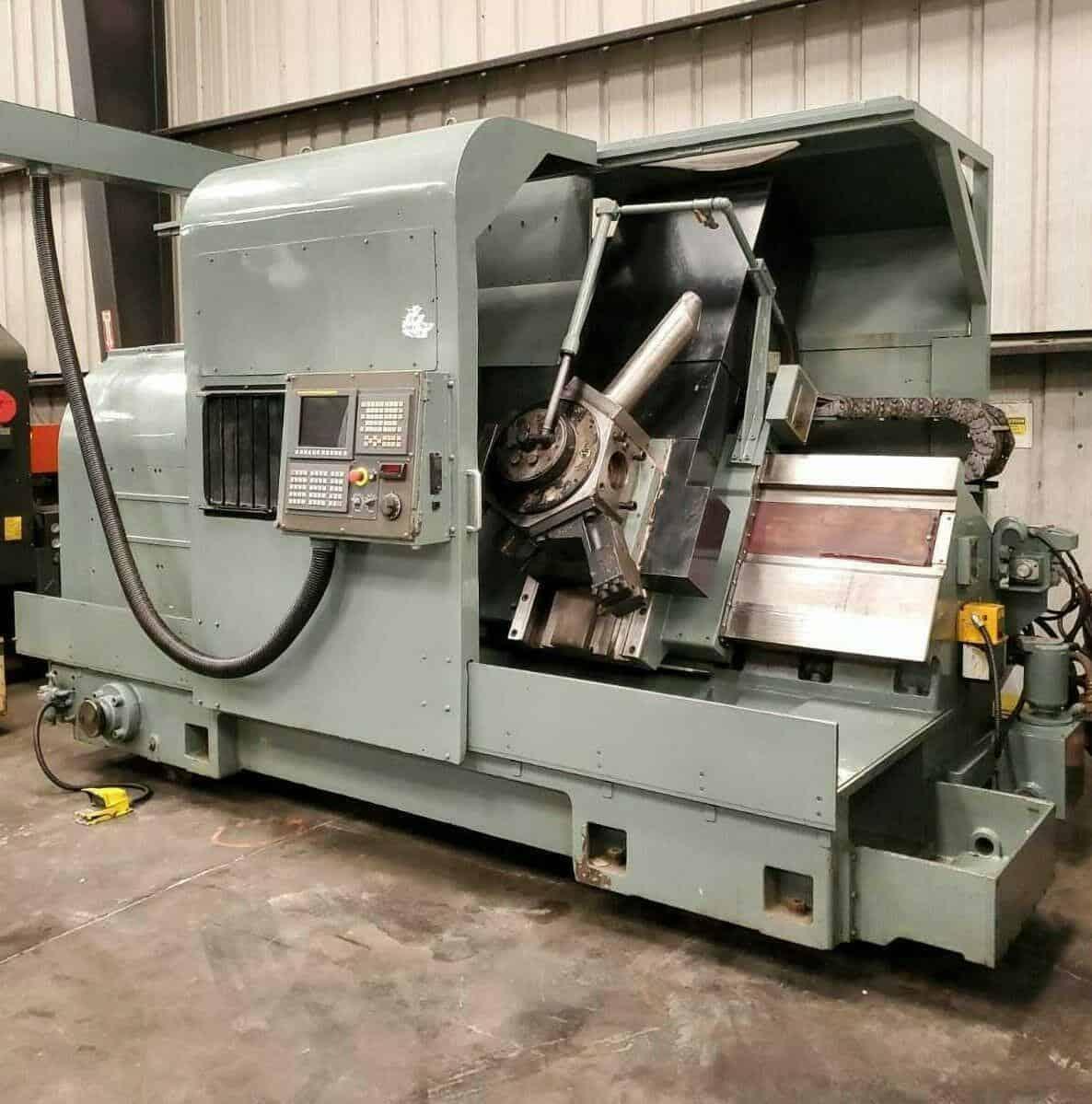

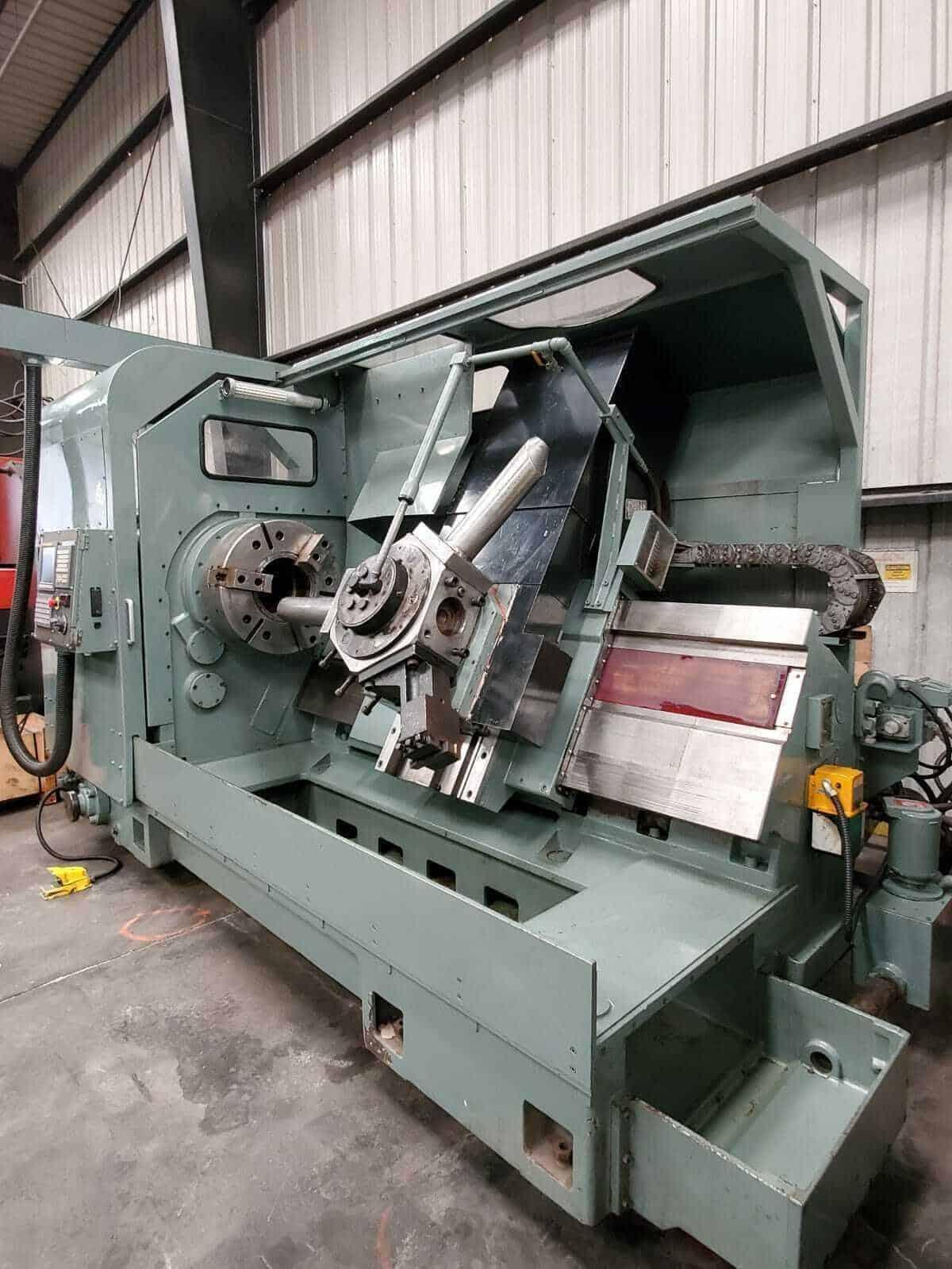

Mori Seiki SL-8 CNC Turning Center

Brand

MORI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	MORI SEIKI
Model:	SL-8
Year:	1990 – 2014
Condition:	Used – Good

Equipped With:

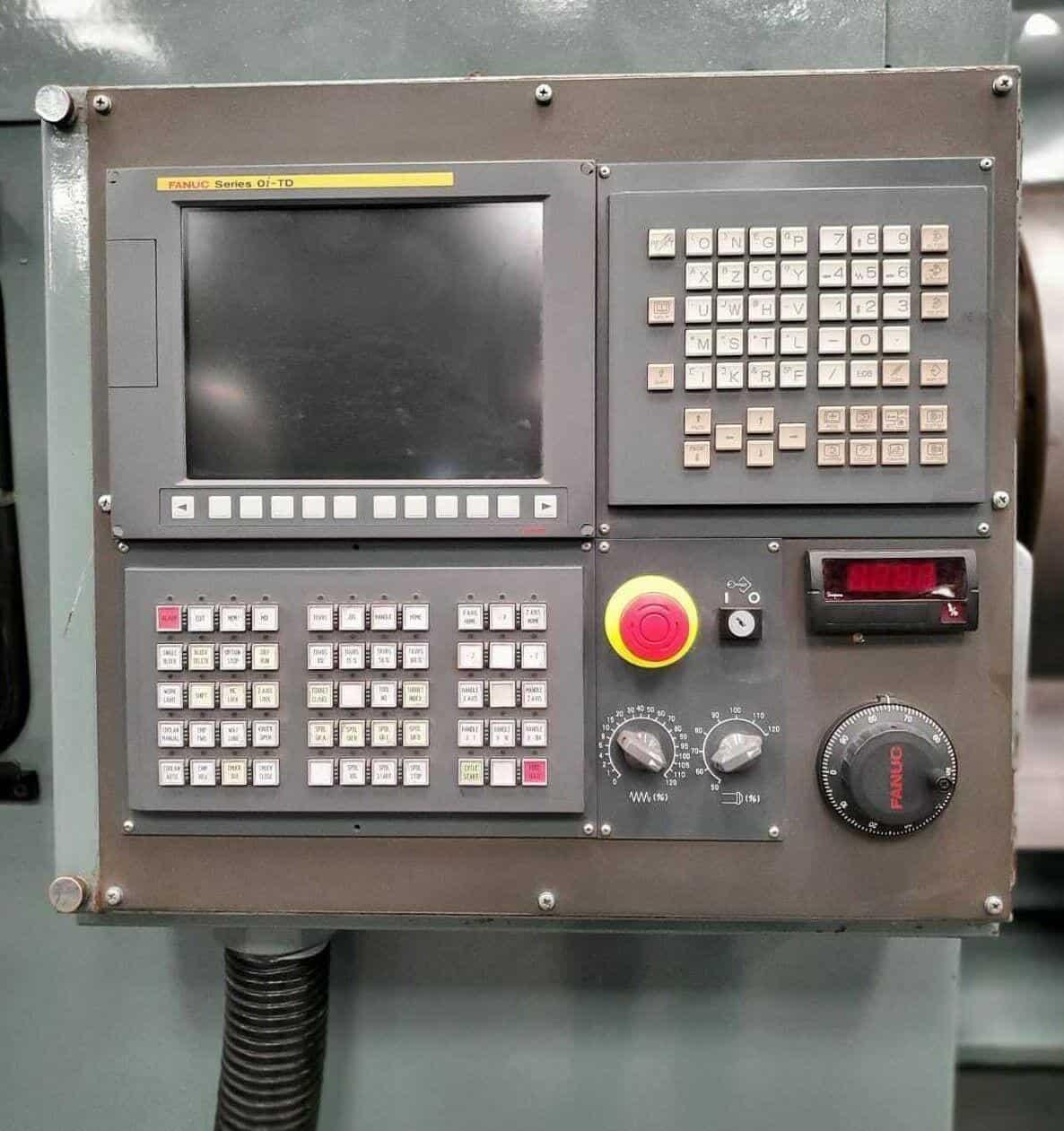

Fanuc 0i-TD CNC Control
6-Station Turret Box Ways Design
A1-20 10.5″ Big Bore Spindle
Long Bed Machine

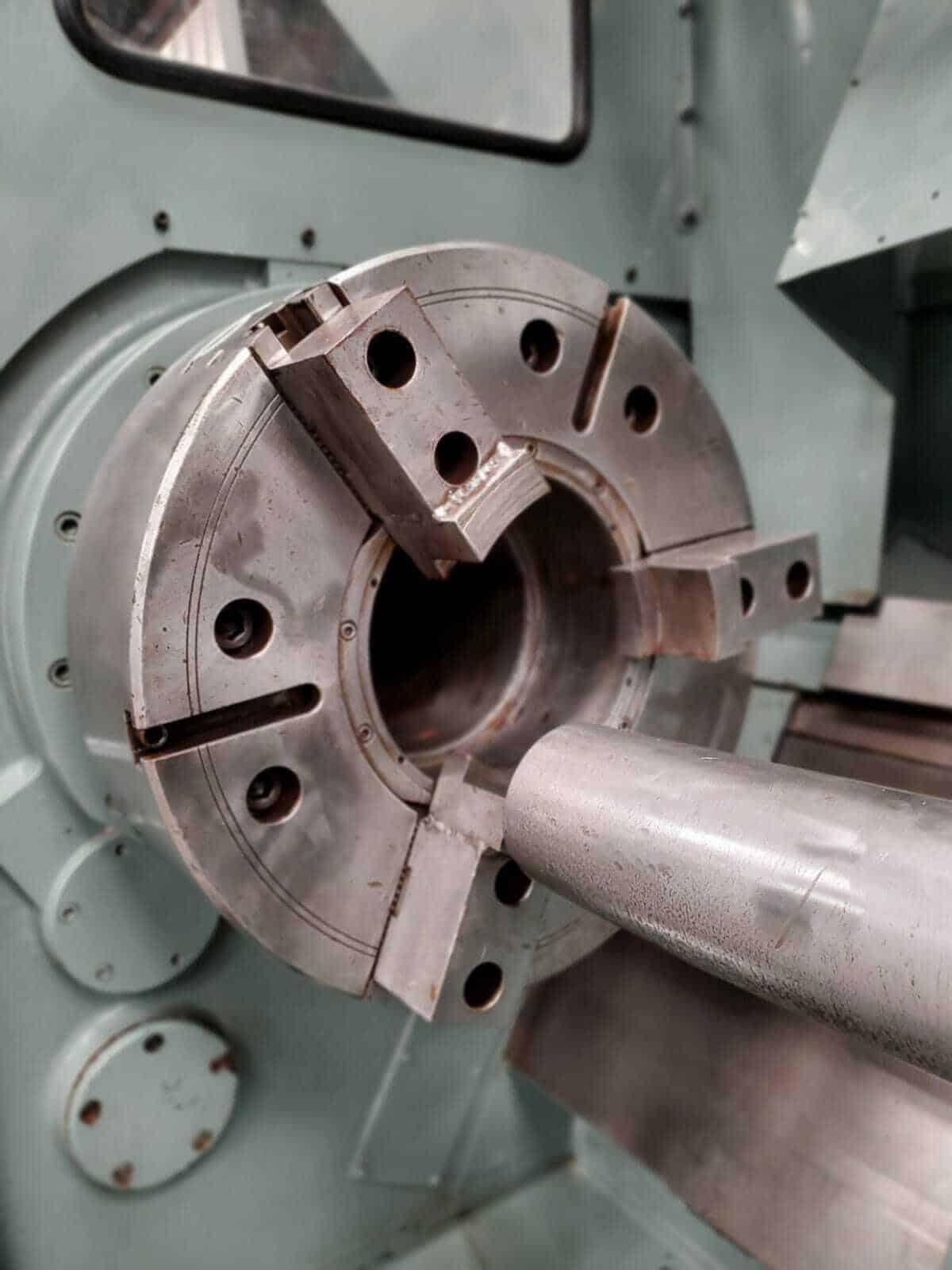

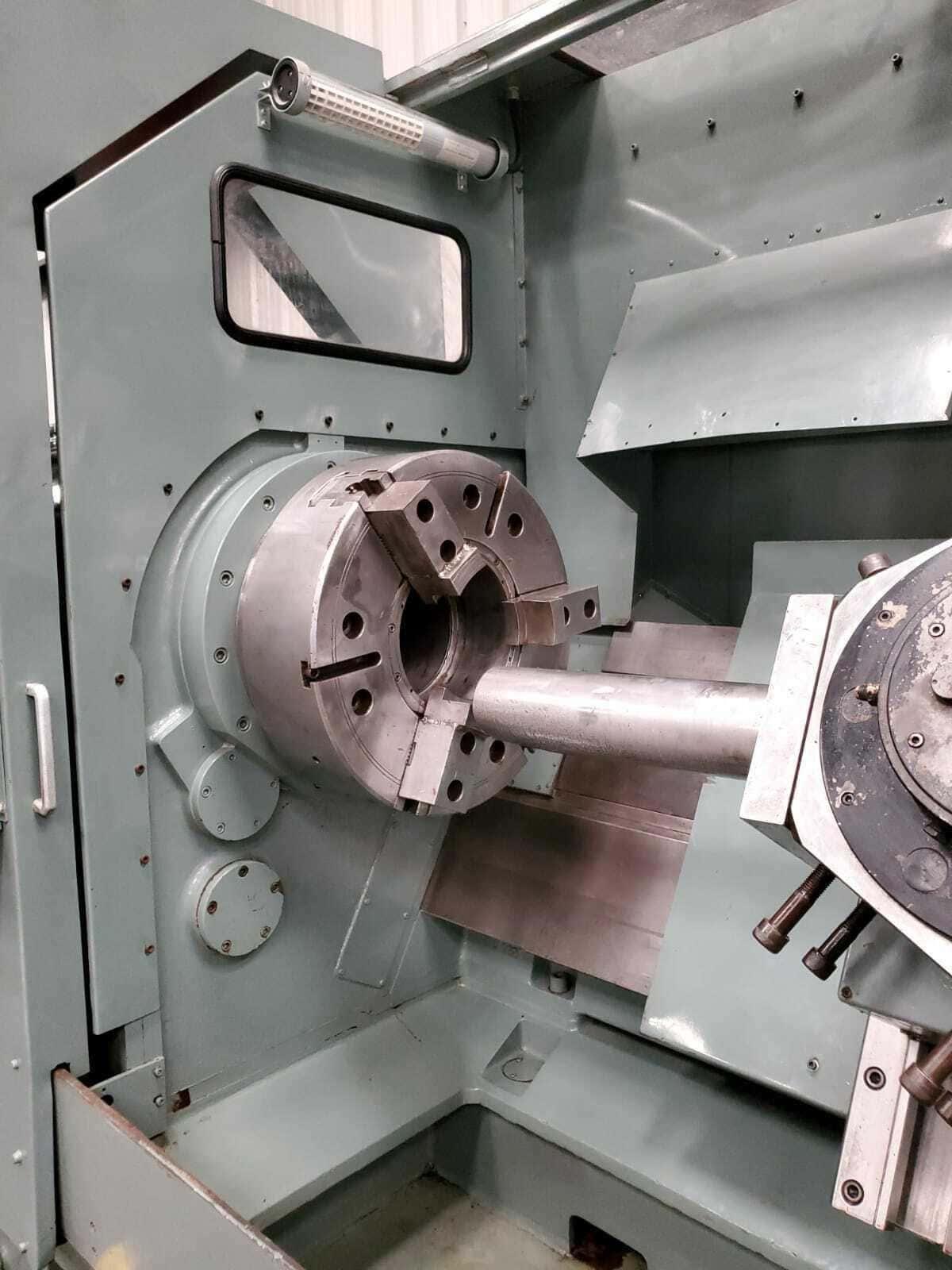

24″ 3-Jaw Chuck
Geared Head spindle for powerful torque

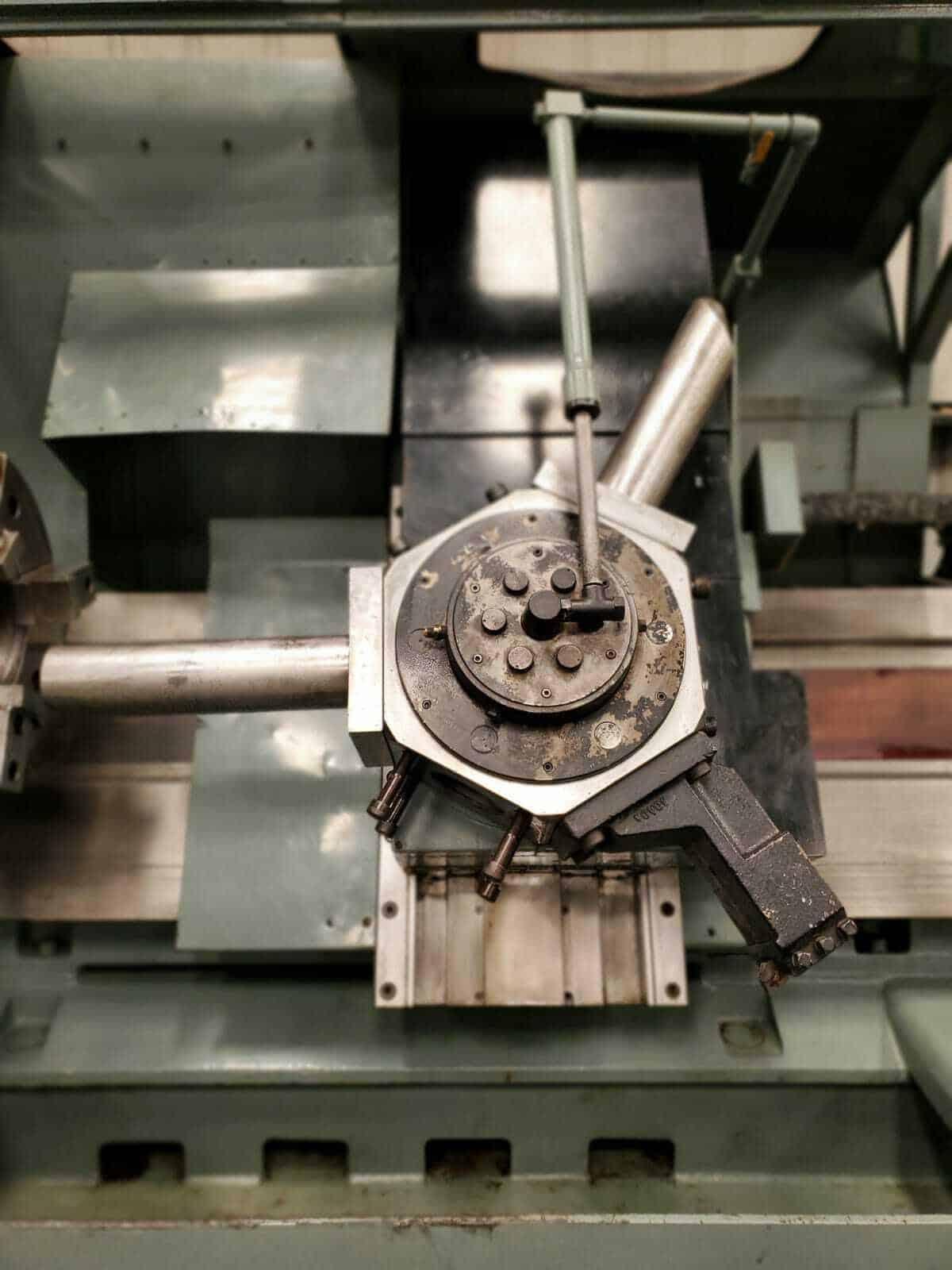

Hydraulic Turret
Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck
Coolant Tank Comes with Chip Conveyor
Note: Machine was retrofitted with New Fanuc Control in 2013/2014

Capacity:
Max Turning Diameter: 35.4″
Max Turning Length: 43.3″
Max Bar Capacity: 10.2″
Swing Over Carriage: 35.4″
Swing Over Bed: 39.9″

Travels:
X Axis Travel: 16.5″
Z1 Axis Travel : 43.3″
Rapid Traverse X Axis: 197 IPM
Rapid Traverse Z Axis: 315 IPM

Spindle:
Spindle Nose: A1-20
Spindle Bore: 10.5″
Spindle Speed: 4 – 550 RPM
Spindle Motor: 50 HP

Turret:
Capacity: 6 Stations Turret
Turret Index Time:

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Requirement: 68 Amps Overall
Dimensions: 180″ x 80″ x 98″ High
Overall Dimensions: 220″ x 80″ x 98″ High with Chip Conveyor
Weight : 33,000 lbs Approx.

Tags: DMG MORI, DMG Mori Seiki
