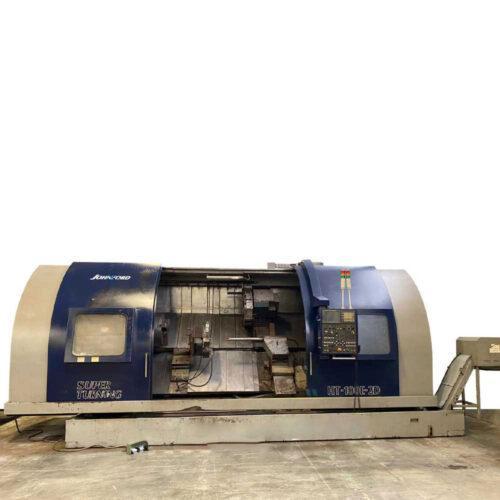

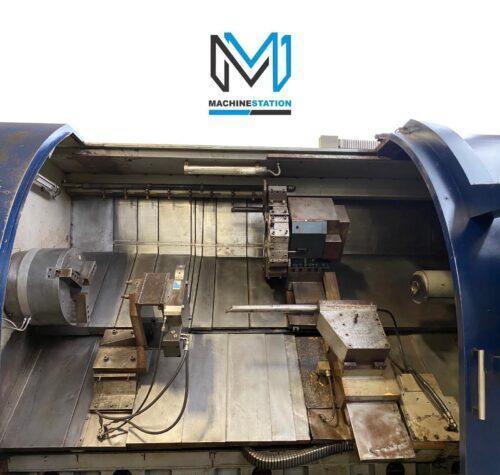

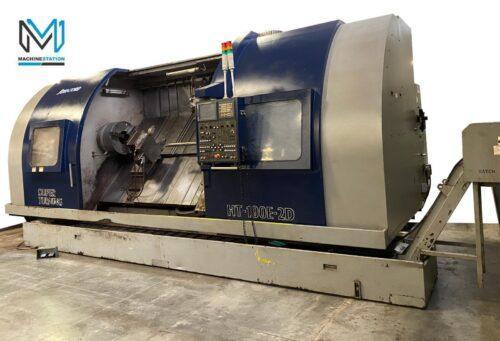

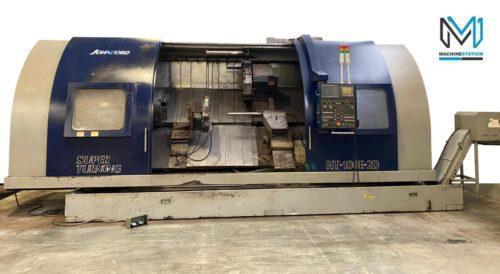

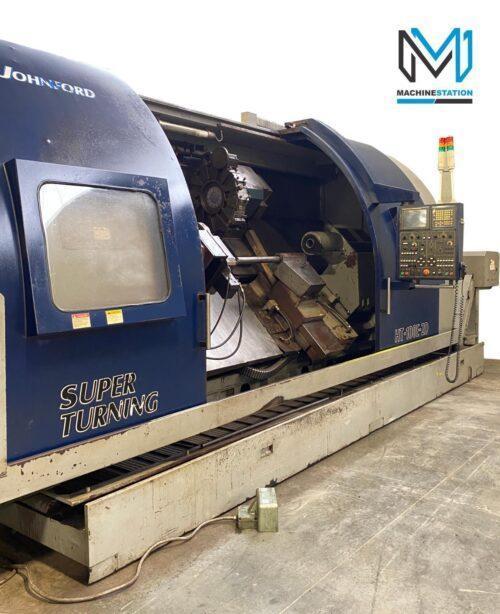

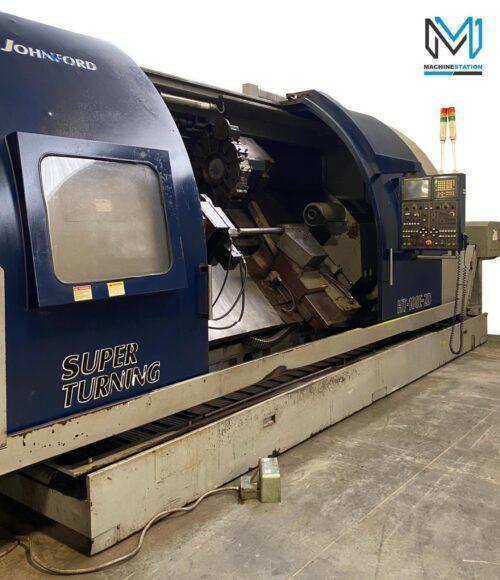

Johnford HT-100E-2D CNC Oil Country Lathe

Johnford HT-100E-2D CNC Oil Country Lathe

Brand

JOHNFORD

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

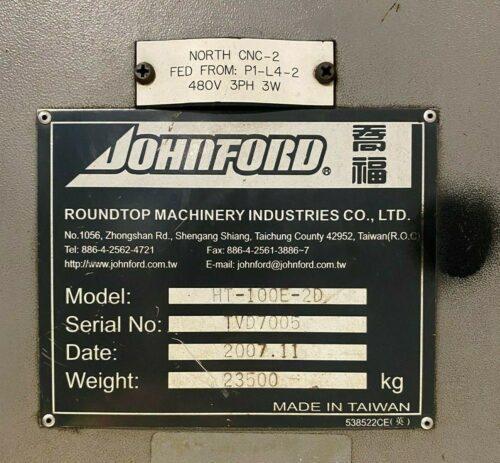

Make:	JOHNFORD
Model:	HT-100E-2D
Year:	2007
Condition:	Used – Good

Equipped With:

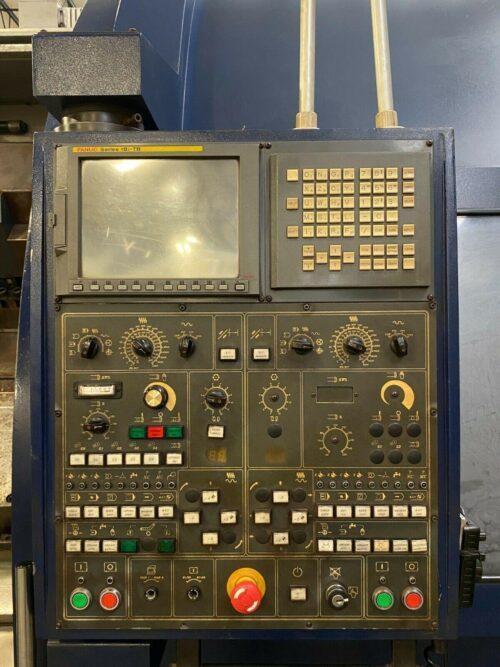

Fanuc 18iT CNC Control

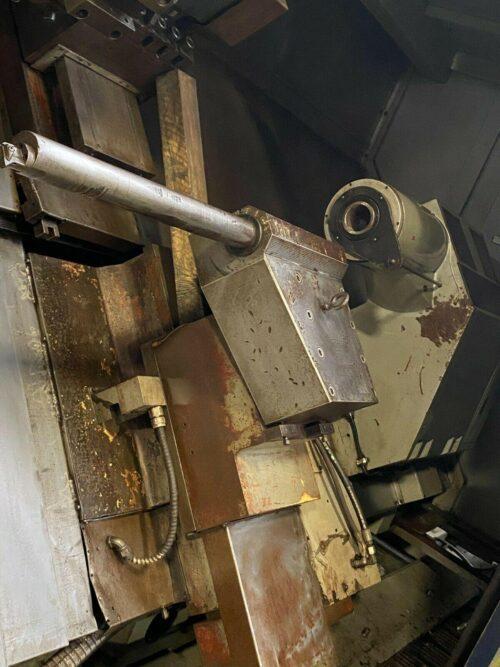

Boring Bar Slide ( W Axis )

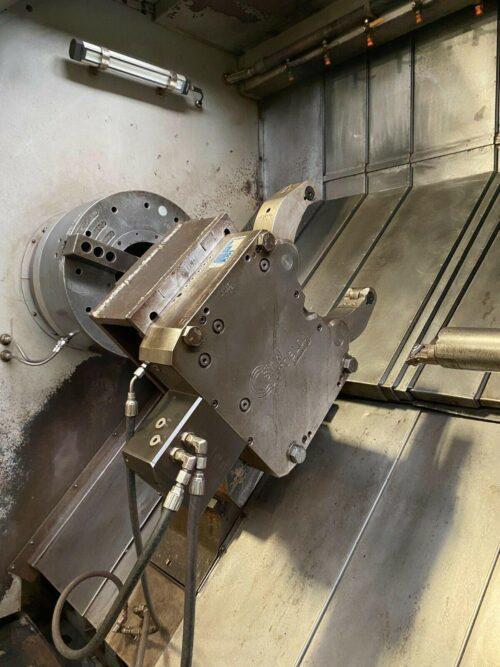

SMW Hydraulic Steady Rest
A2-15 Spindle with 10″ Bore

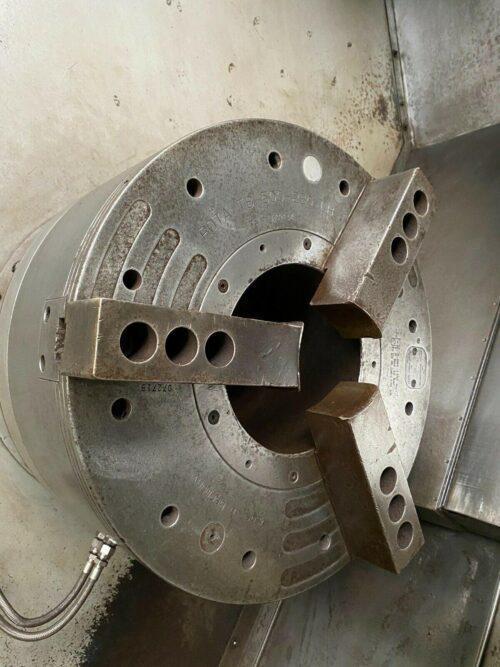

Schunk Rota TB-500 24″ 3 Jaw Chuck with 10″ Bore
60 HP Gearbox Spindle
PCMCIA Card Slot
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch
Chip Conveyor

Capacity:
Max Turning Diameter: 36.6″
Max Turning Length: 100.4″
Max Bar Capacity: 9.3″
Swing Over Bed: 27.2″
Swing Over Cross slide: 23.6″
Distance Between Centers: 98.46″

Travels:
X Axis Travel : 12.6″
Z Axis Travel: 98.4″
W Axis Travel: 89.0″ ?
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 630 IPM

Spindle:
Spindle Nose: A2-15
Spindle Bore: 10.8″
Spindle Speed: 10 – 750 RPM
Spindle Motor: 60 HP

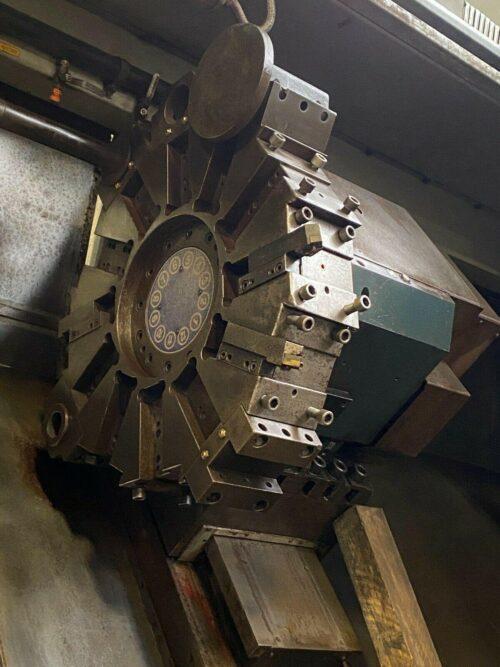

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.4 Second

Tailstock:
Tailstock Body Travel: 86.7″
Tailstock Taper: MT-4
Tailstock Quill Dia.: 7.9″
Tailstock Quill Travel: 7.9″

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 275″ x 114″ x 115″ High
Machine Weight: 50,000 lbs Approx.
