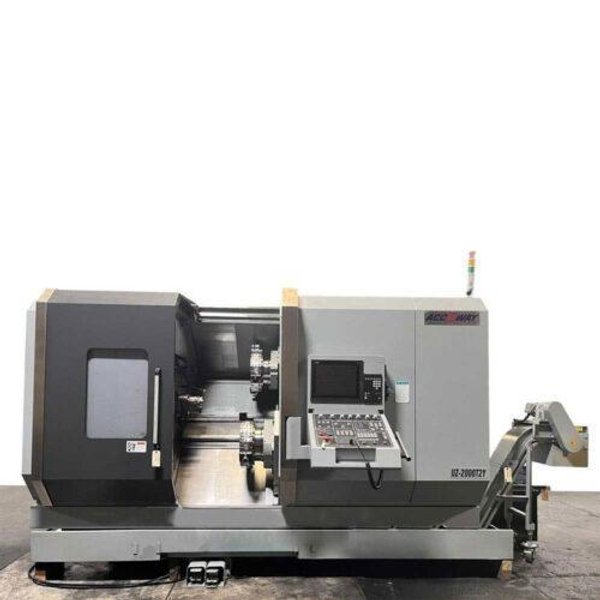

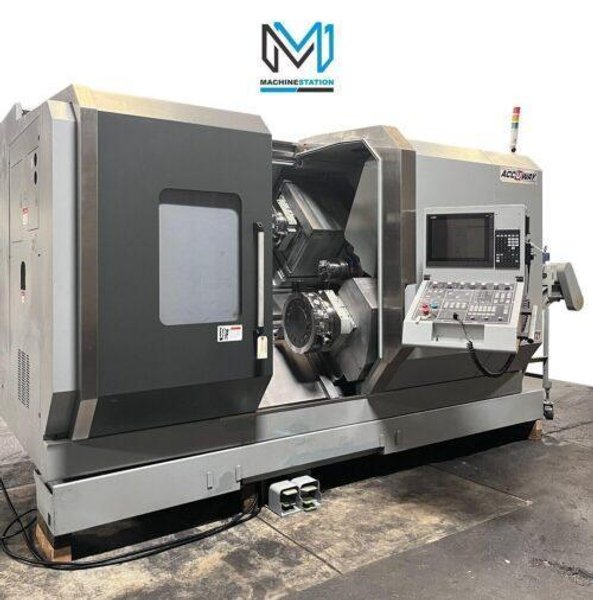

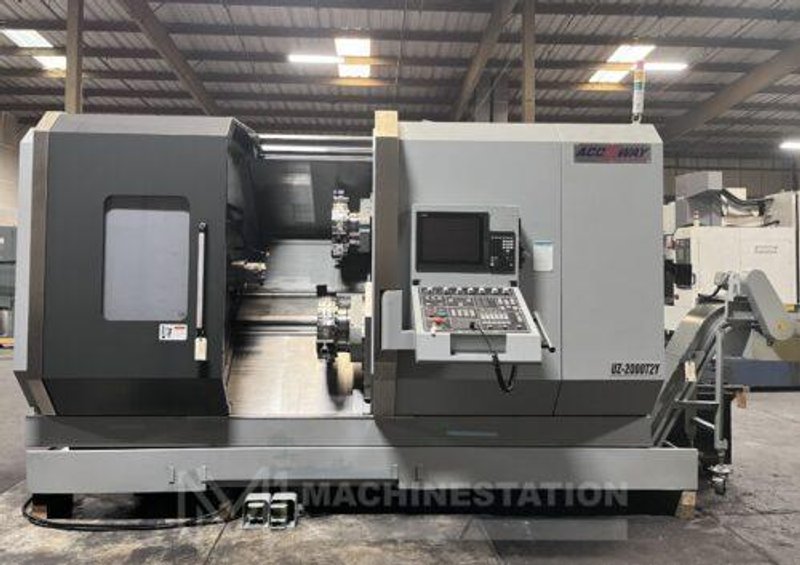

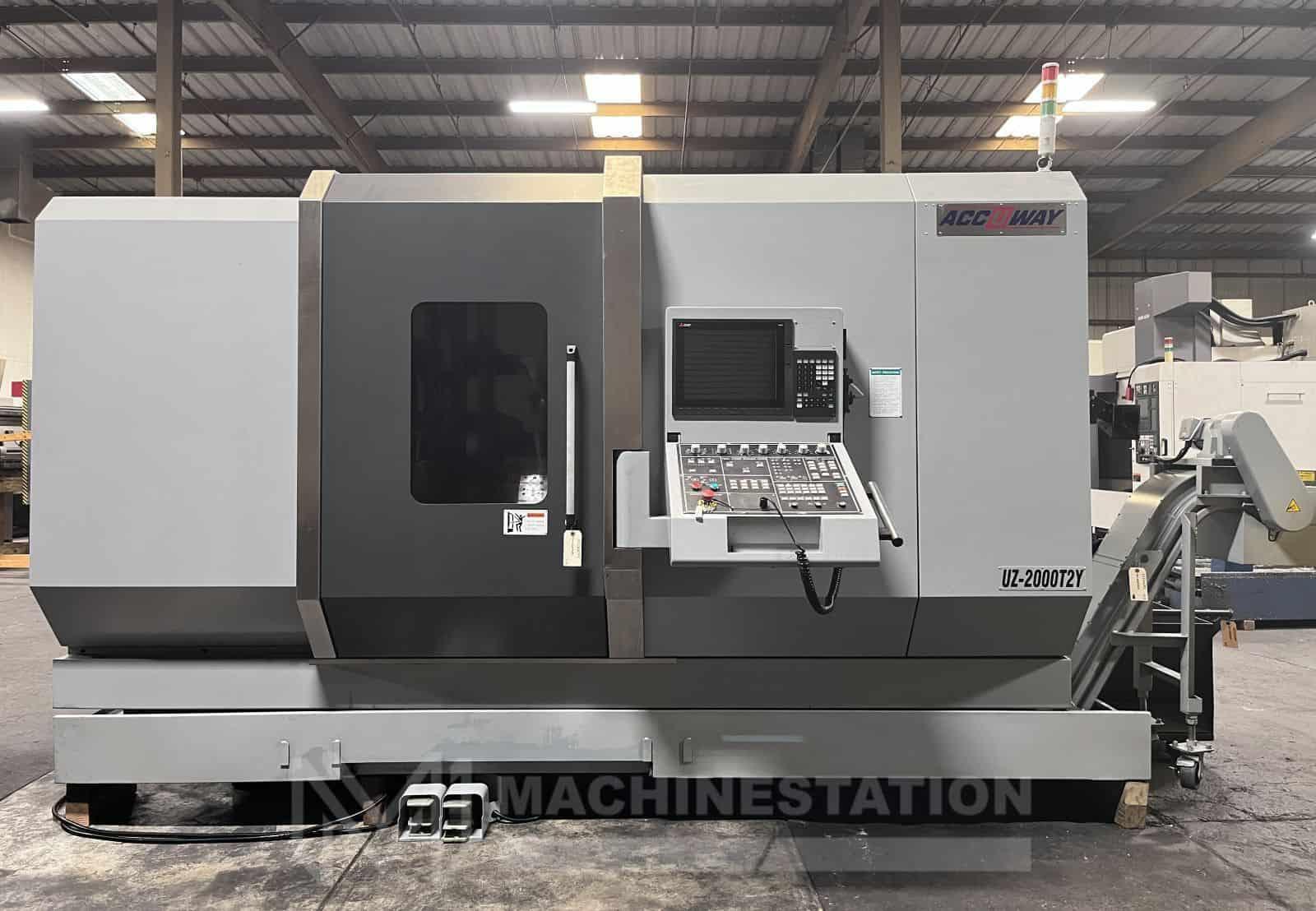

Accuway UZ-2000T2Y CNC Lathe – Y Axis Twin Spindle Twin Turret

Accuway UZ-2000T2Y CNC Lathe – Y Axis Twin Spindle Twin Turret

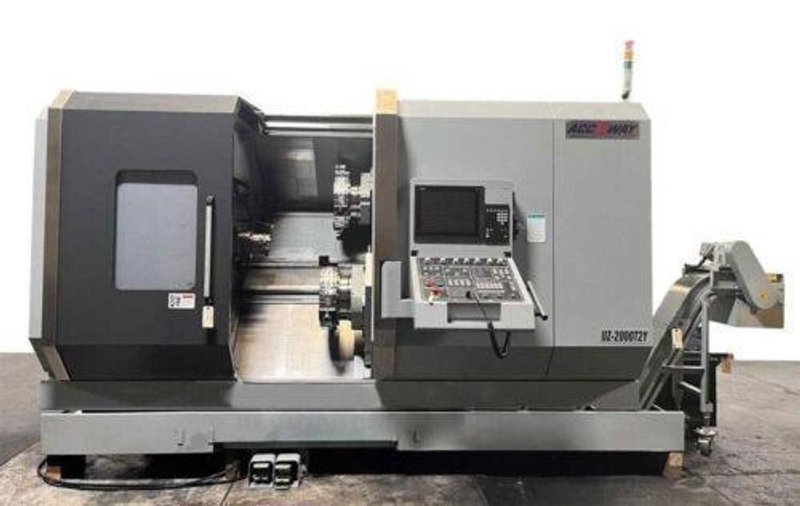

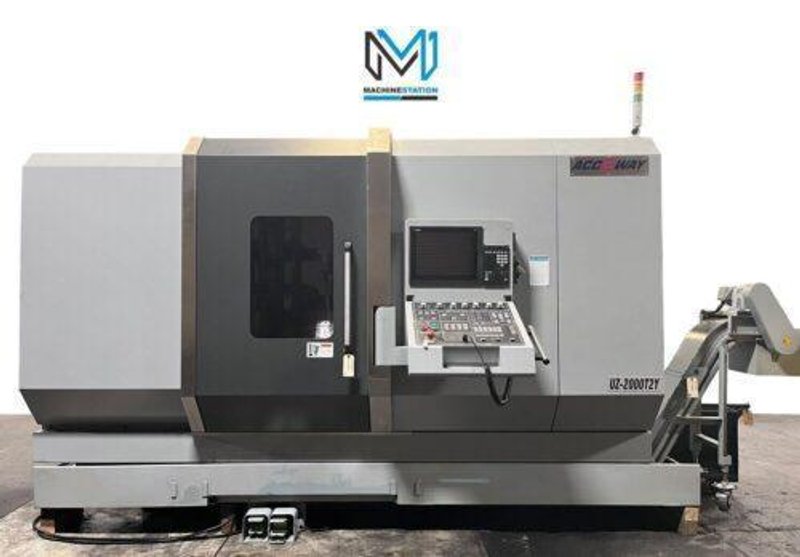

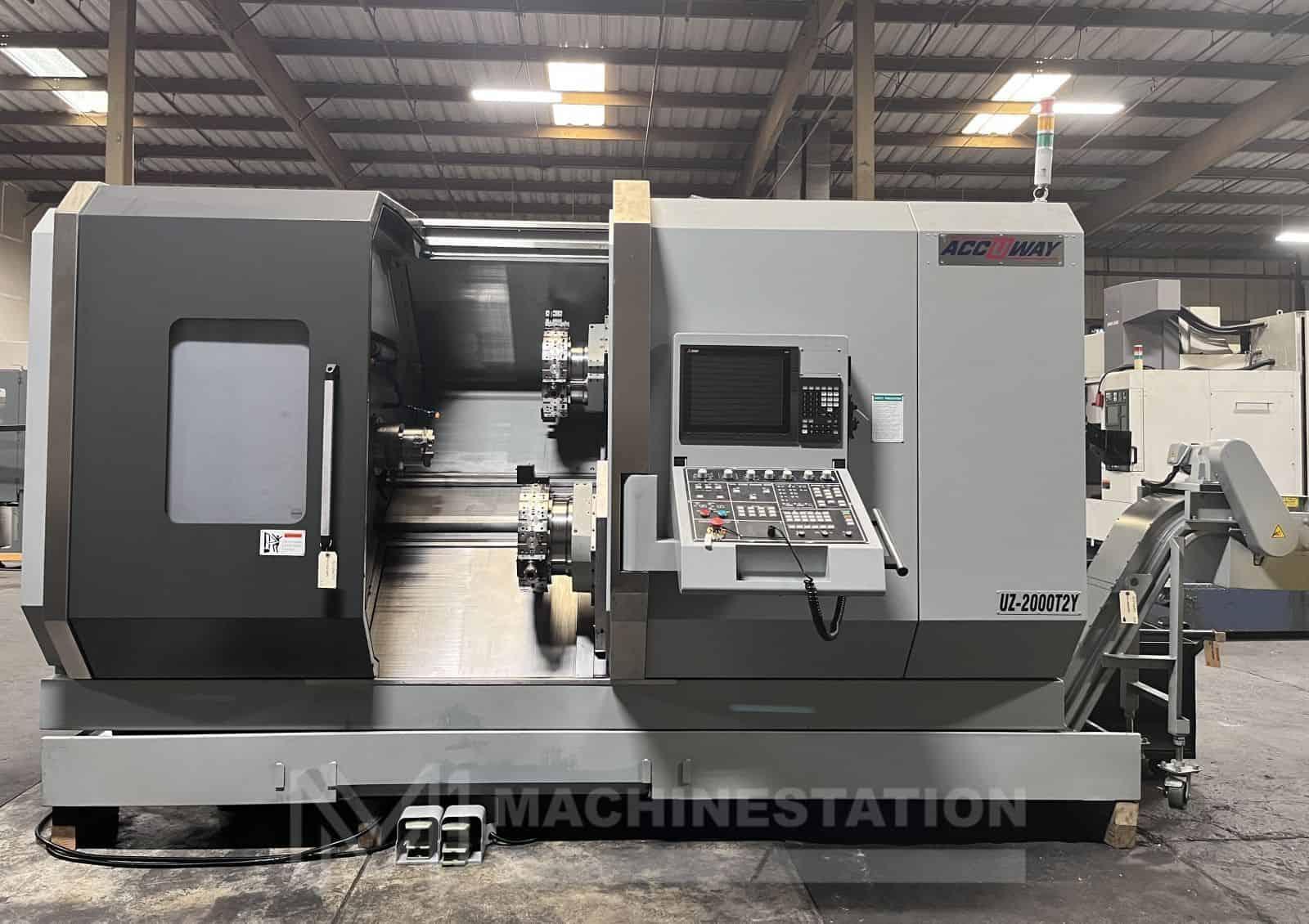

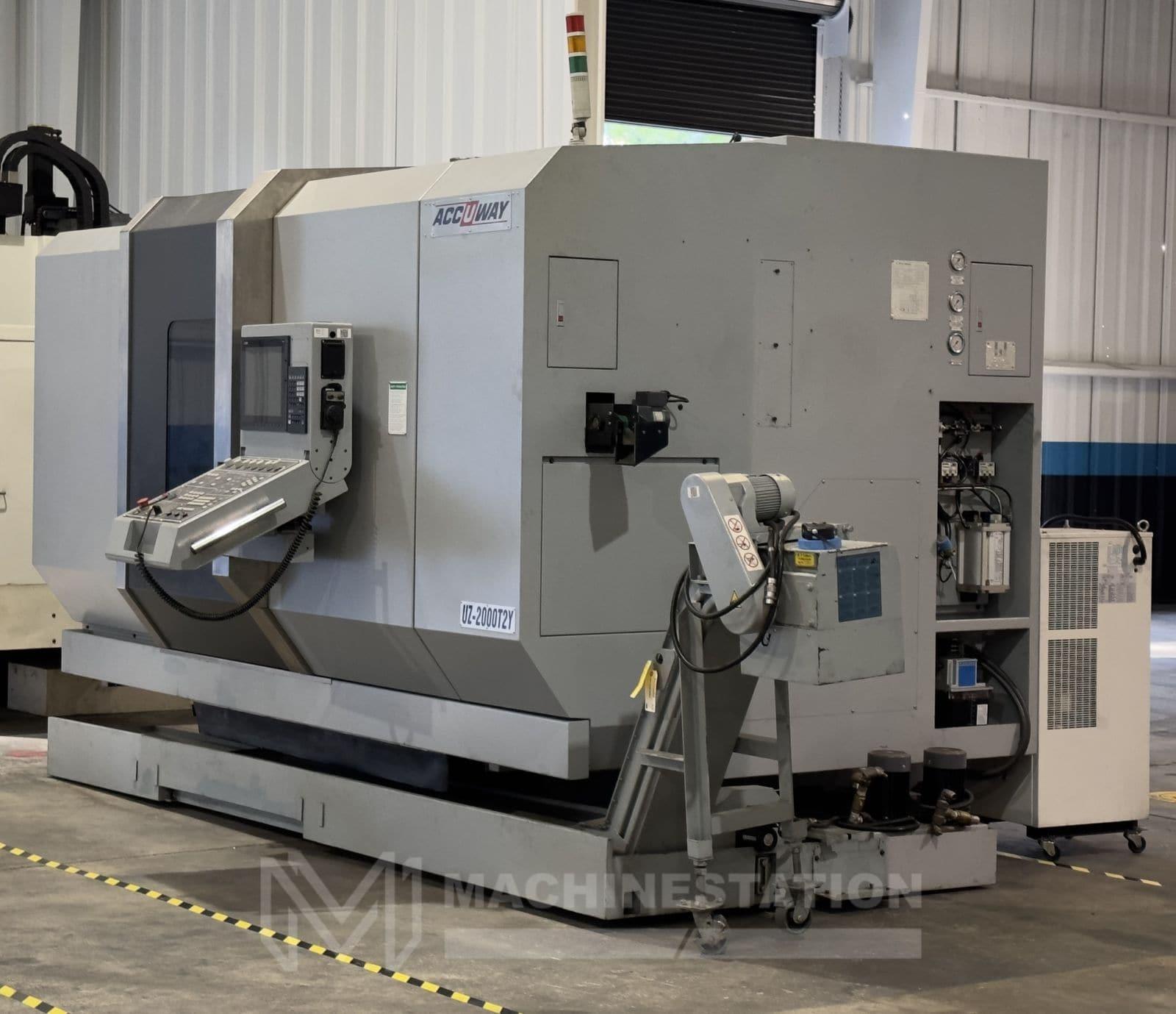

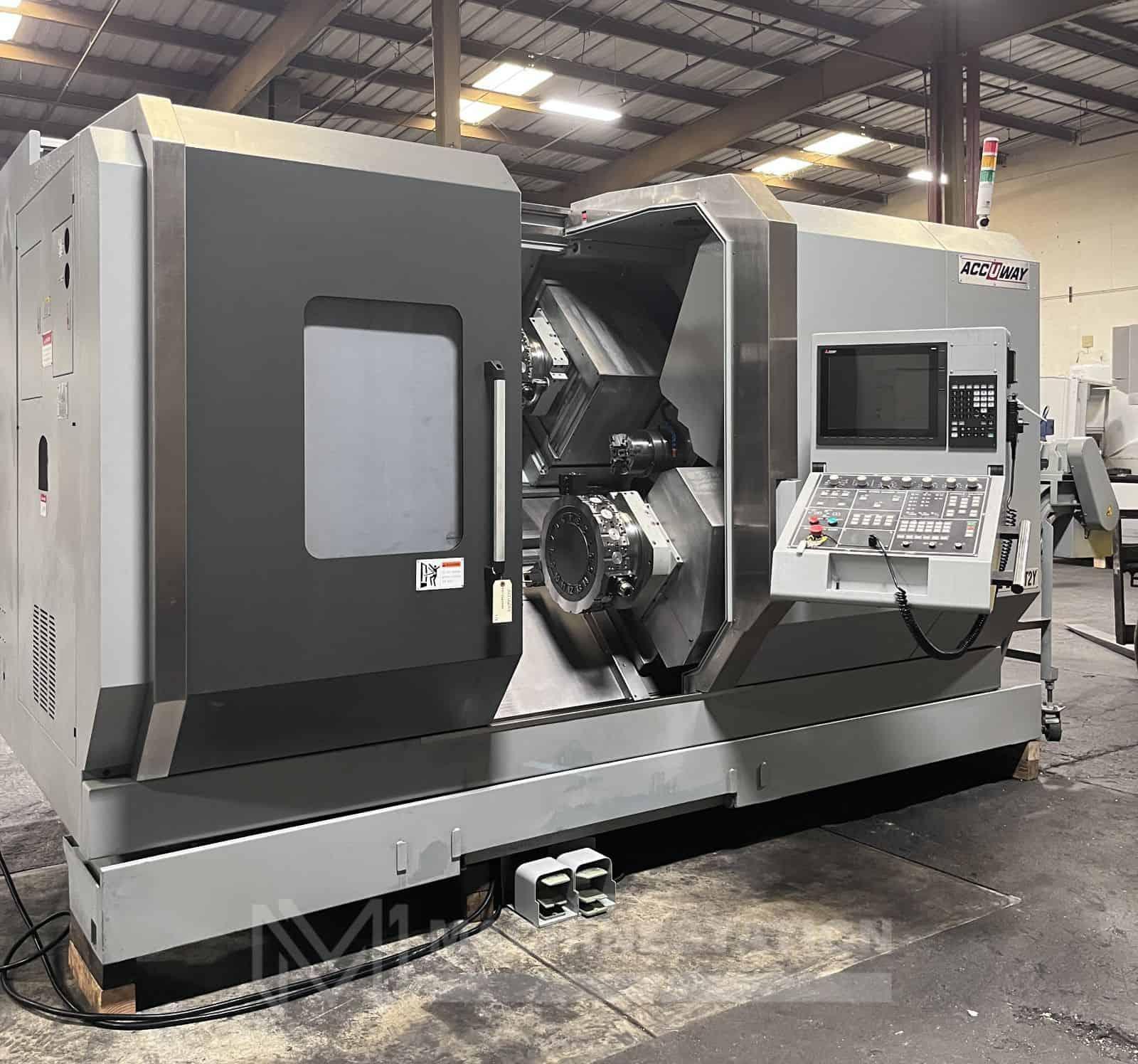

Name: Accuway UZ-2000T2Y CNC Lathe – Y Axis Twin Spindle Twin Turret
Brand: ACCUWAY
SKU: 112362
Availability: InStock

Brand

ACCUWAY

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Accuway
Model:	UZ-2000T2Y
Year:	2016 (Sold & Installed in 2018)

Equipped With:

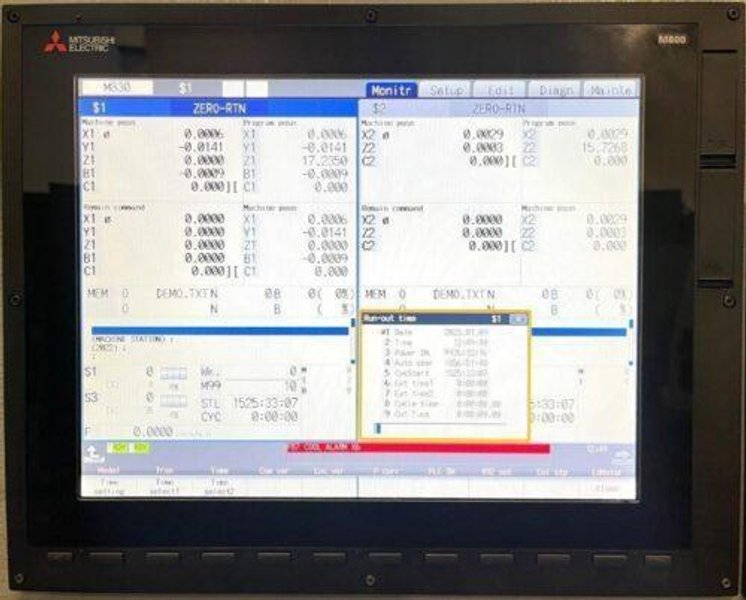

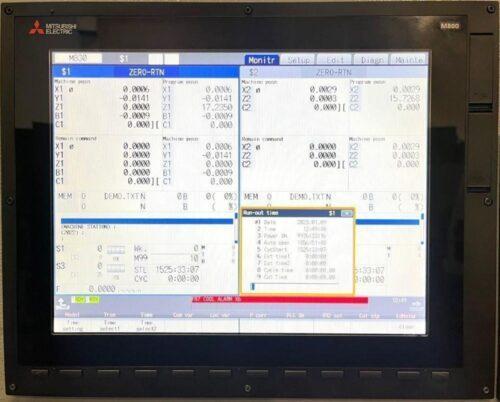

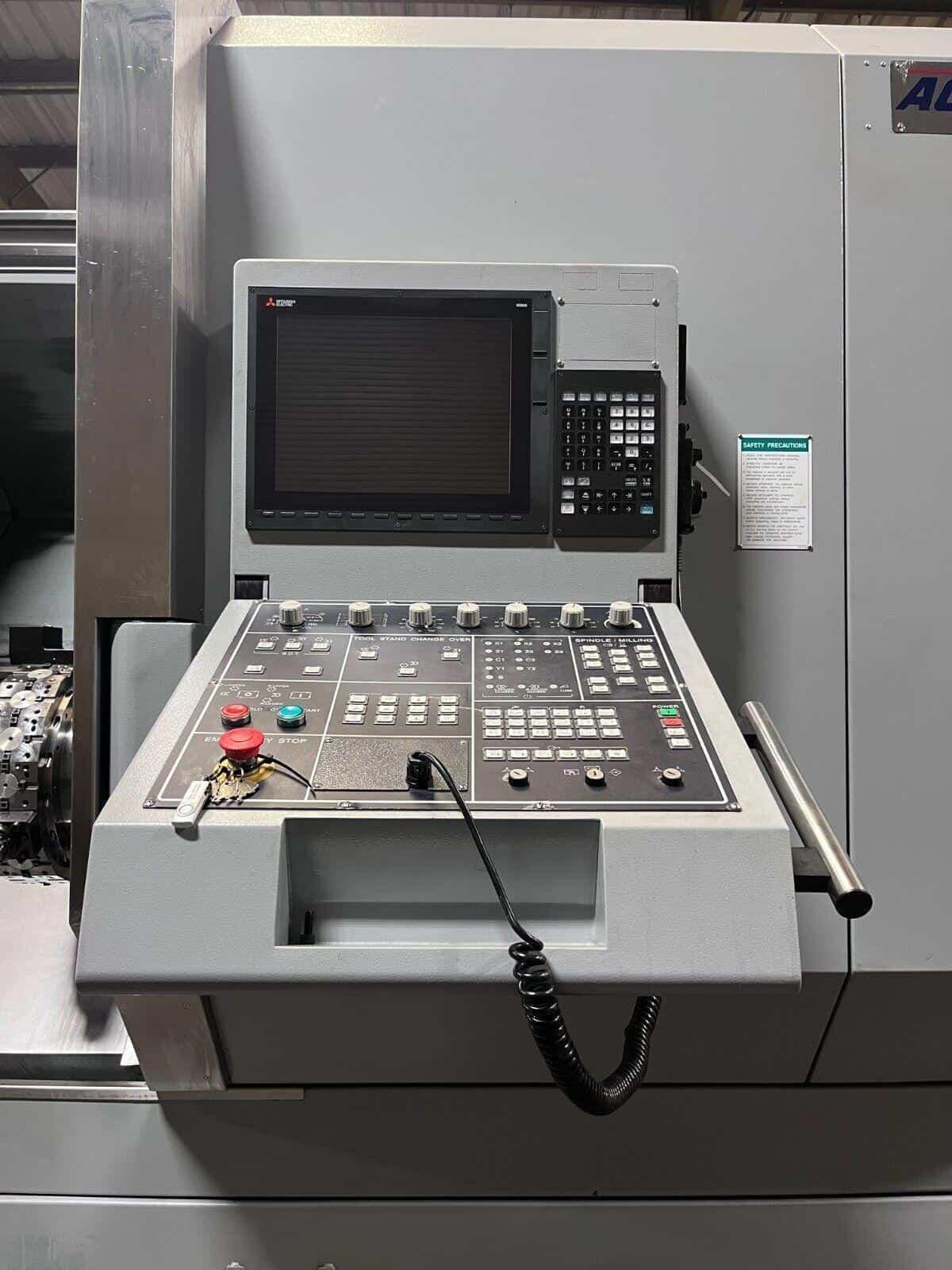

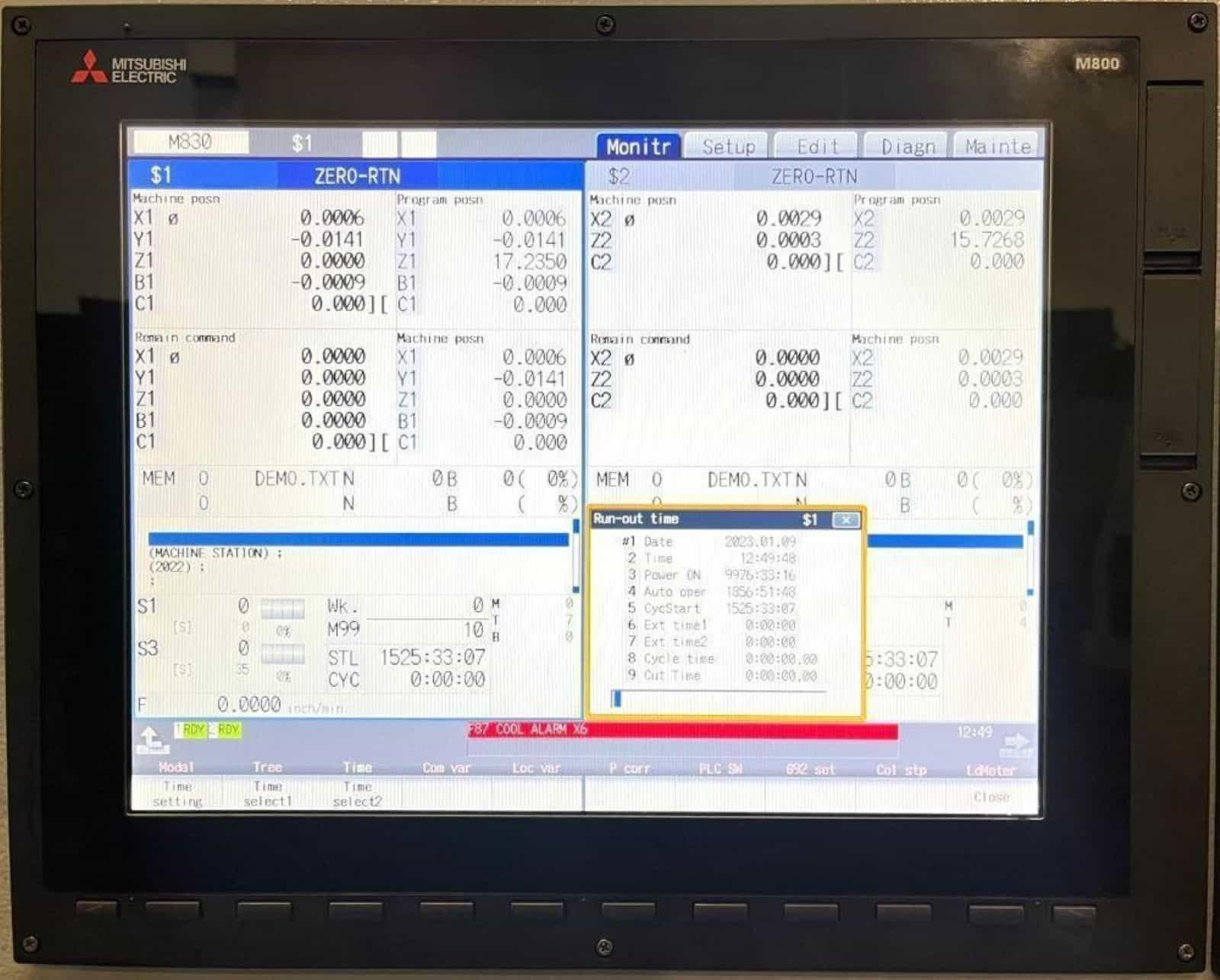

Mitsubishi M800 Series 8 Axis CNC Control

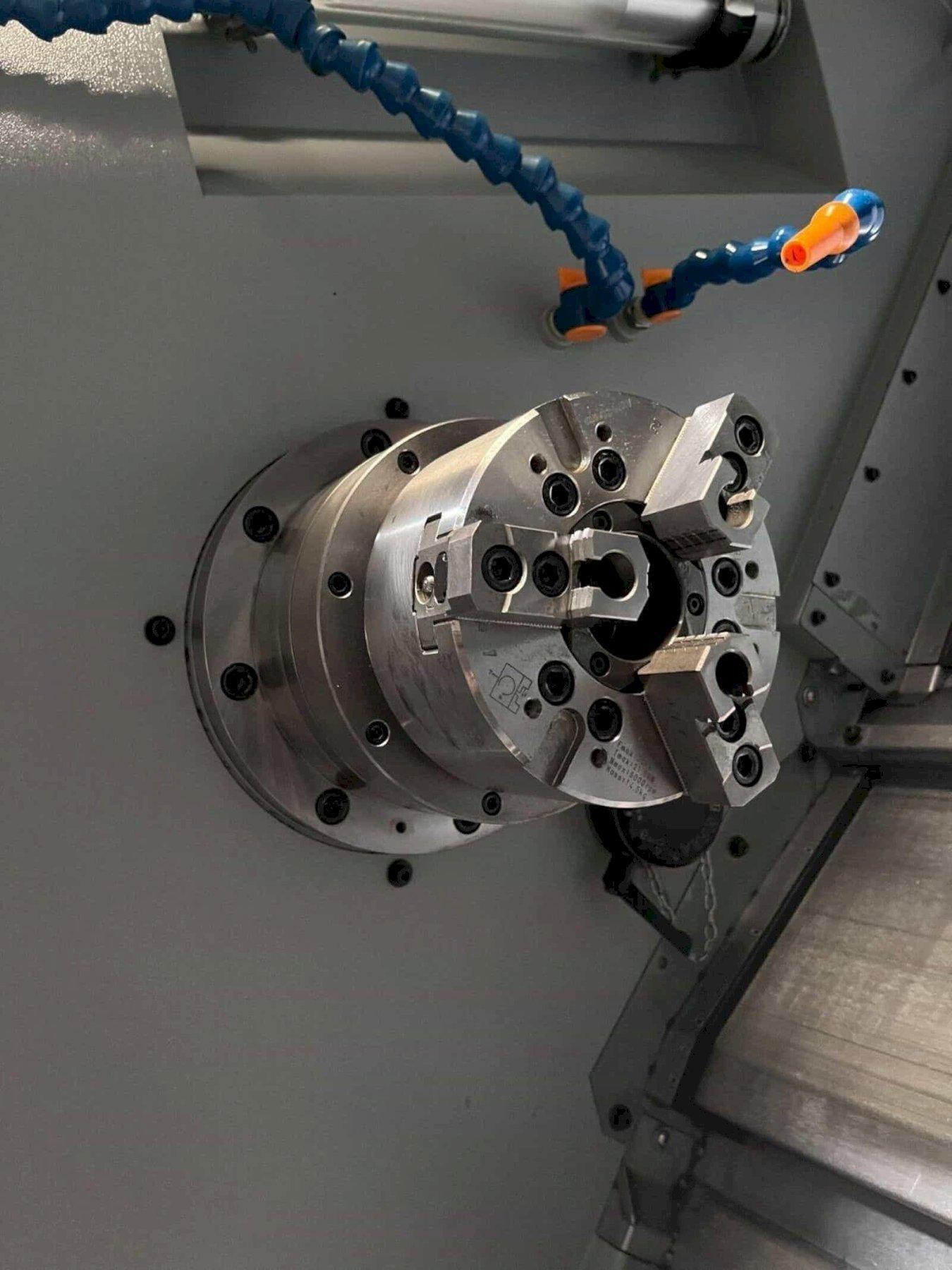

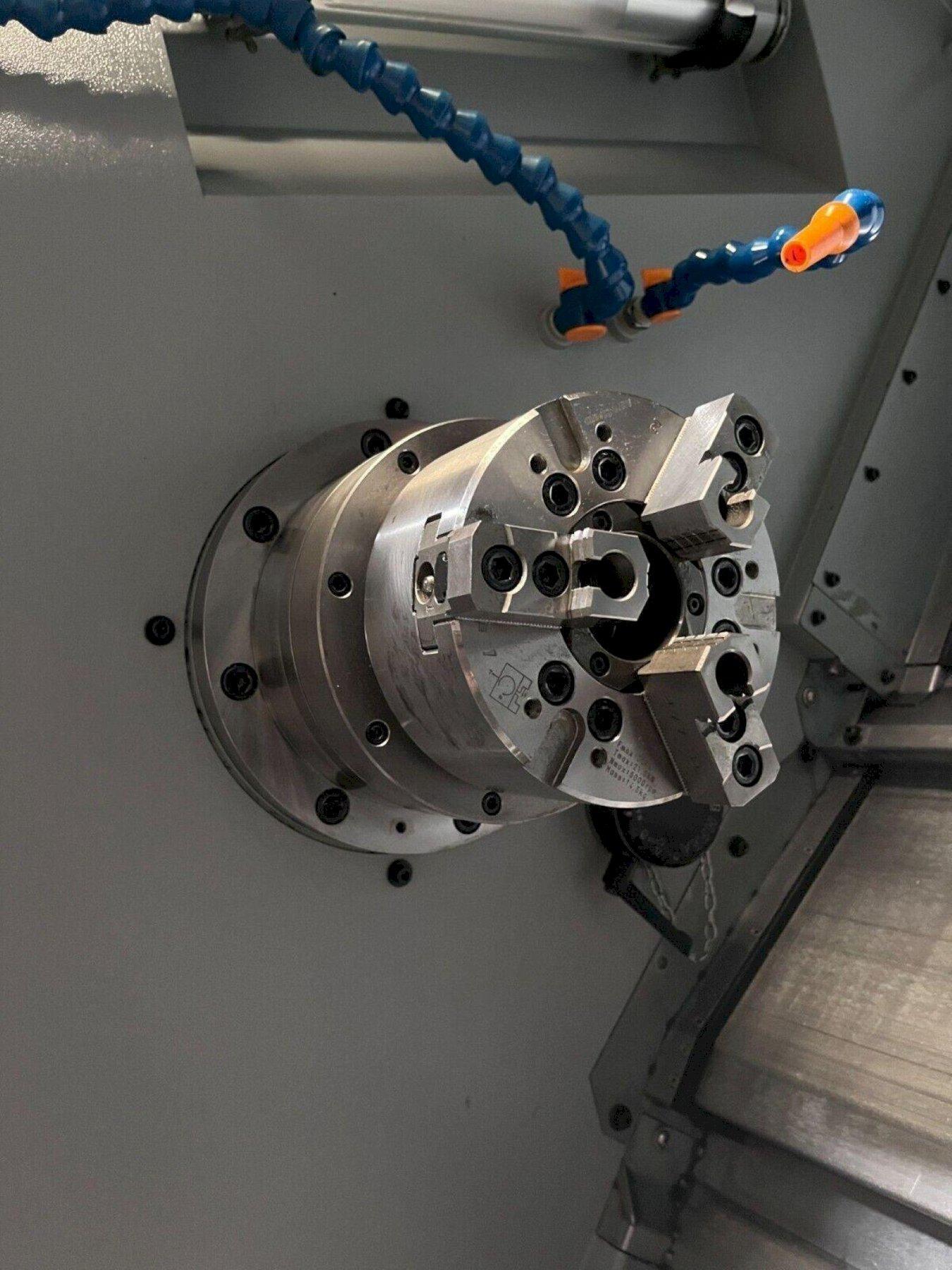

6 inch 3-Jaw Chuck on Main Spindle (Capable 8 inch Chuck)
6 inch 3-Jaw Chuck on Sub Spindle
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Both Spindle Synchronization

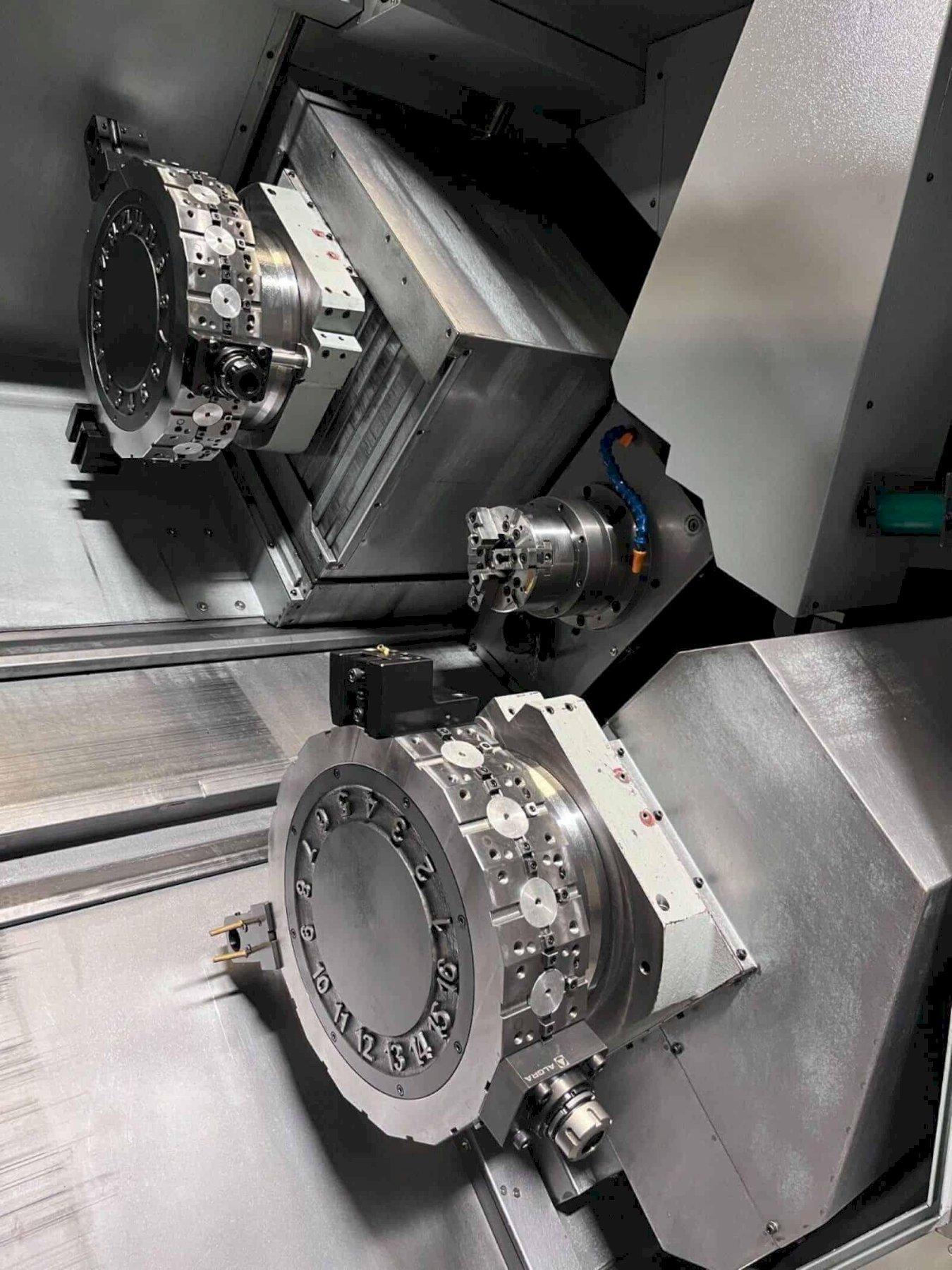

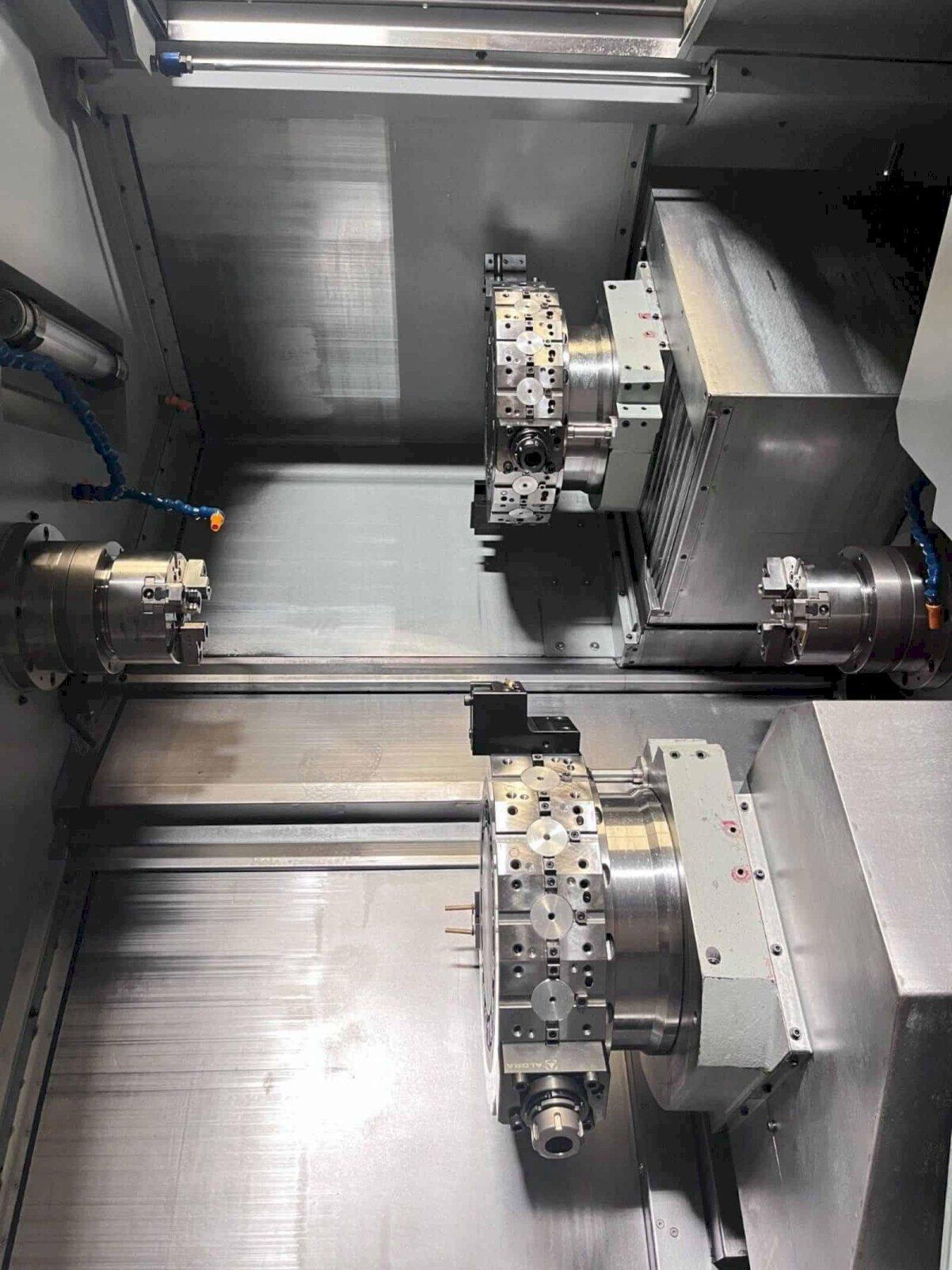

16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis Capability on Upper Turret
Auto Parts Catcher
Parts Conveyor
High Pressure Coolant System
Coolant Tank

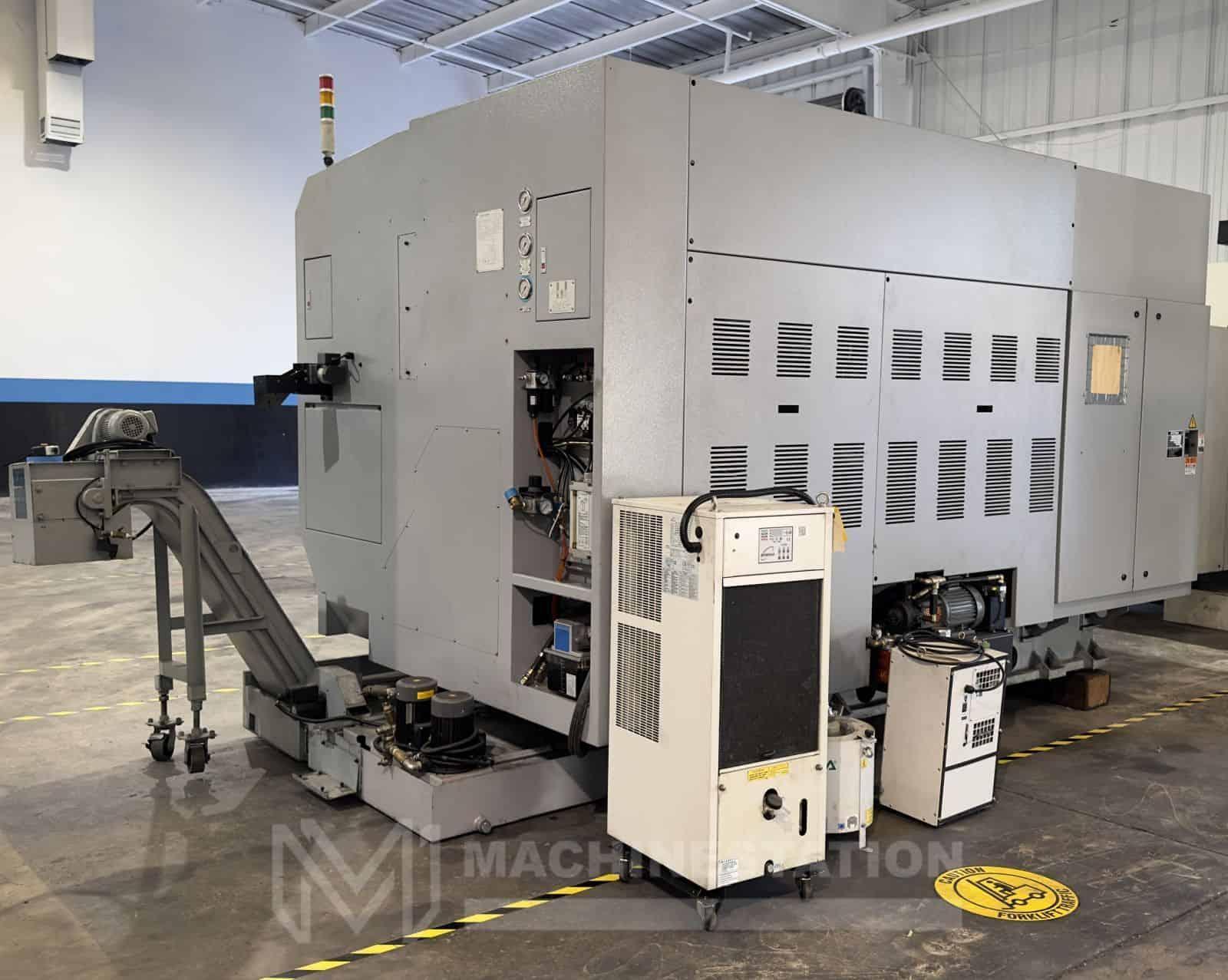

Chip Conveyor
Books and Manuals
Foot Switches
Automatic Lubrication System
Misc. Tool Holders (Mounted on Turrets as shown in the images)

Capacity:
Max Turning Diameter Upper Turret : 12.59 inch
Max Turning Diameter Lower Turret : 12.59 inch
Max Swing Over Bed : 25.98 inch
Max Swing Over Saddle: 24.40 inch
Max Turning Length: 31.10 inch
Max Bar Capacity Main Spindle : 2.04 inch
Max Bar Capacity Sub Spindle : 2.04 inch
Distance Between Spindle Centers: 45.2 inch

Travels:
X1 Axis Travel Upper Turret: 8.26 inch
X2 Axis Travel Lower Turret : 8.26 inch
Y1 Axis Travel Upper Turret: -1.77 inch/+2.55 inch
Z1 Axis Travel Upper Turret: 33.07 inch
Z2 Axis Travel Lower Turret : 33.07 inch
B Axis Travel: 36.22 inch ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle

Feedrate:
X1/X2 Axis: 1181 IPM Rapid Traverse
Y1 Axis: 1181 IPM Rapid Traverse
Z1/Z2 Axis: 1181 IPM Rapid Traverse
B Axis: 1574 IPM Rapid Traverse

Main Spindle:
Main Spindle Nose: A2-5
Main Spindle Bore: 2.5 inch
Main Spindle Speed: 5,000 RPM
Main Spindle Power: 20 HP

Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.5 inch
Sub Spindle Speed: 5,000 RPM
Sub Spindle Power: 20 HP

Turret:
Upper Turret Capacity: 16 Stations
Lower Turret Capacity: 16 Stations
Live Milling Speed: 6000 RPM
Live Milling Motor: 7.5 HP
Turret Index Time (Tool to Tool): 0.2 sec
Turret Type: BMT-40

General:

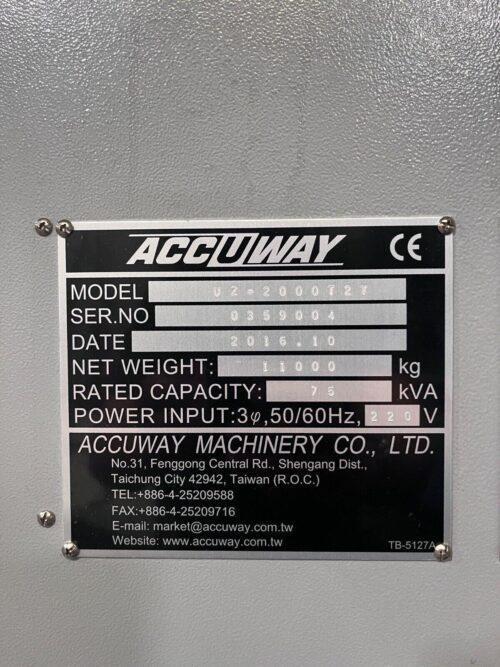

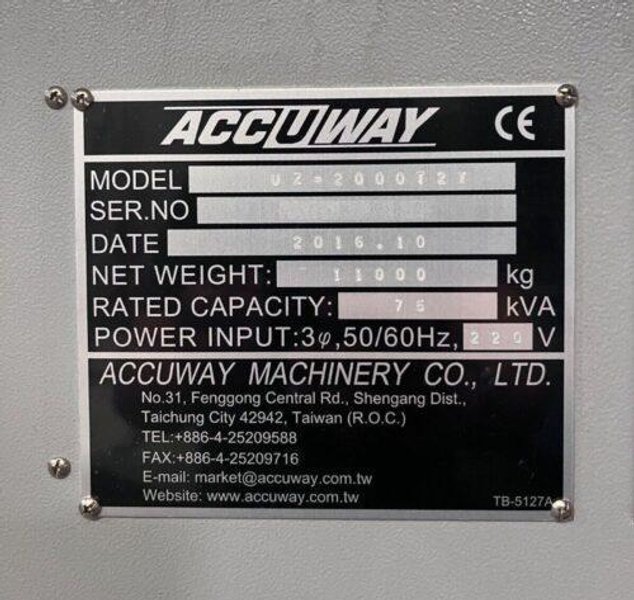

Power Source: AC 220v / 3-Phase / 50/60 Hz
Power Requirement: 75 kva
Machine Dimensions: 185 inch x 95 inch x 91 inch Height
Machine Dimensions: 210 inch x 95 inch x 91 inch Height (With Chip Conveyor)
Machine Weight: 24,251 lbs Approx.
