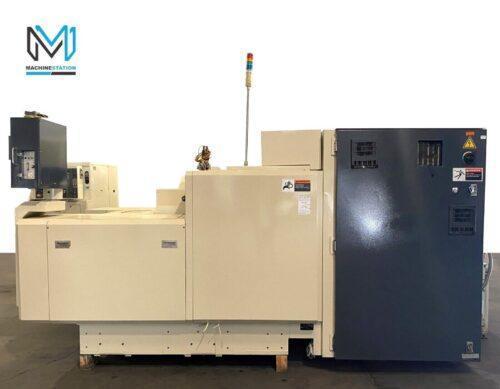

Kitako MT4-200M Multi Spindle CNC Turn Mill Center

Kitako MT4-200M Multi Spindle CNC Turn Mill Center

Brand

KITAKO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	KITAKO
Model:	MT4-200M
Year:	1999
Condition:	Used – Good

Equipped With:
Fanuc 18i-T Series 6 Axis CNC Control
(4 no.) Spindles Design (2 no.) In Machining Area (2 no.) in Loading Area
(4 no.) Collet Chucks (Capable 8″ Chucks)
Servo Controlled Full C-Axis on Spindles
Twin Turrets with Live Tools
8 Station Left Turret with Live Tools
8 Station Right Turret with Live Tools
Auto Parts Catcher?
High Pressure Coolant System
Foot Switches
Chip Conveyor
Coolant Tank
Transformer
Automatic Lubrication
Books and Manuals?

Capacity:
Max Turning Diameter Left Turret : 7.9″
Max Turning Diameter Right Turret : 7.9″
Max Swing : 8.3″
Max Turning Length: 6.3″
Max Bar Capacity Main Spindle : 1.56″

Travels:
X1 Axis Travel (Left Turret): 6.69″
X2 Axis Travel (Right Turret) : 6.69″
Z1 Axis Travel (Left Turret) : 9.84″
Z2 Axis Travel (Right Turret) : 9.84″
C Axis: 360° (0.001°)
Rapid Traverse X1, X2 Axis: 945 IPM
Rapid Traverse Z1, Z2 Axis: 787 IPM

Spindle:
No. of Spindles: 4
Spindle Nose: A2-6
Spindle Bore: 1.97″
Spindle Speed: 50-4000 RPM
Spindle Motor: 20 HP

Turret:
Left Turret Capacity: 8 Stations
Right Turret Capacity: 8 Stations
Live Milling Speed: RPM?
Live Milling Motor: HP?
Turret Index Time (Tool to Tool): sec?

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: kva
Machine Dimensions: 106″ x 78″ x 85″ Height
Machine Weight: 17,500 lbs Approx.

No files or videos to display
