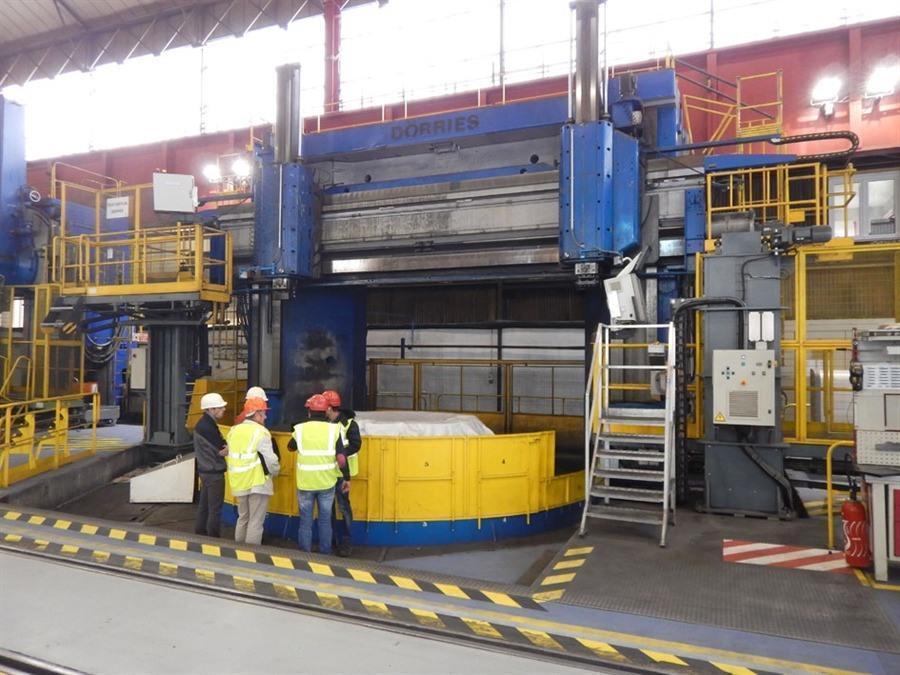

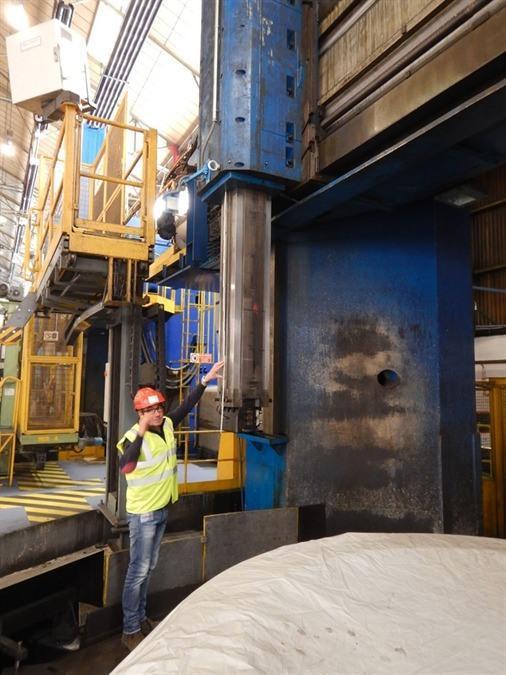

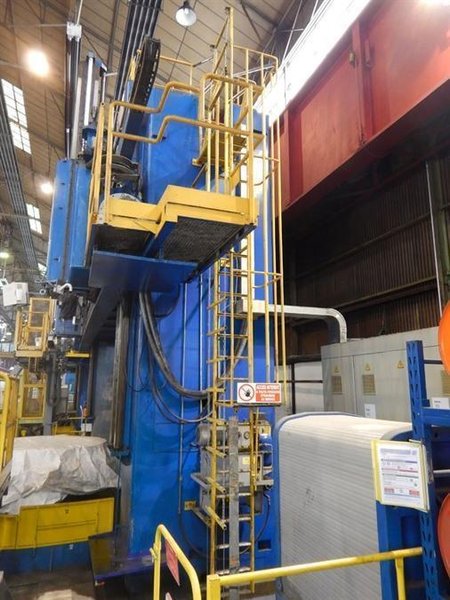

Dorries Ø 6500 x 4270 mm CNC

Brand

DORRIES

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Chuck dia. 6000 mm
Max turningdia -- passage 6500 mm
Power on the spindle 200 HP
Max hight of workpiece Z-axis 4270 mm
Command Siemens/Heidenhain
Number of speeds 1 > 40 rev/min
Long 20 500 mm
Wide 8500 mm
Height 6290 mm (above ground-level)
Weight 180 ton

Additional info

Type: SD 600/6500

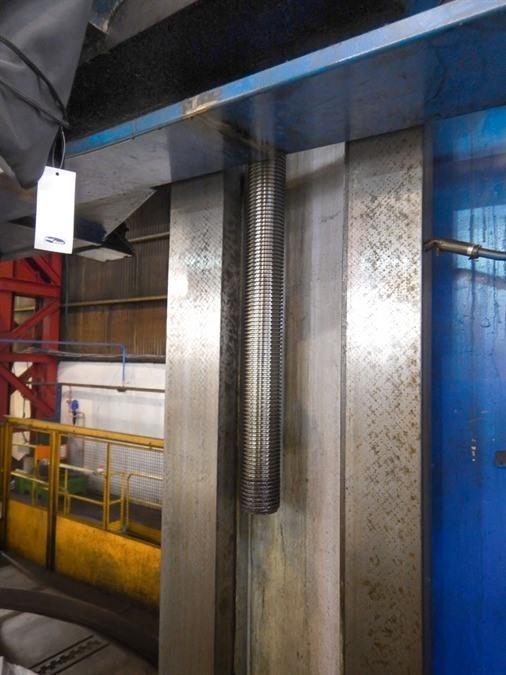

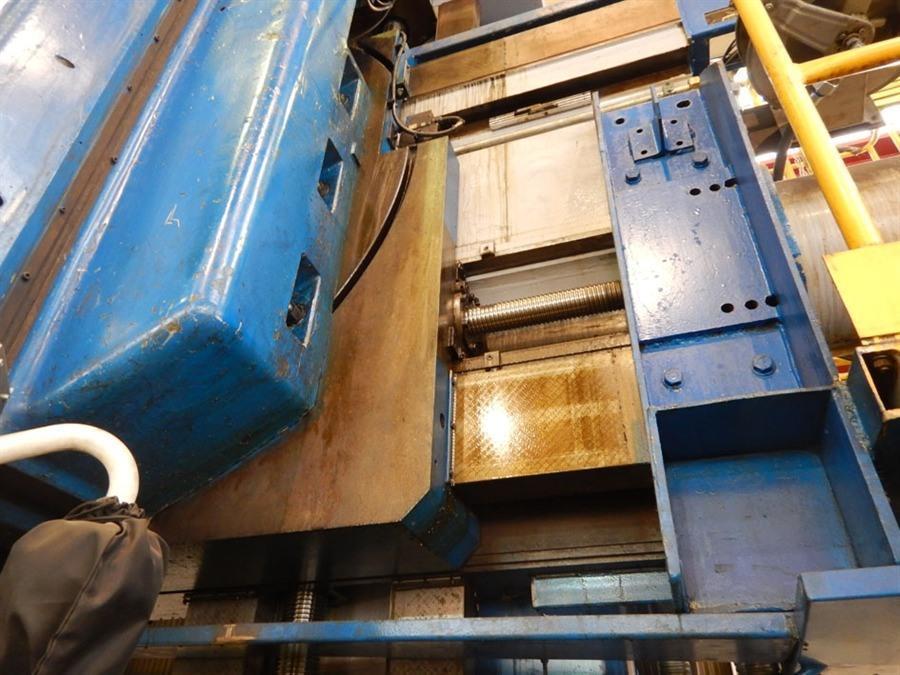

4 axis steered, ball screw spindles

between columns: 6500 mm
max. height under crossbar: 4270 mm
vertical movement of the crossbar: 2500 mm

max weight on table: 160 tons

torque from the table: 30,000 MKP, 200 HP

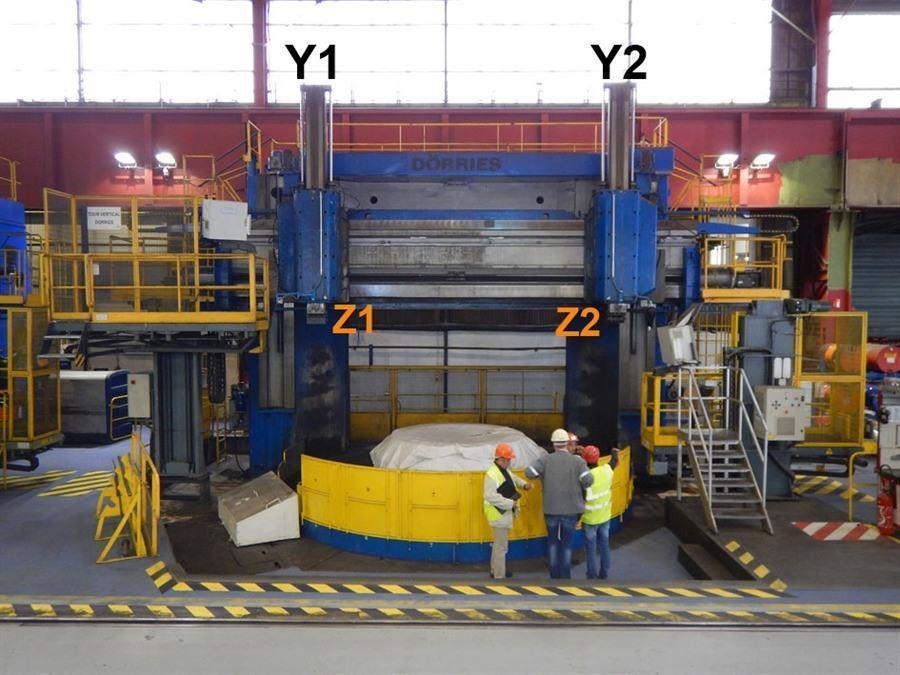

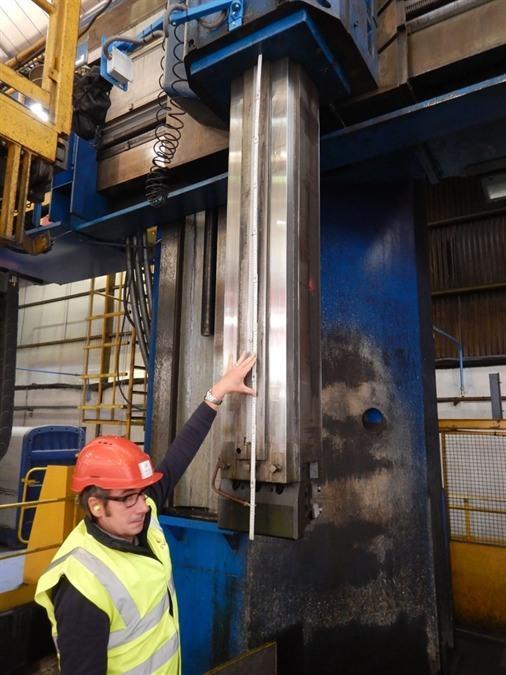

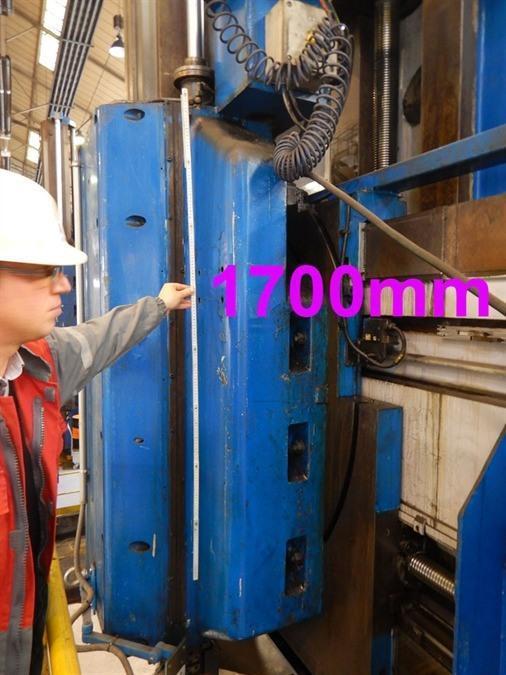

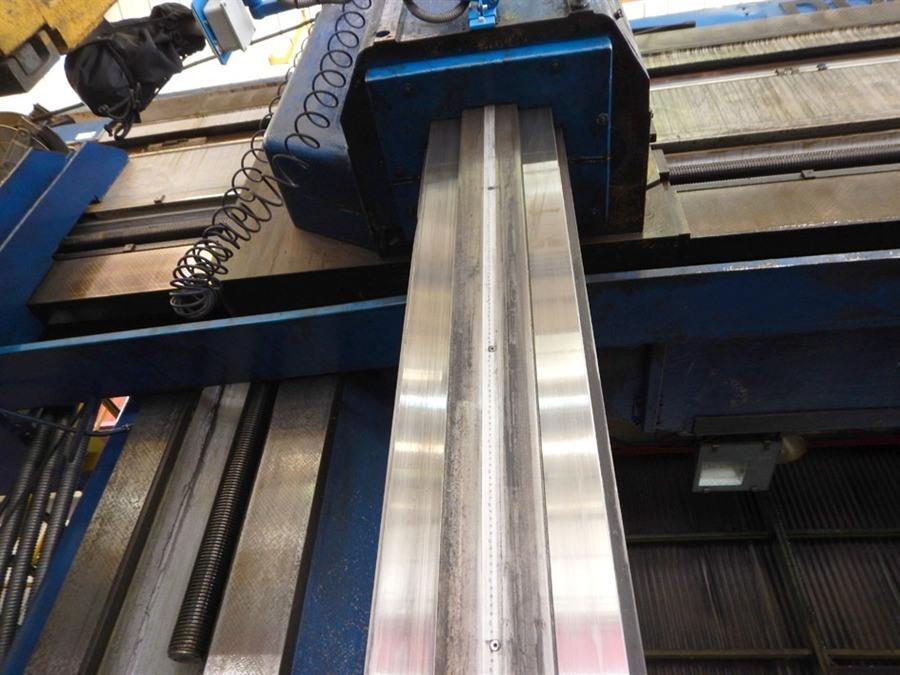

Vertical movement of Z1 & Z2: 1750 mm

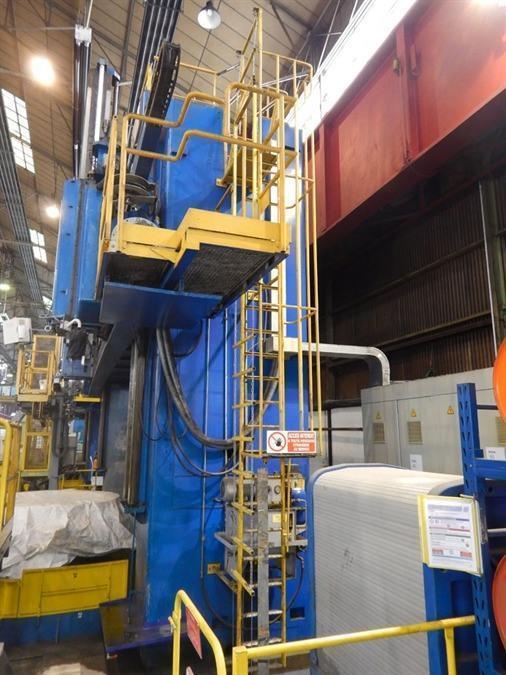

Two independent scissor lifts on each side of the lathe, with control unit

No files or videos to display
