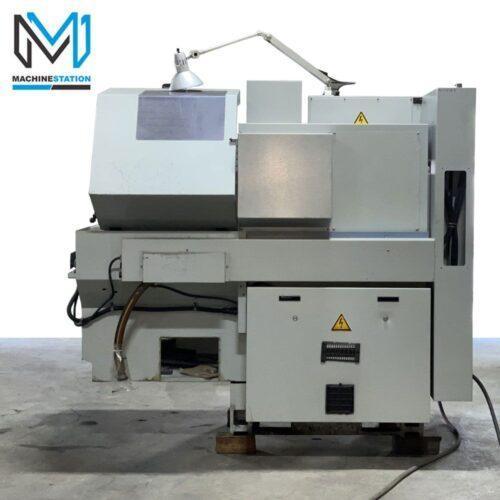

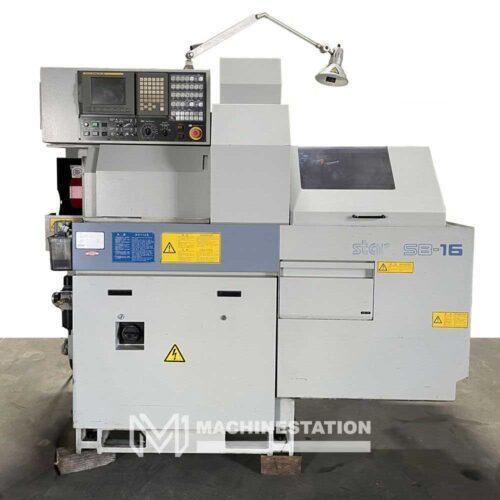

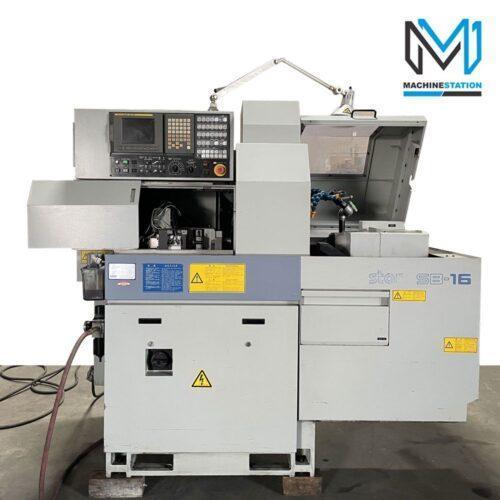

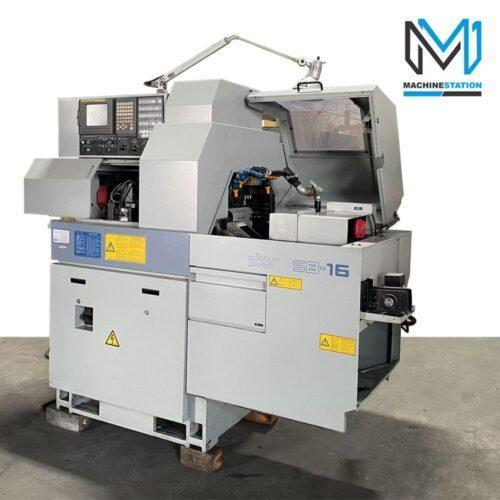

Star SB-16 CNC Swiss Screw Turning Lathe

Star SB-16 CNC Swiss Screw Turning Lathe

Name: Used STAR SB16 For Sale 112347
Brand: STAR
SKU: 112347

Brand

STAR

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	2347
Make:	STAR
Model:	SB16

Equipped With:
Fanuc 18i-TB CNC Control Full C Axis and Live Tools Capable Long Parts Capable Main & Back Spindle Synchronization High Speed Rapid Travers: 741 IPM High Speed Program Processing Absolute Position Detection Automatic Lubrication System Coolant Tank Books and Manuals

Capacity:
Max Turning Diameter: 5/12″ (16 mm) Max Turning Length: 8″ (205 mm) Max Turning Length with Gripping Unit: 6.3/19″ (155 mm) Max Bar Capacity: 5/12″ (16 mm) Tool Capacity: 16

Spindle:
Main Spindle Index: 0.01 Degree (C-axis control) Main Spindle Bore: 5/12″ (16 mm) Main Spindle Speed: 10,000 RPM Back Spindle Motor: 3.7 kw Back Spindle Index: 1 Degree Back Spindle Speed: 8000 RPM Back Spindle Motor: 1 kw

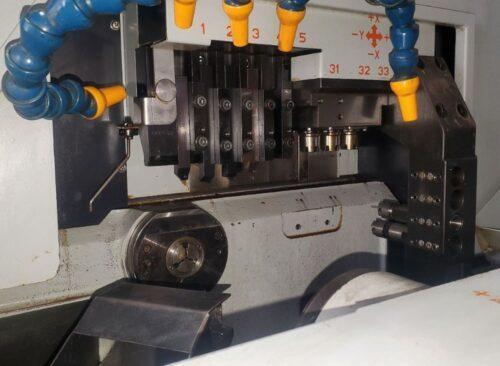

Standard Tools:
Turning Tools: 5 Stationary Tools: 8 Max Drilling Capability: 25/64″ (10mm) Max Tapping Capability: M8 x P1.25 Die Cutting Capability: M8 x P1.25

Power Driven Tools Attachment:
Power Driven Tools: 3 Max Front Drilling: 15/64″ (6 mm) Max Front Tapping: M6 x P1.0 Max Front Milling: 15/64″ (6 mm) Driven Tool Speed: 5000 RPM Driven Tool Motor: 0.4 kw
