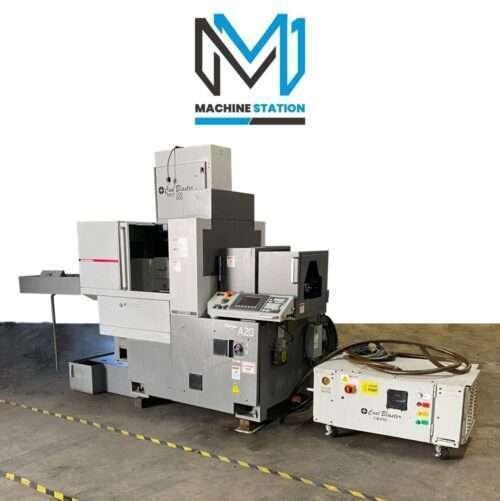

Citizen Cincom A20VIIPL CNC Swiss Screw Type Automatic Lathe Turning

Citizen Cincom A20VIIPL CNC Swiss Screw Type Automatic Lathe Turning

Name: Used CITIZEN A20VIIPL For Sale 112511
Brand: CITIZEN
SKU: 112511

Brand

CITIZEN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112511
Make:	Citizen
Model:	A20VIIPL
Year:	2014

Equipped With:

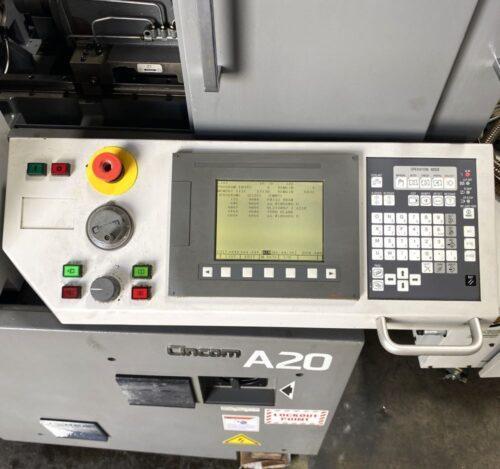

Fanuc CNC Control
Edge C 320 Bar Feeder
Full C Axis and Live Tools Capable
Full Y Axis Capable
Long Parts Capable
Main & Back Spindle Synchronization
High Speed Rapid Travers: 1260 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Coolant System
Cool Blaster Mist Control 850
Part Catcher
Levelling Pads
Books & Manuals

Capacity:
Max Turning Diameter: 25/32″ (20 mm)
Max Turning Length: 7.87″ (200 mm)
Max Protrusion Length of the Back Spindle Workpiece: 1.96″ (50 mm)
Max Bar Capacity: 0.79″ (20 mm)
Tool Capacity: 21

Spindle:
Main Spindle Index: 0.001 Degree (C-axis control)
Main Spindle Bore: 1.02″ (26 mm)
Main Spindle Speed: 10,000 RPM
Main Spindle Motor: 5 HP
Back Spindle Index: 0.01 Degree (C-axis control)
Back Spindle Speed: 8,000 RPM
Back Spindle Motor: 2 HP

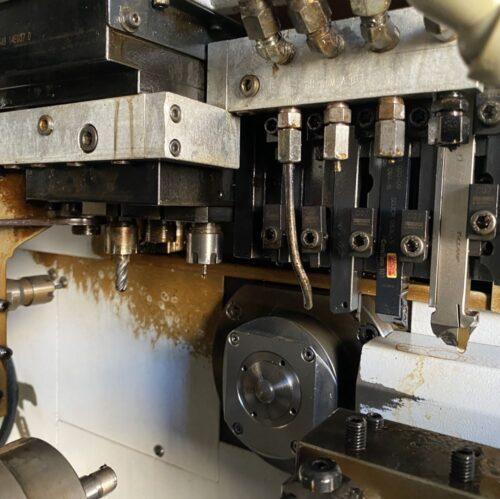

Standard Tools:
Turning Tools: 5
Front Endworking Tools: 5 Static
Back Endworking Tools: 8 Static on 2 Blocks
Max Drilling Capability: 25/64″ (10 mm)
Max Tapping Capability: M8 X P1.25
Die Cutting Capability: M8 X P1.25

Power Driven Tools Attachment:
Front Working Power Driven Tools: 4
Max Front Drilling: 25/64″ (10 mm)
Max Front Milling: 25/64″ (10 mm)
Max Front Tapping: M8 x P1.25
Driven Tool Speed: 6000 RPM
Driven Tool Motor: 1 HP
