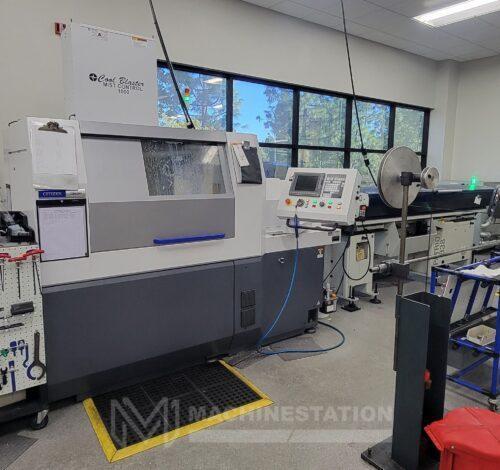

Citizen L32-1M8 CNC Swiss Type Automatic Lathe – Bar Feeder

Brand
CITIZEN
Category
Lathes & Turning Machines
Type
Lathes, CNC, Automatic, Swiss Type
Model
L32-1M8
Stock #
115060
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make:Citizen
Model:L32-1M8
Year:2019
Condition:Used – Excellent



Equipped With:

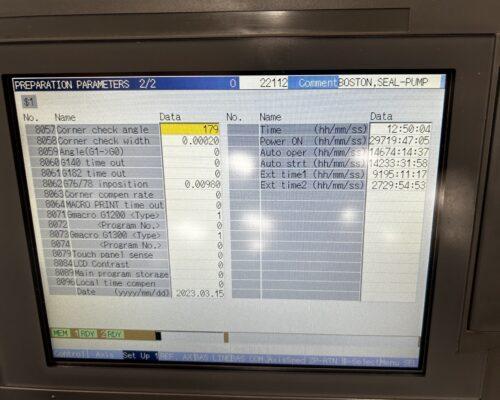

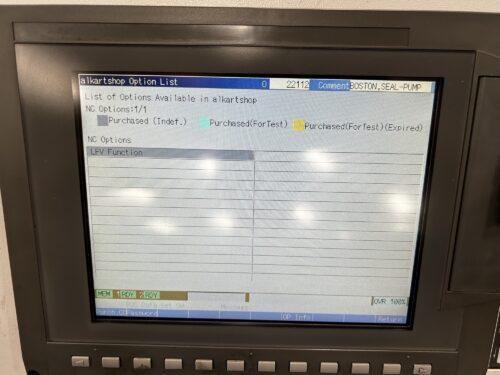

  • Citizen CNC Control
  • Number of Axis Z1, X1, Y1, Z2, X2, C1, C2
  • Comes with Patriot 8-feet Bar Feeder
  • Back Spindle
  • Live Tools Capable
  • Long Parts Capable
  • C & Y Axis Capabilities
  • Milling Interpolation
  • MPG Control
  • Main & Back Spindle Synchronization
  • High Speed Rapid Travers: 1260 IPM
  • High Speed Program Processing
  • Absolute Position Detection
  • Automatic Lubrication System
  • Cool Blaster Mist Control 1000
  • High Pressure Coolant System



Capacity:
  • Max Machining Diameter: 1.26″ (32 mm)
  • Max Machining Length with Guide Bushing: 12.6″ (320mm)
  • Max Machining Length without Guide Bushing: 2.5″ (63.5 mm)
  • Max Bar Capacity: 1.26″ (32 mm)
  • Spindle Through Hole Diameter: 1.53″ (39 mm)
  • Max Tool Positions: 19 – 30
  • Max.  Front Drilling Diameter: 0.472″ (12 mm)
  • Max. Front Tapping Diameter: M12
  • Max. Back Spindle Chucking Diameter: 1.26″ (32 mm)
  • Max. Back Spindle Drilling Diameter: 0.472″ (10 mm)
  • Max. Back Spindle Tapping Diameter: M10
  • Max. Tool Spindle Drilling Diameter: 0.314 ( 8 mm)
  • Max. Tool Spindle Tapping Diameter: M6



Spindle:
  • Main Spindle Indexing: 360° (Full C-Axis)
  • Main Spindle Speed: 8,000 RPM
  • Main Spindle Motor: 7.5 kw
  • Back Spindle Indexing: 360° (Full C-Axis)
  • Back Spindle Speed: 8,000 RPM
  • Back Spindle Motor: 3.7 kw



Standard Tools:

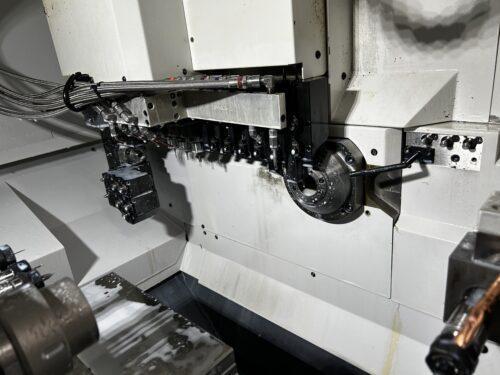

  • Gang Turning Tool: 6
  • Front Drilling tool : 4 – 9
  • Back Drilling Tools: 5 – 11



Power Driven Tools Attachment:
  • Gang rotary tool : 4 – 6
  • Driven Tool Speed: 6,000 RPM
  • Driven Tool Motor: 1.0 kw



General:

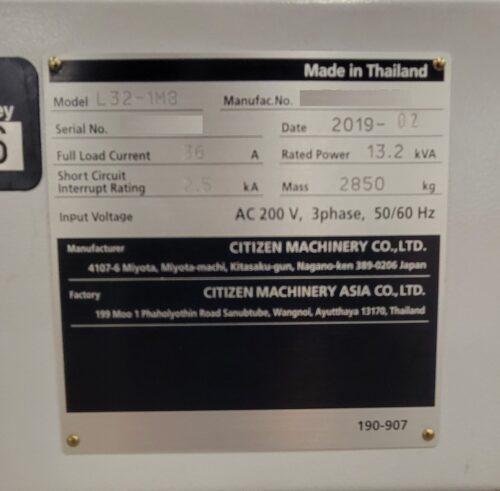

  • Power Source: AC 220v / 3-Phase / 50/60 Hz
  • Power Requirement: 13.2 kva
  • Overall Dimensions: 97″ X  55″ X 69″ High without Bar Feeder
  • Weight: 6,283 lbs. Approx.
