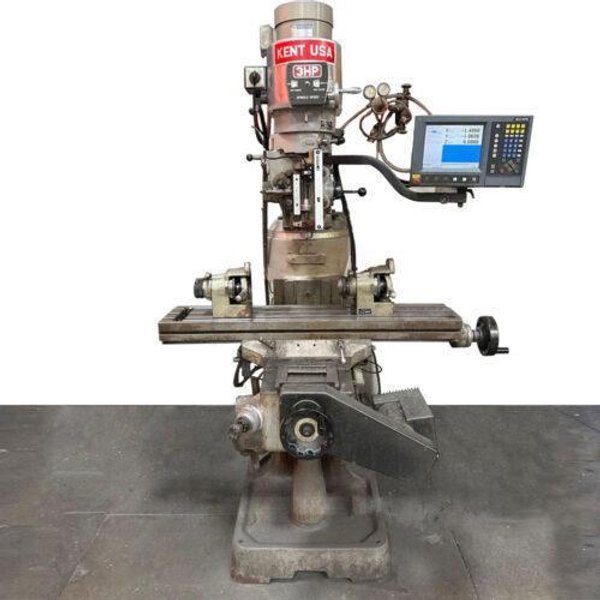

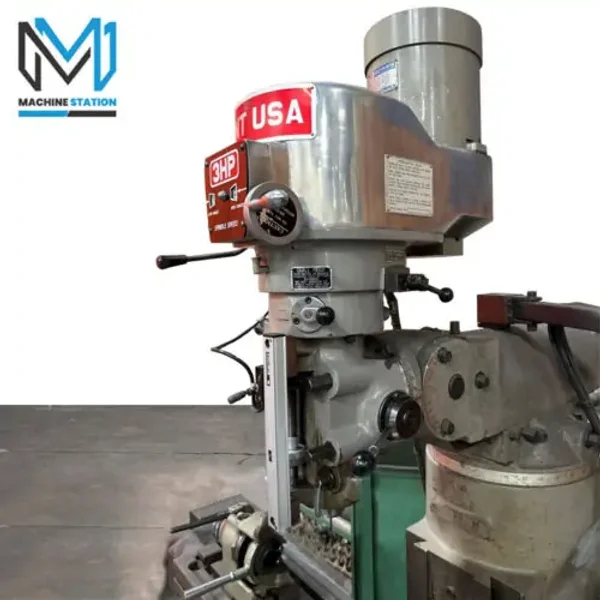

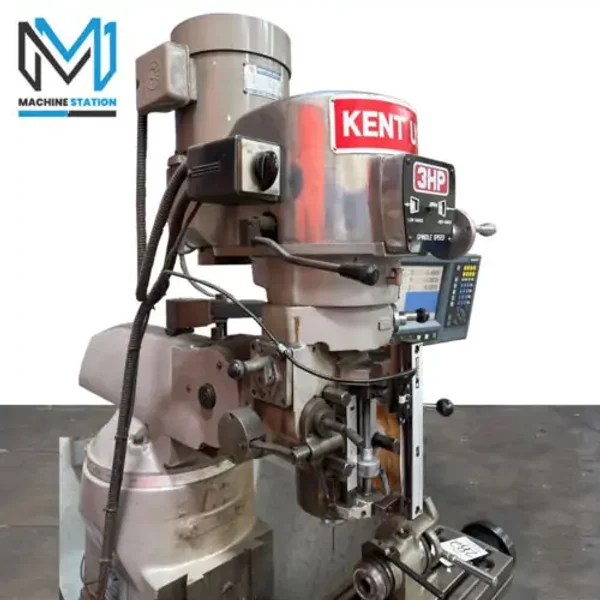

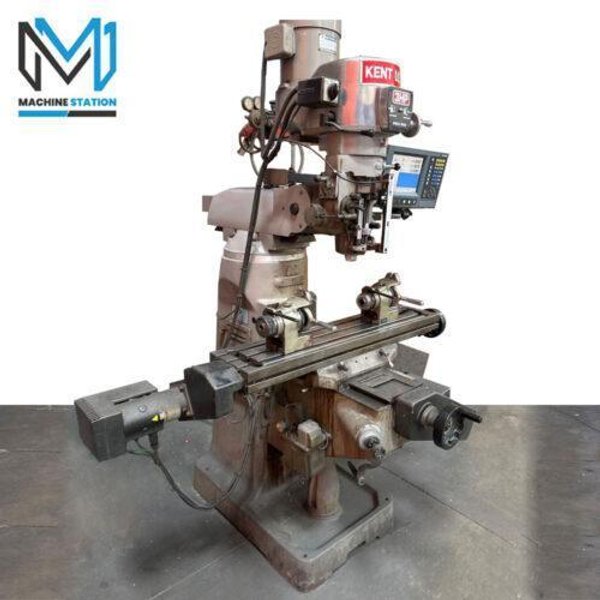

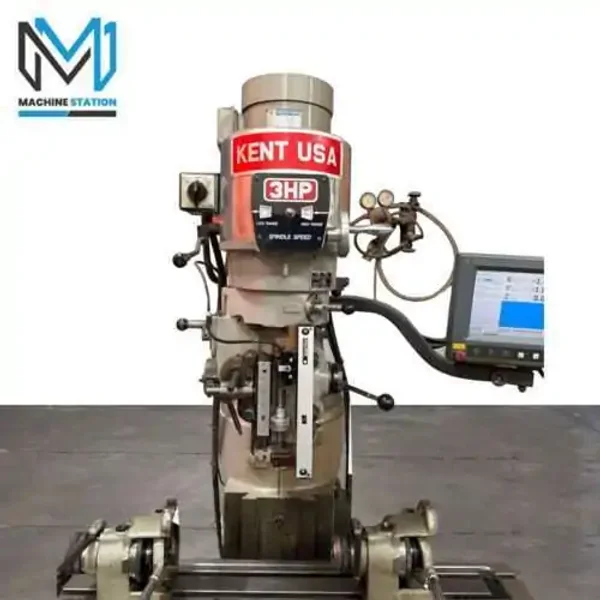

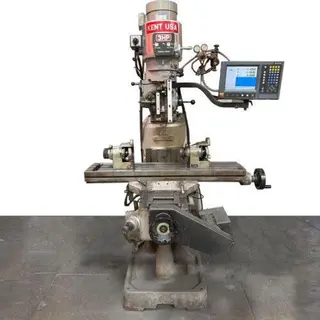

Kent KTM-3VS 9″ x 42″ Variable Speed CNC Vertical Milling

Brand
KENT
Category
Machining Centers
Type
Machining Centers, Vertical
Model
SKU:112553Make:KentModel:KTM-3VS
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:112553
Make:Kent
Model:KTM-3VS
Condition:Used – Good



Features:

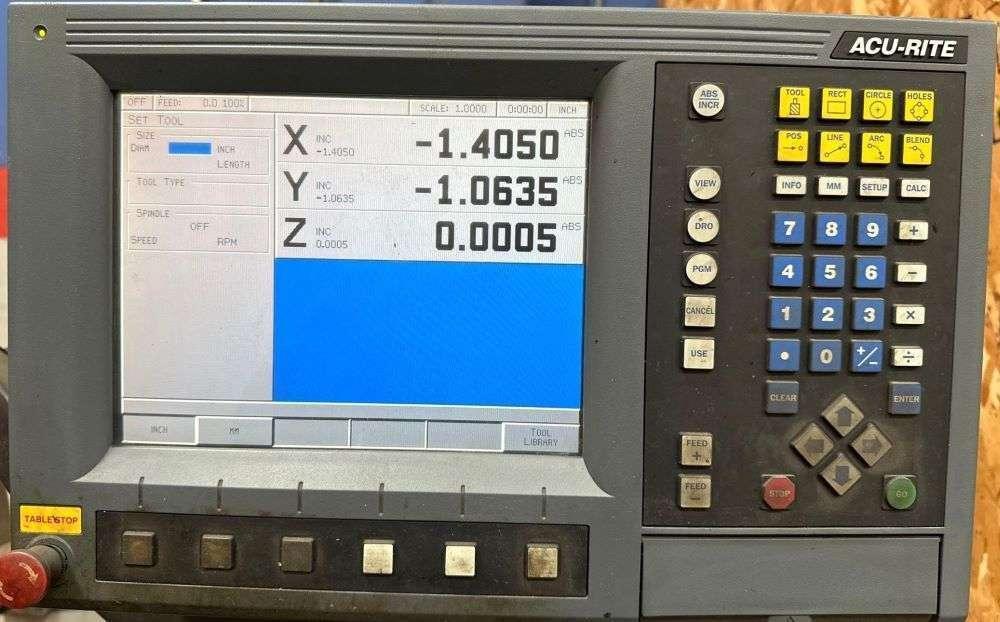

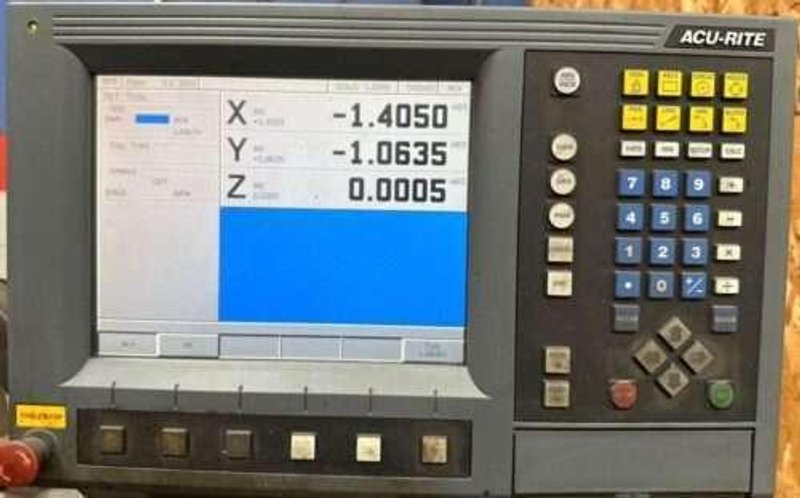

ACU-RITE 3-Axis CNC Control
Hardened and ground table surface, saddle, and knee
60 – 4200 RPM Variable Spindle Speed
90° | 45° Head Movement (Right or Left | Front or Back)
3 HP Spindle Motor



Capacity:
Maximum Table Longitudinal Travel: 35″
Maximum Table Cross Travel : 12″

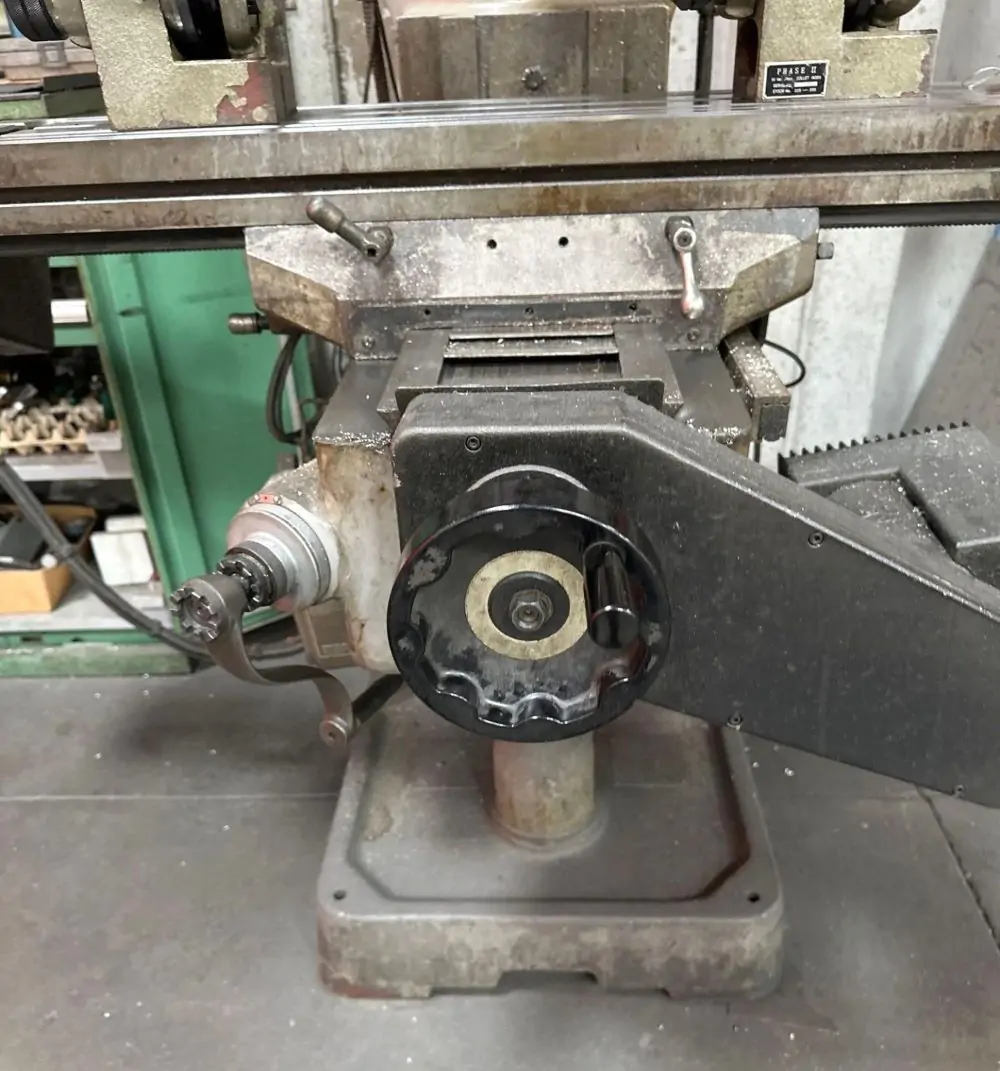

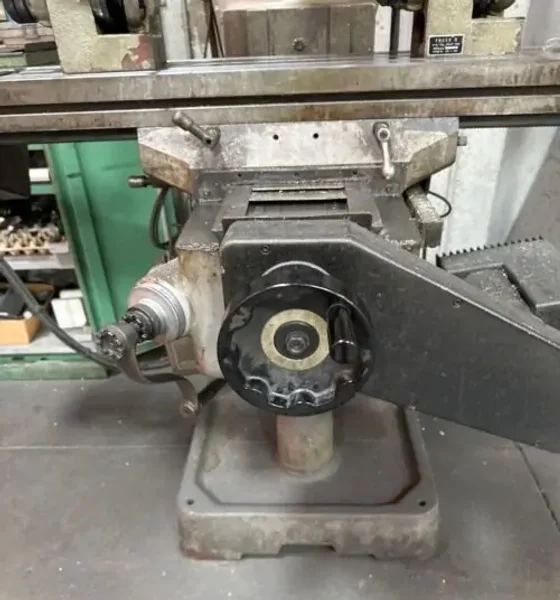

Maximum Knee Travel: 15″
Maximum Ram Travel: 14.5″
Maximum Spindle Travel: 5″
Head Movement (Right or Left | Front or Back): 90° | 45°
Spindle to Column (min-max): 6-3/4″ – 18-1/2″
Spindle Nose to Table (min-max): 3-1/4″ – 18-1/4″



Table:
Working Surface: 9″ x 42″
T-Slot Number, Size: 3, 5/8″



Spindle:
Spindle Taper: R-8
Spindle Motor: 3 HP
Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM
Quill Down Feed Rates: .0015 – .003 – .006 (IPR)
Diameter of Quill: 3-3/8″
Number of Spindle Speeds: Mechanical Variable Speed
Head Tilt (Right to left each way): 90 Degrees
Head Tilt (Front and Back each way): 45 Degrees



General:
Overall Machine Dimensions (WxDxH): 86″ x 67″ x 84″
Electrical: 220/440V, 3 phase, 60 Hz
Net Weight (approx.): 2450 lbs
