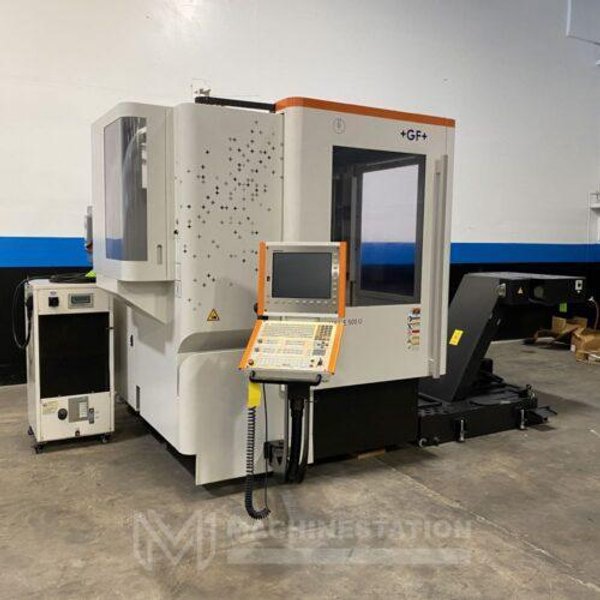

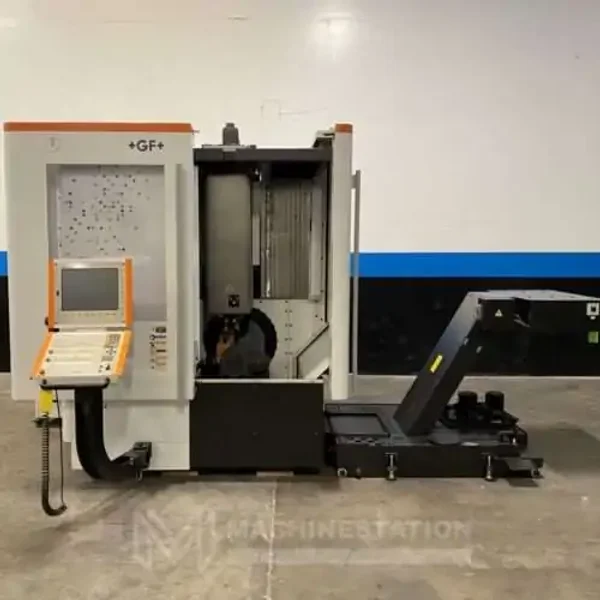

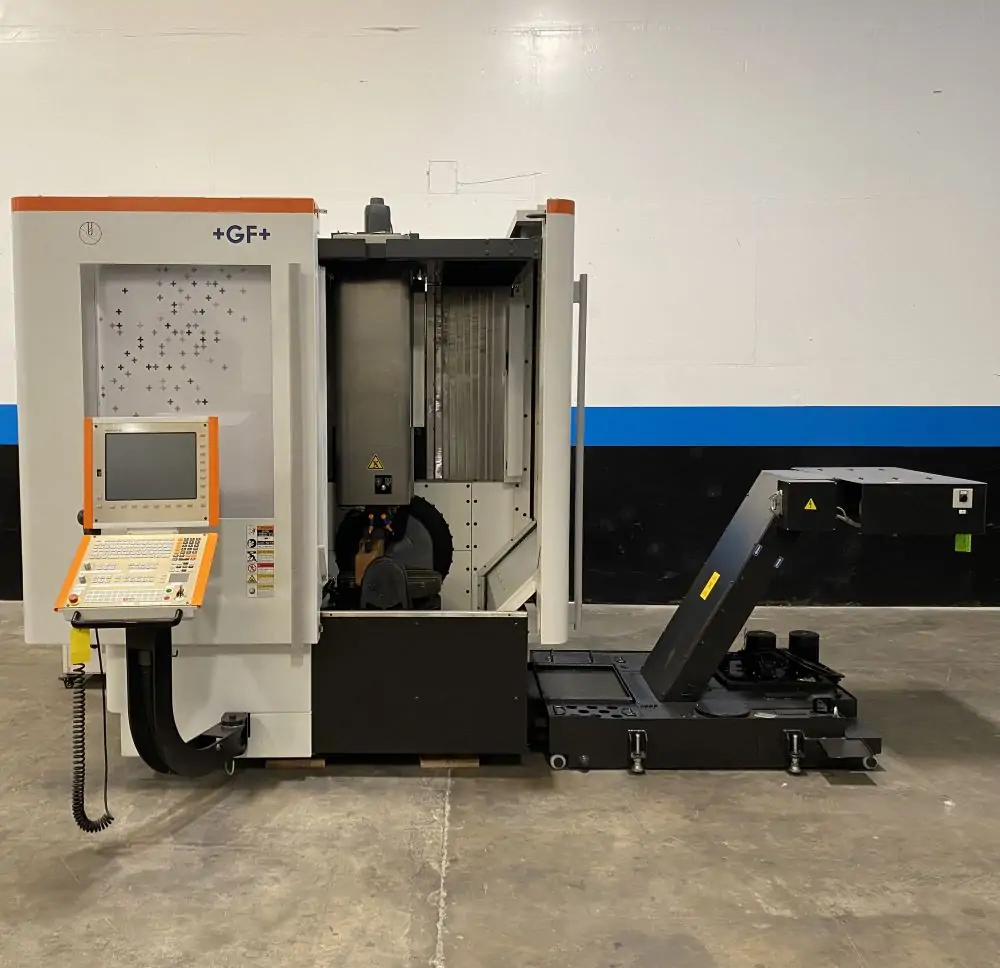

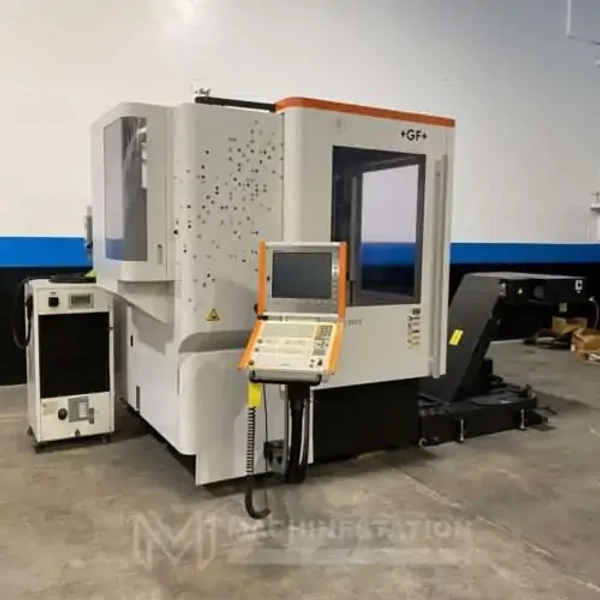

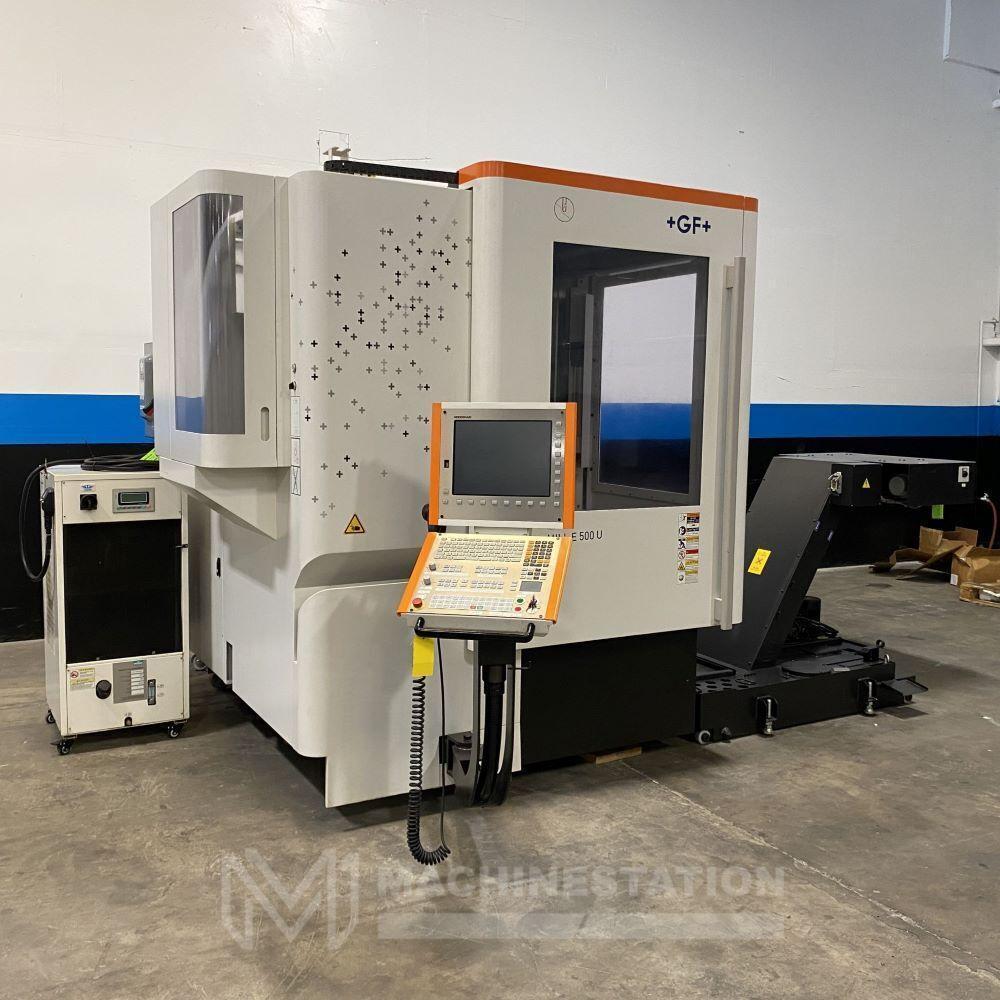

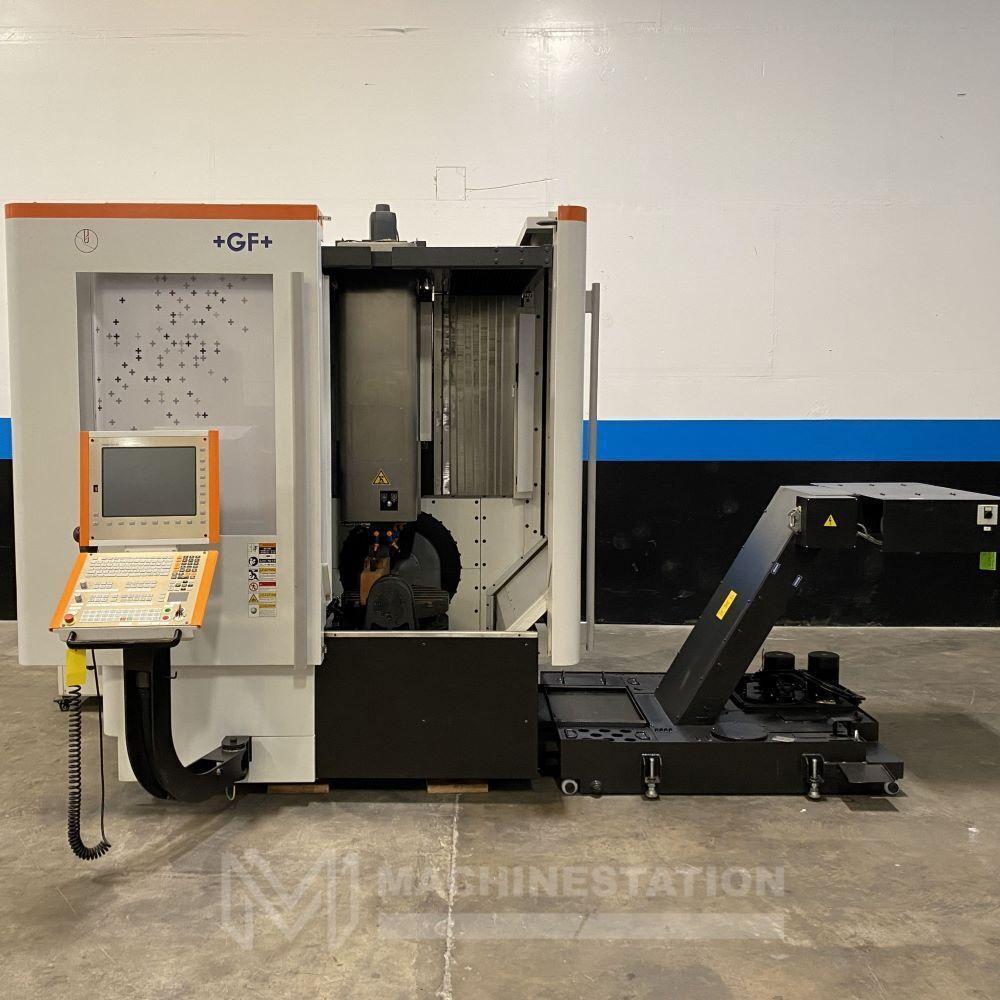

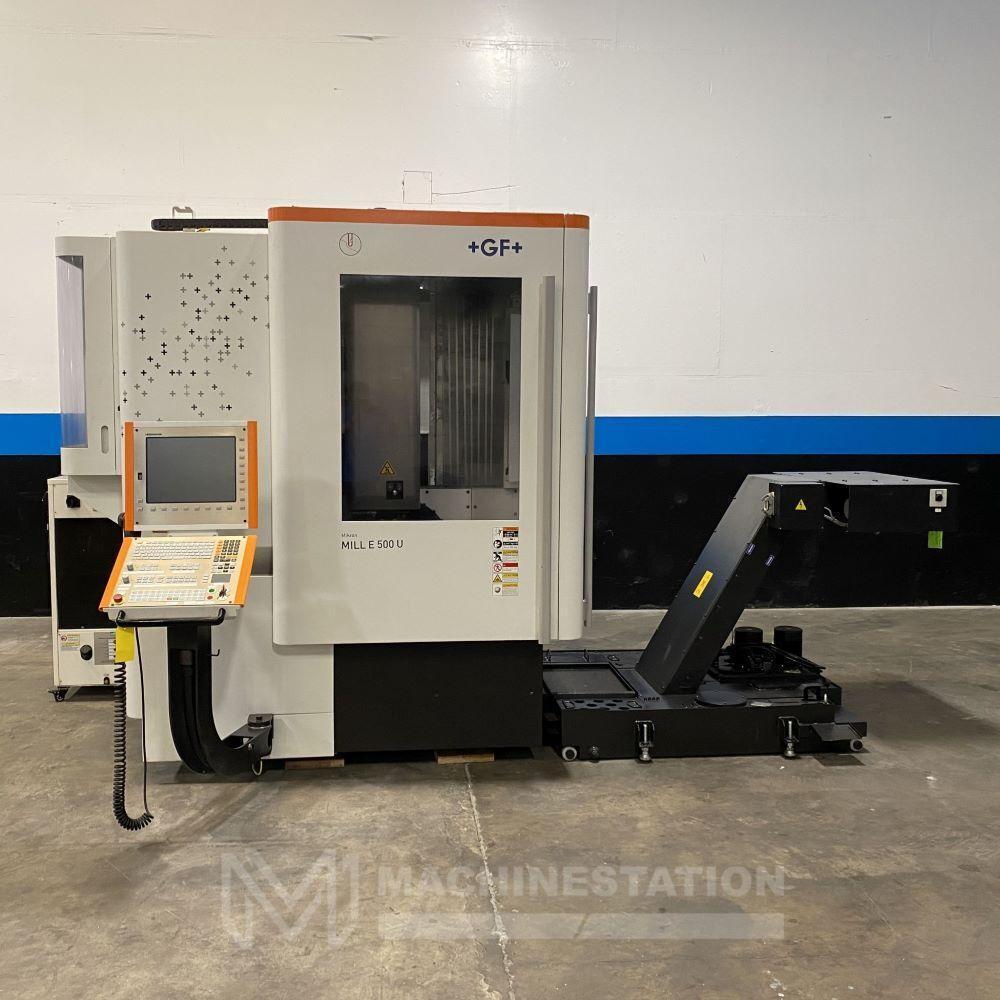

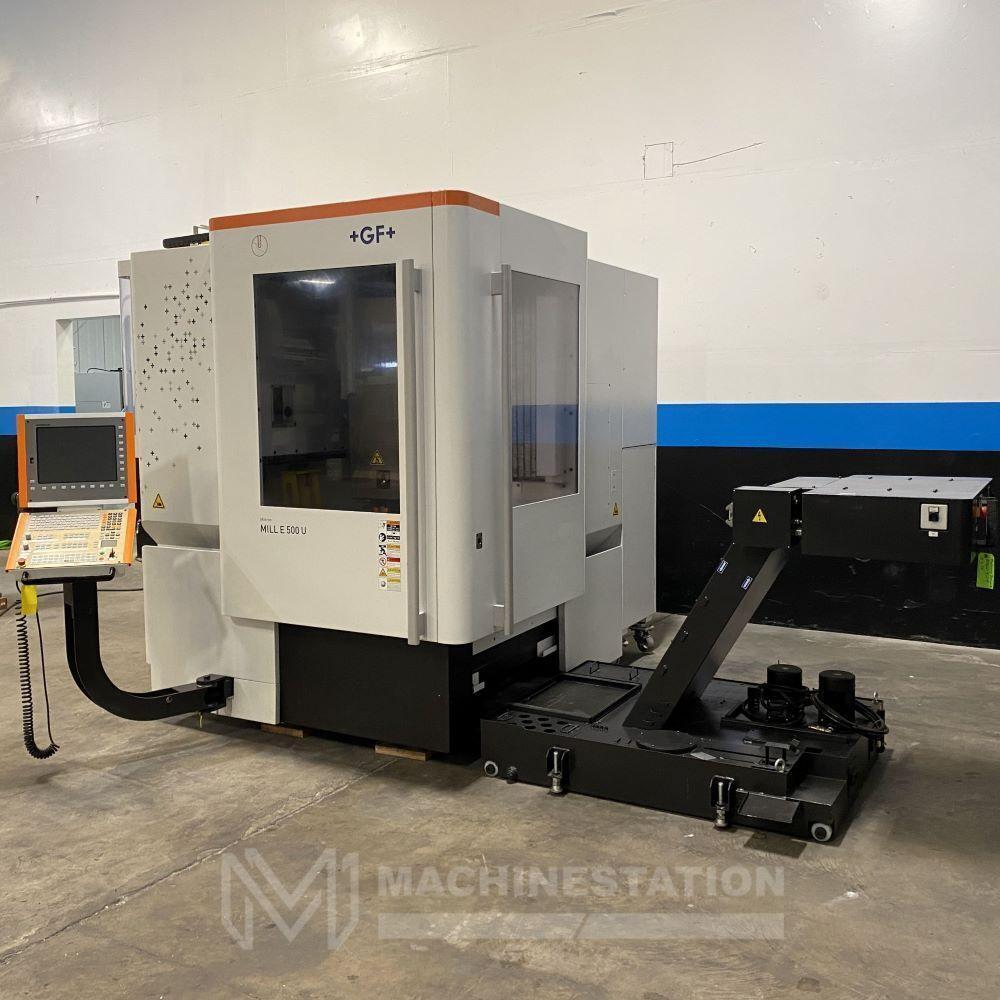

Mikron MILL E 500U 5 Axis CNC Vertical Machining Center

Brand
MIKRON
Category
Machining Centers
Type
Horizontal Machining Centers (5-axis Or More)
Model
Mikron Mill E 500U
Stock #
112563
Year
2018
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 112563
Make: Mikron
Model: MILL E 500U
Year: 2018
Condition: Used – Excellent
Features:

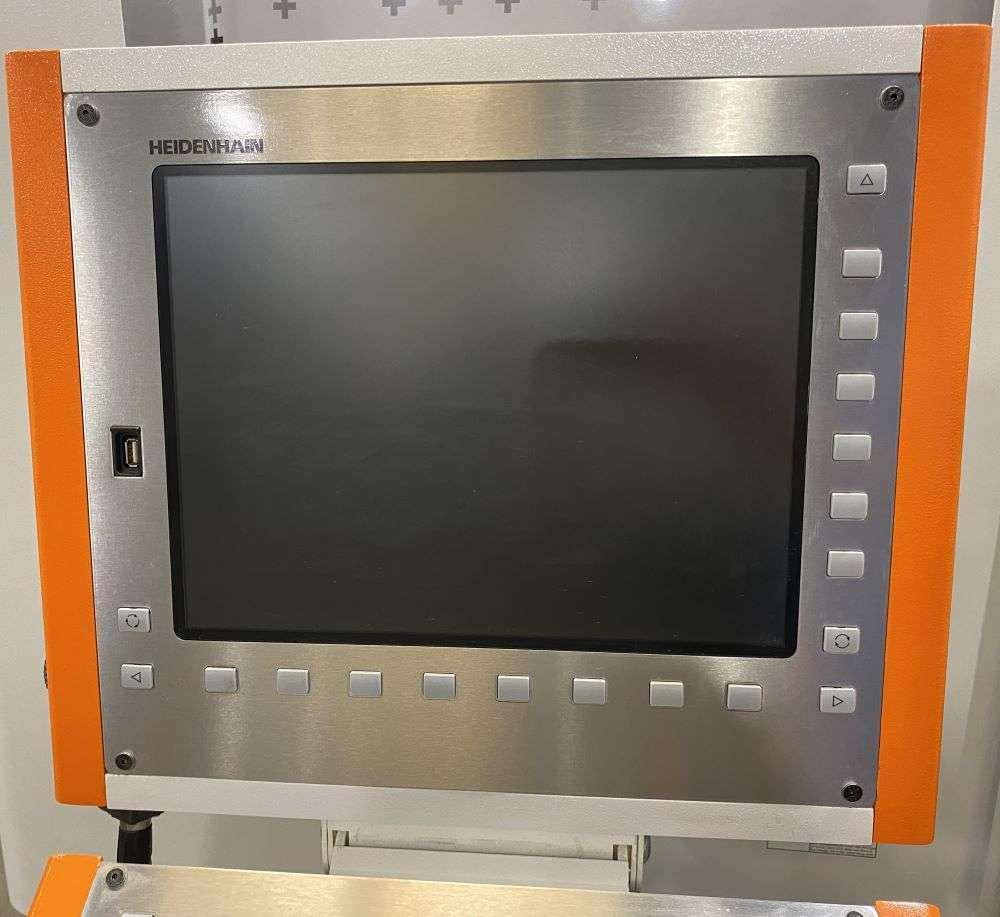

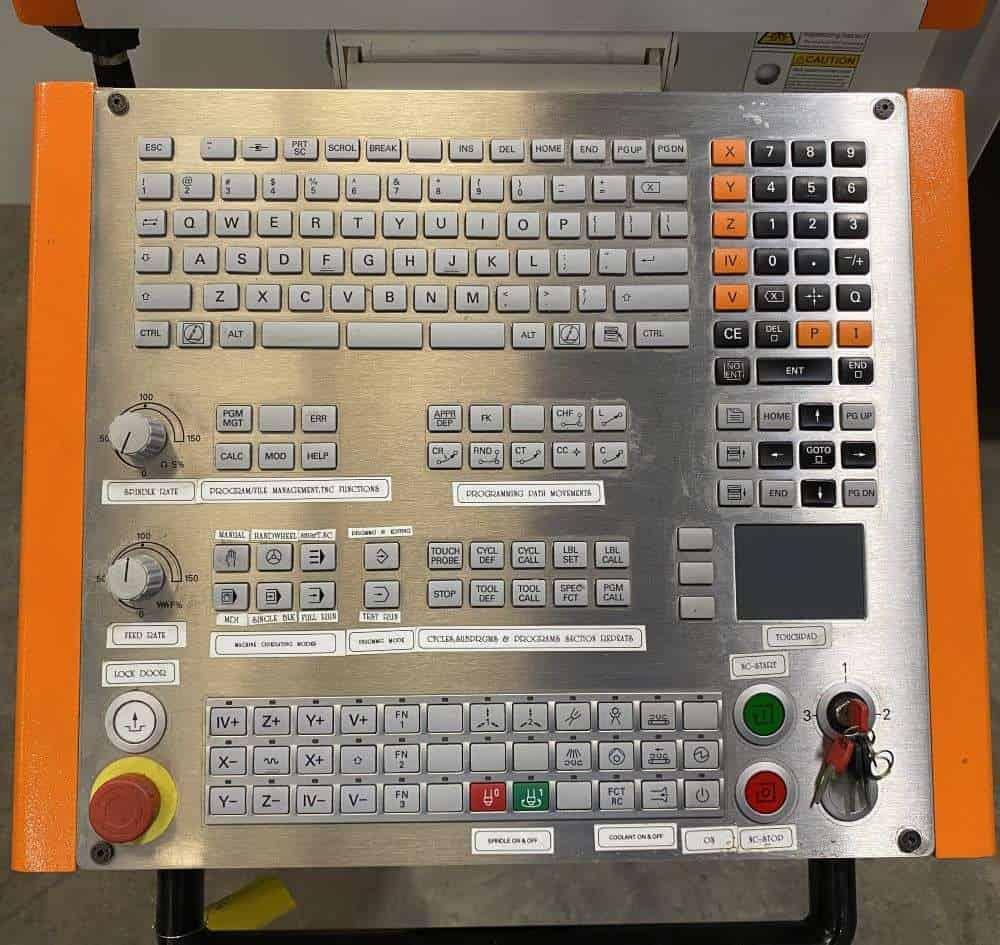

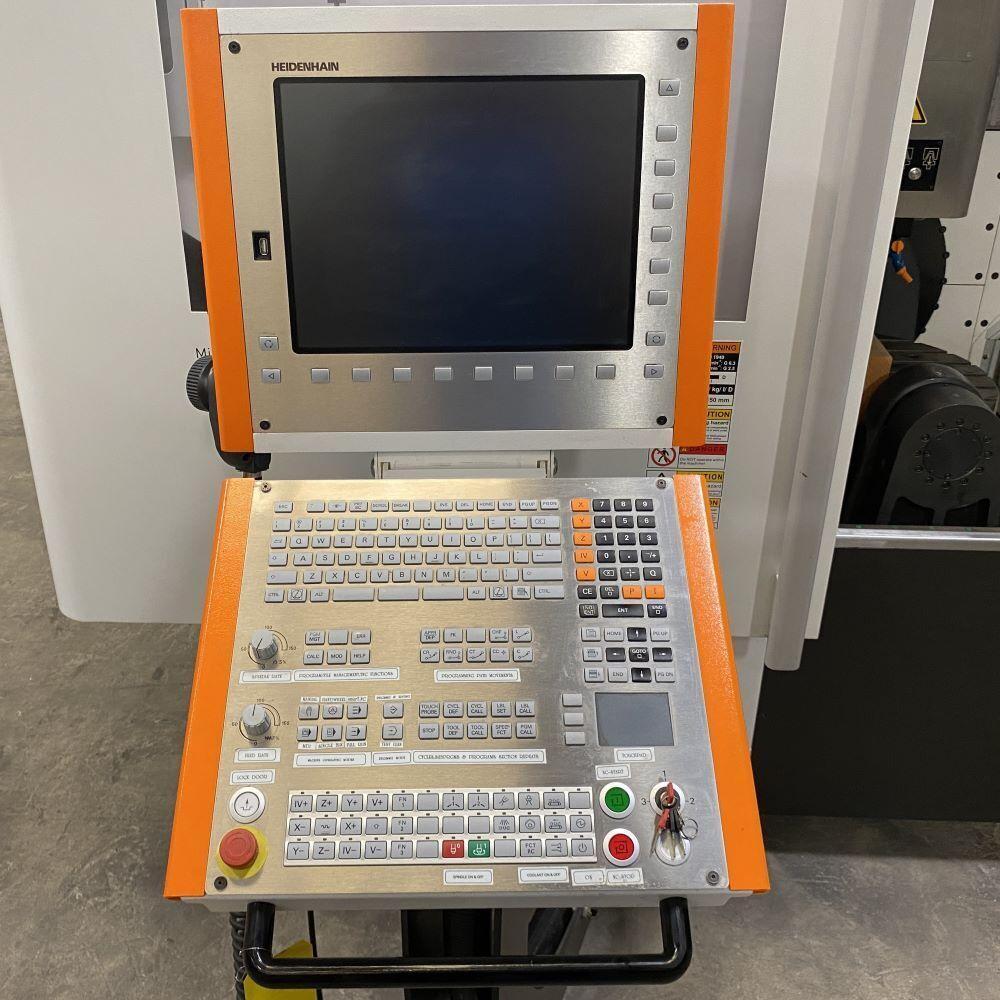

Heidenhain iTNC 530 CNC Control
5 Axis Machining (3+2)

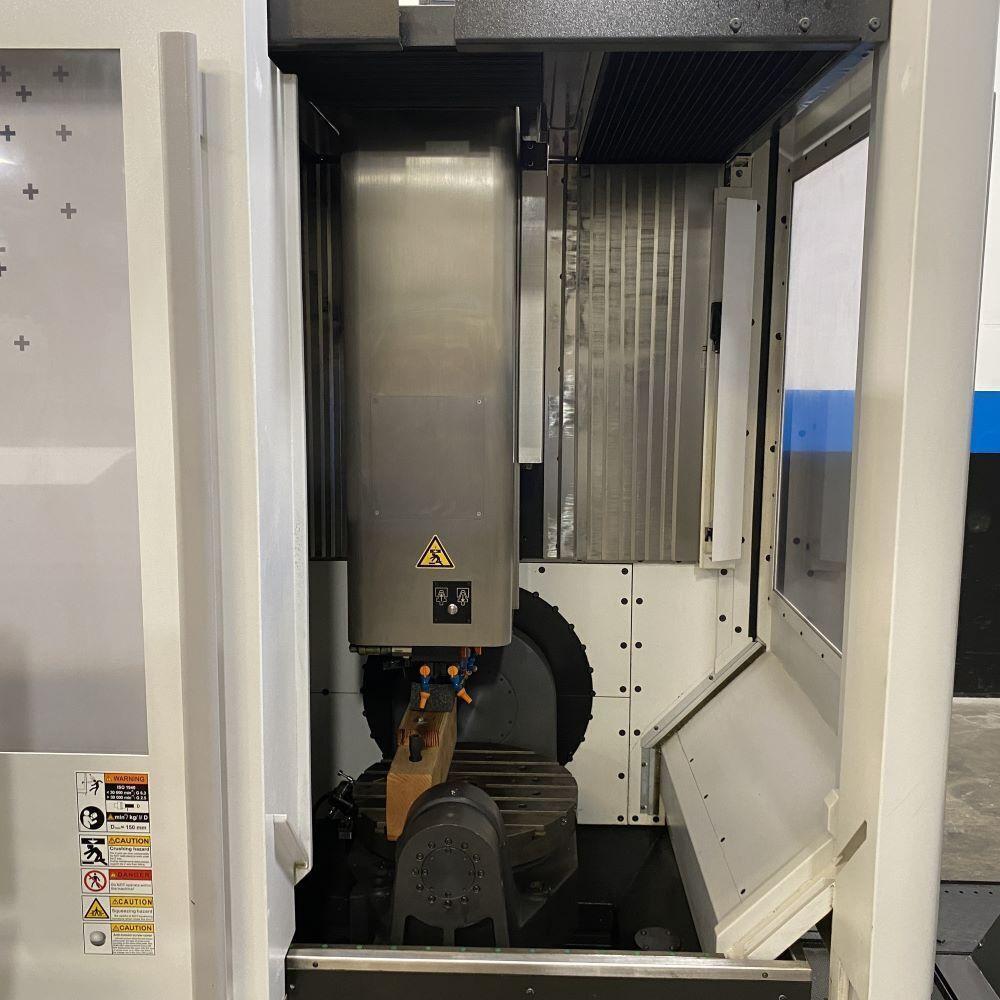

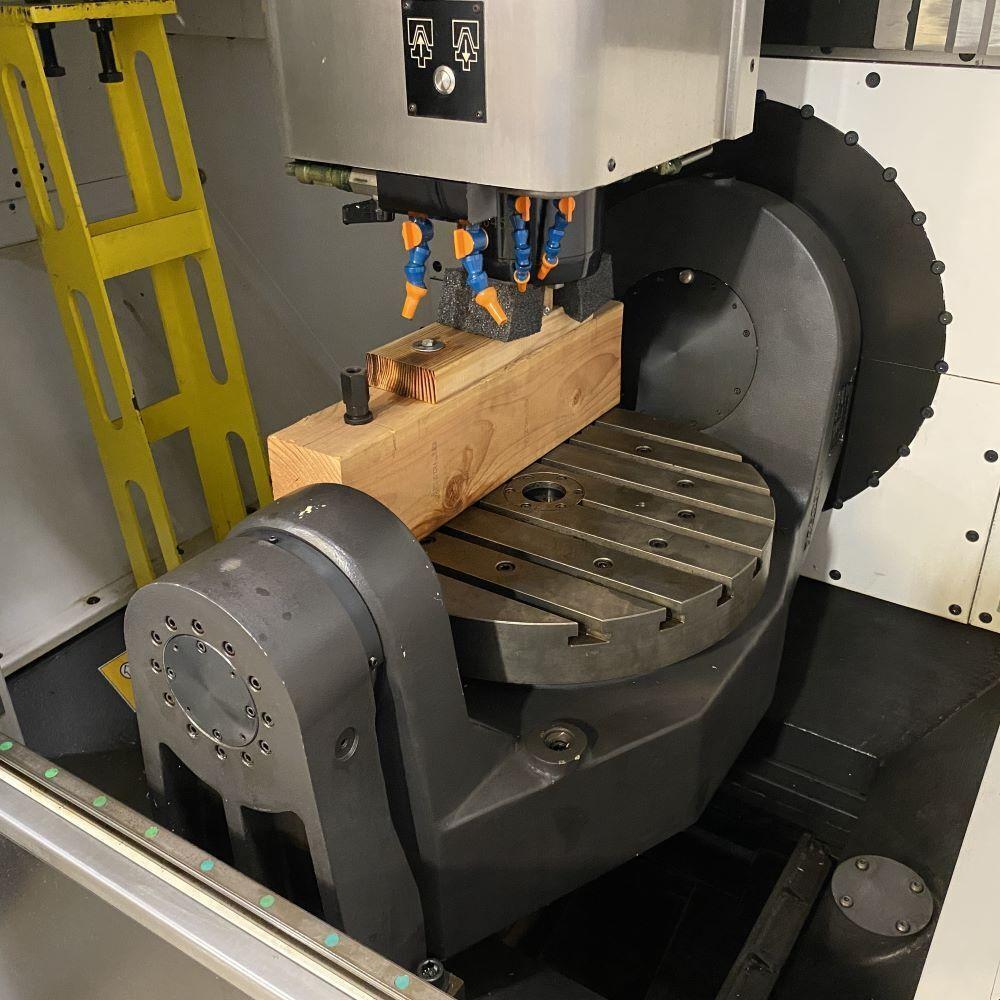

Hem Rotary Tilting Table
12,000 RPM High Speed Spindle

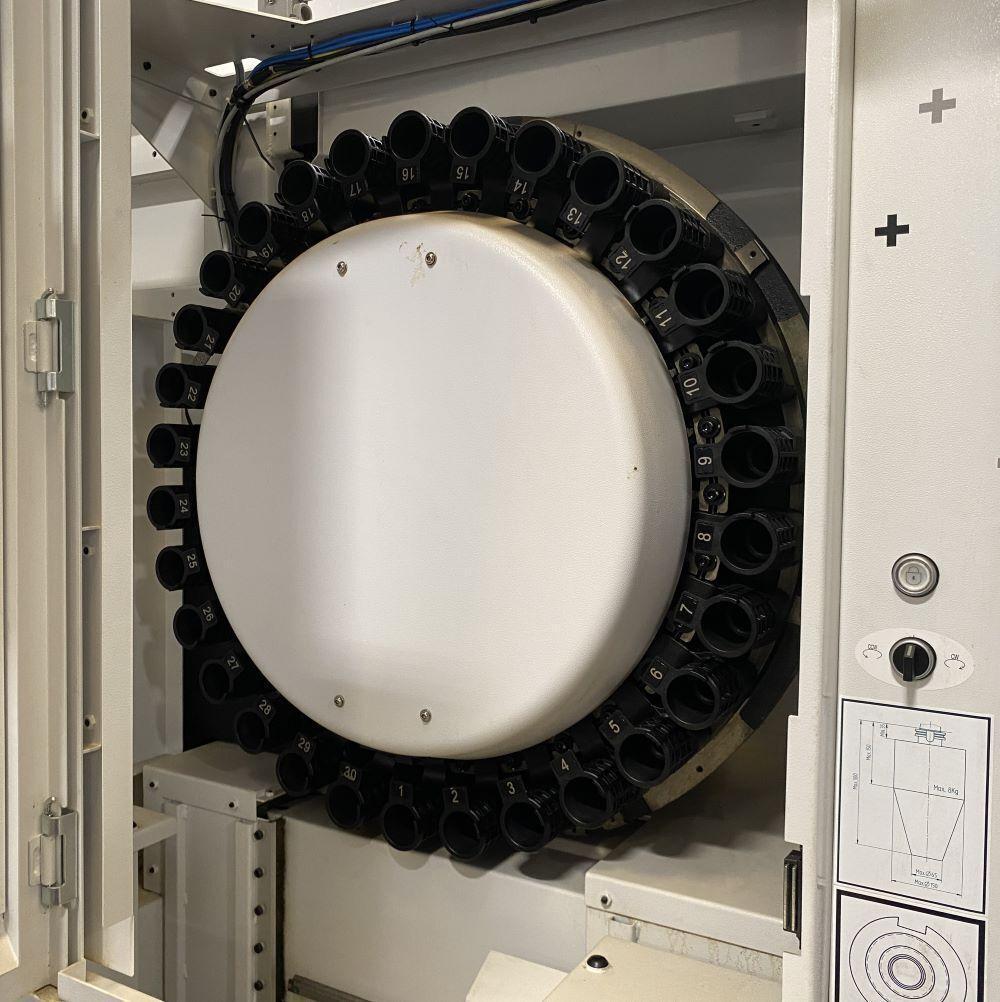

30 Station Automation Tool Changer

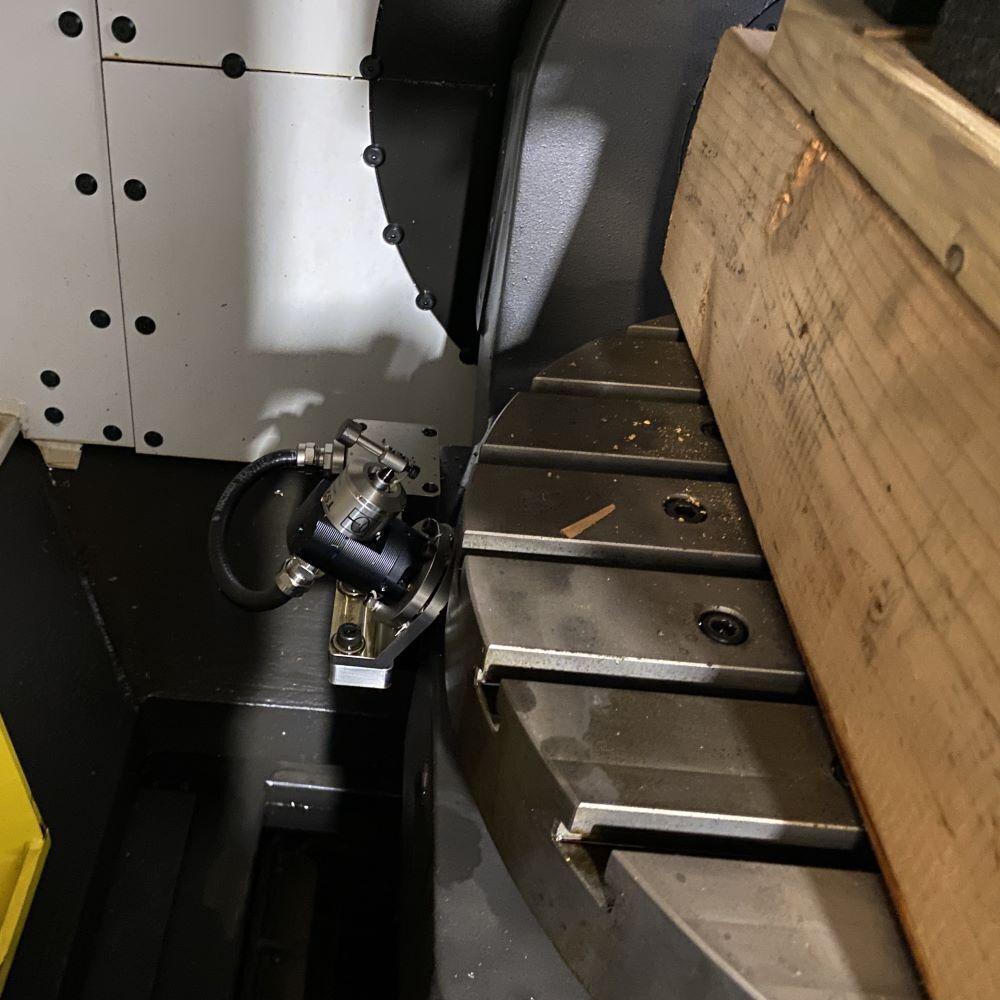

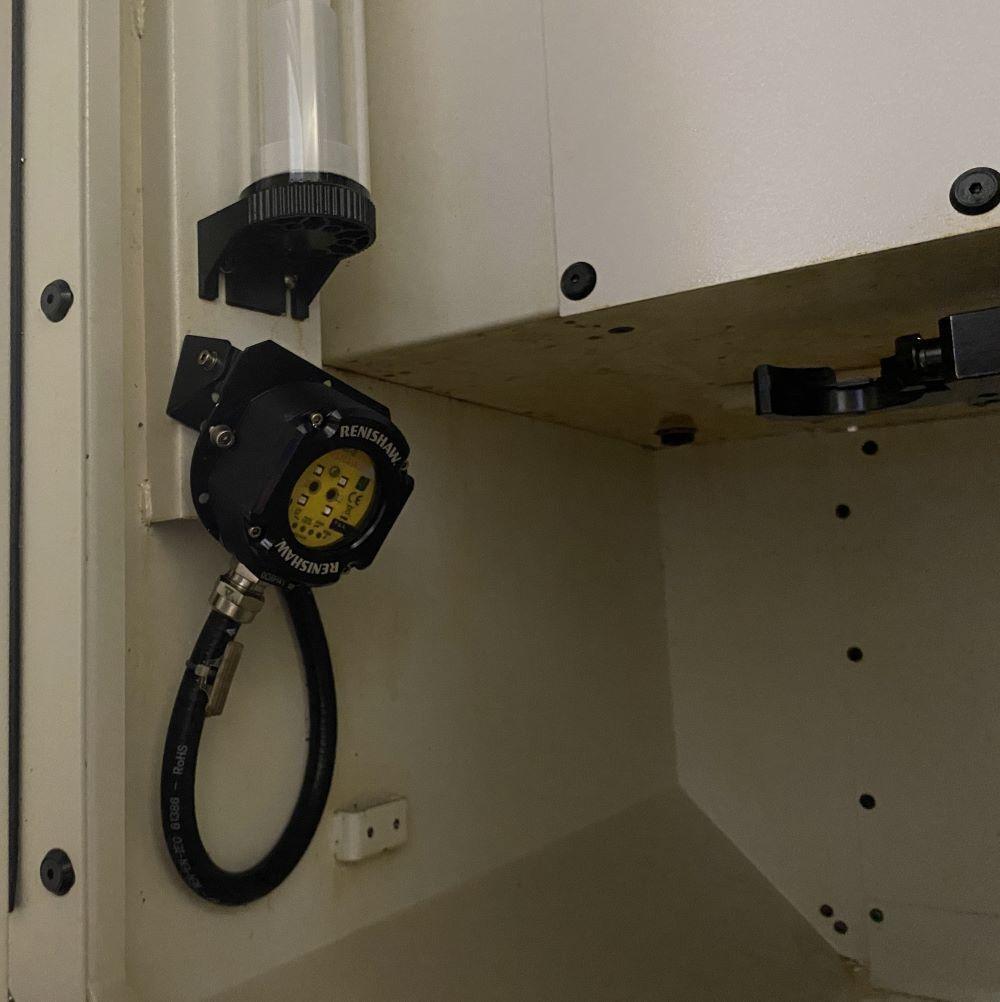

Renishaw TS-27R Probe
Touch Probe Infrared OMP40
Assortment of Tooling
(2) Compressed Air Through Spindle
Kinematics opt
Compressed Ball 30 with Base
Hem Linear Glass Scales 500U
Tool Magazine DT40/BT40 & ISO40
Tool Changer Arm Holder For ISO 40
Chip Conveyor
Manuals
Table:
T-groove Table: 19.69″
Max Weight on Table: 661 lbs
Travel:
X Axis: 19.69″
Y Axis: 17.71″
Z Axis: 15.75″
A Axis: +65° – 120° ( Table Tilt )
C Axis: 360°  ( Table Rotate )
Spindle:
Taper Size: ISO 40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Feed rates:
Rapid X Y & Z: 1181 Inch Per Minute
Rapid A & C : 17 & 28 Round  Per Minute
Tool changer:
Capacity: 30 Tools
Taper: ISO 40
Max Tool Diameter: 2.55″
Max Tool Length: 8.62″
Max Tool Weight: 5.51 lbs.
Tool Change Time: 9 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: Kw / 400v / 3-Phase
Machine Dimensions: 105″ x 128″ x 123″ High
Weight: 13,294 lbs
