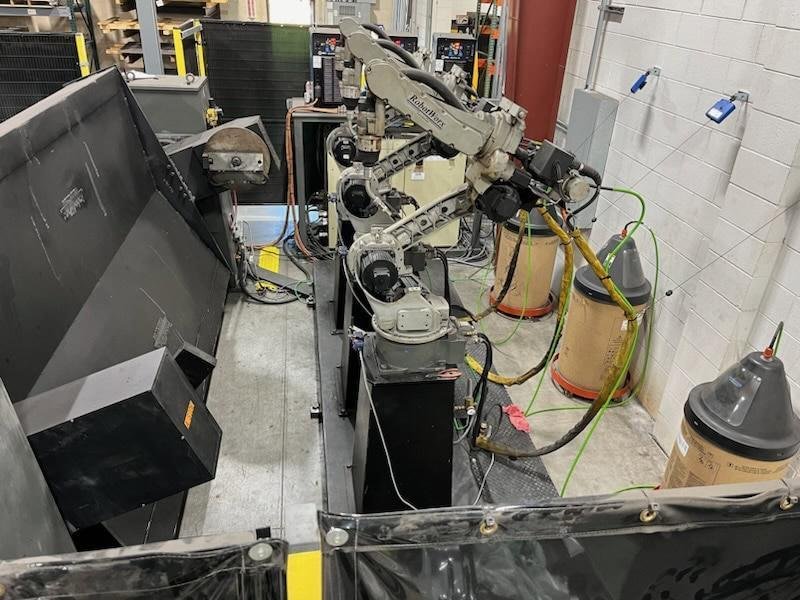

Yaskawa Motoman EA1400 Triple-Arm Robot Welding Cell, 2004 – 450 Amp Miller Auto Axcess 450

Robot Specifications: Axes: 6 Payload: 6.61 lbs Reach: 54.65 in Repeatability: 0.0031 in Robot Mass: 286.6 lbs Structure: Vertical Joint Arm Robot Motion Speed: S-Axis: 2.44 rad/s L-Axis: 2.79 rad/s U-Axis: 2.97 rad/s R-Axis: 5.93 rad/s B-Axis: 5.93 rad/s T-Axis: 9.08 rad/s Robot Motion Range: S-Axis: -170° L-Axis: -155° U-Axis: -190° R-Axis: -180° B-Axis: -180°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – (3) Motoman EA1400N NX100 – reconditioned – (3) Miller Auto Axcess 450 Welding Packages – reconditioned – (3) Binzel Standard Torches

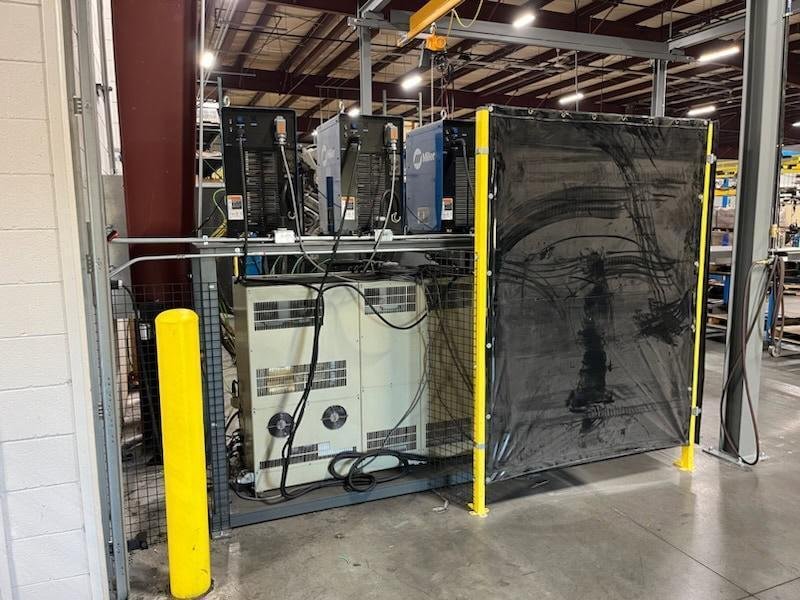

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Deluxe Safety Package includes: – Sick Area Scanner – Safety Fencing – Arc Glare Curtains – Safety Interlock Switches

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
