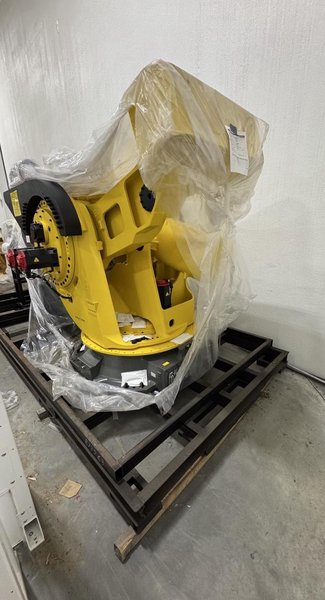

Fanuc M-2000iA/2300 Robot, 2019 – Never Used, R-30iB Plus Controller

Robot type: 6‑axis, floor‑mounted articulated heavy‑payload robot.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Payload: 5,070 lb at wrist (2,300 kg).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum reach: 147 in (3,734 mm).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability: ±0.007 in (±0.18 mm).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Robot weight: approx. 24,250 lb (≈ 11,000 kg).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axis motion ranges (approx.):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J1: ±170°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J2: +80° / −60°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J3: +55° / −40°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J4: ±165°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J5: ±130°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J6: ±350°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum axis speeds (approx.):

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J1: 20°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J2: 14°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J3: 14°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J4: 18°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J5: 18°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,J6: 40°/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wrist load capacity:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max wrist moment: up to about 29,400 N·m (J4/J5), 8,820 N·m (J6).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max wrist inertia: up to about 7,500 kg·m² (J4/J5), 5,500 kg·m² (J6).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Protection & environment:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Protection rating: arm IP54/IP56; wrist and J3 arm IP67.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating temperature: 32–113 °F (0–45 °C).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller / power:

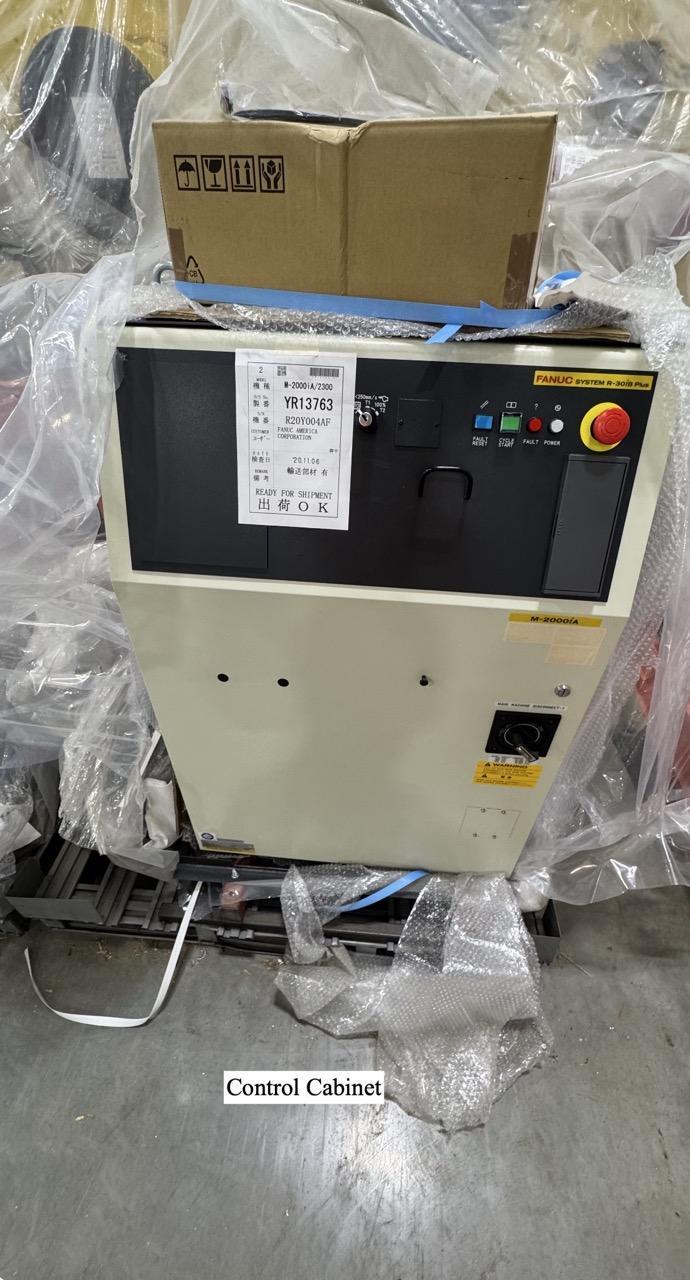

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller: FANUC R‑30iB Plus.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Input power: 3‑phase 380–575 V, 50/60 Hz (via controller).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Typical average power consumption: ~8 kW.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Integrated services on arm:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,8/8 integrated digital I/O at upper arm.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dual integrated air lines to wrist (approx. 6 mm OD).
