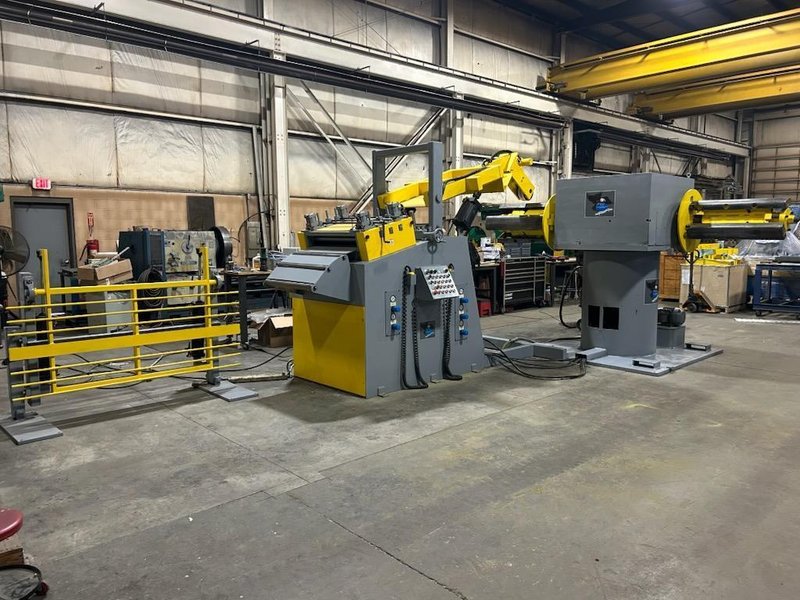

COE / CHS Coil Feed Line (Double End Reel) 15,000 Lbs. x 30" Wide

Stock Thickness Capacity: .090" x 30" Wide
Stock Thickness Capacity: .125" x 18" Wide
Expansion range: 19" - 24"
Coil OD capacity: 72"

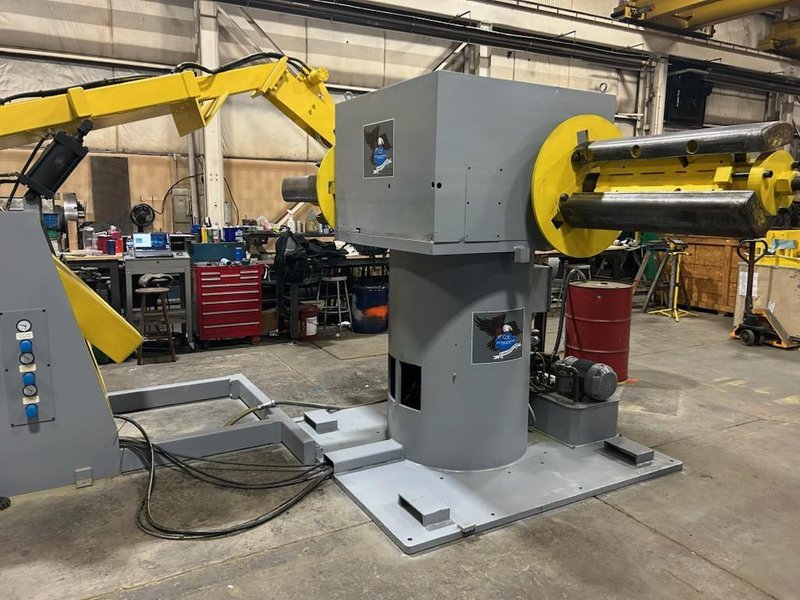

Coe Press Double End Coil Reel Model No. CPR CPR-DE-PO-15030
Three leaf mandrel with hydraulic expansion
Adjustable coil keeper arms
Air brakes for adjustable tensioning
Threading drive for jog forward and reverse
Motorized turret rotation
Shot pin for turret rotation position lock

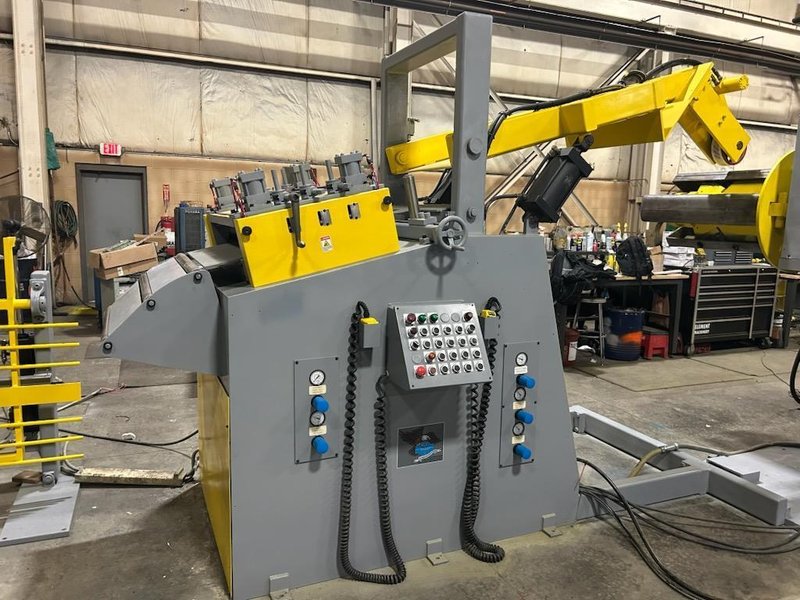

Coe Press Powered Straightener Model No. CPPS-300-30
Seven straightening rolls x three inch diameter
Entry and exit pinch rolls with air operated adjustment
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with integrated coil de-kinker
Exit cascade loop support rollers
Updated AC Variable frequency drive
Updated laser loop control

Coe Press Exit Threading Table Model No.
Air operated open / close
"Bomb bay" door design

Equipment offered reconditioned, painted and production ready

Optional (To complete the coil feed line)

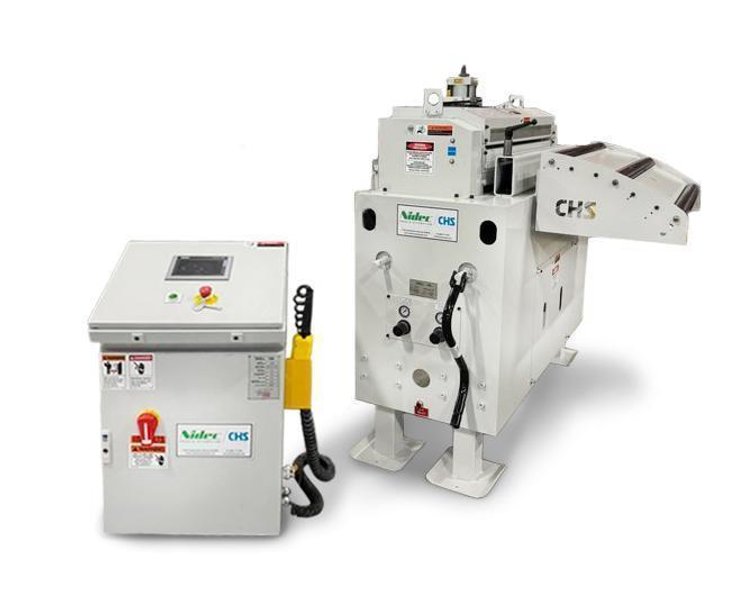

New NIDEC-CHS Servo Roll Feed MX-330 - consult sales for pricing
Reconditioned servo roll feed with updated controls - consult sales for pricing
