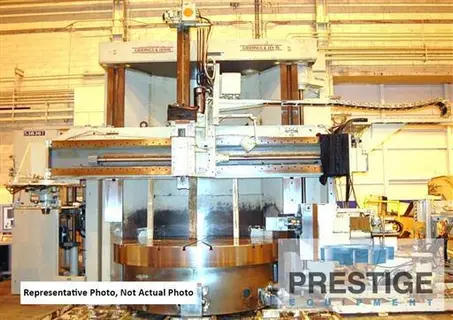

Giddings & Lewis 120" CNC Vertical Boring Mill

SPECIFICATIONS:
Table Diameter 120"
Maximum Swing 144"
Maximum Swing with Side Head 134"
Maximum Height Under Cross Rail 84"
Cross Rail Vertical Travel 60"
Table Speeds 3-130 RPM
Number of Table Speeds 2
Rail Elevating Rate 30 IPM
RIGHT HAND RAM HEAD:
Vertical Travel of Ram, Z-Axis 62"
Travel Below Rail 54"
Horizontal Travel Right of Center 80"
Horizontal Travel Left of Center 79"
Rapid Traverse Rate 250 IPM
Power Draw Bar Ram..................... ANSI B5.5 #60 Taper ANSI B5.5 #60 Taper
RIGHT HAND SIDE HEAD:
Vertical Travel Above Table 68.5"
Vertical Travel Below Table 6.8"
Horizontal Ram Travel 32"
Rapid Traverse Rate 150 IPM
Tool Changer ANSI B5.50 #50 Taper



Equipped With:
Giddings & Lewis Numeripath 8000-L CNC Control

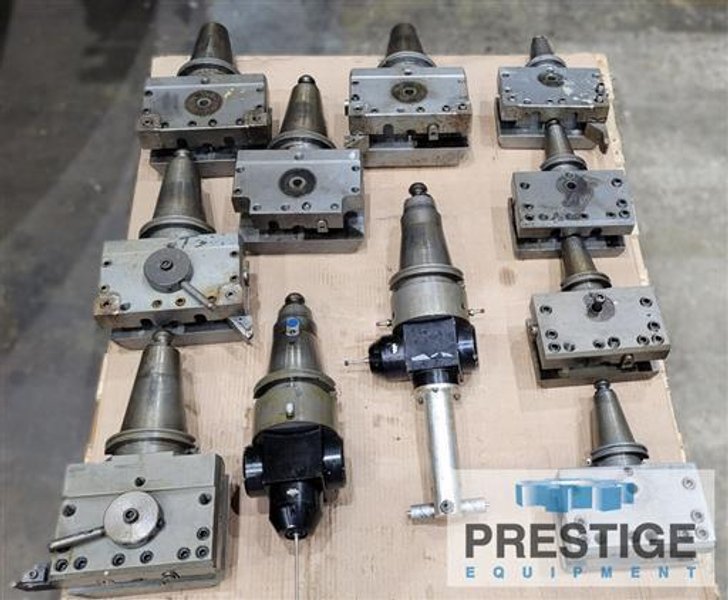

30-Station Automatic Tool Changer
15-Station Automatic Tool Changer, Side Head
Vertical Ram & Right Hand Side Heads
Auxiliary Hand Held Pendant
3" Diameter Ball Screws
AC Servo Drives
Inductosyn Feedback
Tool Tip Probe (Probe Not Included)
Programable Rail Height
Temperature Controlled Coolant System
Programable Chip Conveyor
Way Covers on Cross Rail
Pedestal Pendant Control
Hardened Ways on All Axes
2-Speed Helical Gear Transmission
Flood Coolant System with Coolant Pan
150 HP 460 Volt, 3-Phase, 60 Herz


NOTE: As Taken from Major Aerospace Facility
