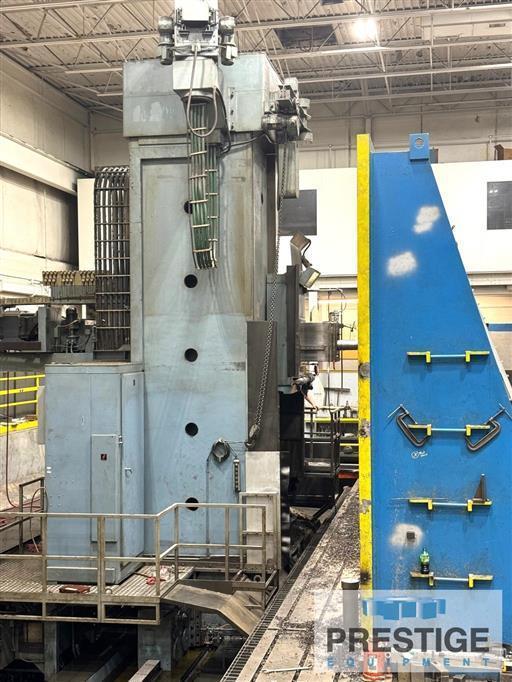

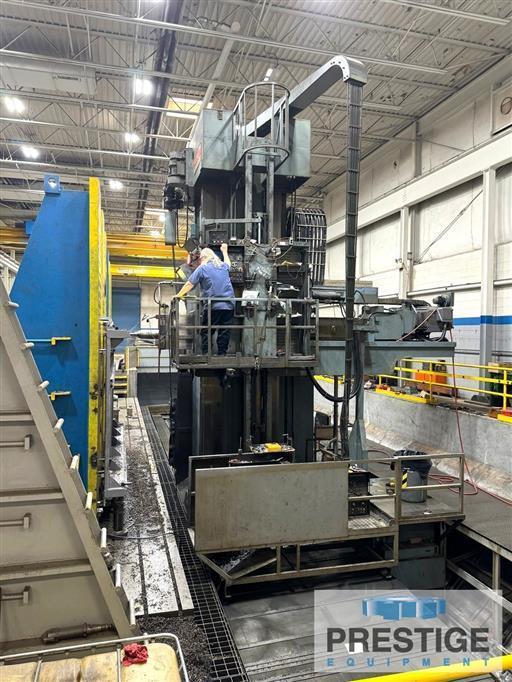

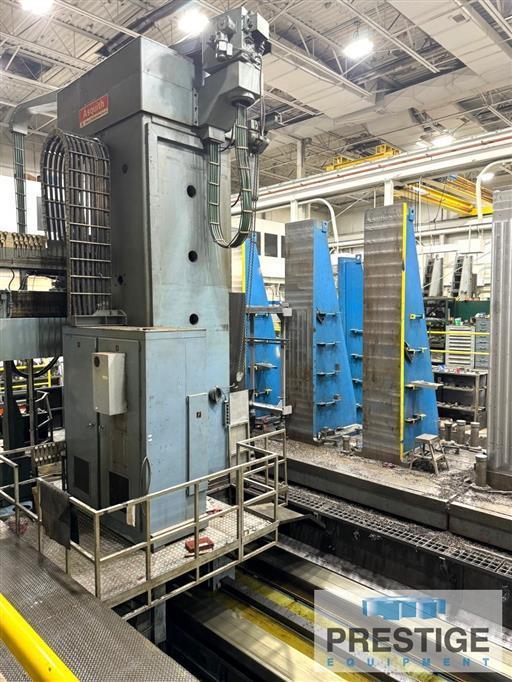

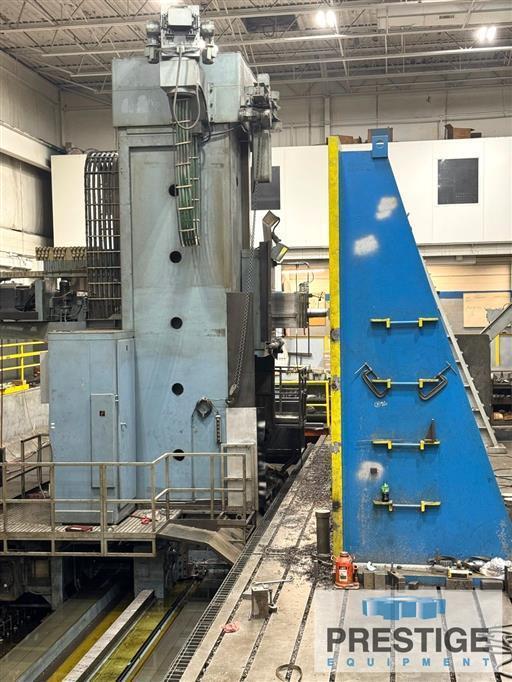

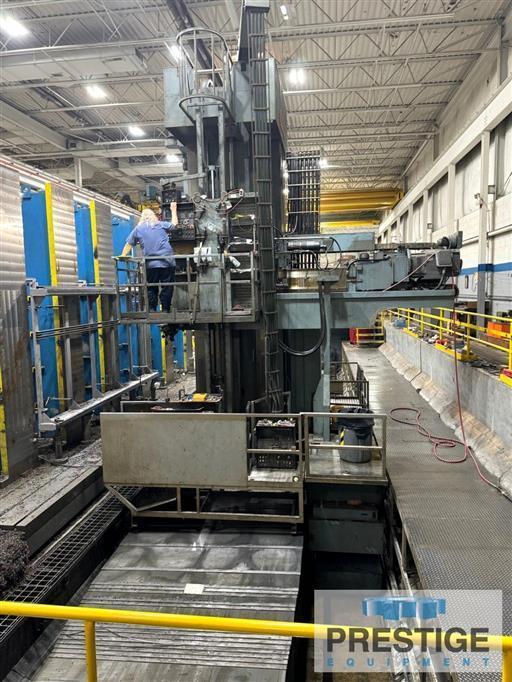

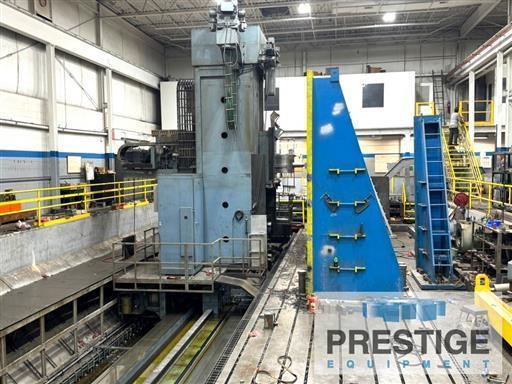

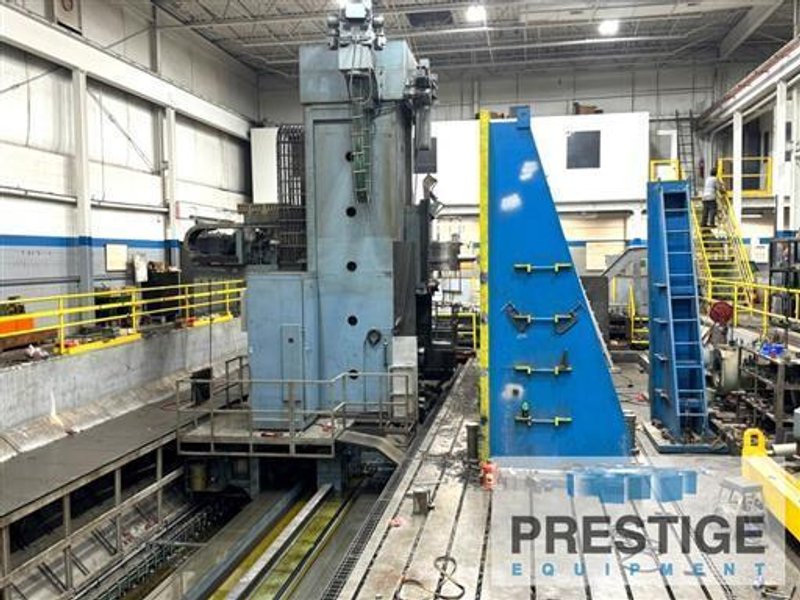

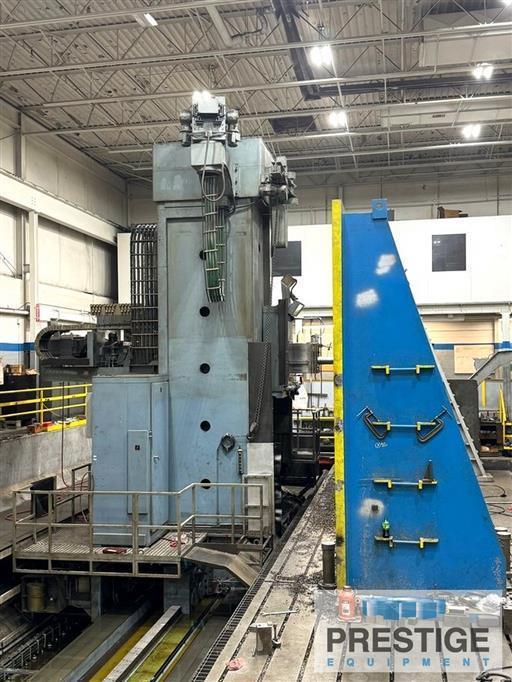

Asquith RMD 16/60 6.3" Ram Type CNC Travelling Column Horizontal Boring Mill

SPECIFICATIONS:
Spindle Diameter 6.3"
Milling Sleeve Flange Diameter 11.81"
Ram Dimensions 19.68" X 23.62"
Spindle Taper #50 ISO
X-Axis, Column Travel X-Axis 669.29"
Y-Axis, Vertical Head Travel 157.48
Z-Axis, Spindle Travel 39.37"
W-Axis, Ram Travel 59.05"
Combined Travel, Z & W Axis 98.42"
Spindle Speeds 4-Ranges
Spindle End Thrust 5900 kgf
Spindle Speeds, Infinitely Variable 2.8-810 RPM
Rapid Traverse, All Axes 196.85 IPM
Feeds, All Axes, Infinitely Variable 0.0393 to 118.11 IPM
Main Drive Motor 85 HP
Machine Weight 304,237 Lbs

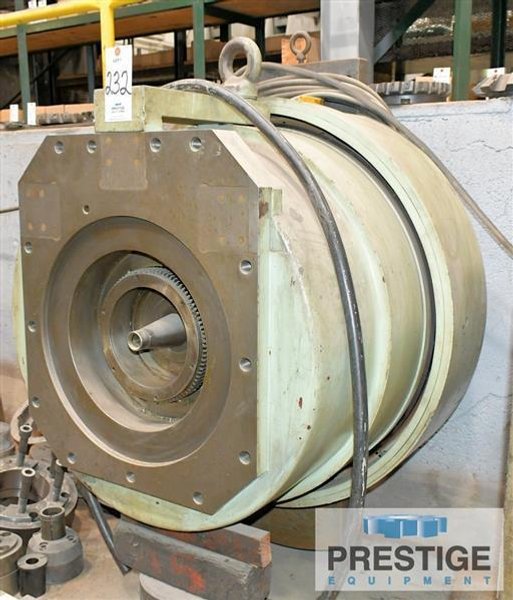

FACING HEAD:
Facing Head Diameter 39.37"
Stroke of Cross Slide 7.87"
Boring Capacity 58.26"
Facing Capacity 54.33"
Feed Range 0.196 to 19.68 IPM
Speed Range, Inf. Variable 1-200 RPM
RIGHT ANGLE MILLING ATTACHMENT:
Spindle Nose Taper No 50 ISO
Power 75 HP @100 RPM
ADDITIONAL ATTACHMENTS:

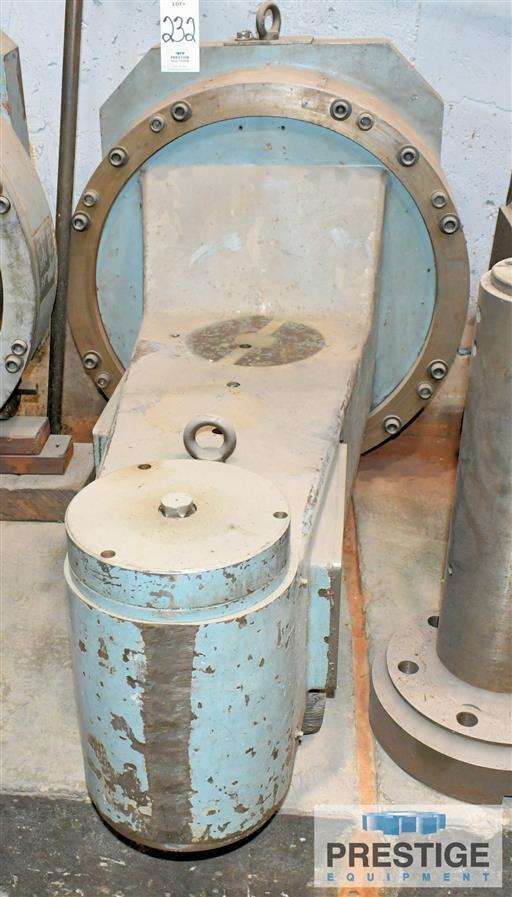

Heavy Duty Right Angle Head

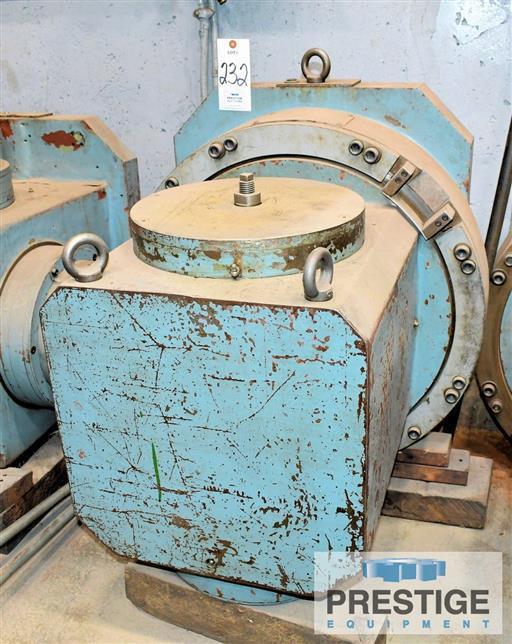

Universal Milling Attachment



Equipped With:

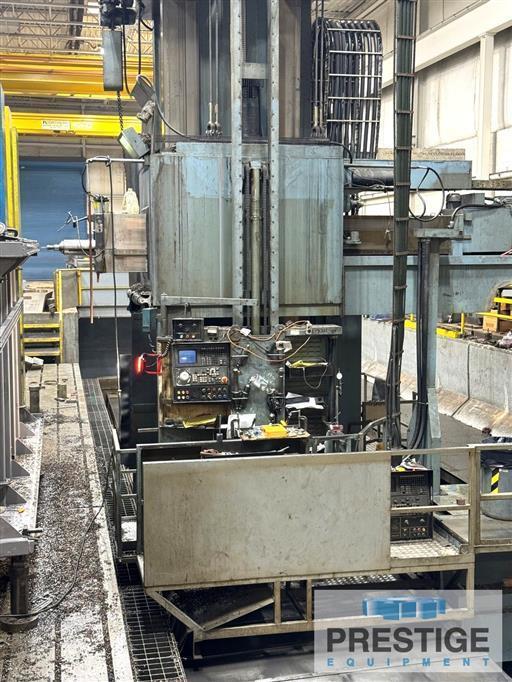

GE CNC Control
Power Adjustable Pendant Control

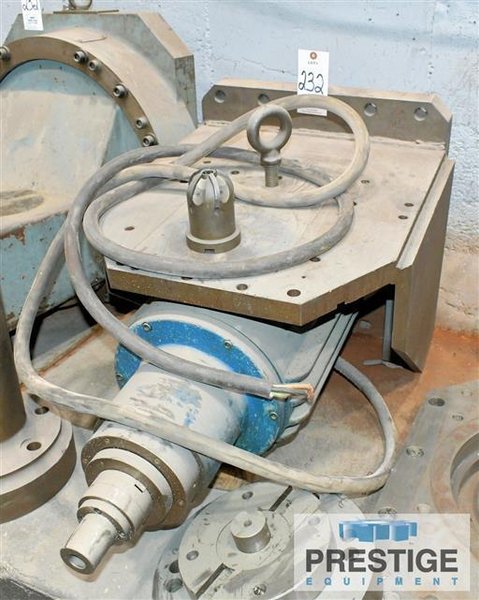

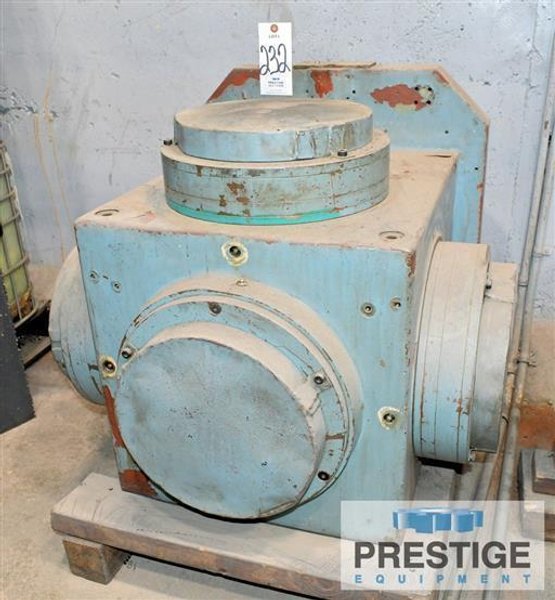

Right Angle Milling Head
Power Tool Lock & Eject

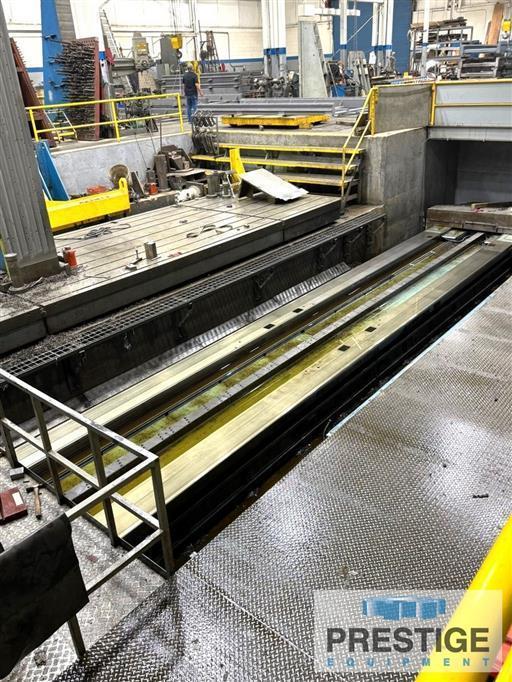

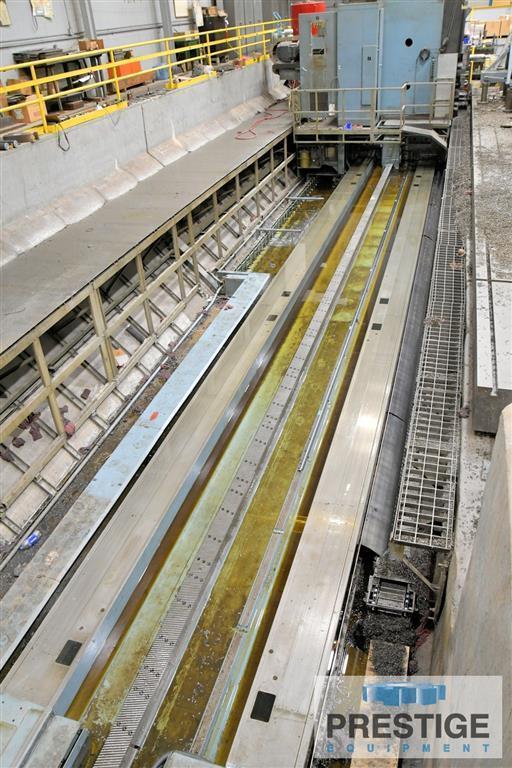

Telescoping Steel Way Covers On X-Axis
Chip Conveyor
118" x 590" T-Slotted Floor Plates

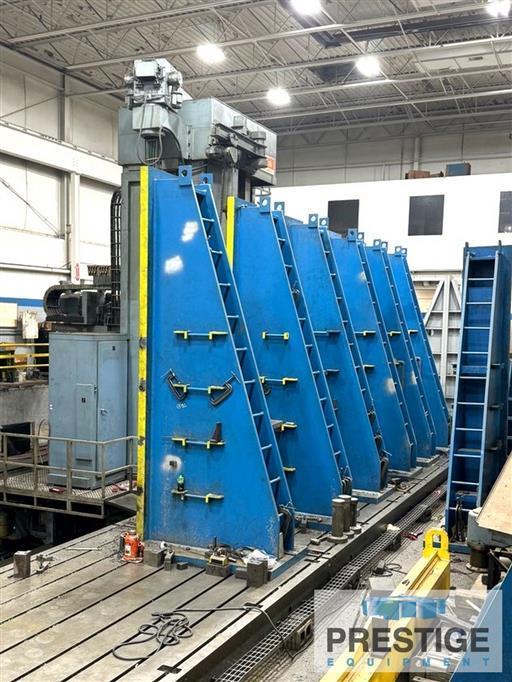

(4) 171.5" x 28.5" Angle Plates
(2) 171.5" x 18" Angle Plates
85 HP Main Drive Motor
Machine Weight:304,237 Lbs


NOTES: Inspect Under Power
