COE PRESS Double End Coil Reel And Straightener Combination 15,000 Lbs. x 30" Wide

Name: Used COE CPR-DE-PO-15030 / CPPS-300-30 For Sale 5522B
Brand: COE
SKU: 5522B

Brand

COE

Michigan

Coil Weight Capacity:	15000 pounds
Stock Width Capacity	30 inches
Max Stock Thickness Capacity At Full Width	.090 inches
Minimum Expansion Range:	19 inches
Maximum Expansion Range:	24 inches
Coil O.D. Capacity:	72 inches

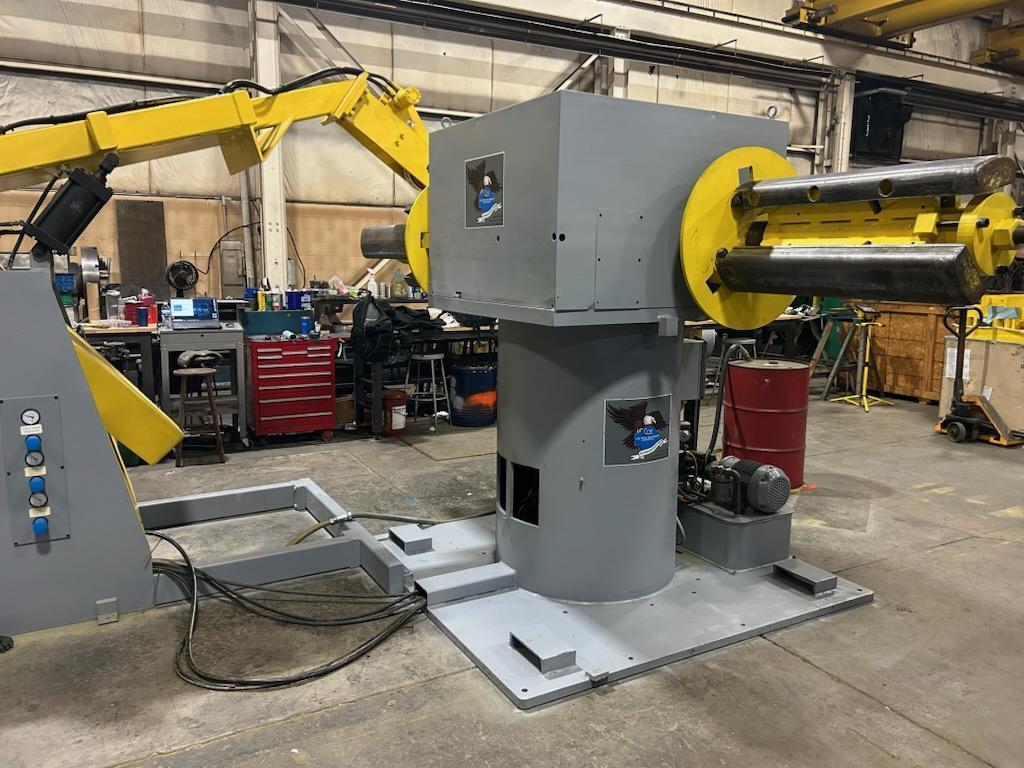

Stock thickness capacity: .090" x 30" Wide Stock thickness capacity: .125" x 18" Wide Coe Press Double End Coil Reel Model No. CPR-DE-PO-15030 Three leaf mandrel with hydraulic expansion Adjustable coil keeper arms Air brakes for adjustable tensioning Threading drive for jog forward and reverse Motorized turret rotation Shot pin for turret rotation position lock Coe Press Powered Straightener Model No. CPPS-300-30 Seven straightening rolls x three inch diameter Entry and exit pinch rolls with air operated adjustment Adjustable stock width edge guides Coil hold down arm with motorized end wheel Stock peeler table with integrated coil de-kinker Exit cascade loop support rollers Updated AC Variable frequency drive Updated laser loop control Coe Press Exit Threading Table Model No. CPTT-3010 Air operated open / close "Bomb bay" door design Equipment offered reconditioned, painted and production ready Optional: New Servo Roll Feed - Consult sales for pricing
