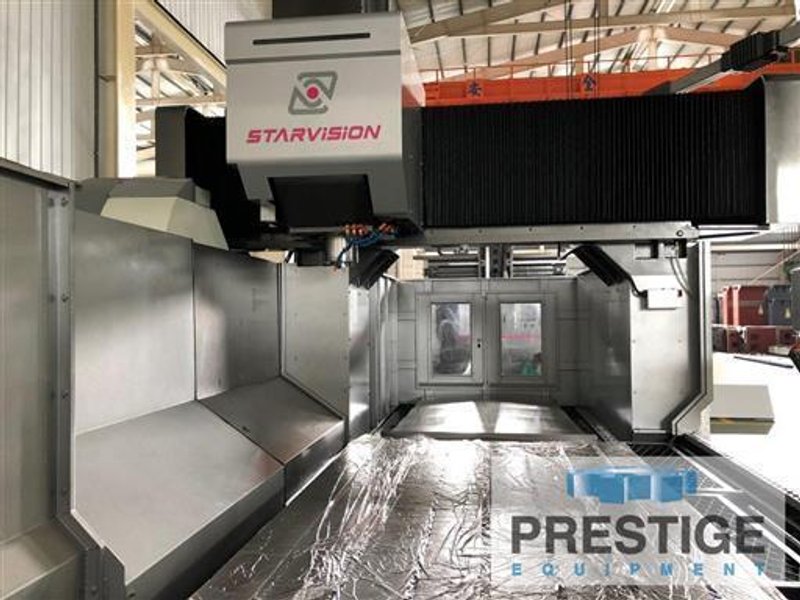

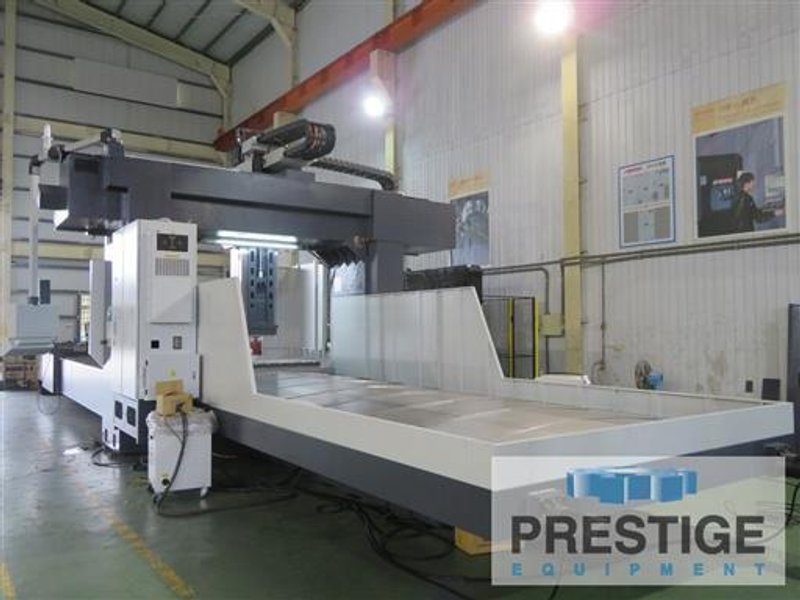

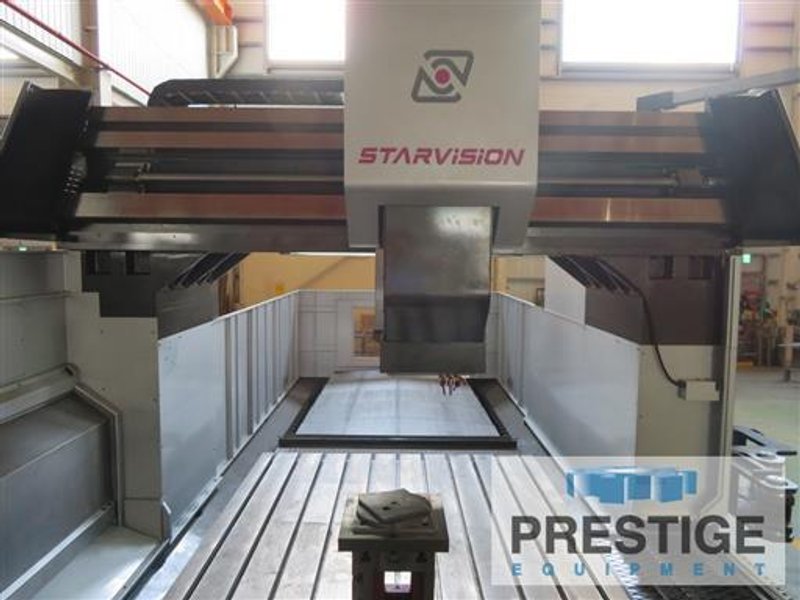

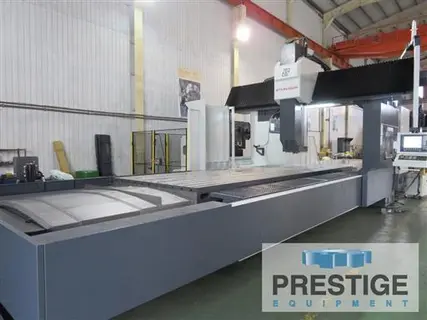

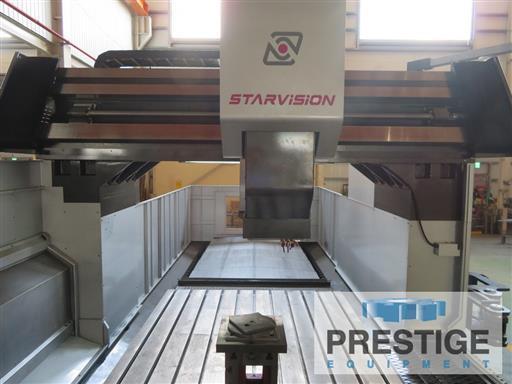

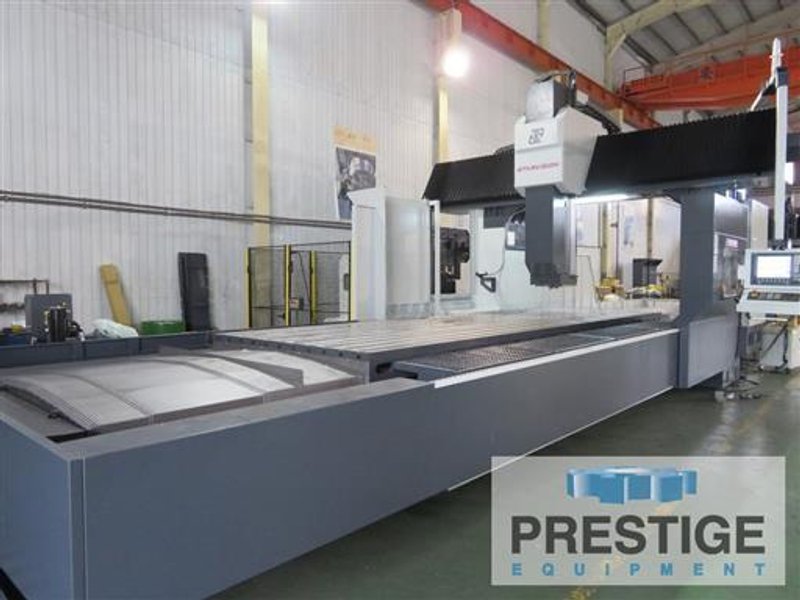

Machining Centers Vertical Bridge Type CNC

SPECIFICATIONS:
Table Travel, X-Axis 125.98"
Head Travel, Y-Axis 78.74"
Ram Stroke, Z-Axis (Extended) 39.37"
Table Size 118.11" x 66.92"
Table Capacity 22,046 Lbs.
Distance Between Columns 82.67"
Spindle Nose to Table 5.9"-45.3"
Spindle Speed, Gear Driven 6,000 RPM
Spindle Taper CAT-50
Main Motor (2-Speed Gear Box 50 HP/40 HP
Cutting Feed Rate 275 IPM
Rapid Feed Rate (X-Axis) 945 IPM
Rapid Feed Rate (Y-Axis) 787 IPM
Rapid Feed Rate (Z-Axis) 590 IPM
Approximate Machine Dimensions 343" x 177" x 197"
Approximate Machine Weight 50,000 Lbs.



Equipped With:
Fanuc OiMF CNC Control
Fanuc Manual Guide i
Fanuc JERK Control
Fanuc Helical Interpolation
Fanuc High Speed Skip Signal Option
32-Station Automatic Tool Changer
Coolant Thru Spindle (300 PSI)
4-Axis Prep
Flood Coolant System
Auto Power Off
Air Blast Through Spindle
Spindle Work Lamp
Spindle Oiler Chiller System
Automatic Lubrication
Belt Type Chip Conveyor with Cart


NOTE: Brand New Machine, Still in Crate, 1 year Parts & Labor Warranty, 2 Years Warranty on Fanuc Control/Motors
Installation Included (After Machine is roughly leveled and customer supplies utlilties/rigging support)
