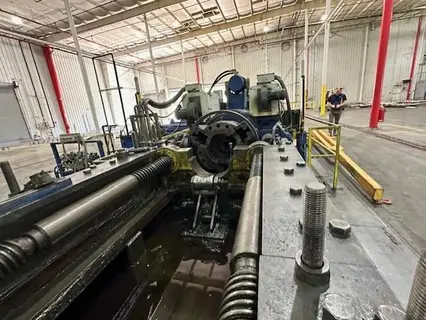

14" EZTM MODEL CRTM 350 COLD ROLLING PILGER MILL, 2014
Brand
Category
Type
Model
CRTM 350
Stock #
116542
Year
Not specified
Condition
Used
Location
Missouri
|
HOLLOW BILLET:
-OUTER DIAMETER, MM: 180 - 382
-WALL THICKNESS, MM: 5 - 40
-LENGTH, M: 2.5 - 8.0
-WEIGHT (MAX), KG, 1500
- TUBE MATERIAL ULTIMATE RESISTANCE, MPA (MAX): 1000 (145,000 PSI)
FINISHED TUBE:
-OUTER DIAMETER, MM: 140 - 342
-WALL THICKNESS, MM: 3 - 32
-LENGTH, M: 5 - 25
-OD TOLERANCE, MM: +/- 0.5
-WALL THICKNESS TOLERANCE, %: +/- 6.0
-SURFACE ROUGHNESS RA, MICRON, (MAX): 0.8
-NORMAL ROLLING FORCE ON WORK ROLL, KN, (MAX): 8200 (820 TON)
-AXIAL ROLLING FORCE, KN, (MAX): 820 (82 TON)
-CROSS SECTION REDUCTION, %, (MAX): 83
-OD REDUCTION, MM, (MAX): 65
-WALL THICKNESS REDUCTION, %, (MAX): 80
3 ROLL TOOL SADDLE:
-ROLL DIAMETER, MM: 1040
-ROLL WIDTH, MM: 660
-ROLL WEIGHT, KG: 750 - 900
-MANDREL
-BARREL DIAMETER, MM: 100 - 340
-LENGTH, MM: 1500
-WEIGHT, KG: 300 - 650
-ROLL TOOL CHANGE TIME: 8
SERVO DRIVE FEED & TURN:
-STROKES PER MINUTE: 30
-FEED, MM: 2 - 25 (12)
-TURNING ANGLE, DEGREES: 23 - 35
-TURNINGS Q-TY PER CYCLE: 2
MAIN DRIVE MOTOR:
-CURRENT TYPE: A.C
-POWER, KW: 1600
-RPM: 750
HYDRAULIC SYSTEM:
-WORKING PRESSURE, MPA (MAX): 10 (1450PSI)
HYDROPNEUMATIC ACCUMULATOR
LUBRICATION SYSTEM
PROCESS LUBRICATION SYSTEM
|
