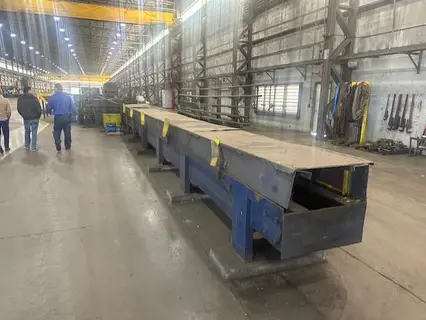

6" (155MM) KUSHAN YONGDELI MACHINERY MDL. LG120-H COLD PILGER MILL
Brand
Category
Type
Model
Not specified
Stock #
116538
Year
Not specified
Condition
Used
Location
Missouri
|
MANUFACTURER - KUSHAN YONGDELI MACHINERY
MODEL NUMBER - LG120-H
TYPE - COLD PILGER MILL
MATERIAL - STAINLES SEAMLESS PIPE
YEAR - 2011
INPUT PIPE RANGE - 3"-6" (80MM - 155MM)
INPUT WALL THICKNESS - 0.236" - 1" (6MM - 25MM)
INPUT LENGTH - 3M - 8M
OUTPUT OD - 60MM - 120MM
DIE DESIGN - FULL DIE
MAX LENGTH OUTPUT - 20,000MM
SPEED OF SADDLE - 50-75 (TIME/MIN)
TRAVEL LENGTH OF SADDLE - 1103MM
FEED LENGTH - 2.5 - 10MM
TURNING ANGLE - 41 - 52 DEGREES
DIAMETER OF ROLL - 490MM
MAIN MOTOR POWER - 280 KW
VOLTAGE - 480, 60 HZ, 3 PH
ELONGATION COEFFICIANT OF STAINLESS STEEL - MAX 3.5
DRAW/ROLLING FORCE - 3500 KN
ESTIMATE OVERAL DIMENSION - 35 METER L X 6.85 METER W X 2.63 METER H)
TOTAL WEIGHT IN TONS - 63 TONS +/- |
