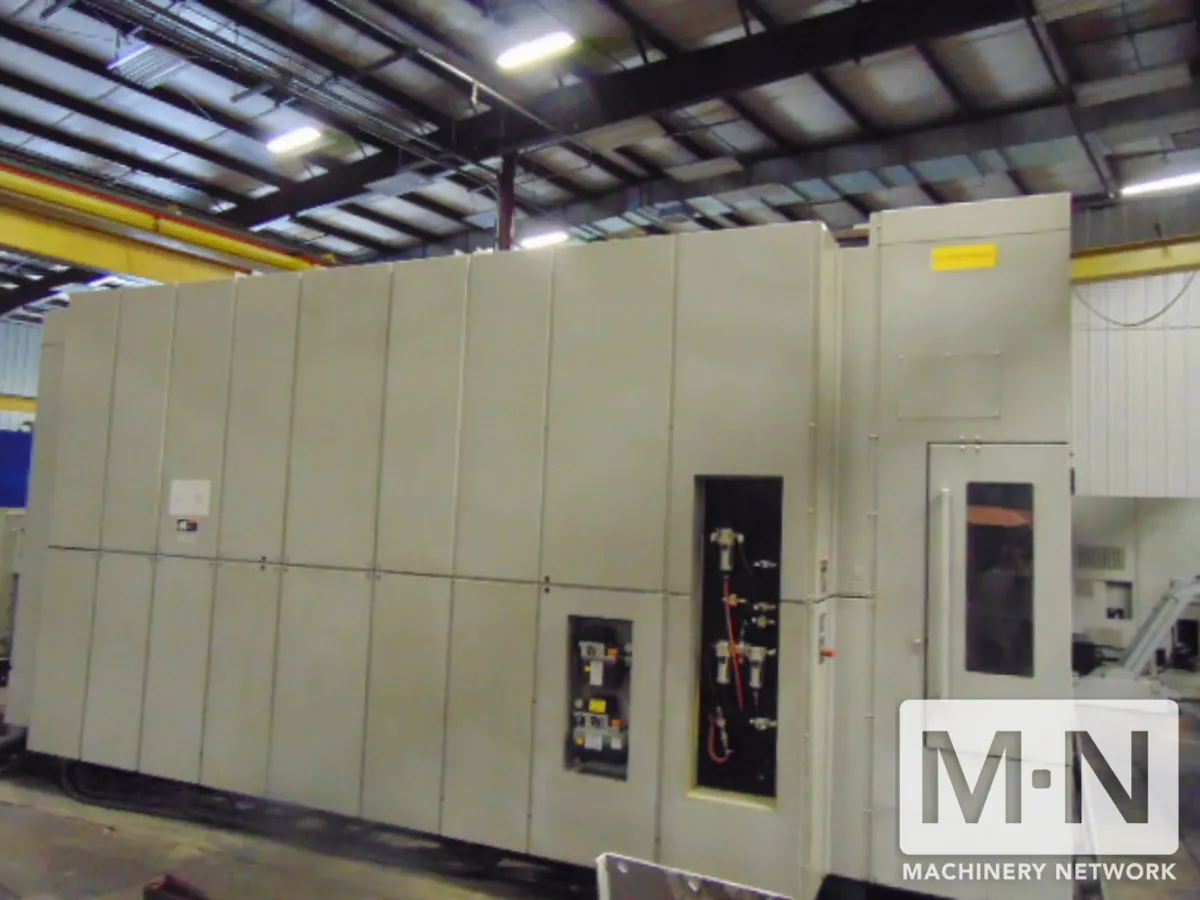

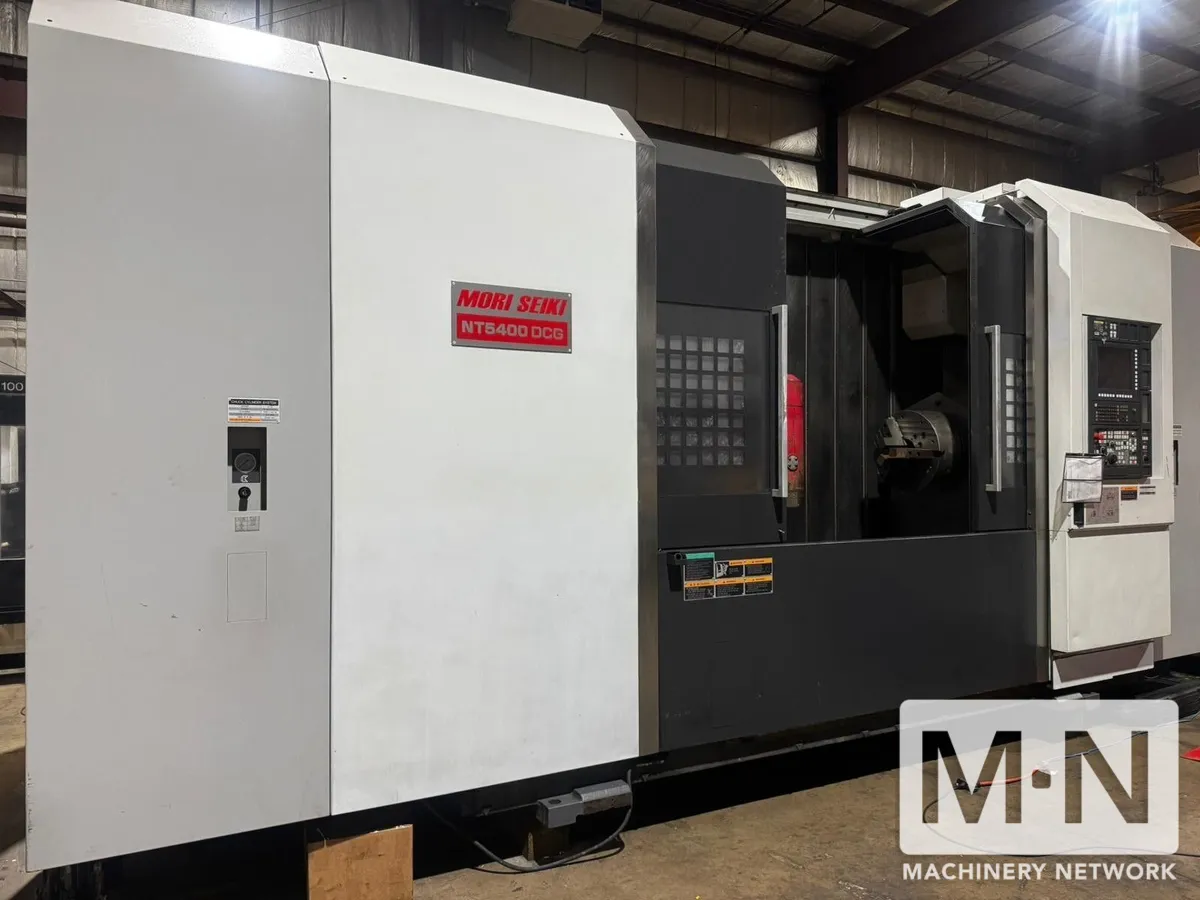

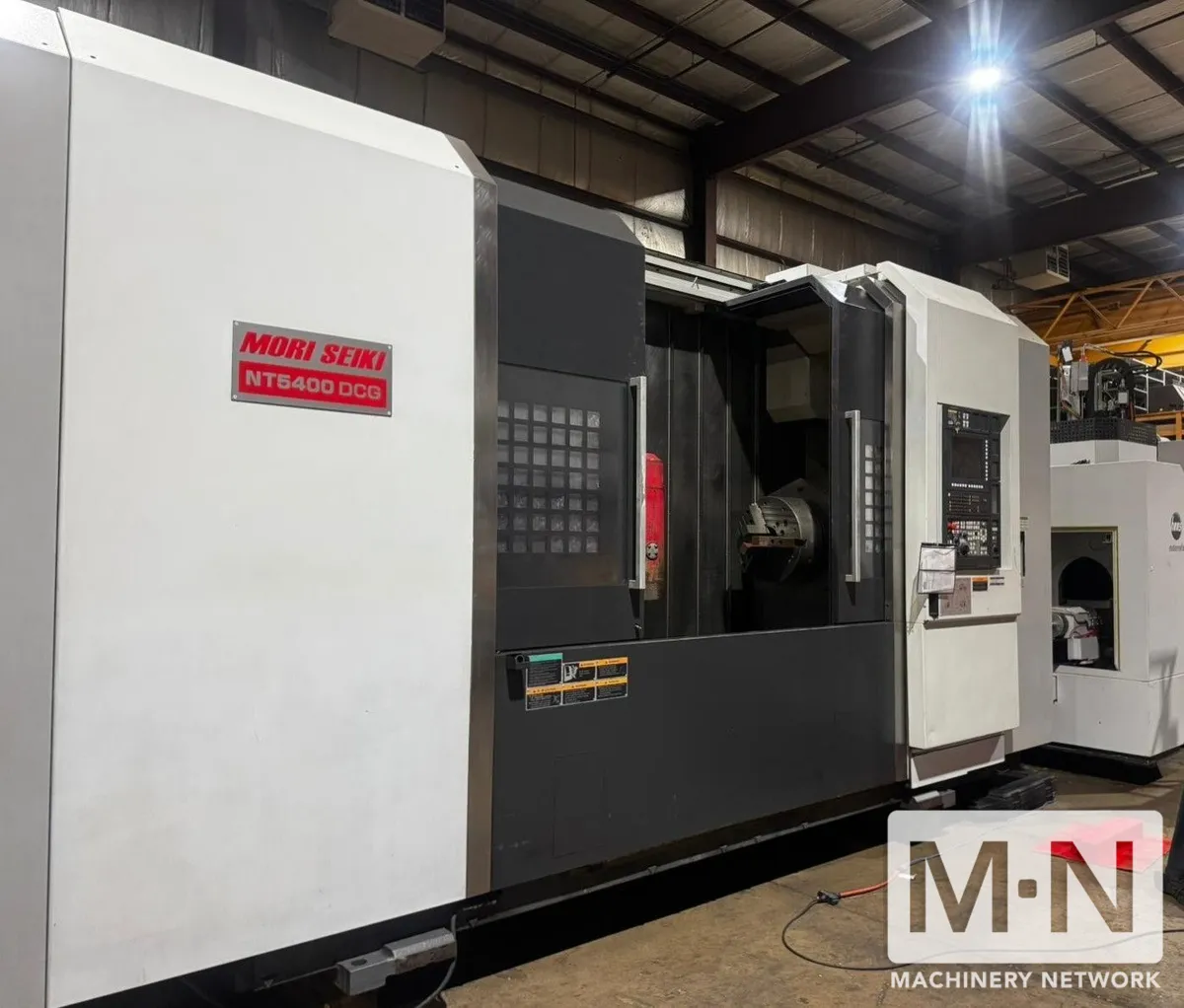

Mori Seiki NT5400 DGC/1800SZ CNC 5-Axis Horizontal Turning Center, 2007

Mori Seiki NT5400 DGC/1800SZ CNC 5-Axis Horizontal Turning Center, 2007

Brand

JAMMES

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

MORI SEIKI

Model:

NT-5400 DCG-1800SZ

Year:

2007

Stock #:

40358

Status:

For Sale

Description

MXS-711 III CNC control, 36.2” max. turning dia., 75.6” max. turning length, 2,400 RPM integrated spindle motor w/ C-axis, 6,000 RPM max. rotational speed of turning/milling spindle, 80-tool pockets, Capto C8 tooling, simultaneous 5-axis machining, 1,000 PSI Chip Blaster high pressure coolant, dual 15" power chucks, milling on Turret 1

Specifications

ImperialMetric

Swing	36.2"	919.48 mm
Machining Length	75.6"	1,920.2 mm
Max. Turning Diameter	36.2"	919.48 mm
X-Axis	40.9"	1,038.9 mm
Y-Axis	10"	10"
Z-Axis	76.4"	1,940.6 mm
C-Axis	.001°	.001°

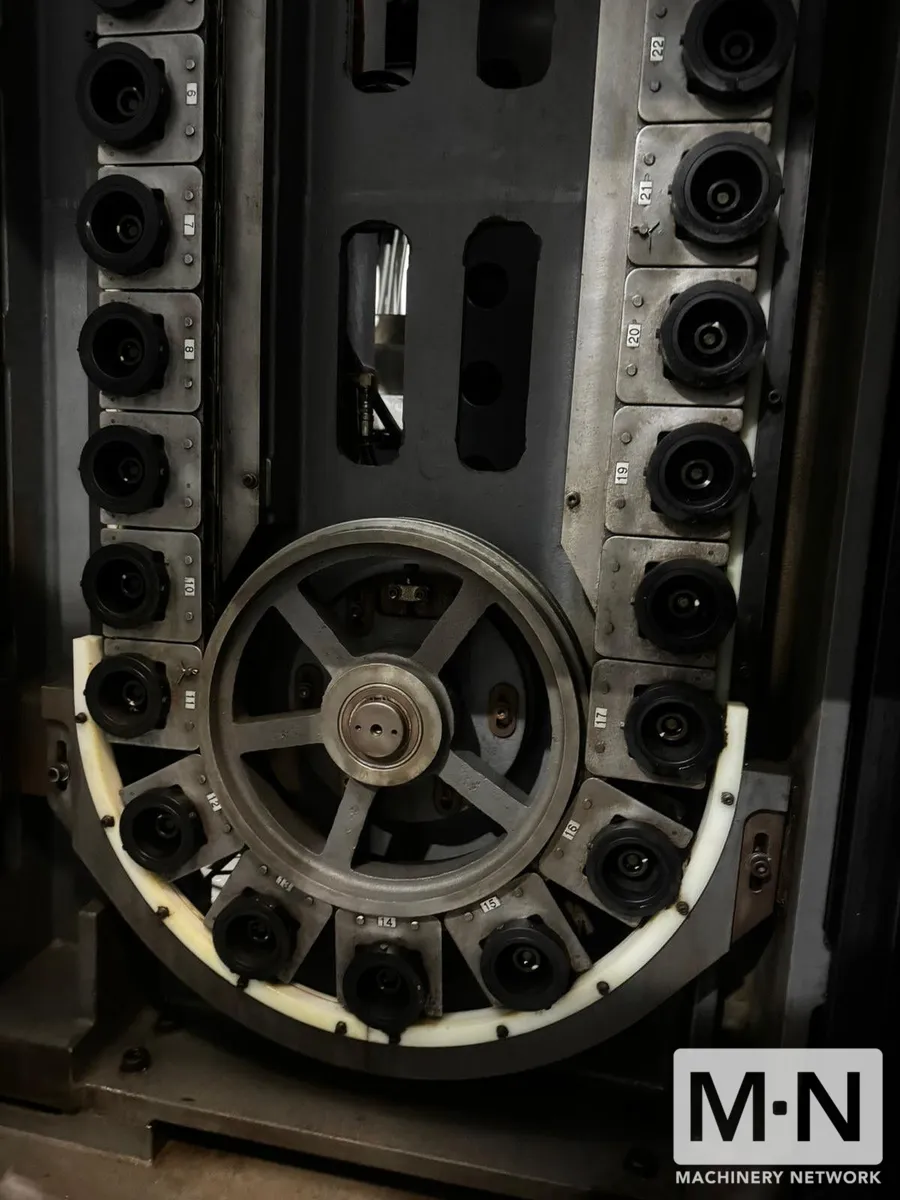

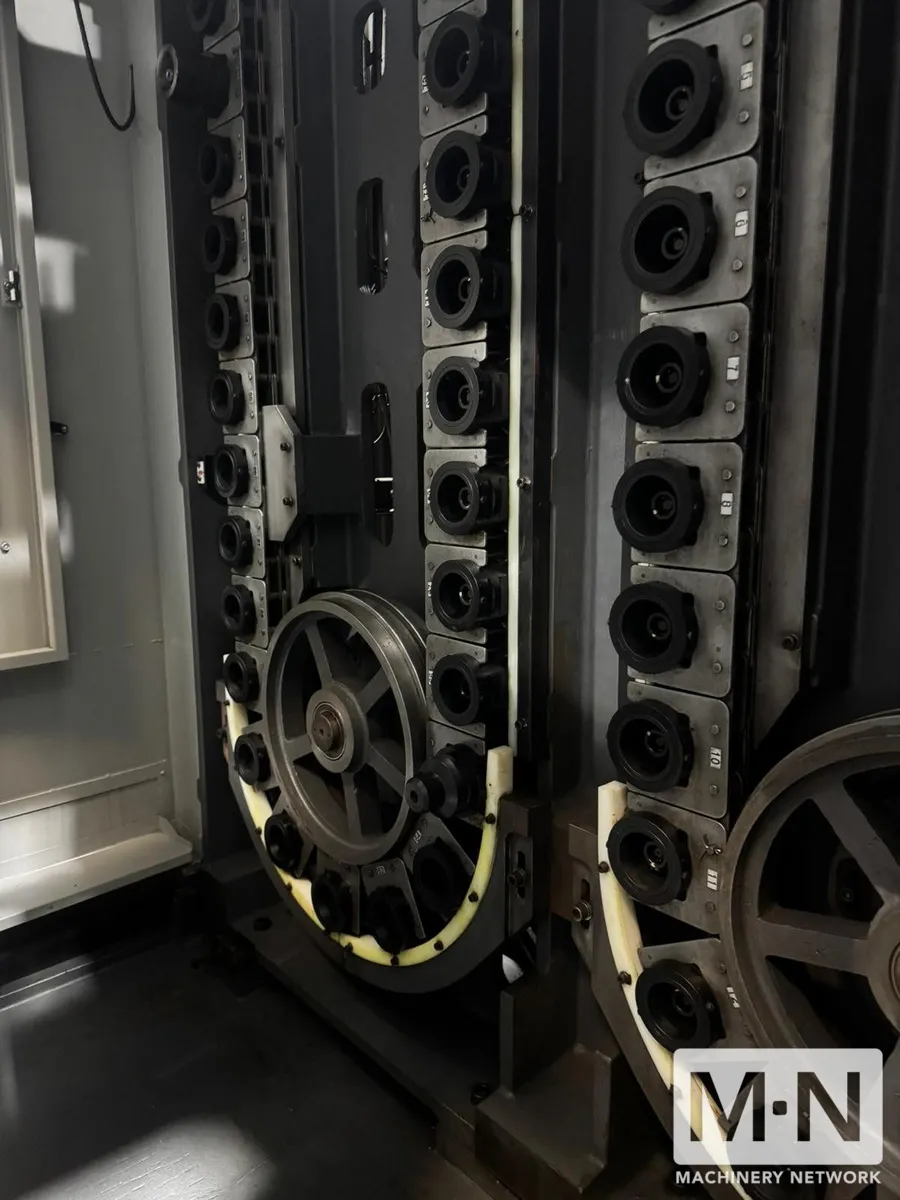

ATC	80	80
# Axis	5	5
Spindle Taper	Capto C8	Capto C8

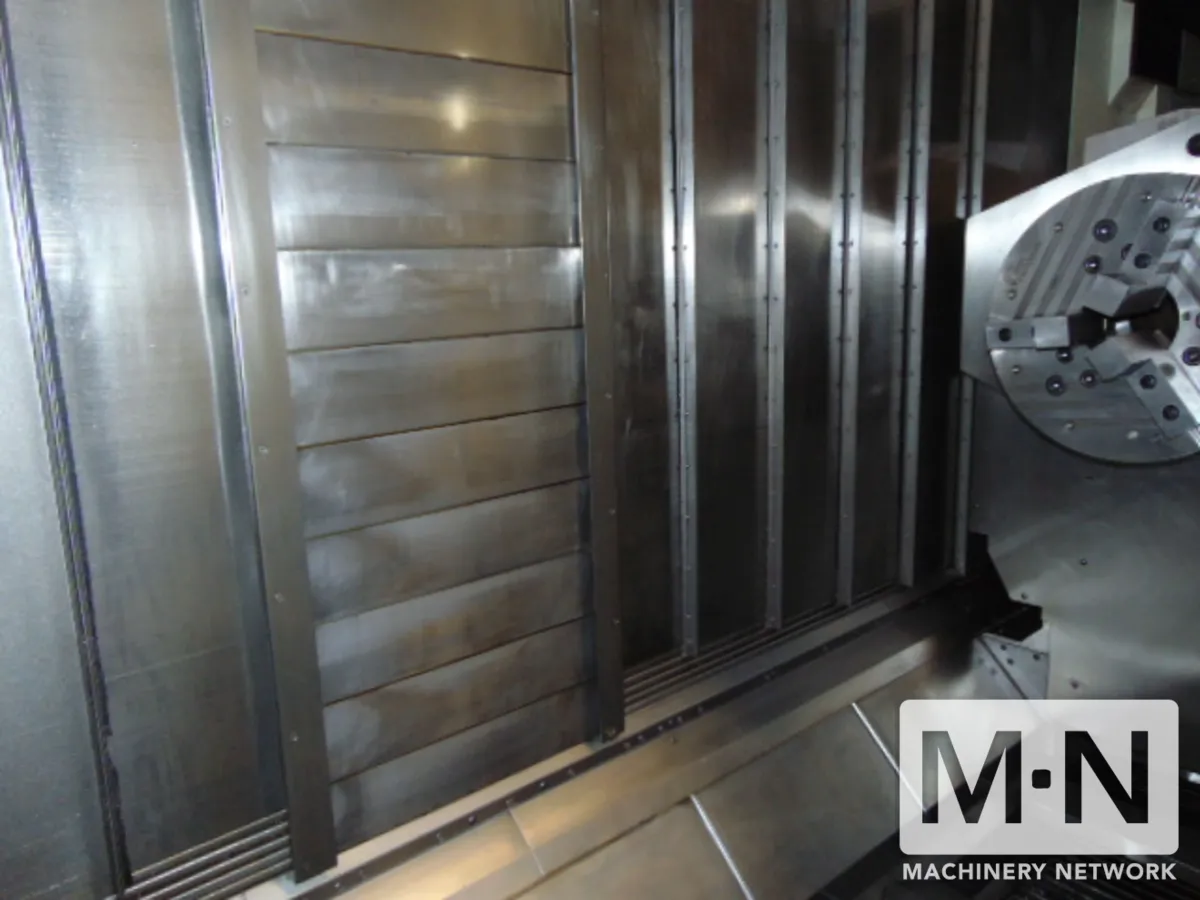

Chuck Size	15"	381 mm
Bar Capacity	4"	101.6 mm
Spindle Bore	4.5 in
Spindle Nose	A2-11	A2-11
Power	50 hp	37.3 kW
Max RPM	2,400 RPM	2,400 RPM

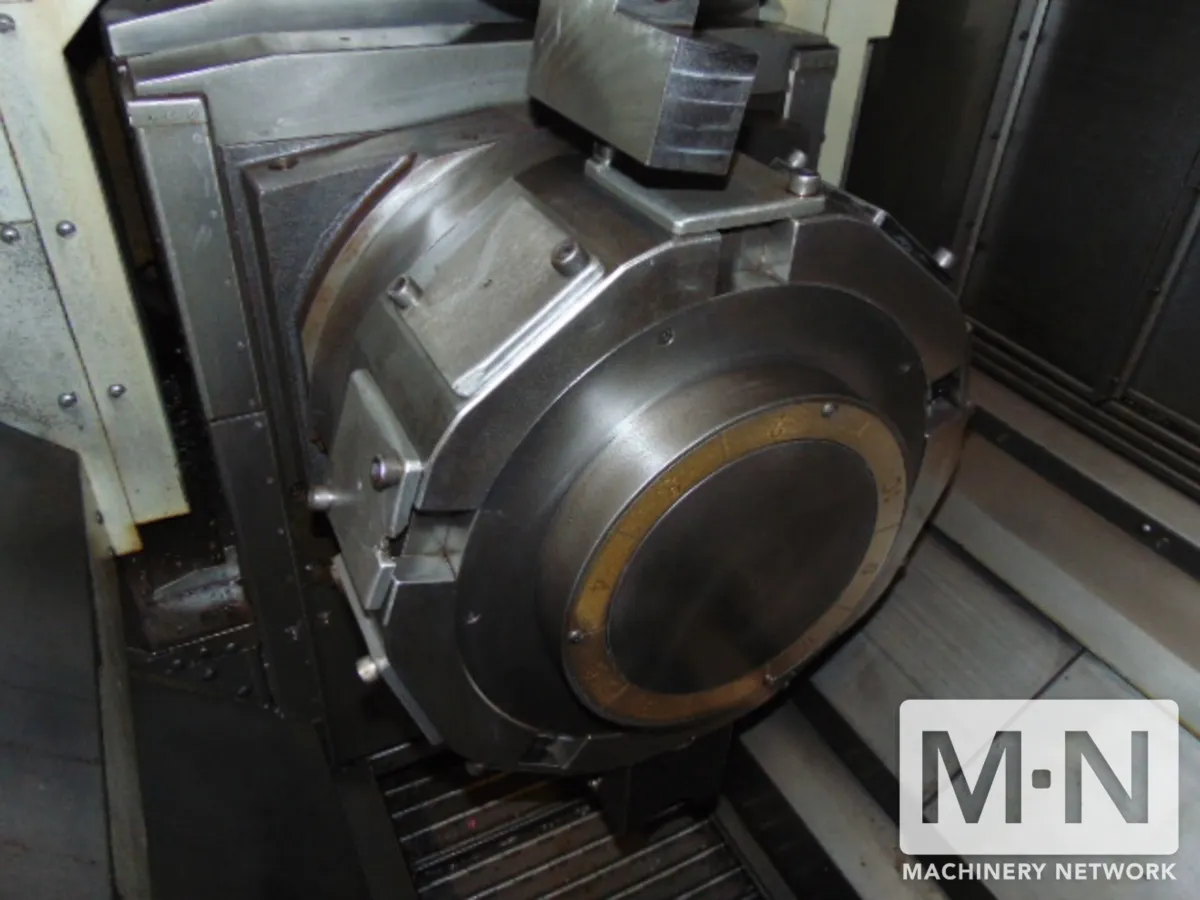

Turret Stations	10	10
Live Tooling	Yes	Yes

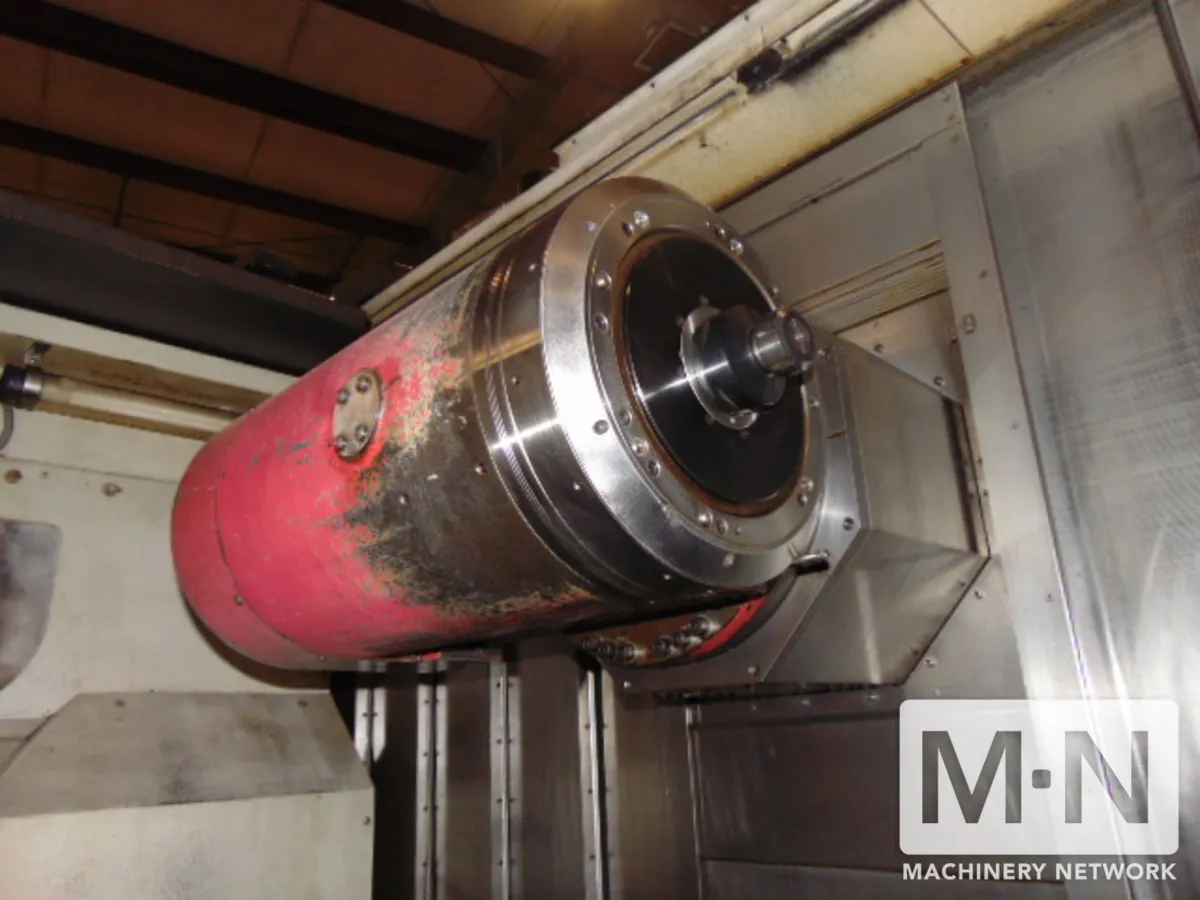

Live Milling Power	40 hp
Live Milling Max RPM	6000 rpm	6,000 RPM
Sub Spindle	Yes	Yes
Sub Spindle Power	50 hp
Sub Spindle Max RPM	2400 rpm	2,400 RPM
Sub Spindle Chuck	15 in

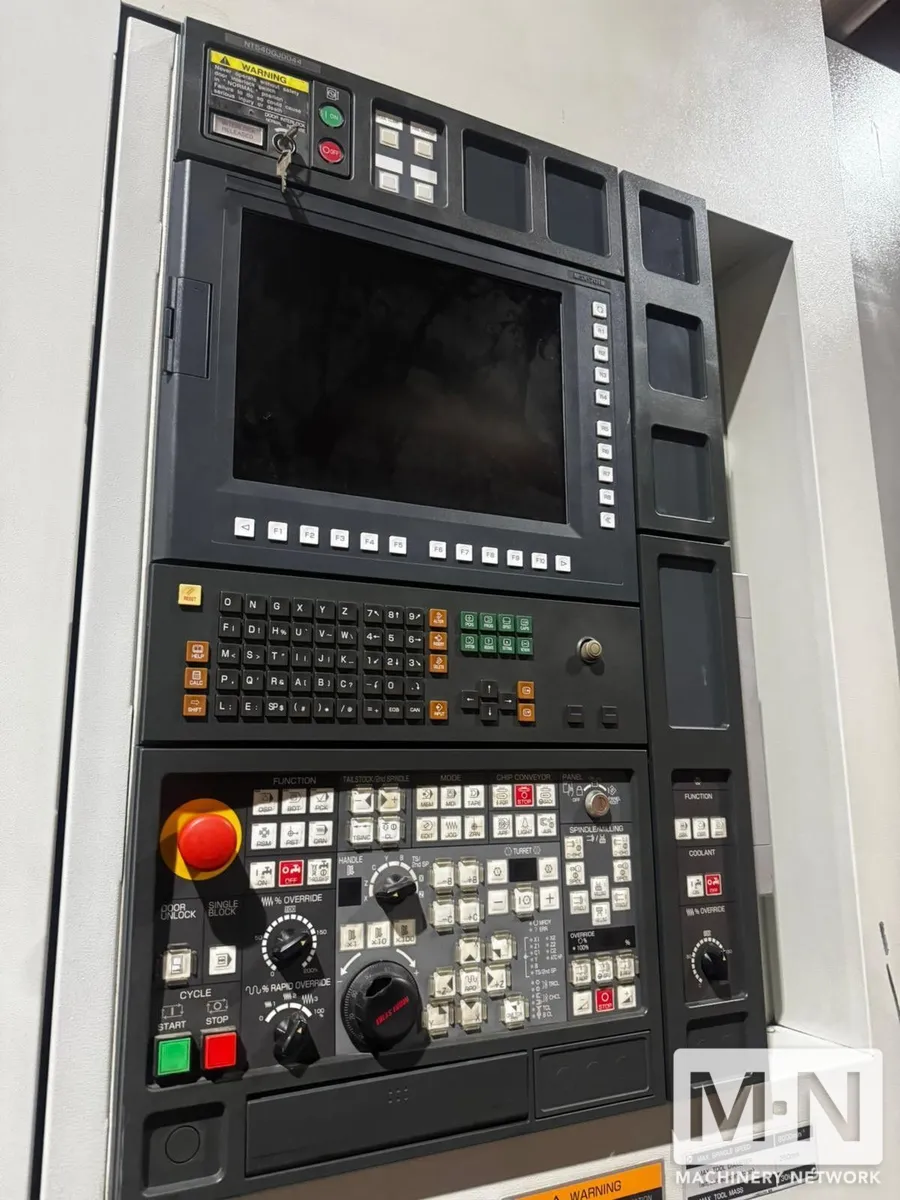

Control	CNC (MXS-711 III CNC control)	CNC (MXS-711 III CNC control)

Equipped With:

CAPTO C8 TOOLING
SIMULTANEOUS 5-AXIS MACHINING
1,000 PSI CHIP BLASTER HIGH PRESSURE COOLANT

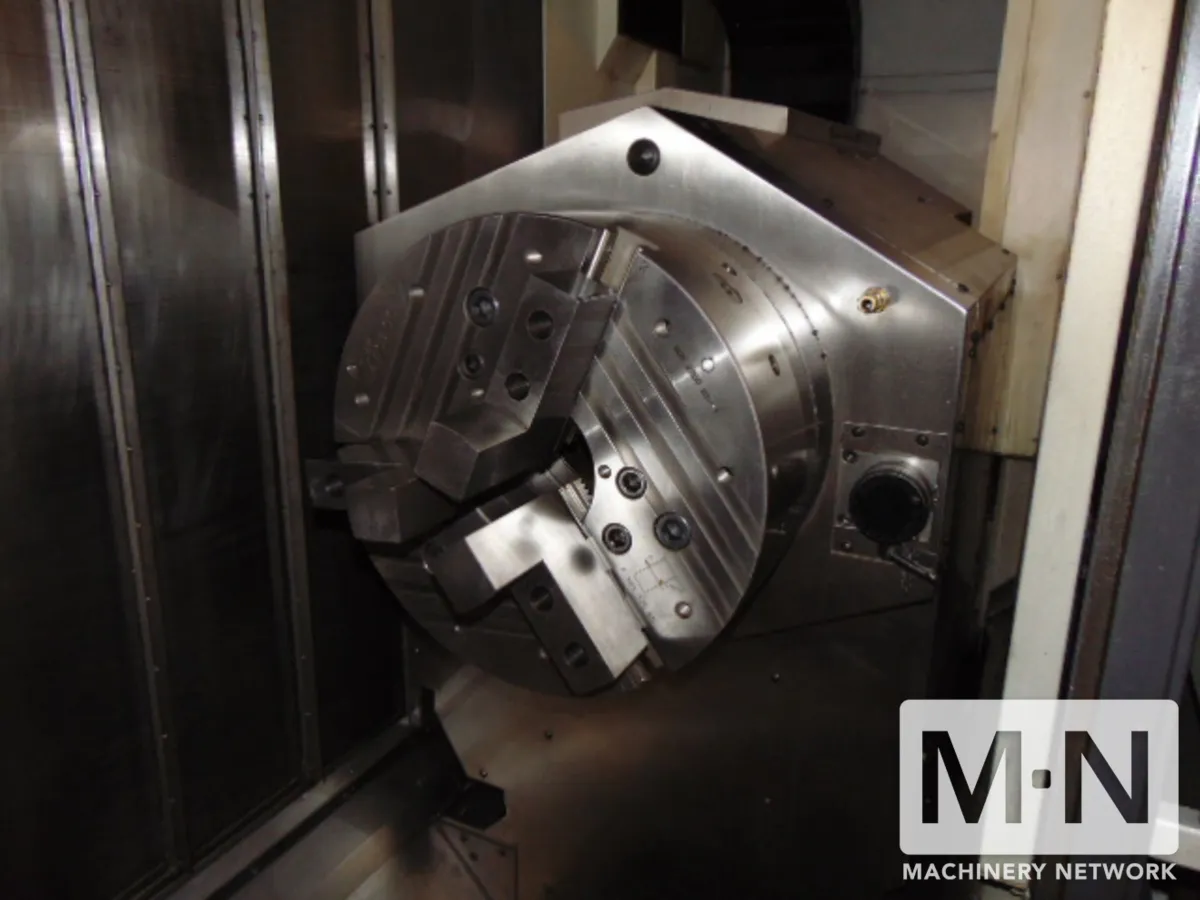

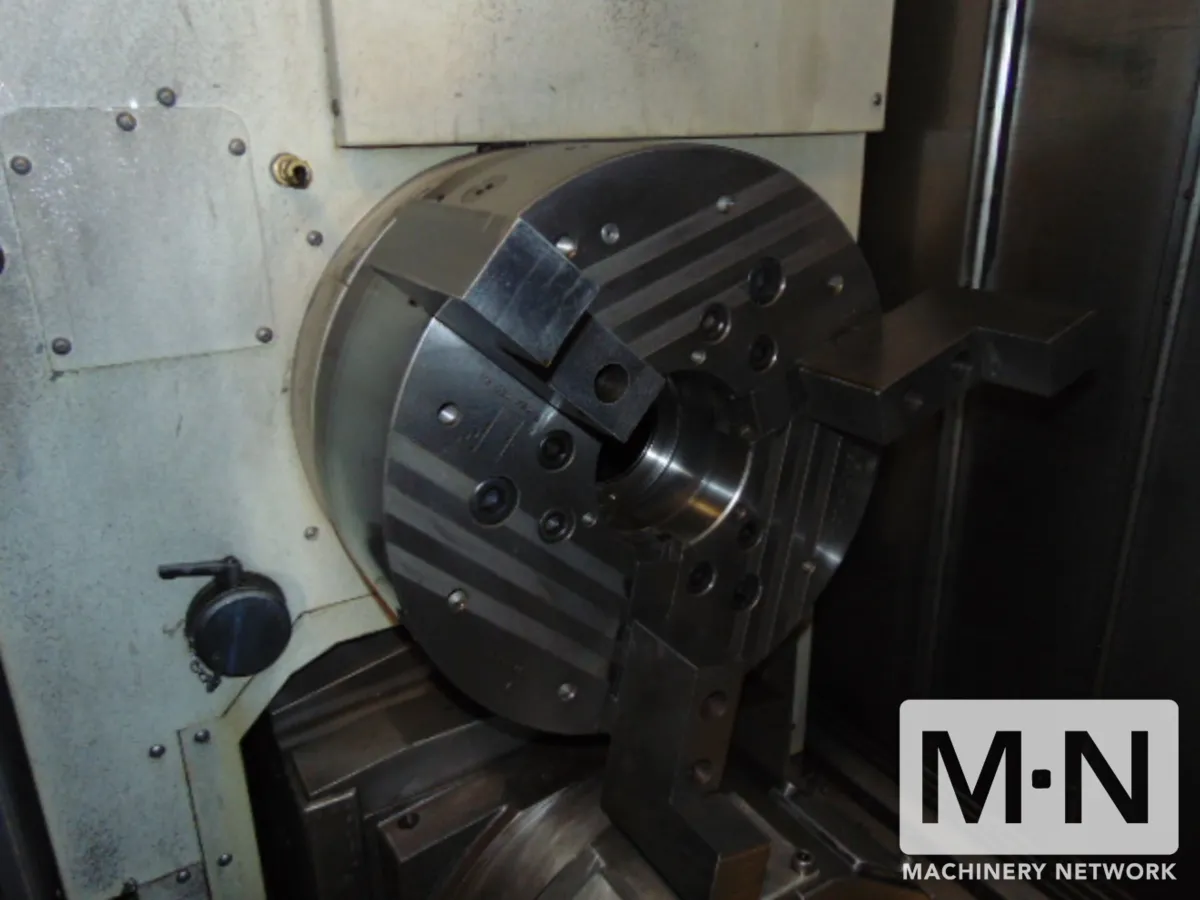

DUAL 15" POWER CHUCKS
MILLING ON TURRET 1
COOLJET COOLANT PUMP
TOOL CENTER POINT CONTROL
PART PROGRAM STRAGE (2MBYTE)
NUMBER OF STORED PROGRAMS: 1000
REMOTE COMMUNICATION FUNCTION: FAST DATA SERVER [100BASE-TX]
USER MEMORY AREA(BUILT-IN MAPPS): 50 MB
NUMBER OF TOOL OFFSET PAIRS: 240
TOOL OFFSET FOR 5-AXIS MACHINING: PROVIDED
NUMBER OF WORK COORDINATE SYSTEM PAIRS: 6
PROGRAMMABLE DATA INPUT: PROVIDED
NUMBER OF CUSTOM MACRO COMMON VARIABLES: 600
AI CONTOUR CONTROL: 2
DIAMETER/RADIUS DYNAMIC EXCHANGE: PROVIDED
TILTED WORKING PLANE COMMAND: PROVIDED
NANO SMOOTHING: PROVIDED
TOOL LIFE MANAGEMENT: B
NUMBER OF TOOL LIFE MANAGEMENT (MORI): MAX. 120 PAIRS * 8
LOAD MONITOR: B
