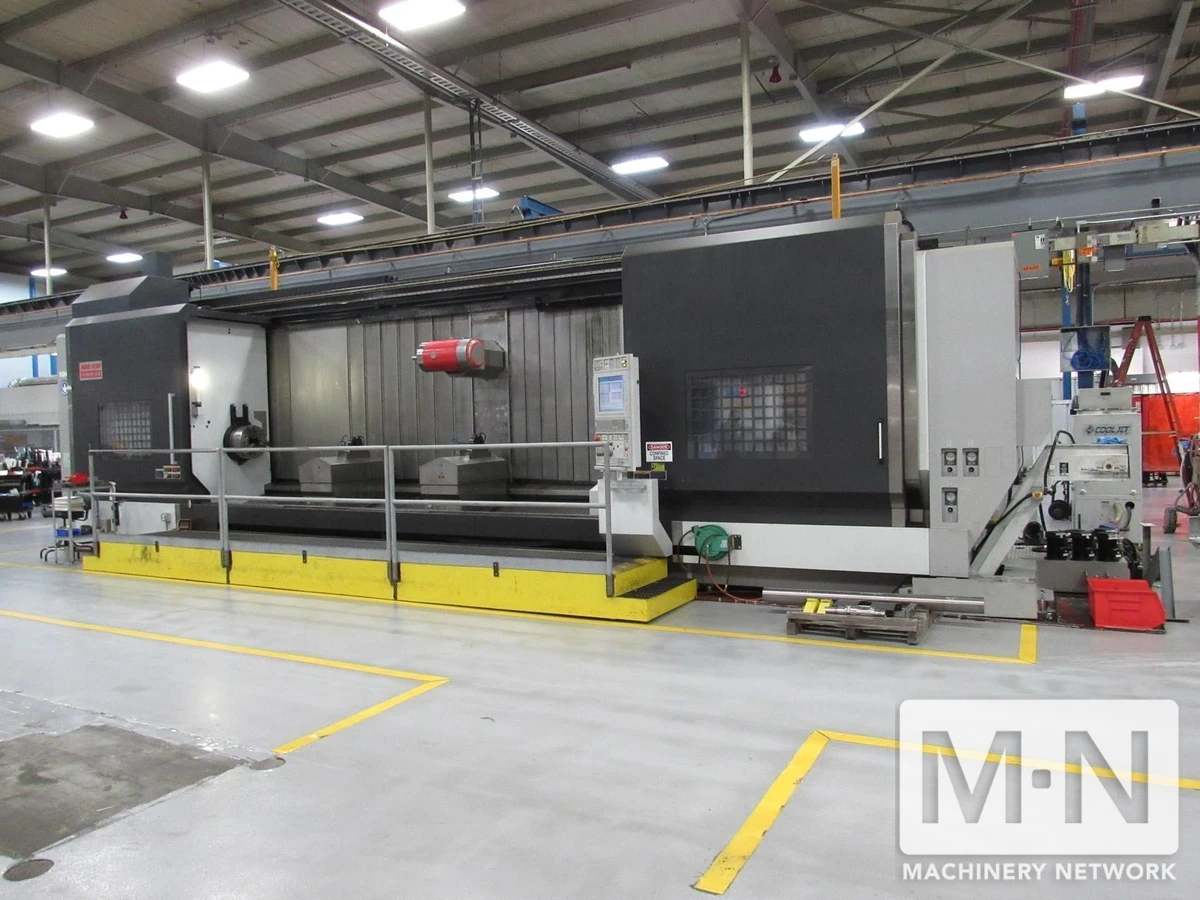

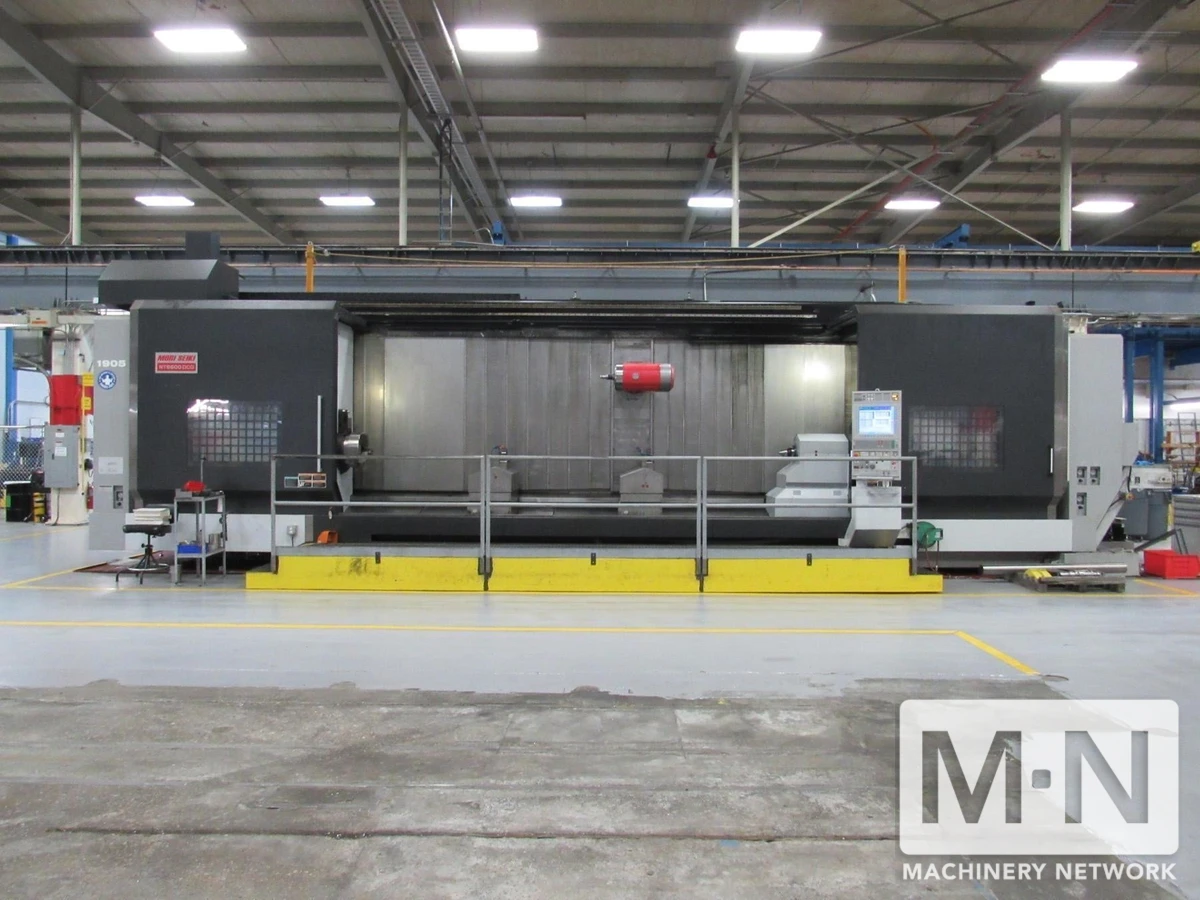

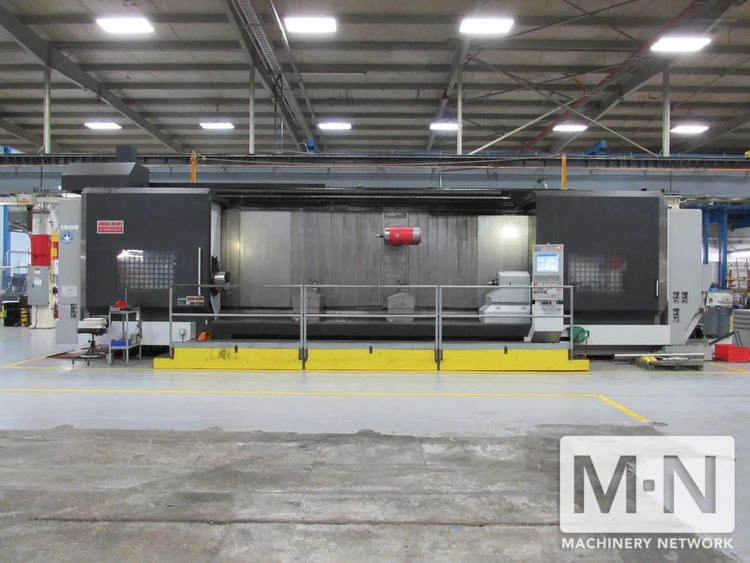

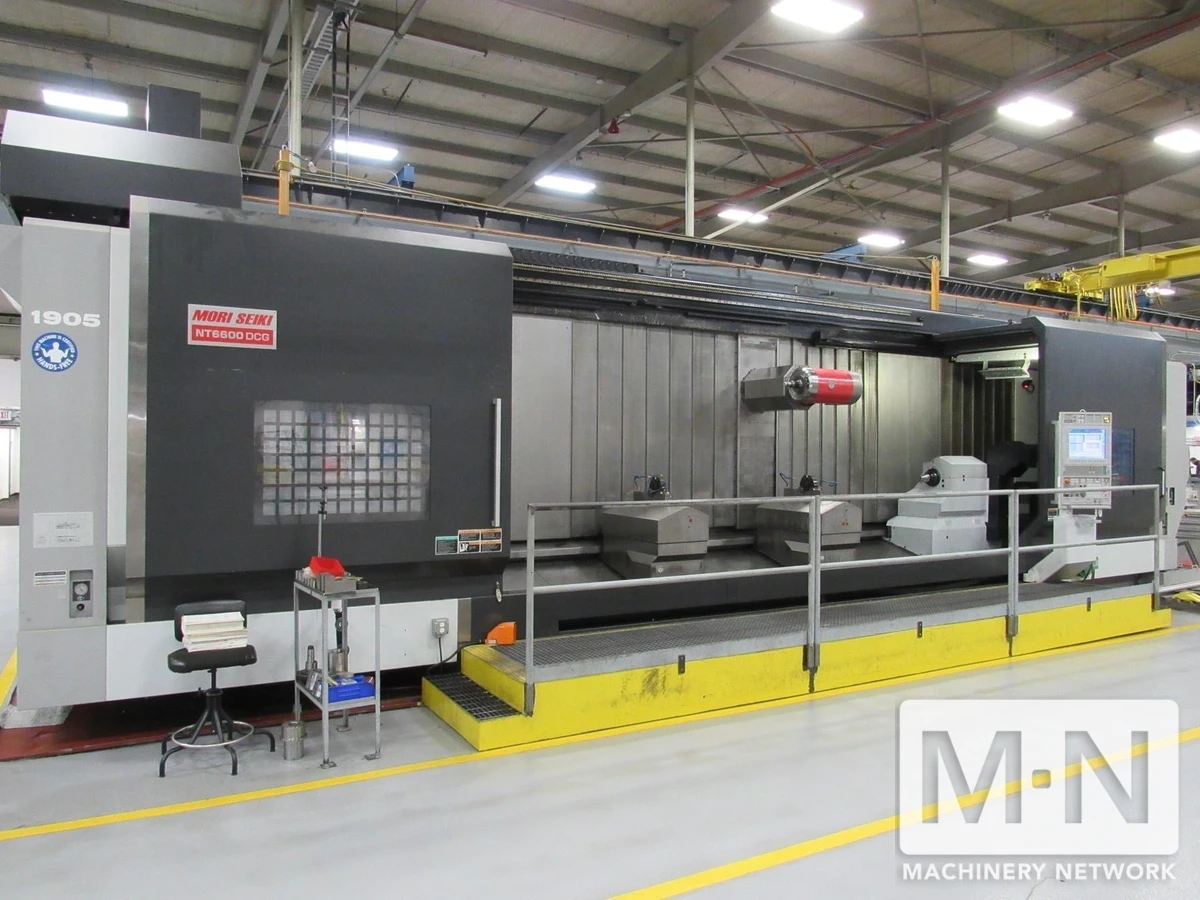

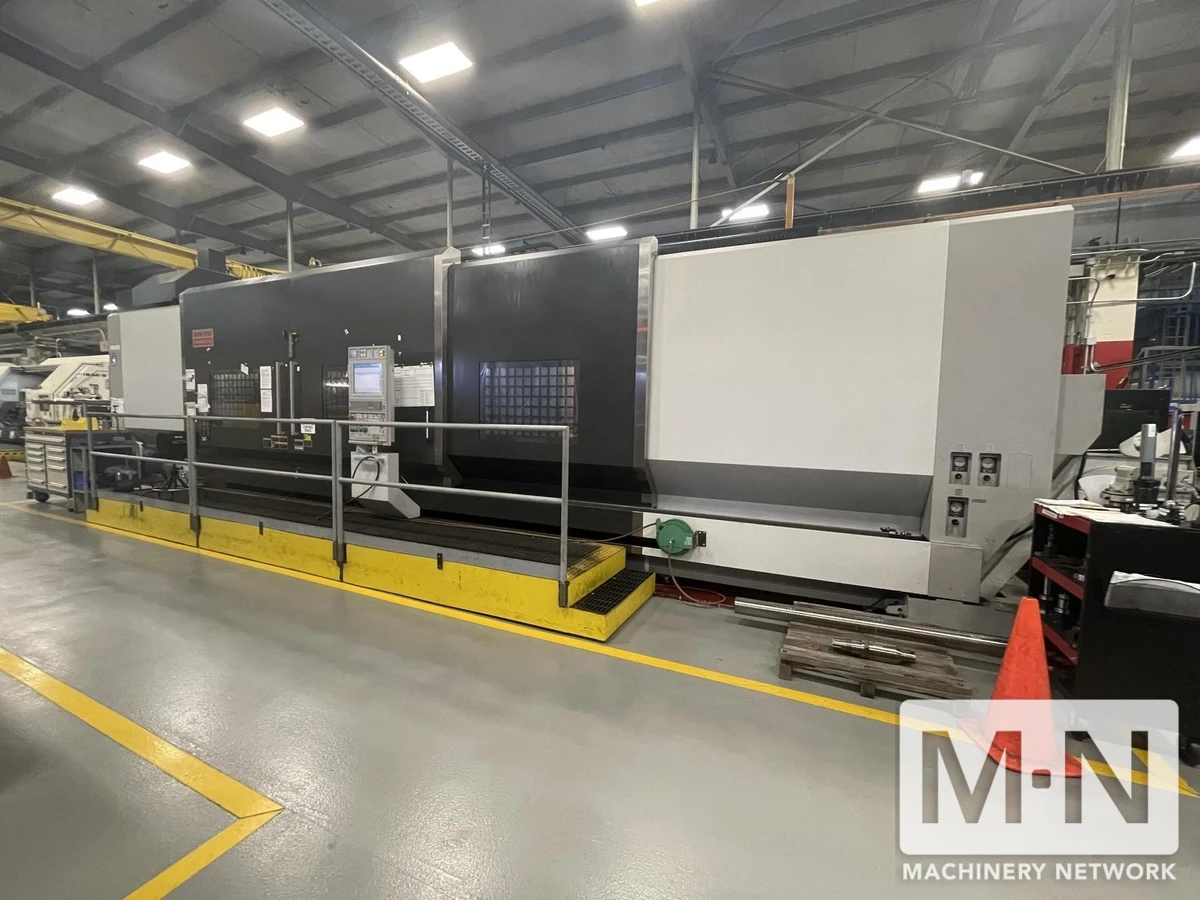

Mori Seiki NT6600 DCG/600B CNC Integrated Mill Turn Center, New 2012

Mori Seiki NT6600 DCG/600B CNC Integrated Mill Turn Center, New 2012

Brand

JAMMES

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

MORI SEIKI

Model:

NT 6600 DCG/6000B

Condition:

Excellent

Year:

2012

Stock #:

41128

Status:

For Sale

Description

NT6600 DCG with FS-31iA5 CNC CONTROL, LIVE MILLING, 140 ATC

Specifications

MAXIMUM SWING OVER BED: 42"
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP

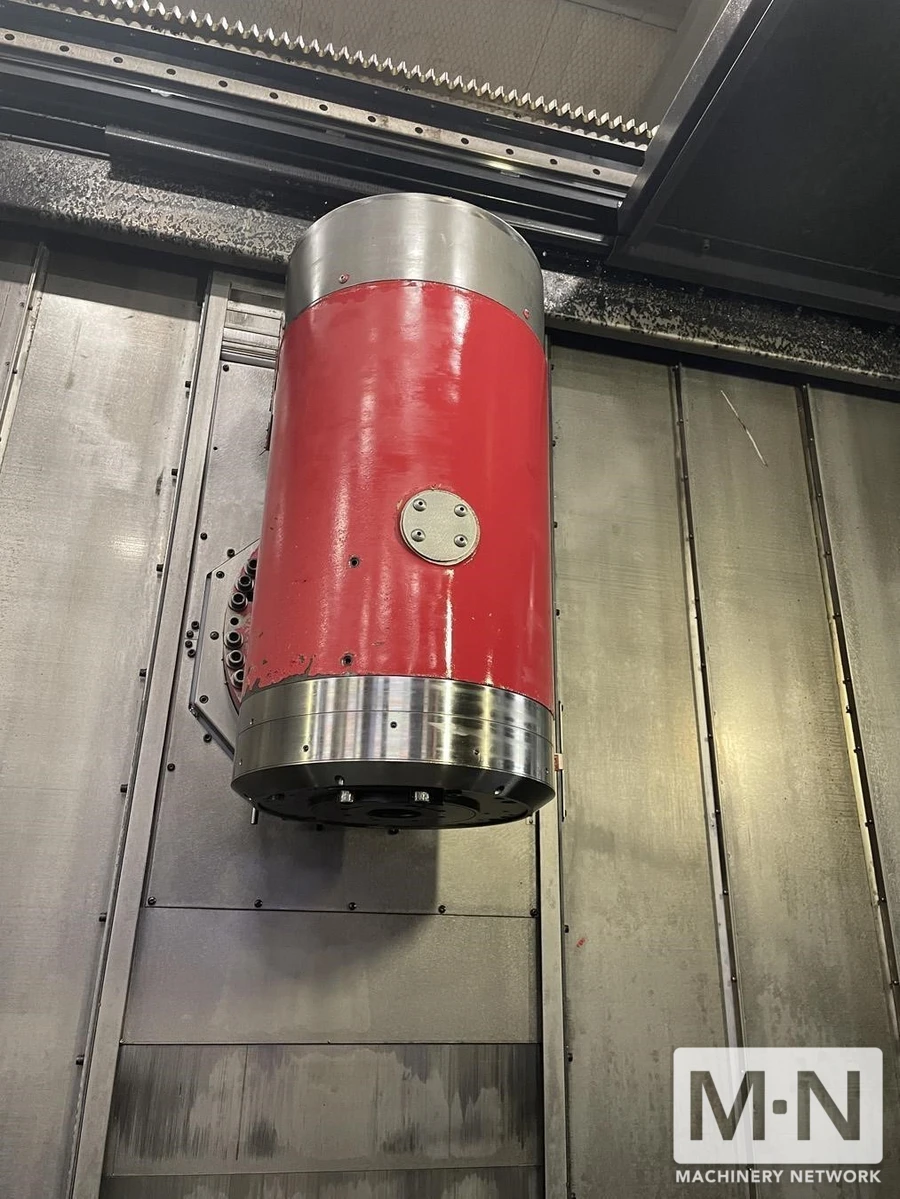

MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING

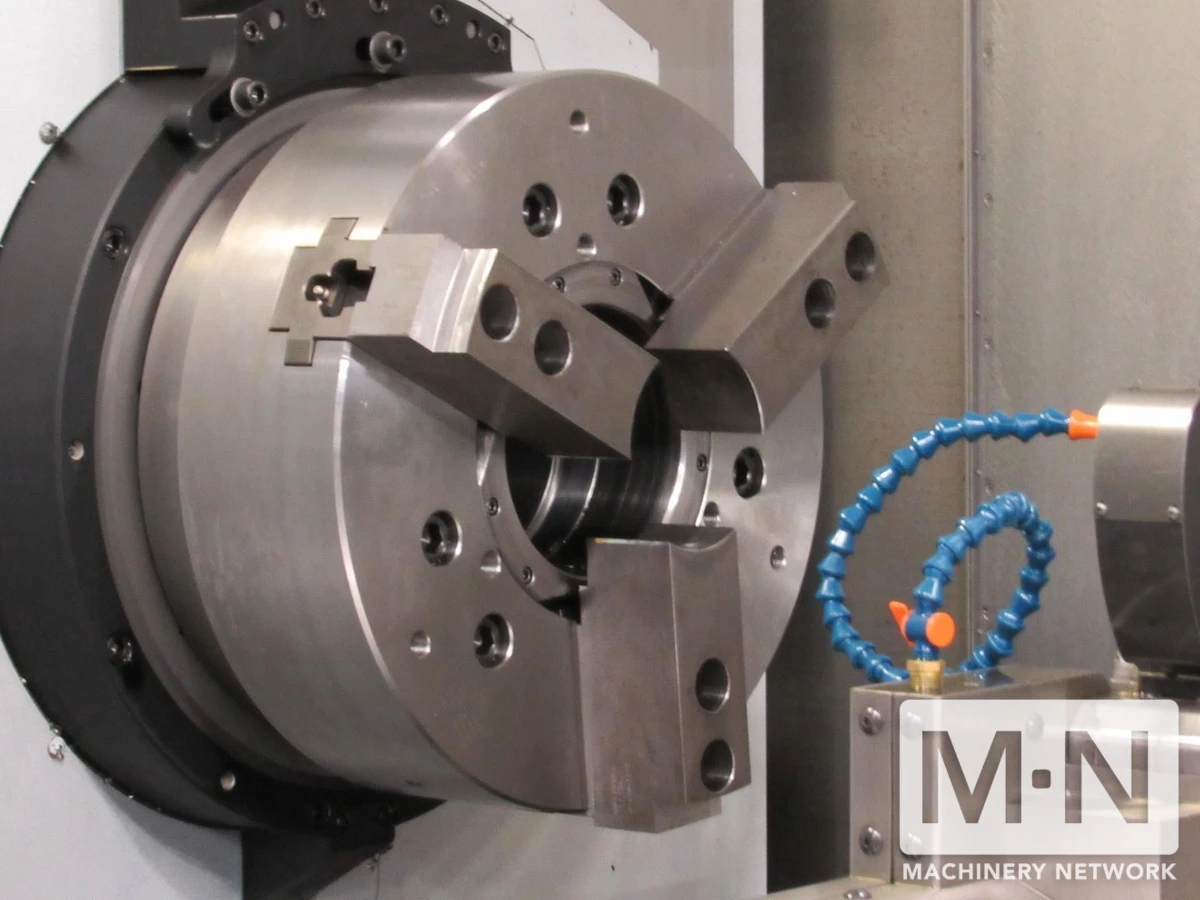

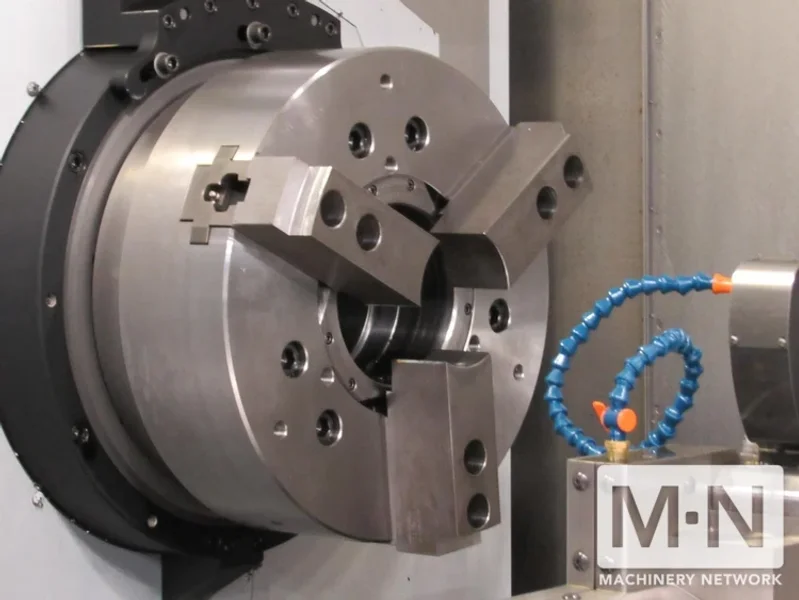

20" CHUCK
FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER

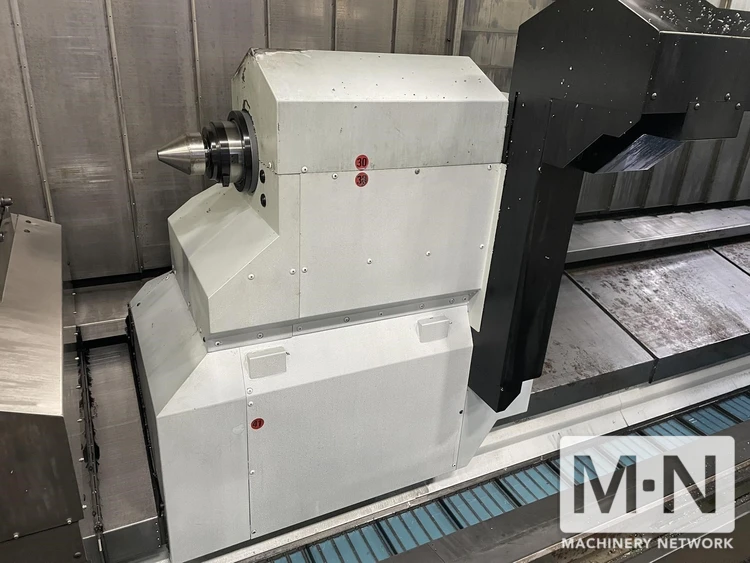

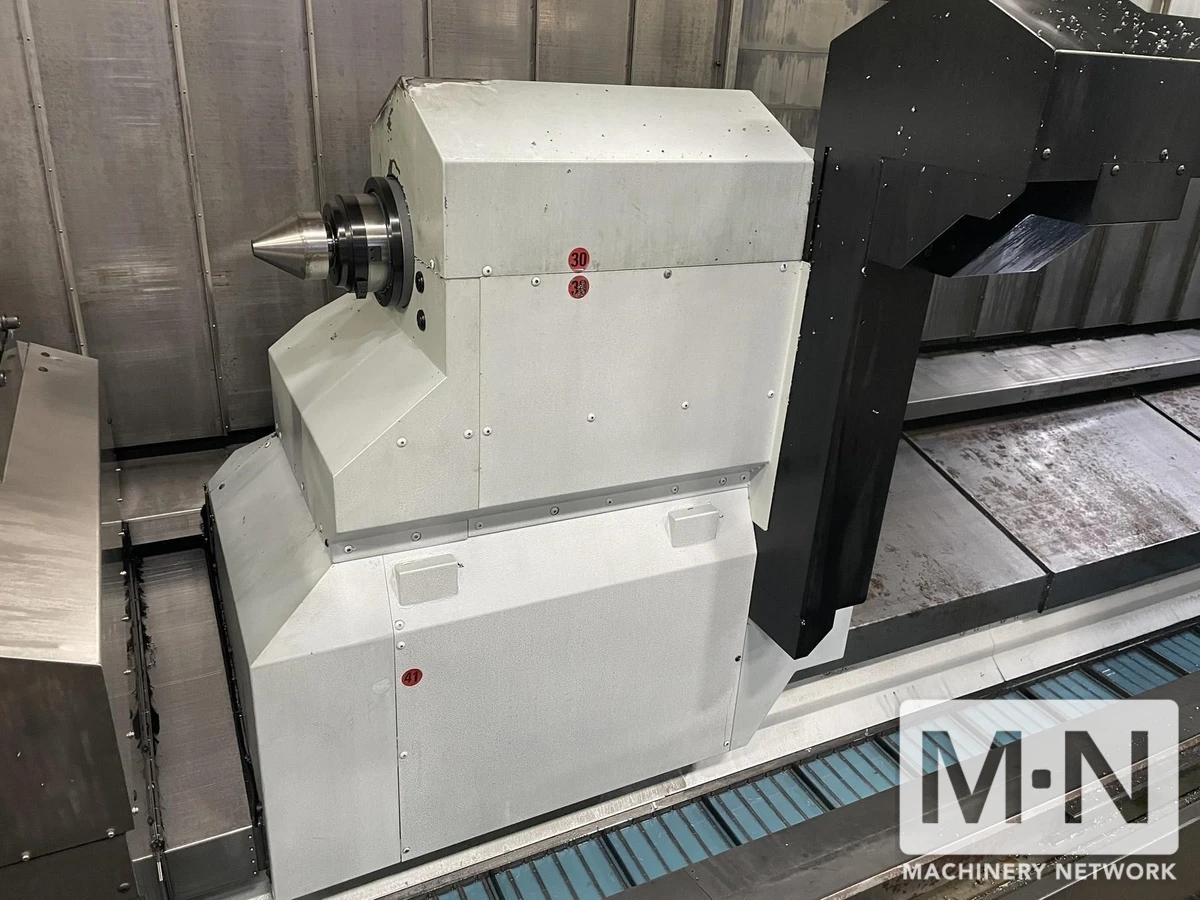

PROGRAMMABLE TAILSTOCK

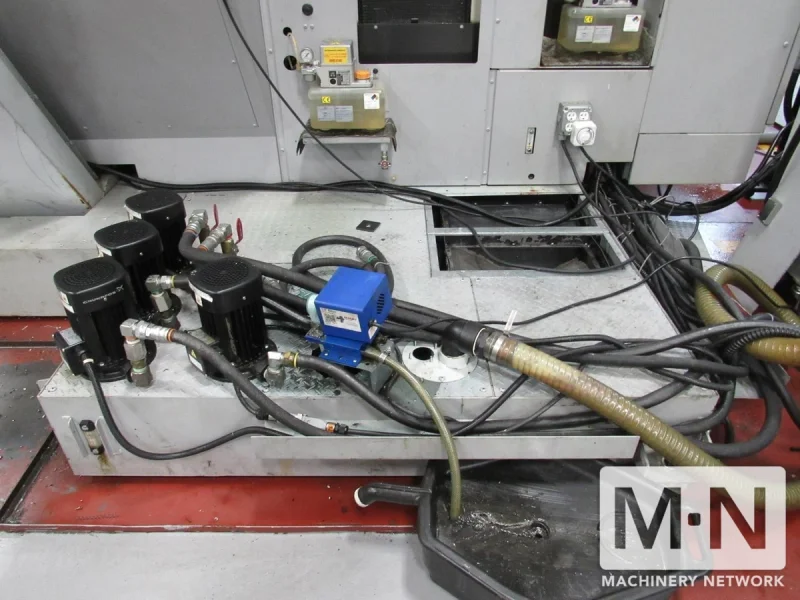

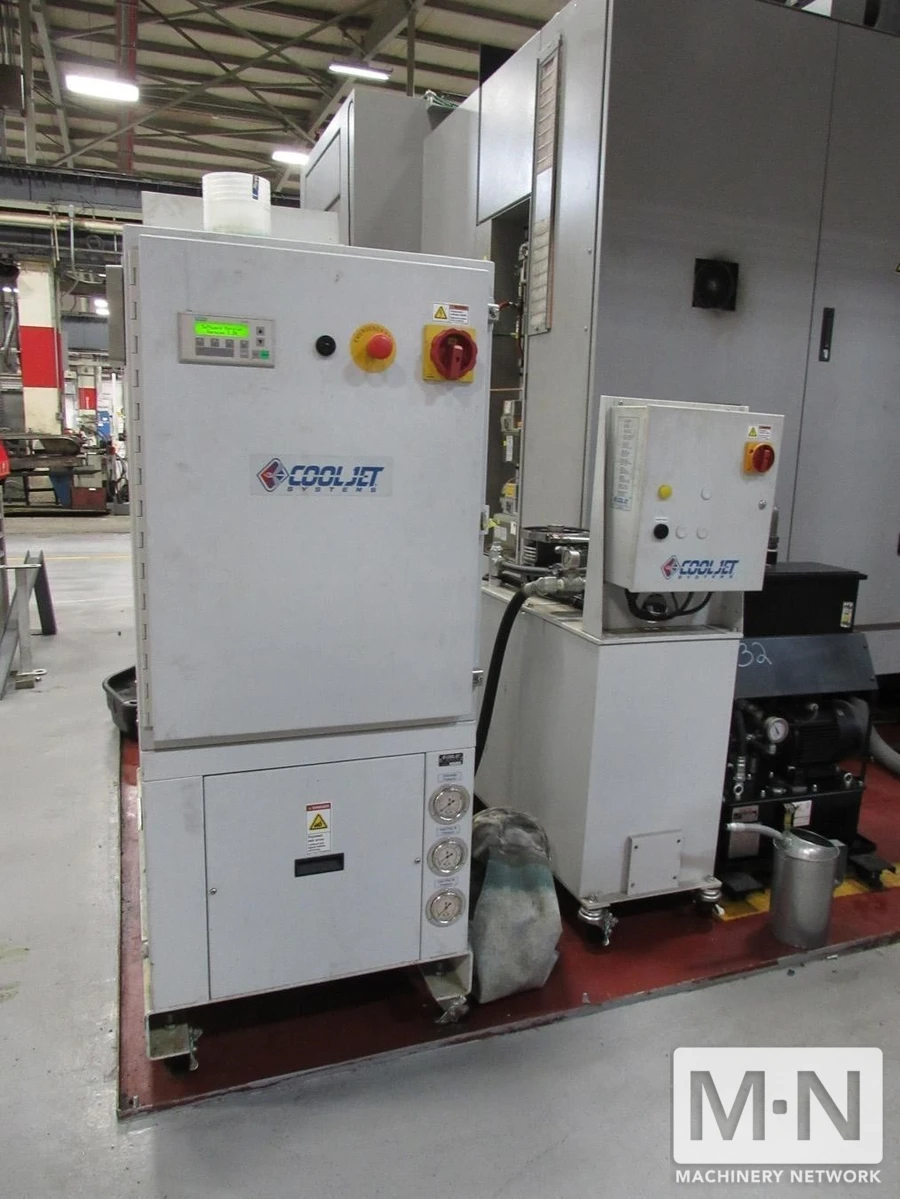

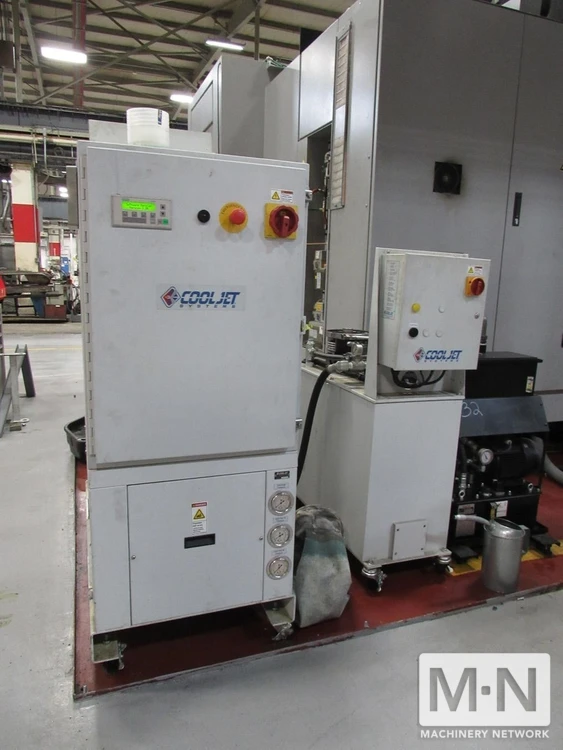

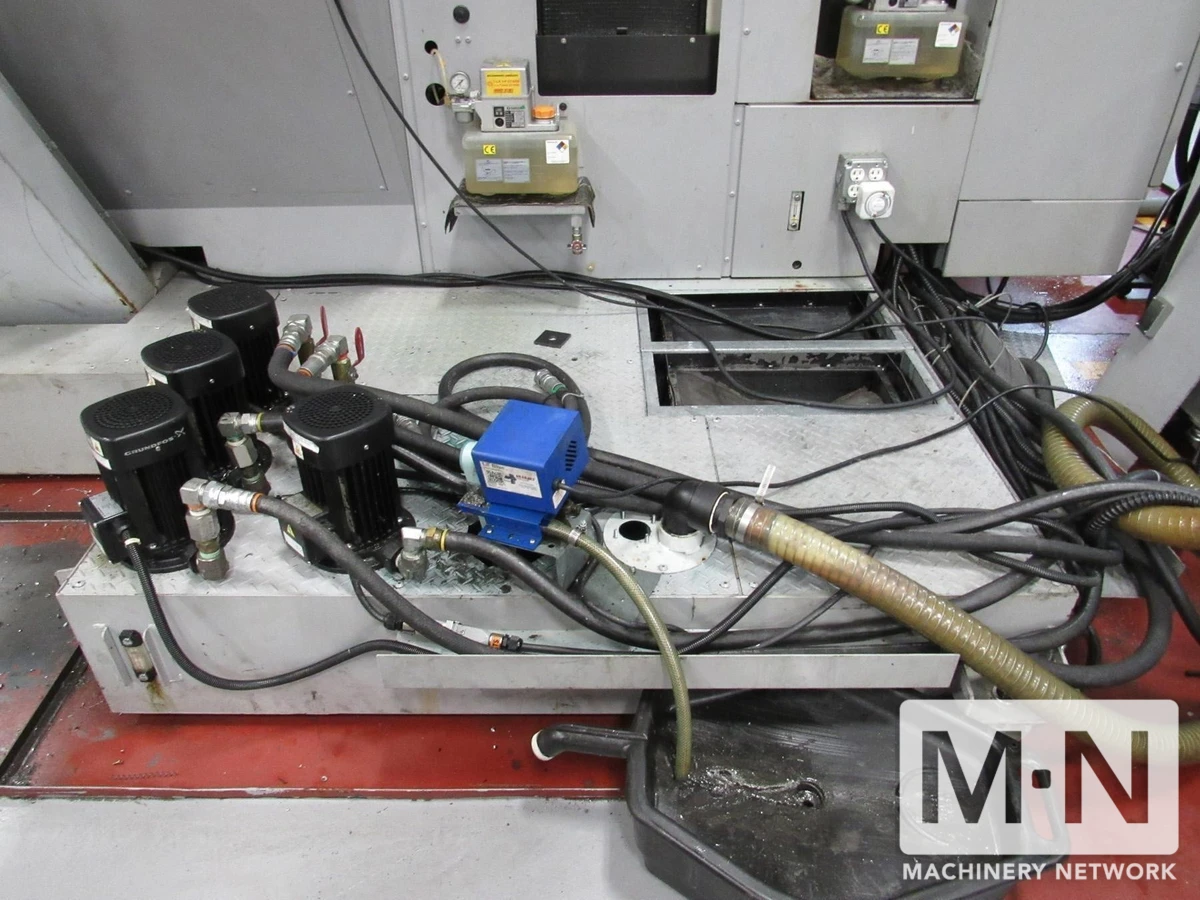

COOLANT THROUGH SPINDLE (HIGH PRESSURE)

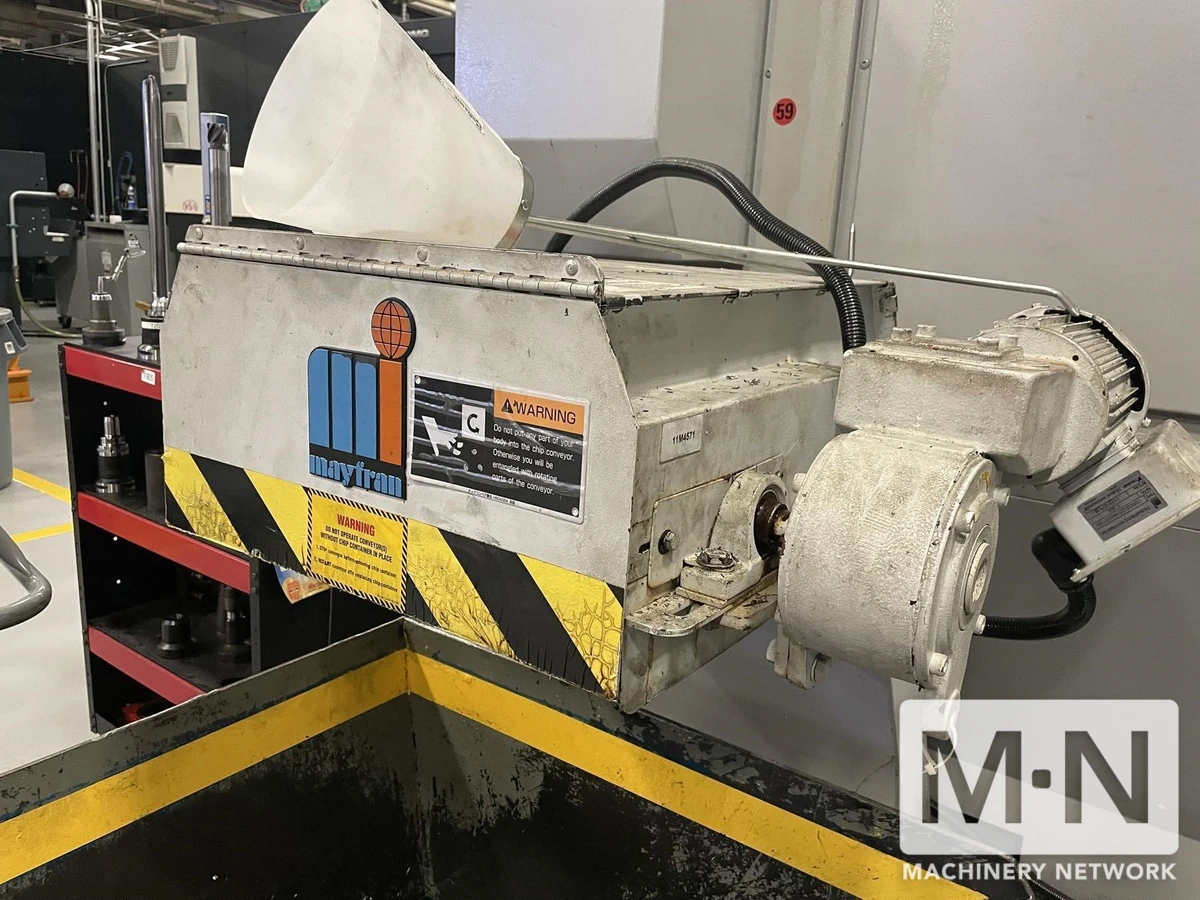

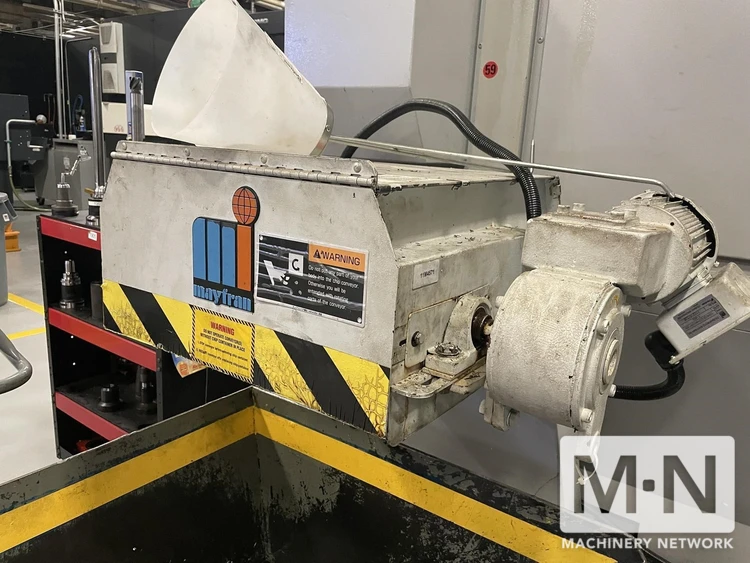

CHIP CONVEYOR

Equipped With:

Additional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control

Machine Options:
Tool Presetter
Automatic Tool Length Measurement System

Additional Machine Specs:
Capto C8 Spindle
Full B-Axis
Right Hinge-Type Chip Conveyor

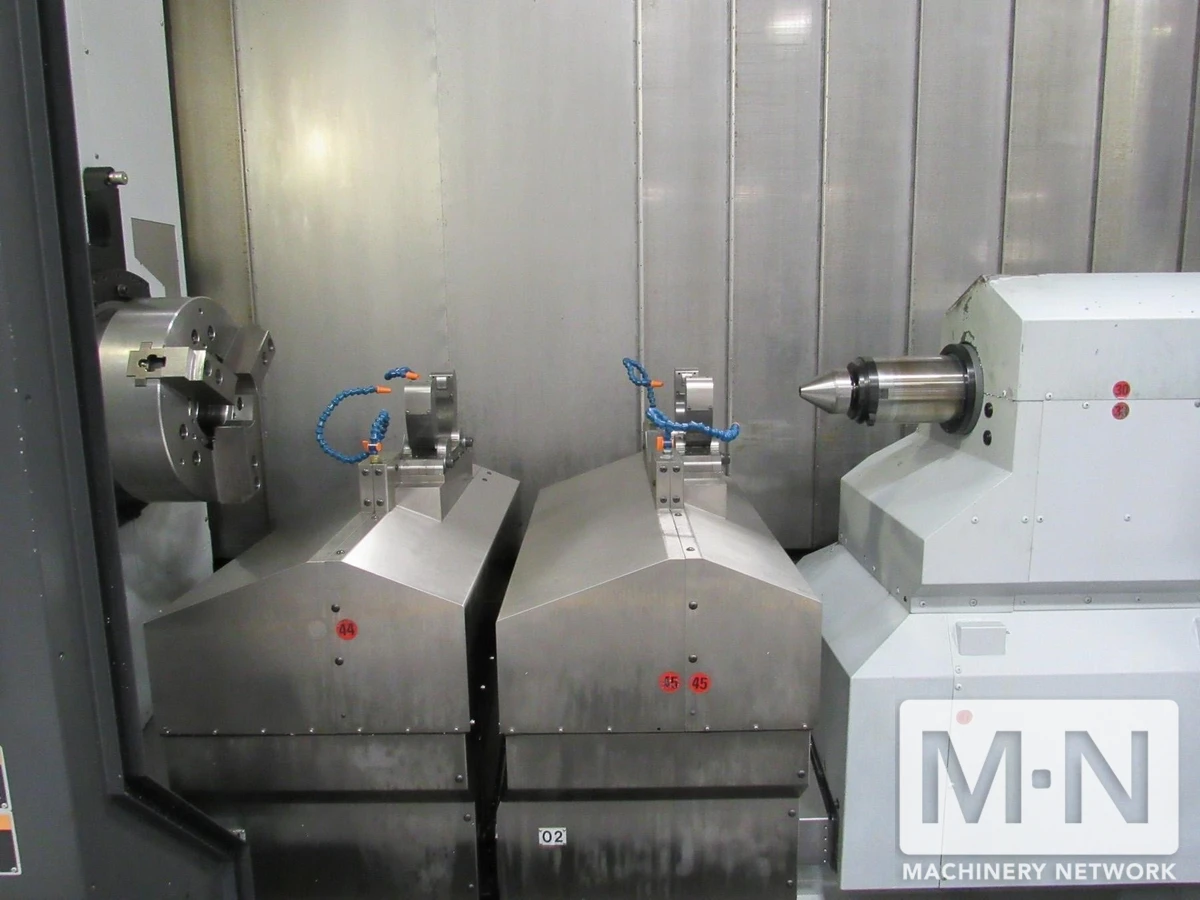

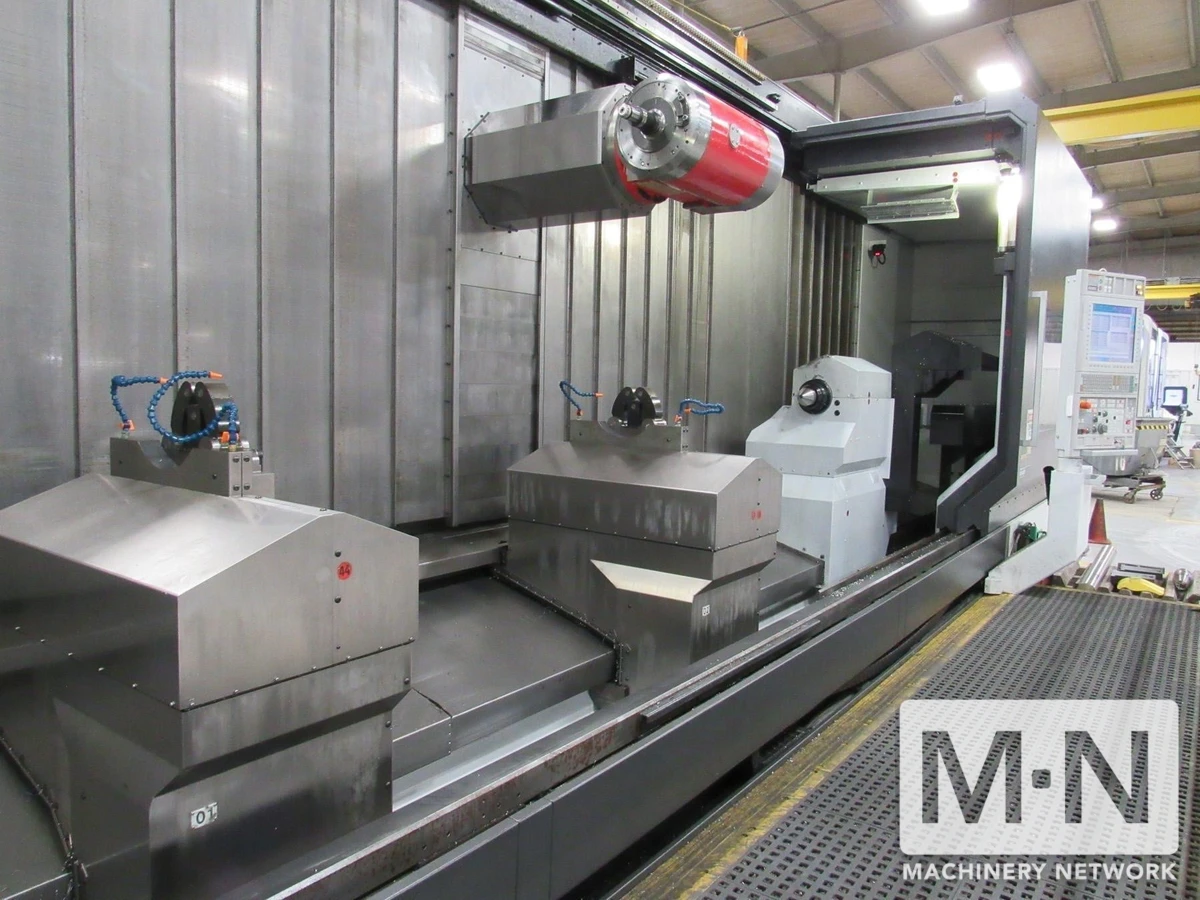

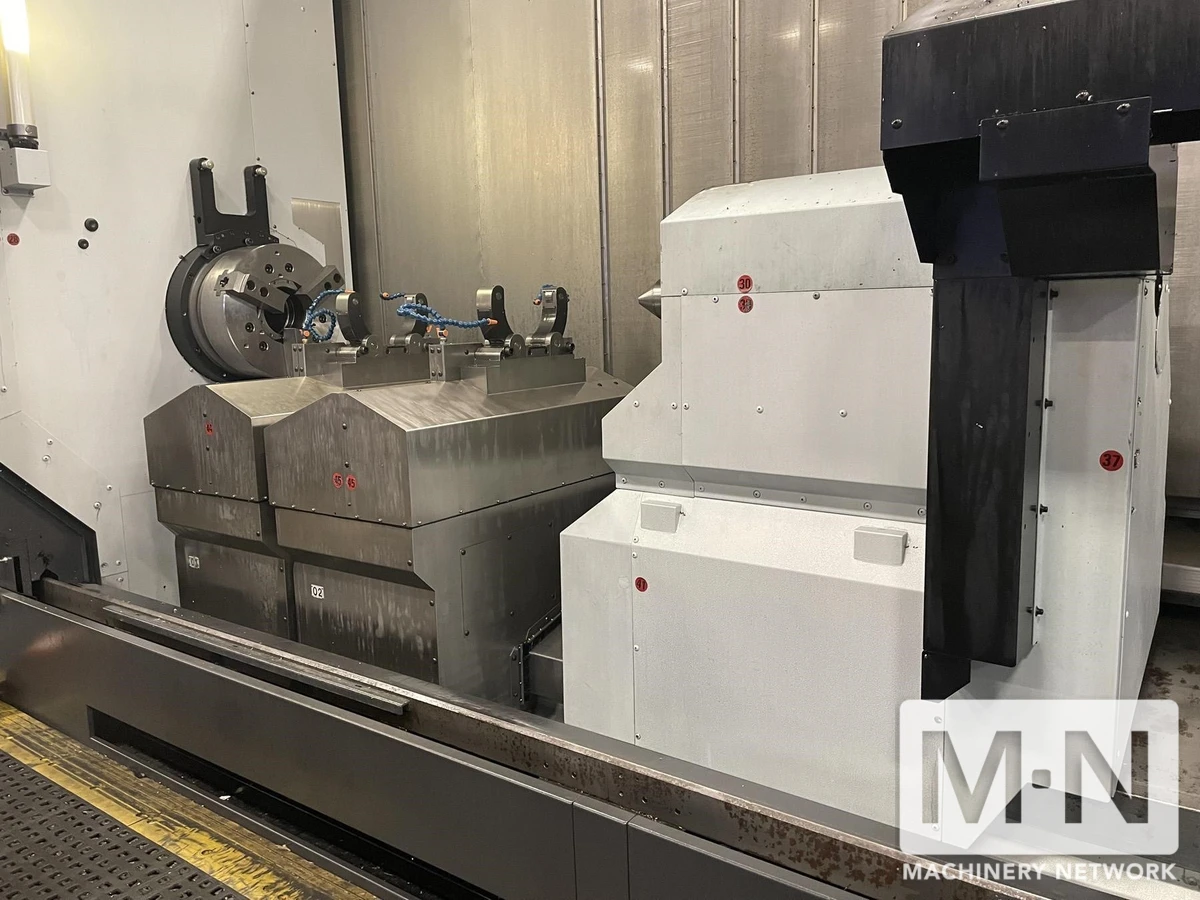

(2) Programmable Automatic Steady Rests
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
