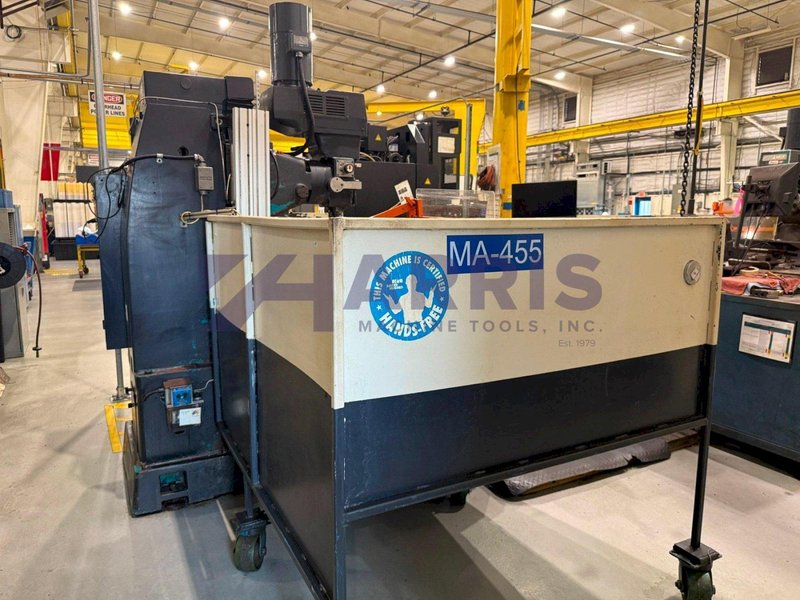

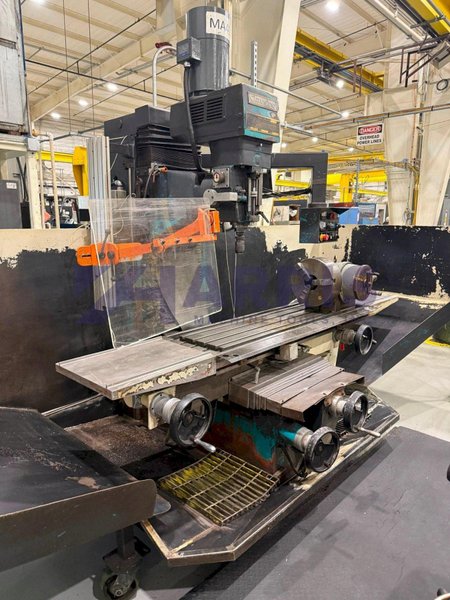

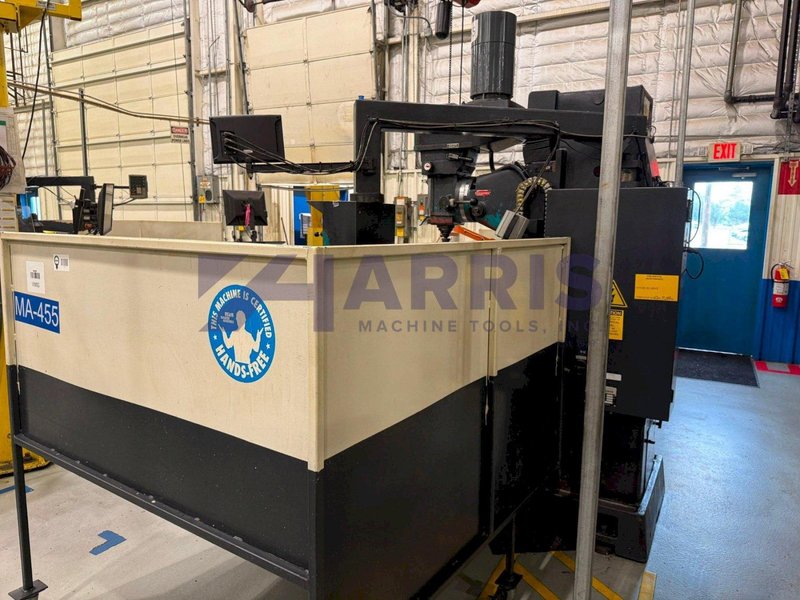

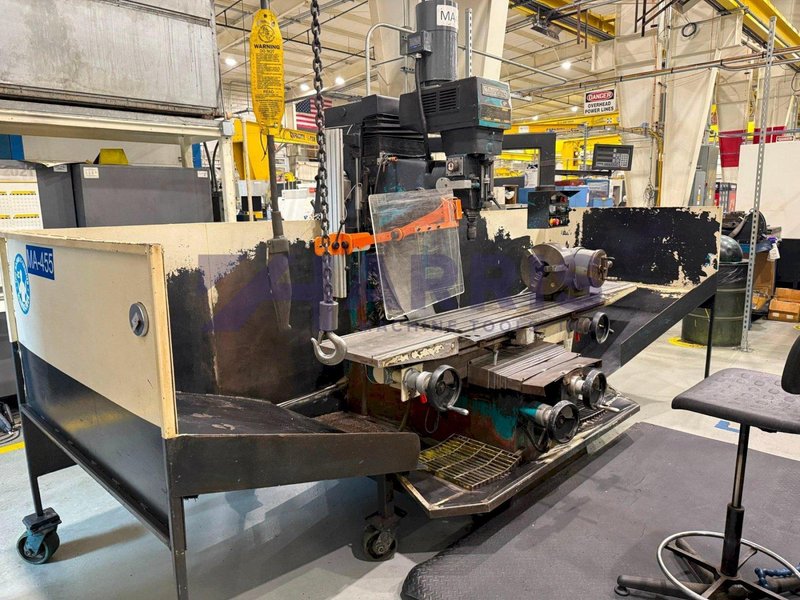

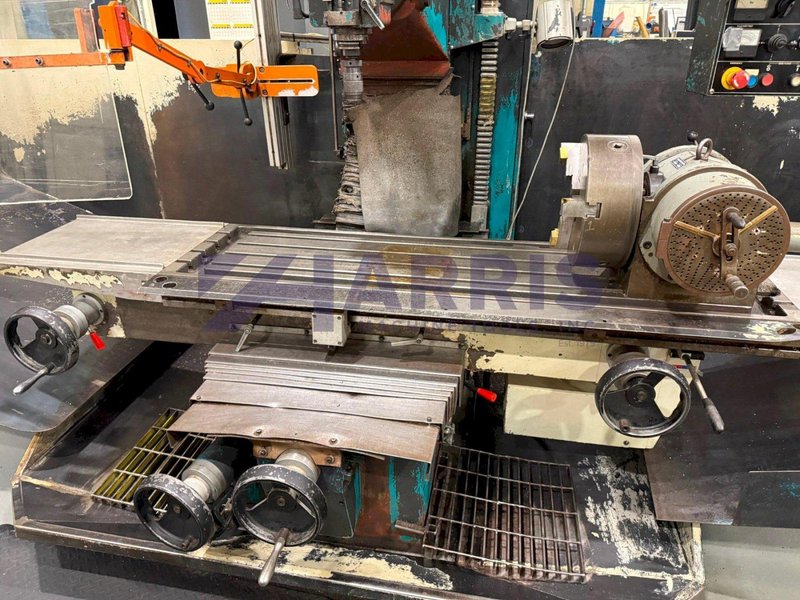

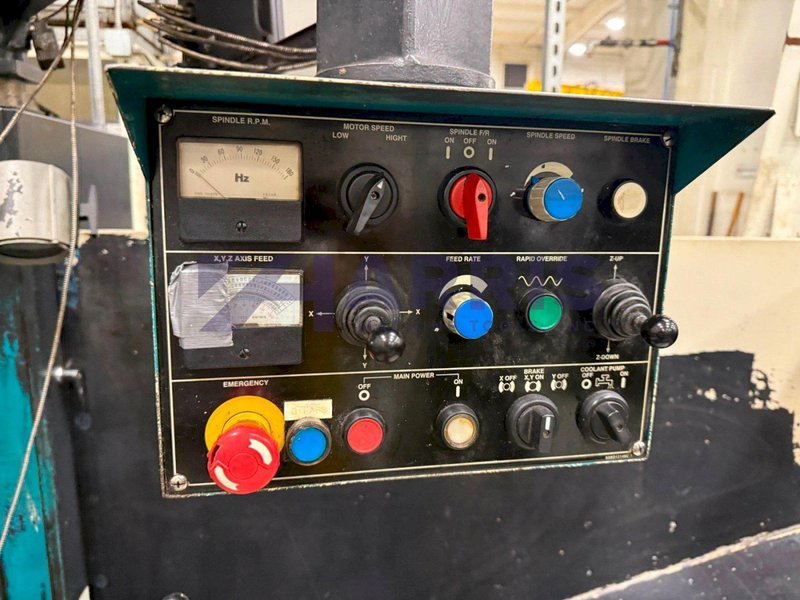

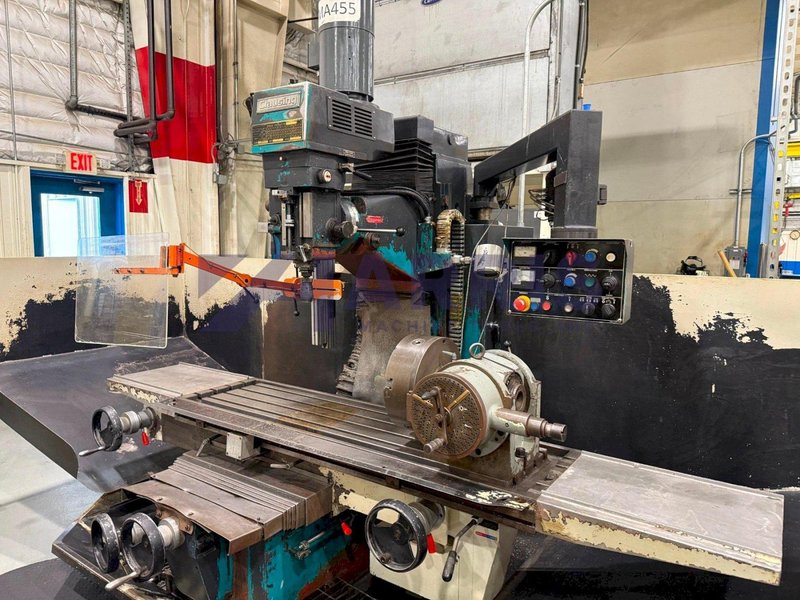

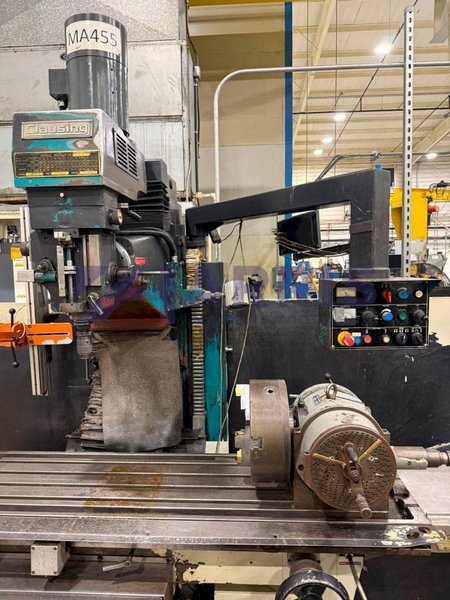

Clausing Vertical Milling Machine
Brand
Category
Type
Model
SUP8BVS40
Stock #
20528
Year
2006
Condition
Used
Location
Texas

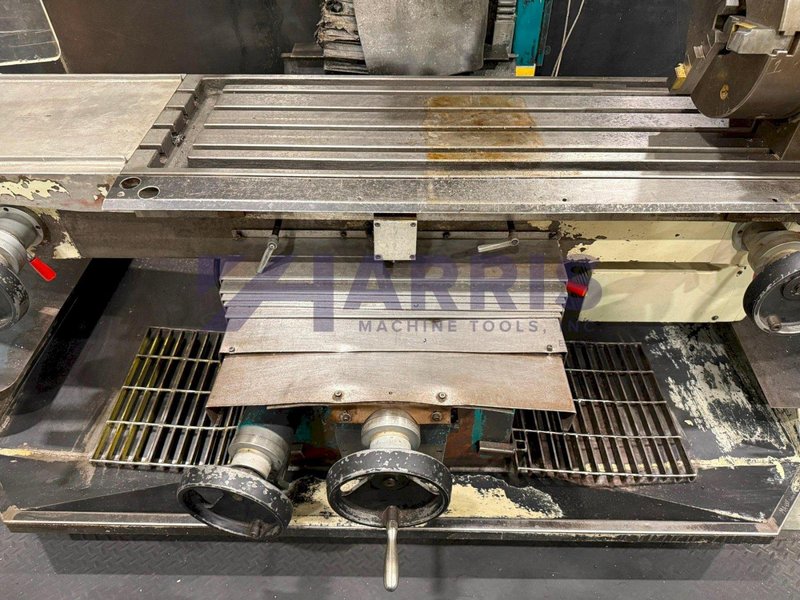

| Table-W | 16.75 inches |
| Table-L | 62 inches |
| Travel-Long | 41.3 inches |
| Travel-Cross | 22.8 inches |
| Power | 7.5 horsepower |
| Taper | 40 |
| Spindle Speed (RPM) | (Low Gear): 65 - 2580 rpm |
| Spindle Speed (RPM) | (High Gear): 130 - 5160 rpm |
| Dimensions | 98 X 80 X 84 HIGH |
| Weight | 7260 pounds |
|
VERTICAL (Z AXIS): 23.6"
QUILL DIAMETER: 4.1 QUILL TRAVEL: 6" TABLE LOAD: 2,000 LBS. Spindle speeds (Low Gear): 65 - 2580 rpm Spindle speeds (High Gear): 130 - 5160 rpm
Spindle taper: 40

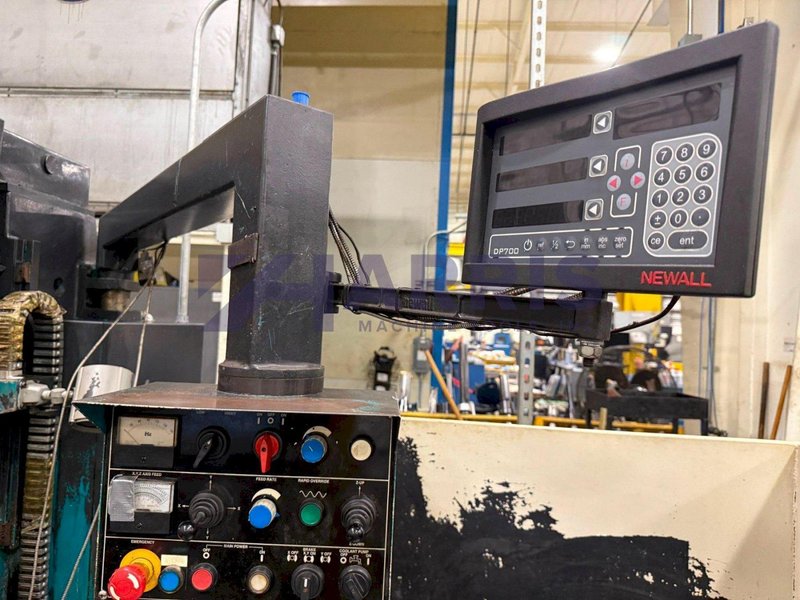

Includes: 3-axis Newall DRO

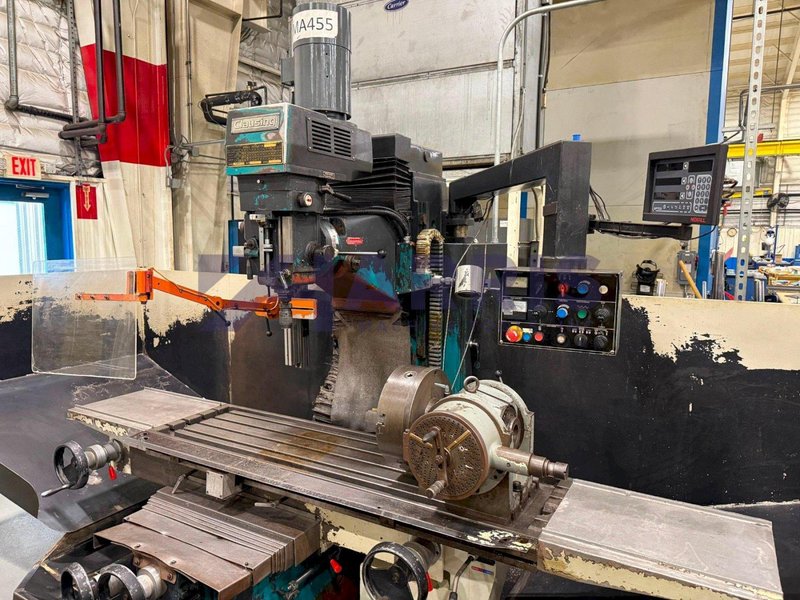

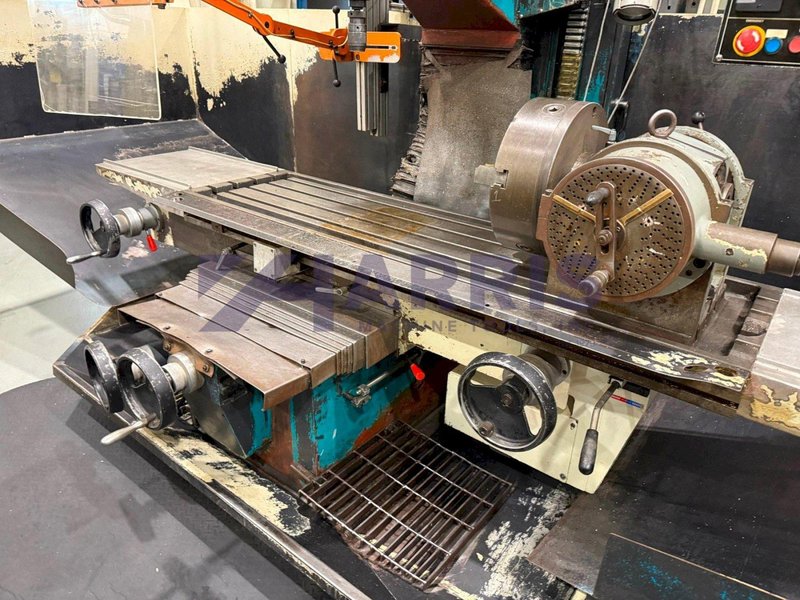

Manual rotary 4th axis

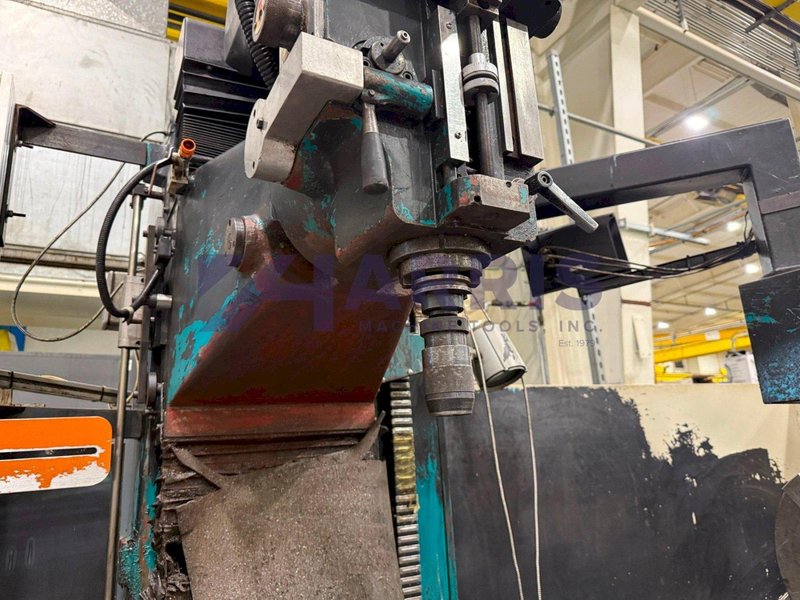

Tilting head Note: All specifications subject to verification
|
|
