Doosan Puma 2600SY-II Twin Spindle Y-Axis CNC Lathe, 2022 – Capto C4 Tooling Package, Live Tooling, Chip Conveyor, Low Hours

Collect Chuck Size: Royal 80×1 Spindle Bore: 3.2″ Boring Bar Diameter: 2.0″ Main Spindle Max. Speed: 4,000 RPM Sub Spindle Max. Speed: 6,000 RPM Spindle Motor: 20 HP Max. Turning Diameter: 14.8″ Max. Turning Length: 29.9″ X-Axis: 10.2″ Y-Axis: 4.1″ Z-Axis: 32.7″ B-Axis: 32.7″ X-Axis Rapid Traverse: 1,181 in/min Y-Axis Rapid Traverse: 394 in/min Z-Axis Rapid Traverse: 1,181 in/min C-Axis Rapid Traverse: 200 RPM Turret Capacity: 24 Station Live Cutting Rotary Tool Speed: 5,000 RPM Live Milling Rotary Tool Motor: 10 HP

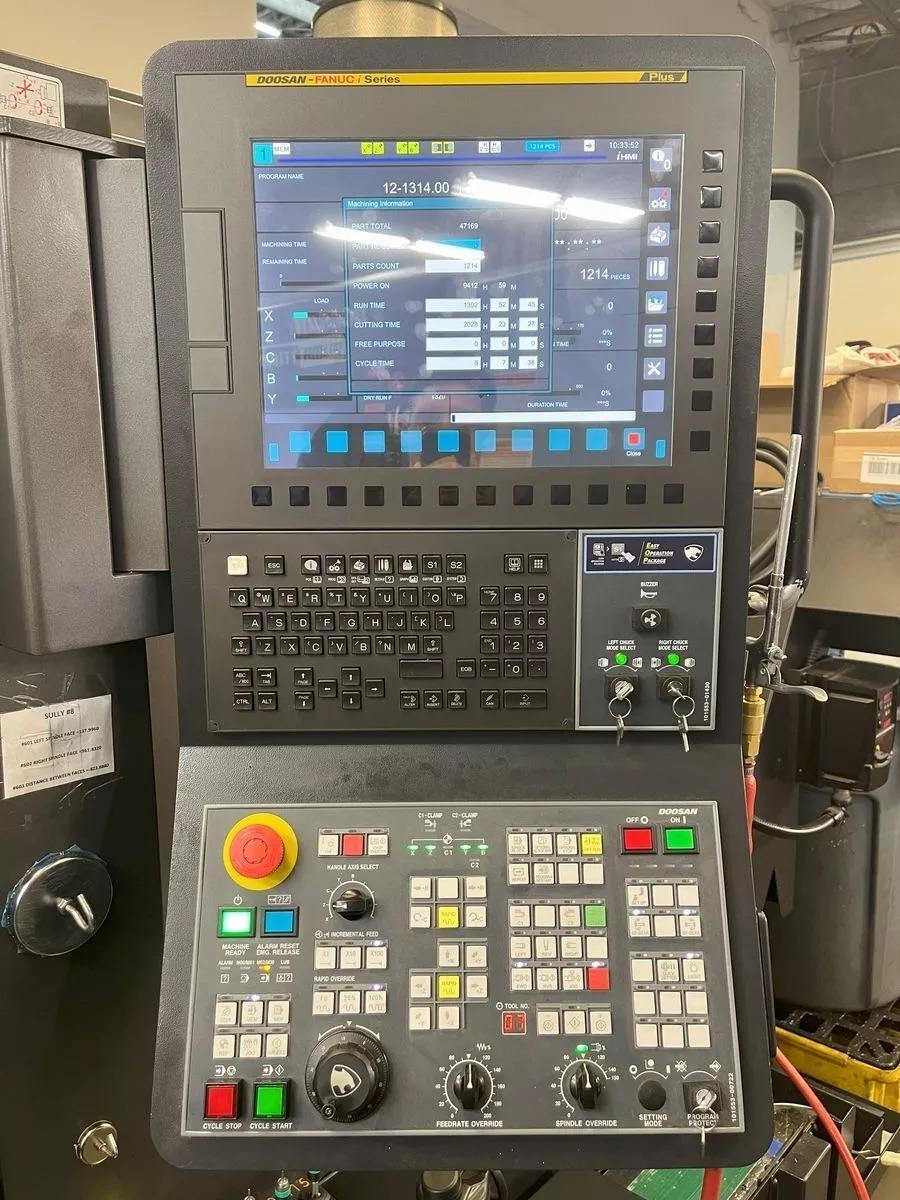

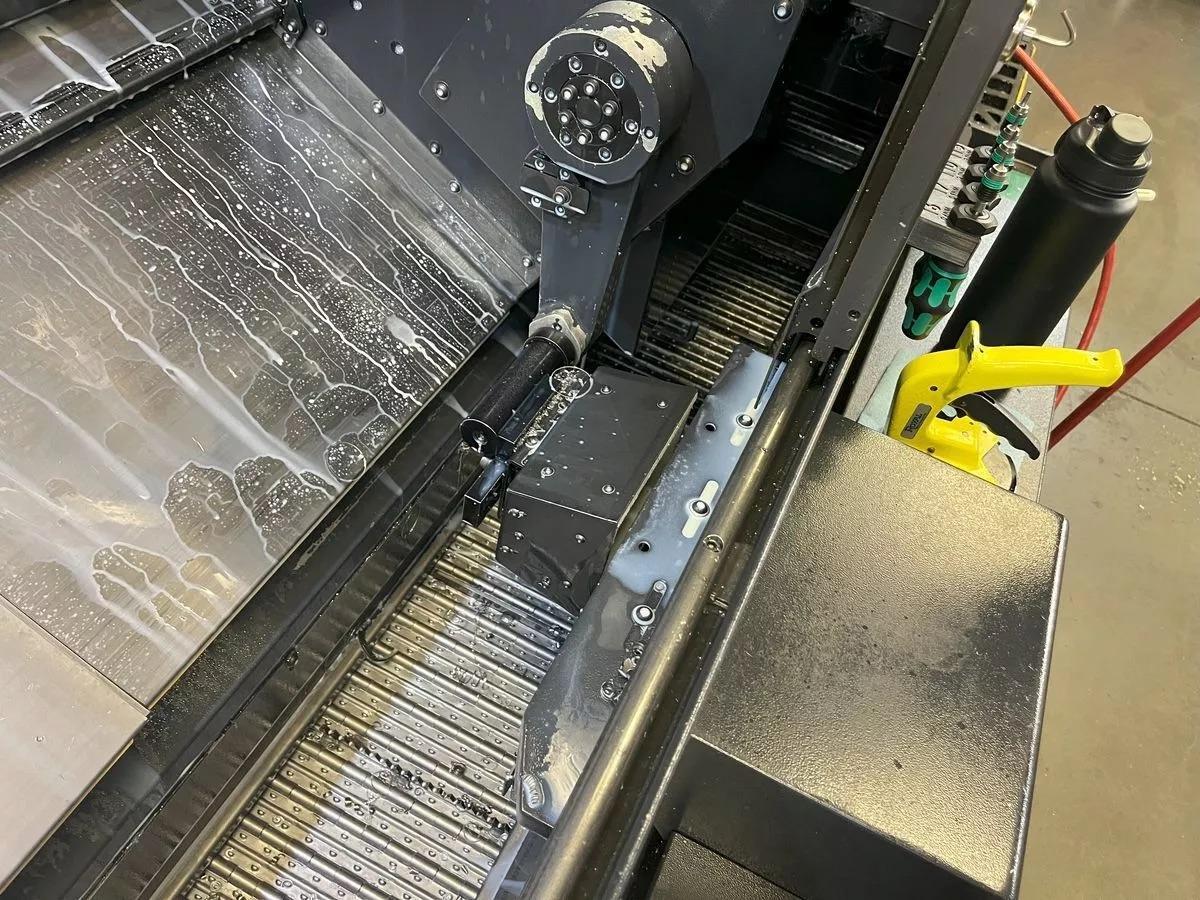

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc i Series Plus CNC Control Capto C4 Tooling Package Live Tool Holders Standard Straight Post Holders Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
