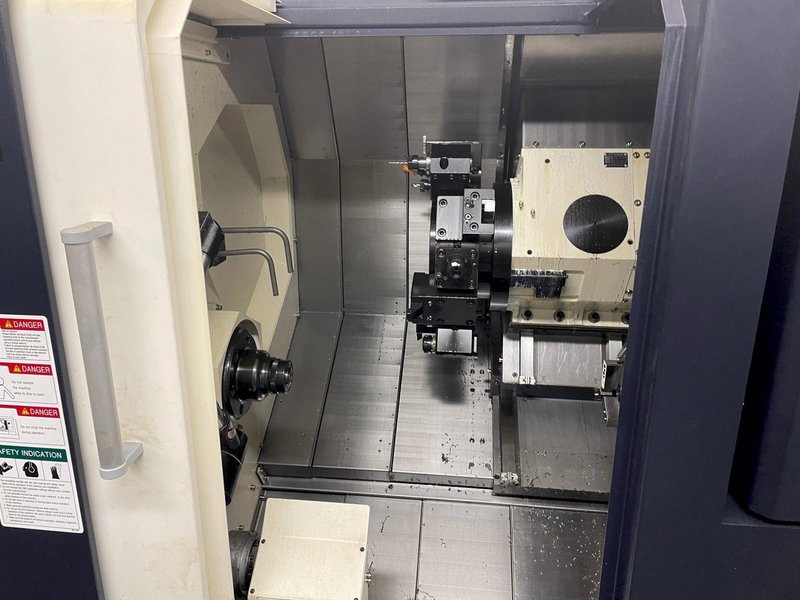

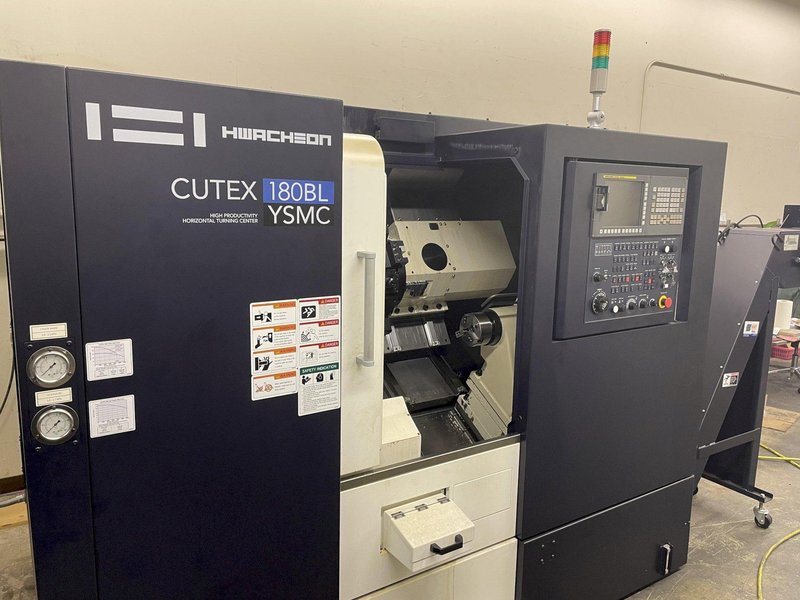

Hwacheon Cutex-180BL YSMC Multi-Axis CNC Lathe 2018 with: Fanuc OiTF CNC Control, Horizontal Linear Guide, Slant Longbed, 8" Chuck, Milling, Tool Presetter, High Pressure Pump, HTLD, Barfeed Interface, Rigid Tapping, Parts Catcher, and Chip Conveyor.
Brand
Category
Model
Cutex-180BL YSMC
Stock #
6305
Year
2018
Condition
Not specified
Location
California
| Chuck Size | 8 inches |
| Swing Over Bed | 27.55 inches |
| Max. Cutting Diameter | 13.77 inches |
| Max. Cutting Length | 17.79 inches |
| Max. Bar Size | 2.55 inches |
| X-Axis Travels | 8.66 inches |
| Y-Axis Travel | 4.33 inches |
| Z-Axis Travel | 22.83 inches |
| Main Spindle Speed | 4500 RPM |
| Main Spindle Motor | 20 / 15 HP |
| Sub Spindle Speed | 6000 RPM |
| Sub Spindle Motor | 7 / 5 HP |
| Max. Chuck Speed | 5000 RPM |
| Head Stock Height | 44.48 inches |
| No. Tools | 24 |
| Dimensions | 98" x 66" |
| Weight | 9590 pounds |
|
Fanuc OiTF CNC Control
Horizontal Linear Guide Slant Longbed Milling 8" Chuck Tool Presetter High Pressure 6bar Pump (87psi) Hwacheon Tool Load Detection System (HTLD) Barfeed Interface Rigid Tapping Parts Catcher and Hwacheon Chip Conveyor. Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale. |
|
