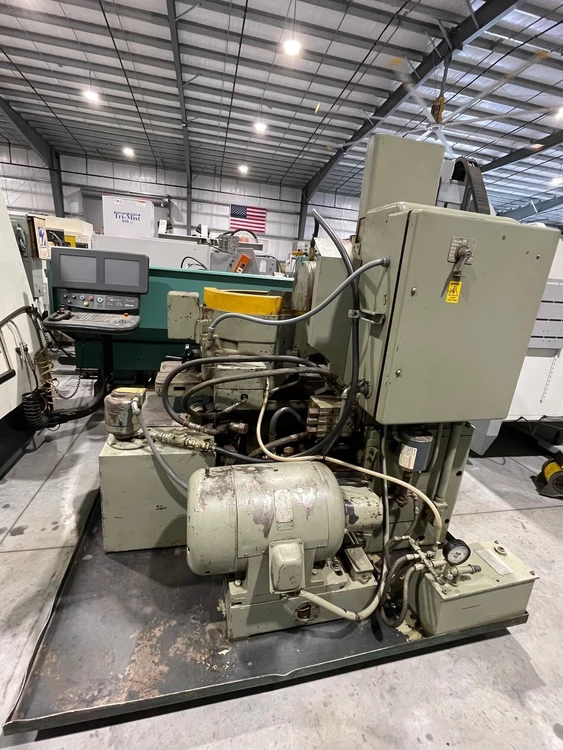

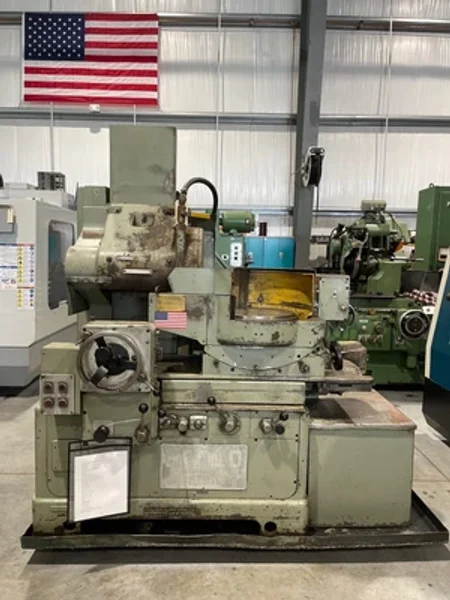

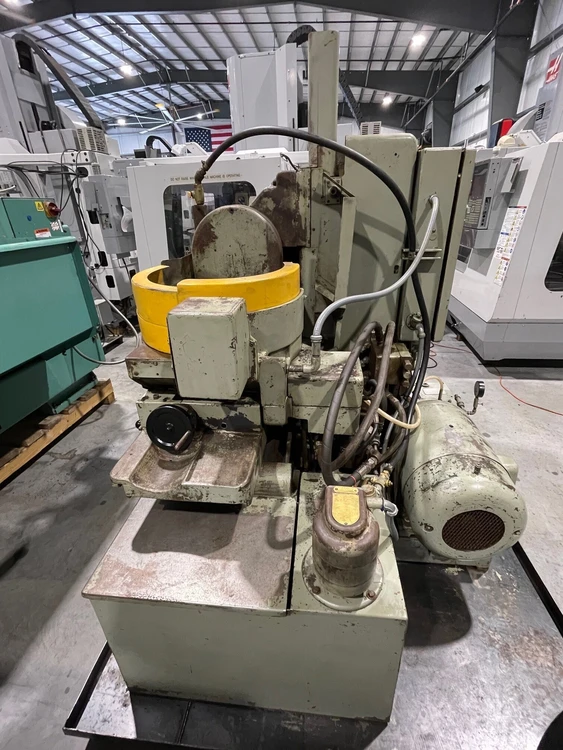

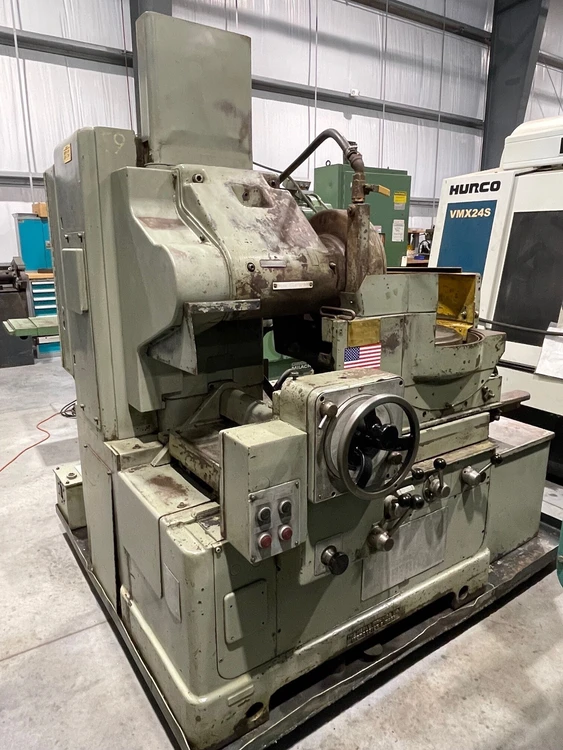

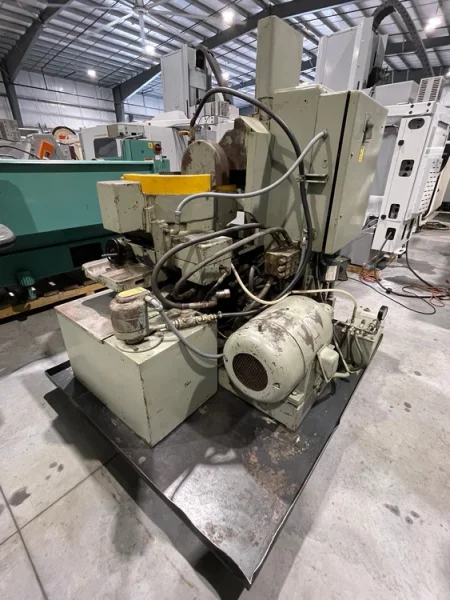

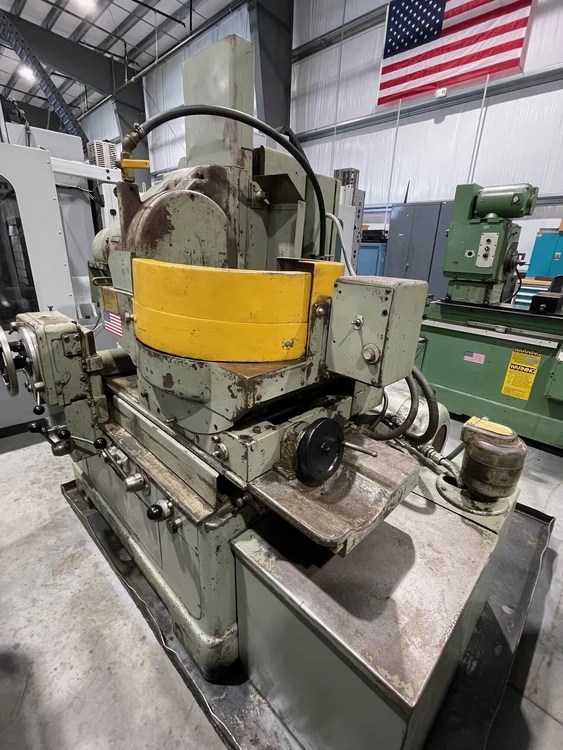

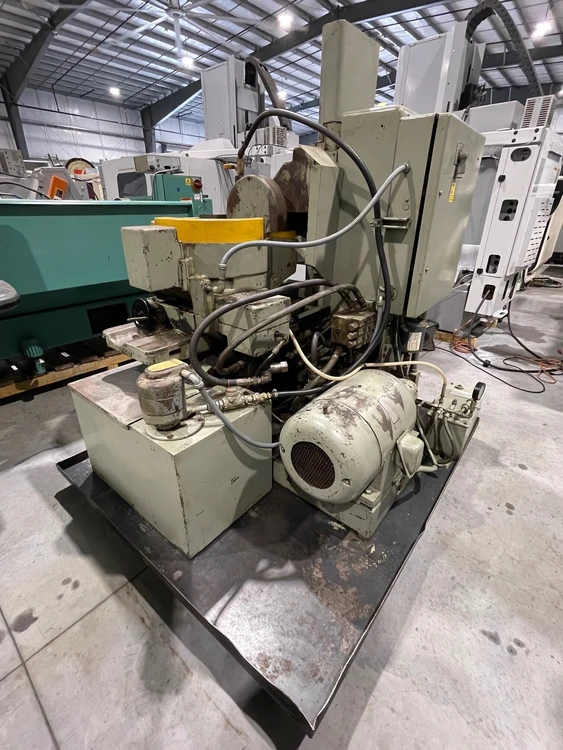

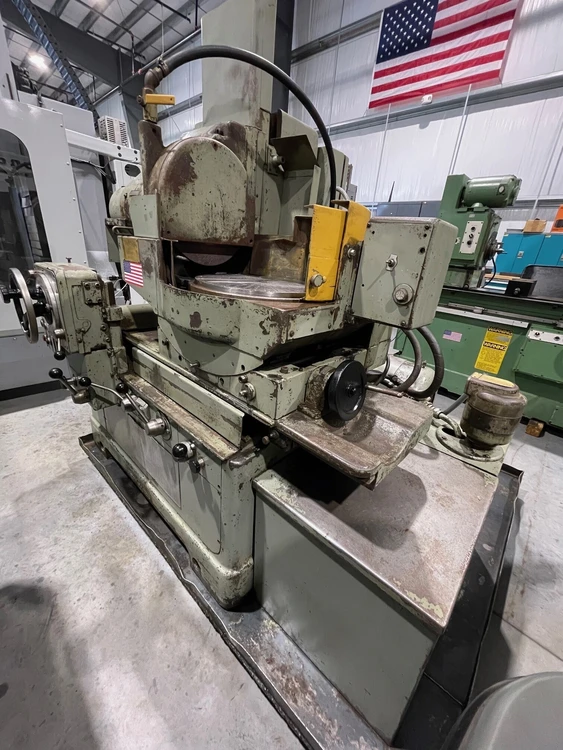

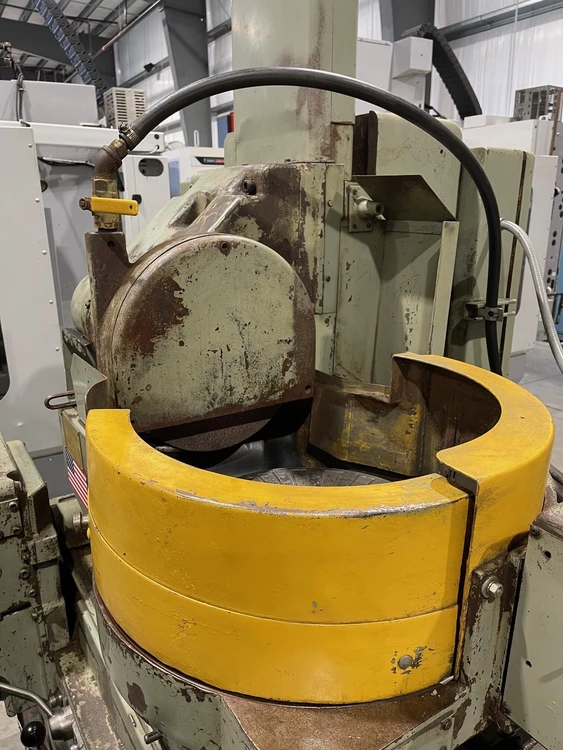

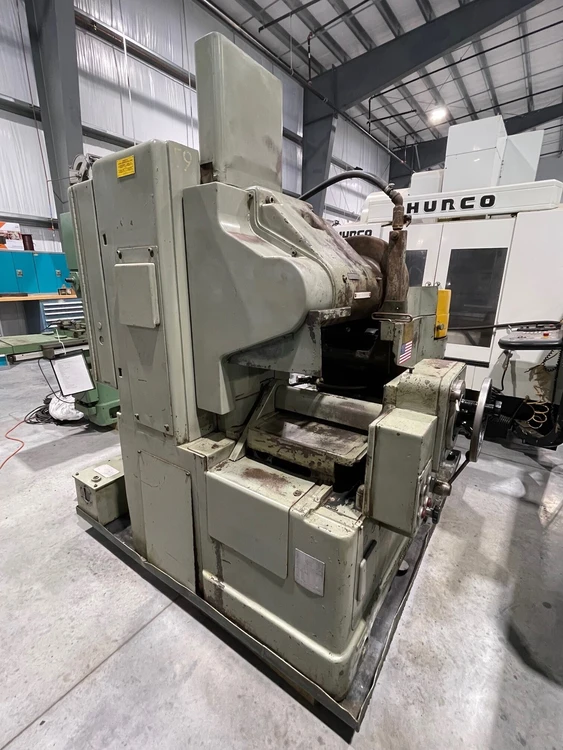

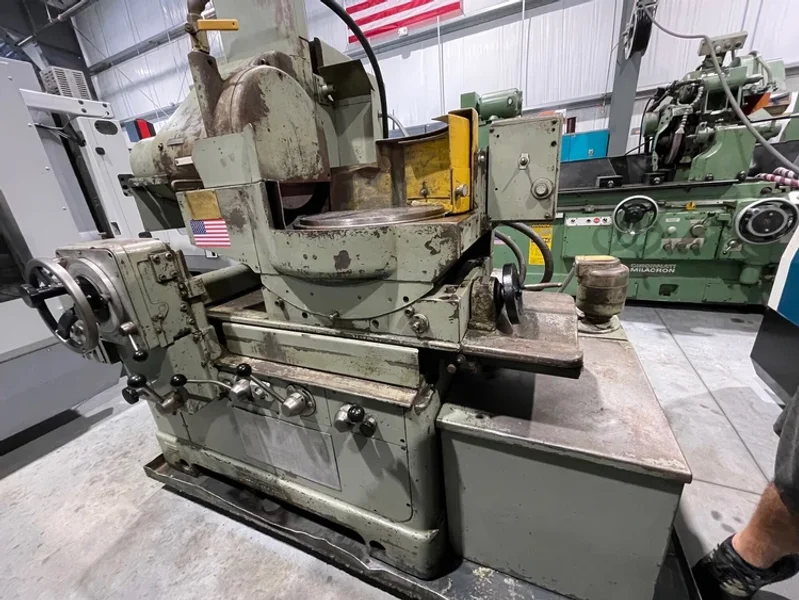

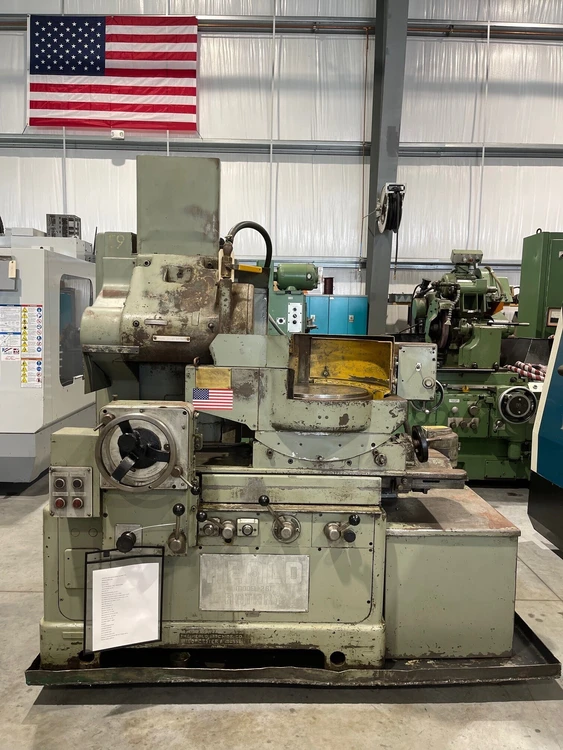

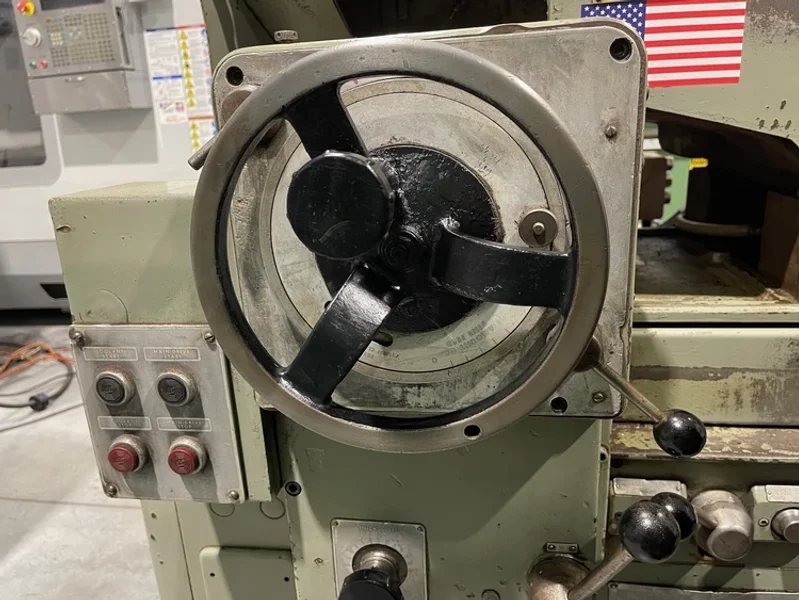

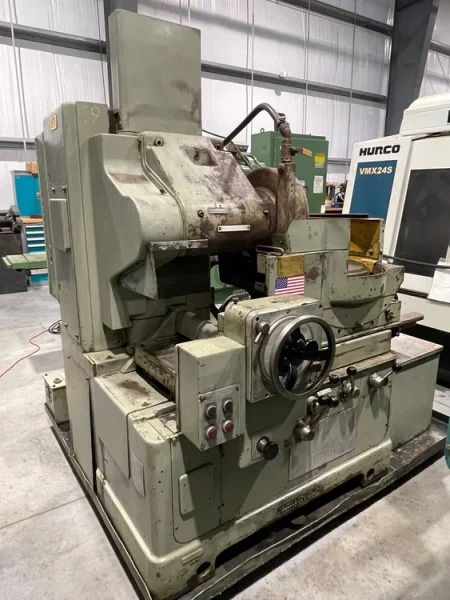

HEALD 261 Rotary Surface Grinder USA #6955
Brand
Category
Type
Model
261
Stock #
6955
Year
Not specified
Condition
Not specified
Location
Not specified
|
HEALD 261 Rotary Surface Grinder USA #6955

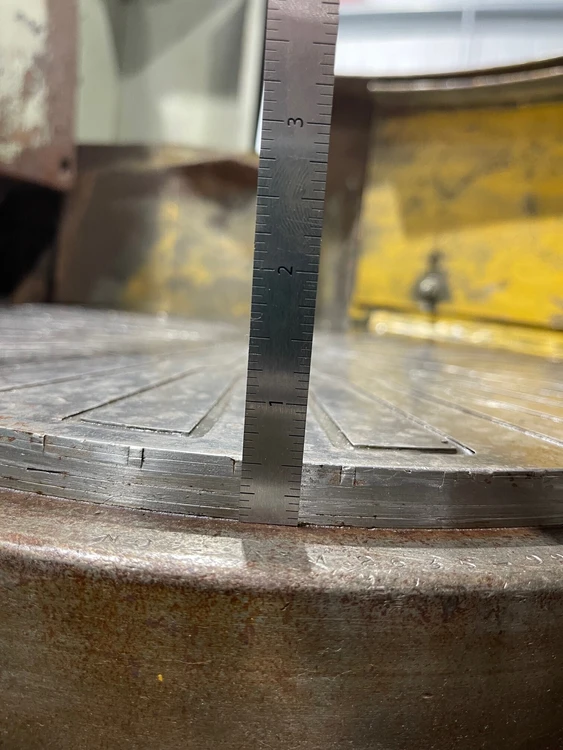

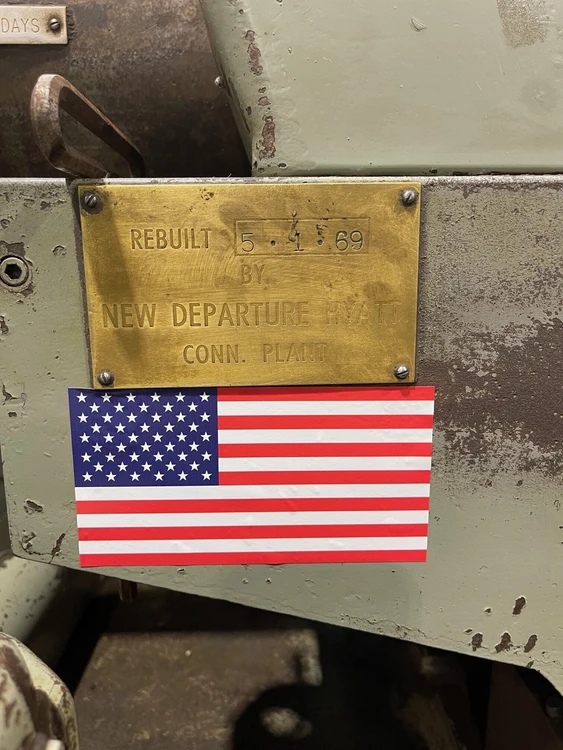

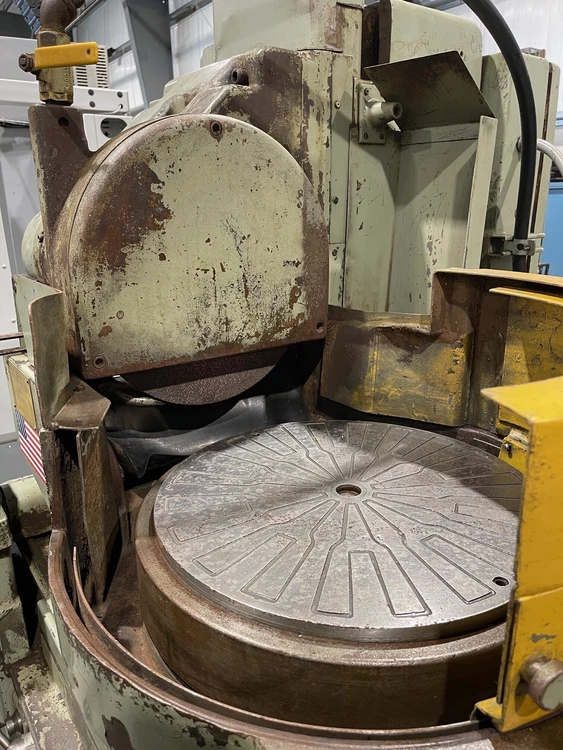

Reference #6955 Model # 261 Serial # 33875 Year of manufacture- 1954’ / Rebuilt 5/1969’ Chuck diameter- 16-7/8” Chuck life- ½” Max swing inside guards- 18-1/2” Standard wheel size- 14” x 1” W x 5” Bore Max distance from chuck surface to wheel center- 17-3/4” Min distance from chuck surface to wheel center- 4-1/4” Max height under new wheel – 10-1/2” Table slide travel- 12” Table grinding stroke- 8” Table tilt “Convex”- 17° Table tile “Concave”- 10° Table speeds- 0 – 12’ F.P.M. Table speeds for run-out- 35’ F.P.M. Chuck speeds- 50 – 225 R.P.M. Chuck feeds- 0 – 20 F.P.M. Downfeed- 0.0001” - .0006” |
