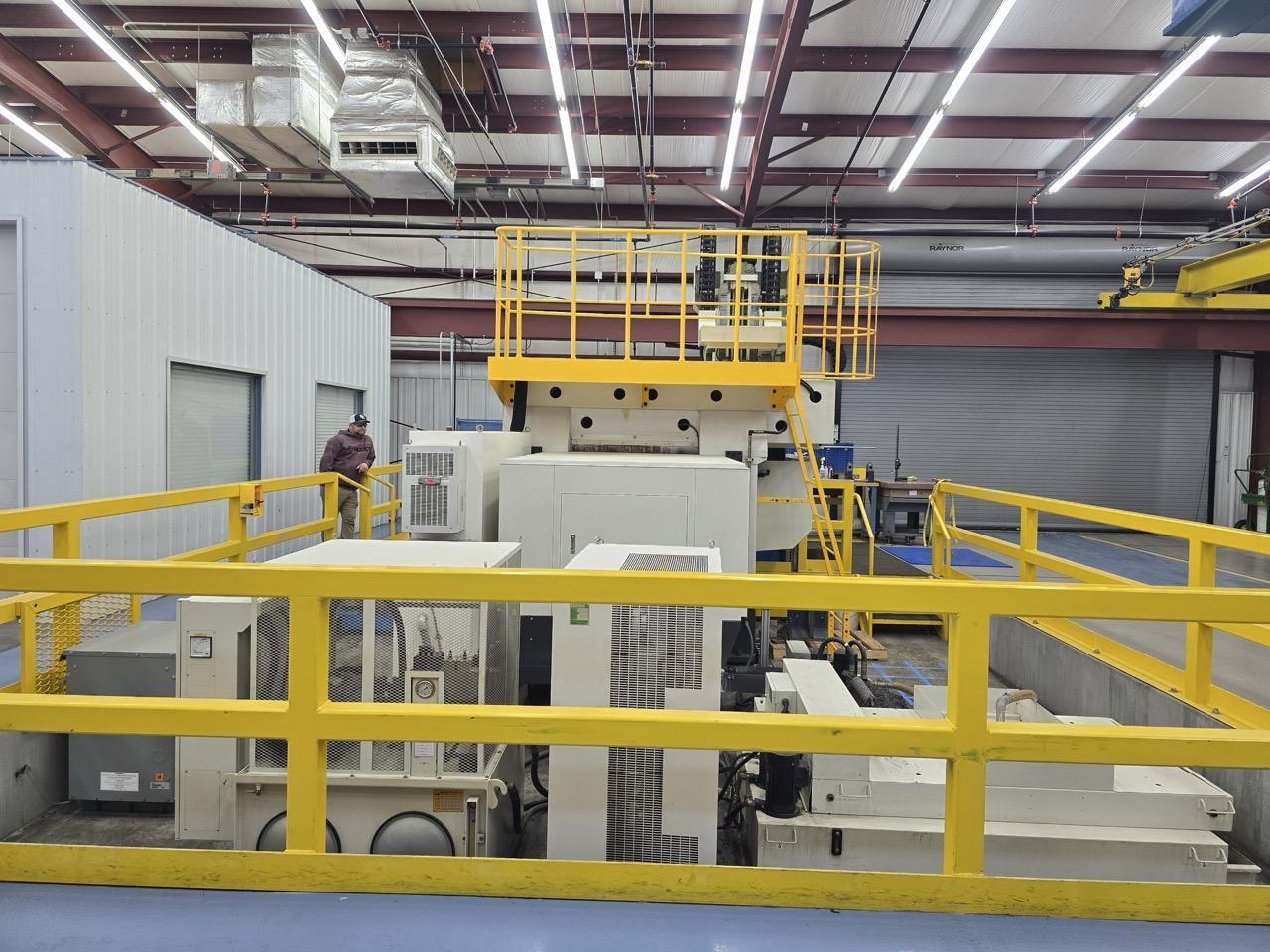

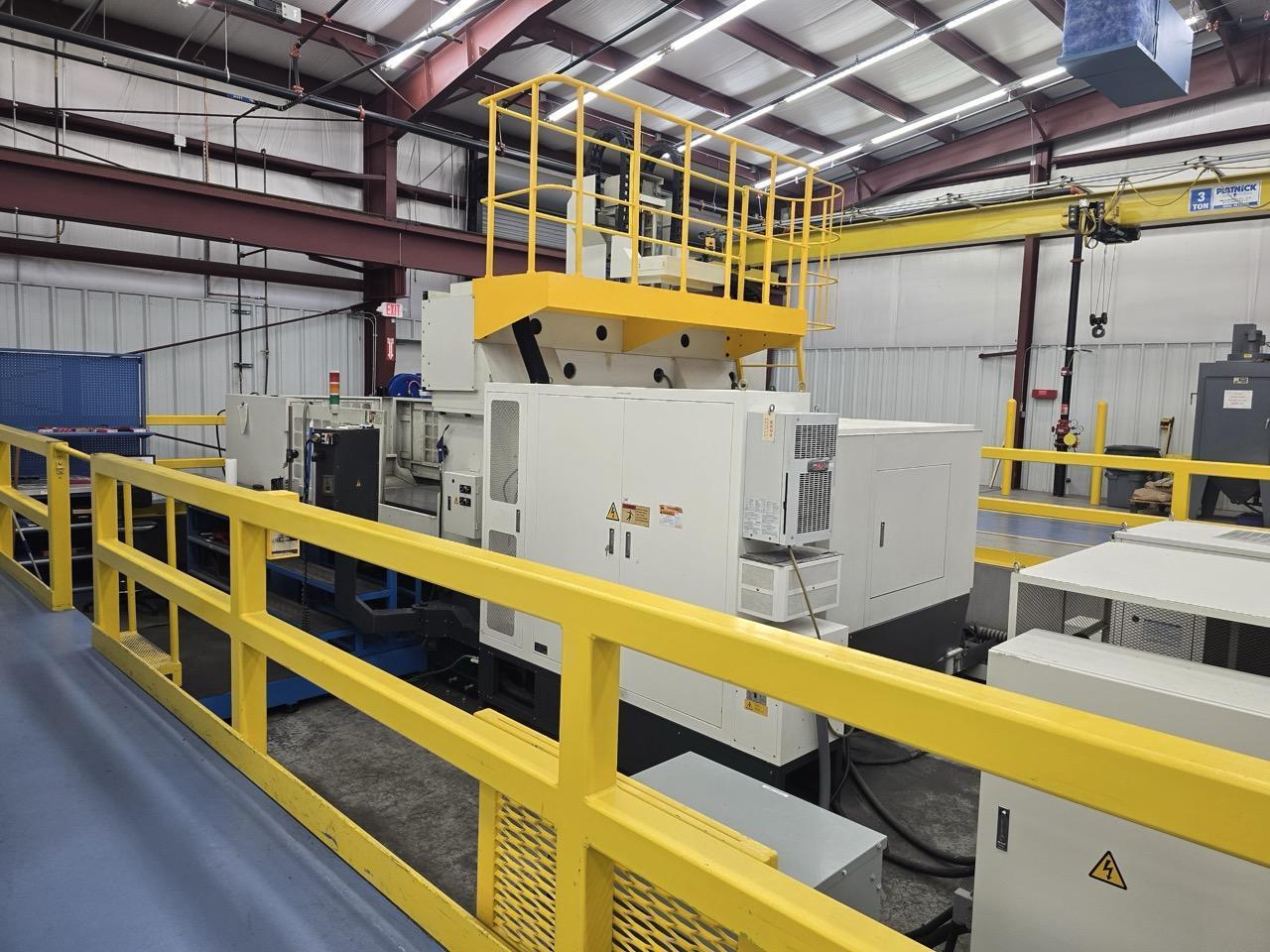

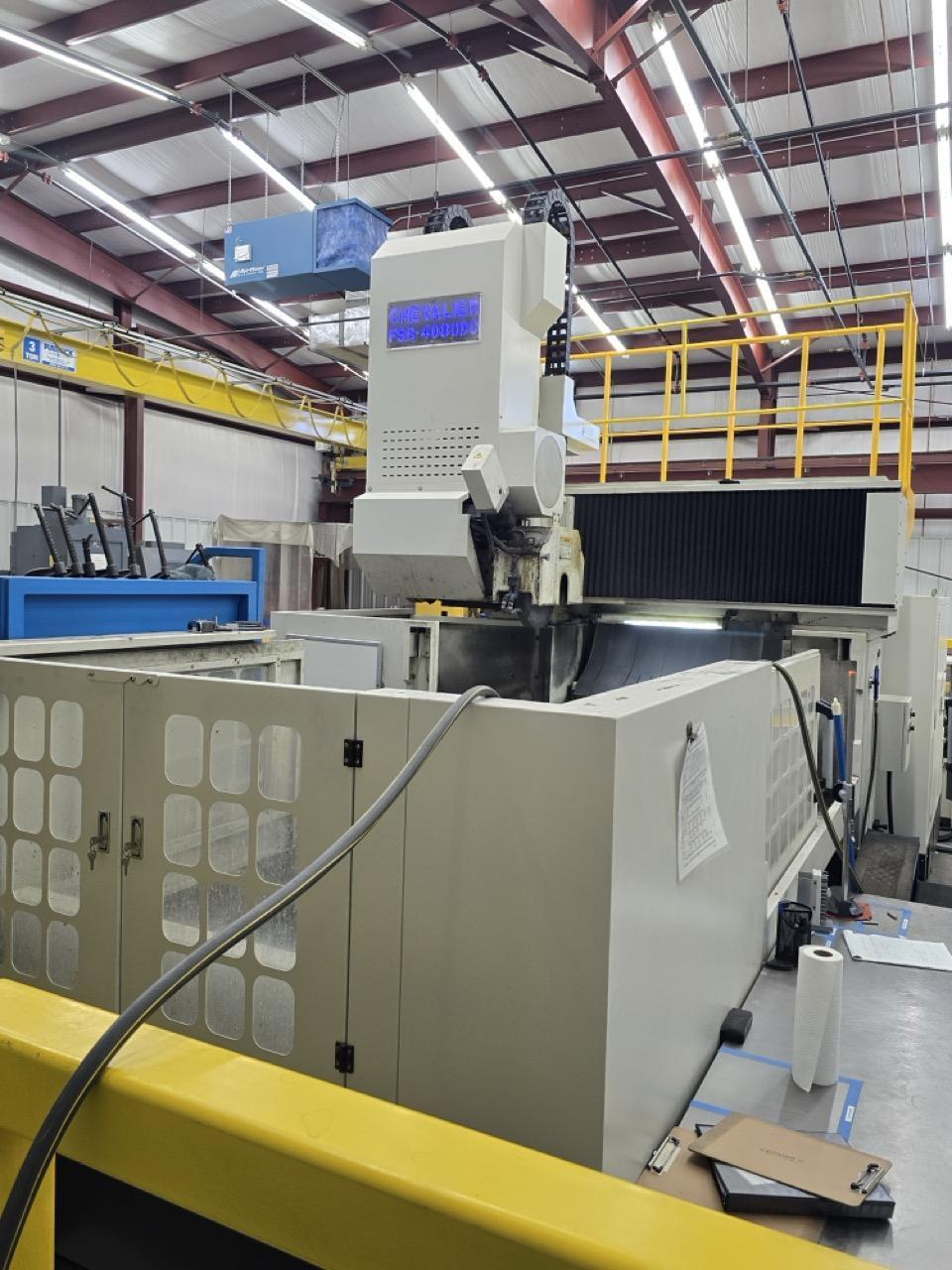

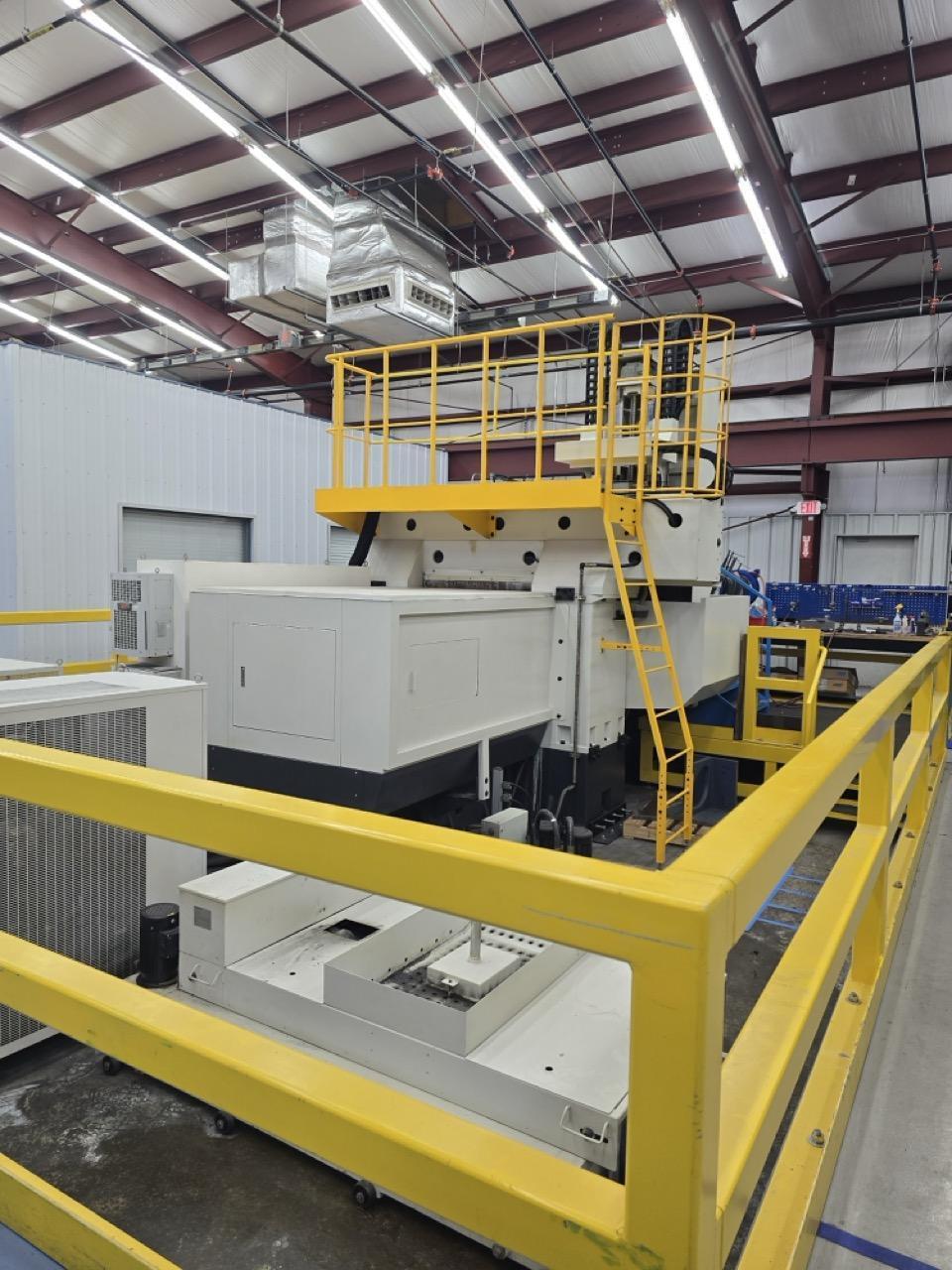

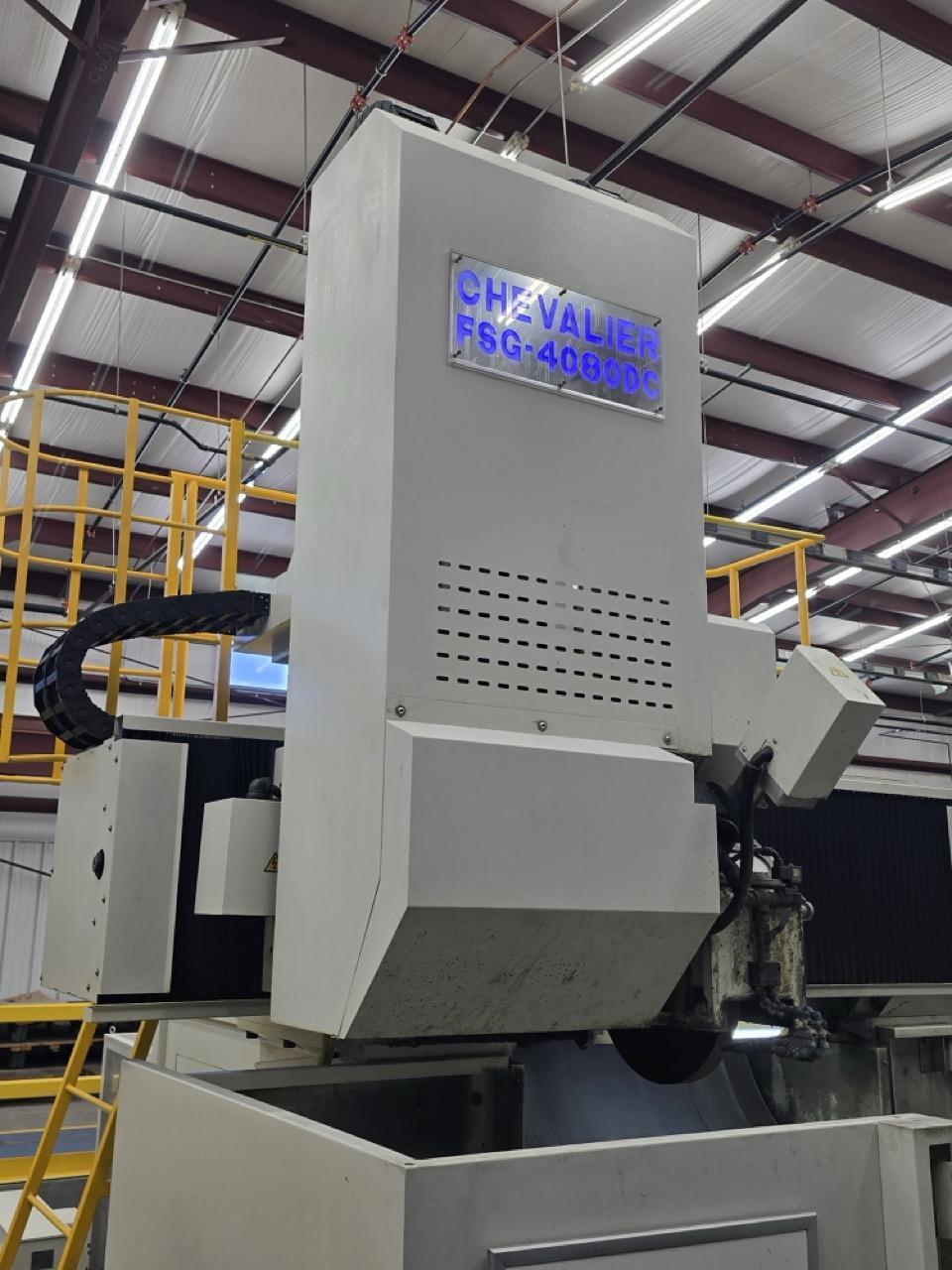

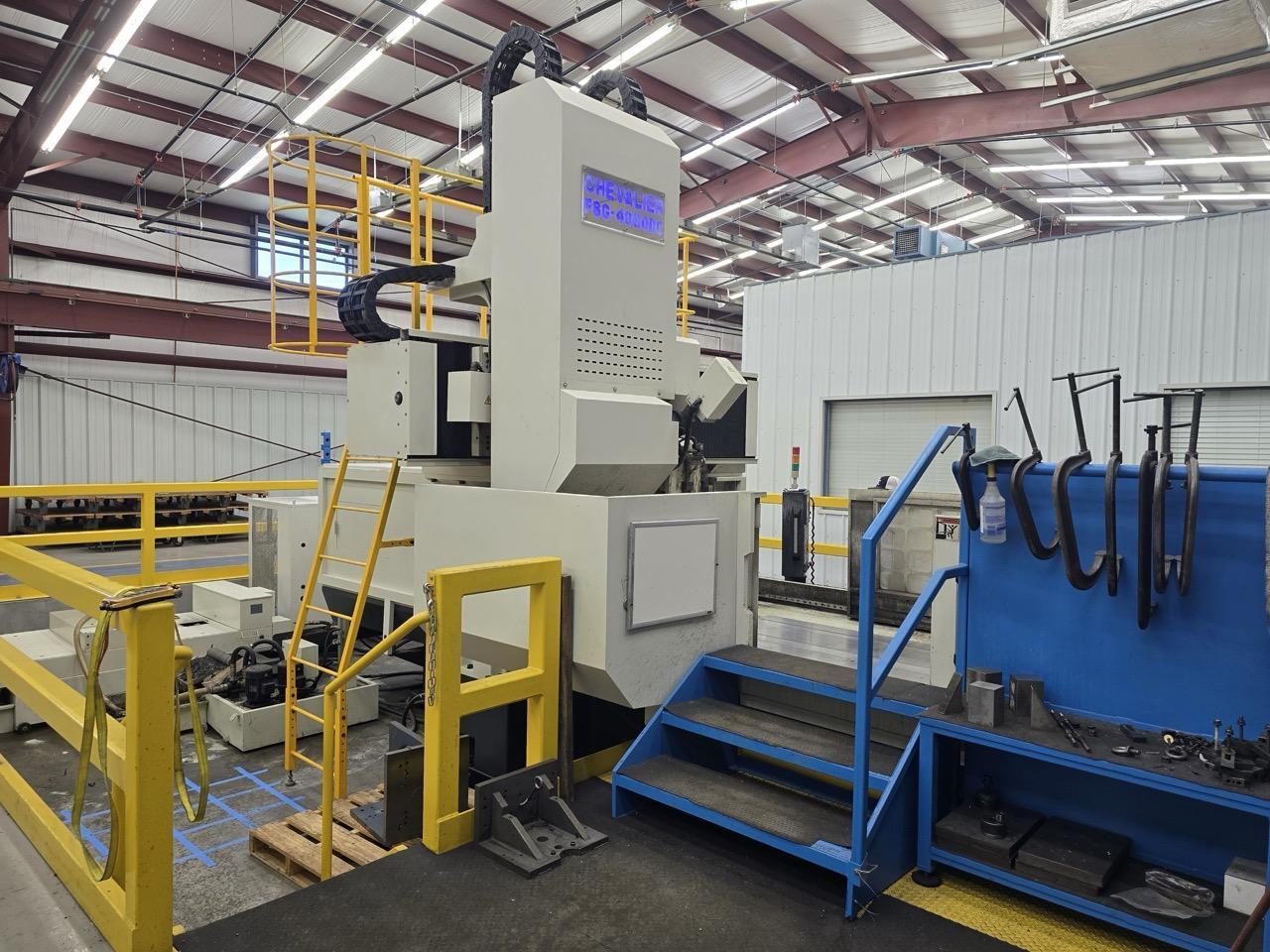

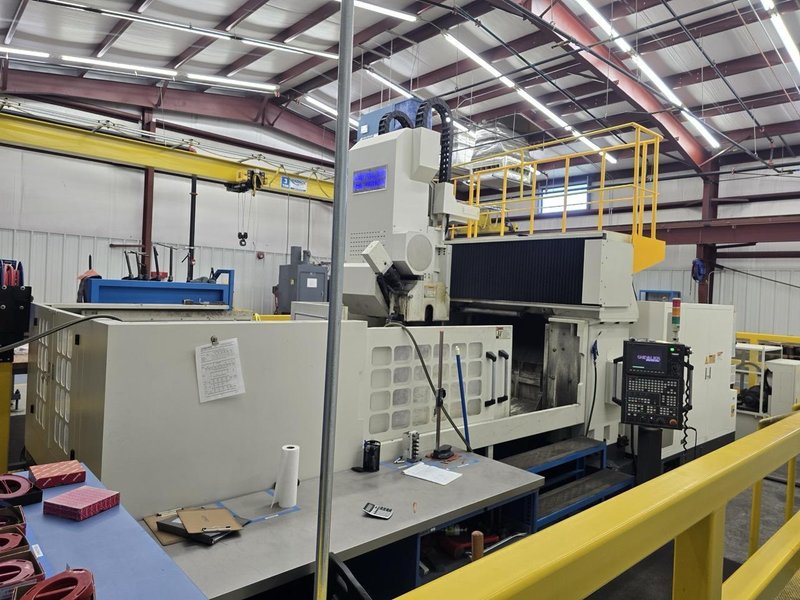

Chevalier FSG 4080DC, 2017 – Fixed Beam Double Column Grinder

Control SMART iControl Capacity Grinding length- 59.1″ Grinding width- 39.4″ Horizontal head – distance between table to spindle centerline- 35.4” (opt. vertical head 45.3″) Max. table load- 3,500 lbs. Table Table size- 39.4” x 59.1” 1,000 x 1,500 mm Distance between columns- 55″ 1,400 mm Table speed (variable) – 16.4~82 fpm 5~25 m/min Max. table travel – 66.9″ 1,700 mm Transverse movement Max. travel – 49.2″ 1,250 mm Feed speed – 0~16.4 fpm 0~5,000 mm/min Wheelhead elevation Horizontal head – Max. travel 27.6″ Feed speed – 0~3.2 fpm Spindle Horizontal head – 500~2,000 rpm Grinding wheel Wheel Dimension – Ø 20” x 4” x Ø 5” Motors Horizontal spindle motor – 25 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimension/Weight Floor space (W x D x H) 200.8” x 413.4”x 171.3” Net weight – 39,000 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
