Giddings & Lewis RT1250 5.1" CNC Horizontal Boring Mill

FEATURES
Fanuc 310i CNC Control
60-Position Automatic Tool Changer
Built-In B-Axis Contouring Rotary Table
Thru-Spindle Coolant
Renishaw Part Probe System
SPECIFICATIONS:
Spindle Diameter 5.1"
Taper In Spindle Cat 50
Vertical Head Travel, Y-Axis 82.7"
Vertical Head Travel, Above Table 78.7"
Table Cross Travel, X-Axis 98.42"
Saddle Travel, W-Axis 59.05"
Spindle Travel, Z-Axis 31.5"
Table Size 62.99" x 49.2"
Table Rotation, B-Axis .001 Degrees
Table Rotation 6 RPM
Table Load Capacity 33,100 Lbs
Spindle Speeds 1-4000 RPM
Speed Ranges 2
Spindle Motor 40 HP / 60 HP
Rapid Traverse, X,Y,Z & W 985 IPM
Floor Space W x D 240" x 300"
Overall Height 197"
Approximate Weight 70,000 Lbs



Equipped With:

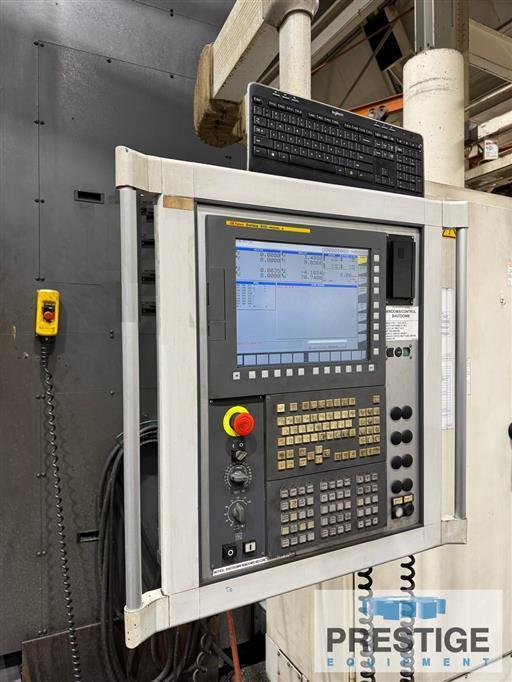

Fanuc 310i CNC Control w/ 15" LCD Monitor
Software for CH Facing Heads & Programmable Boring Bars
Rigid Tapping
Renishaw Part Probe System
60 Station Automatic Tool Changer
Coolant-Thru Spindle
Manual Cam Lock Latch Coupler For Attachments
Built In B-Axis T-Slotted Rotary Table
Additional Fixture Table w/ Big Kaiser Unilock Zero Point Clamping System
Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Chip Conveyor
50 HP / 74 HP Spindle Motor
