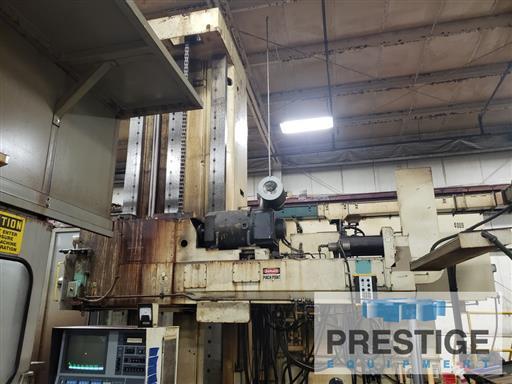

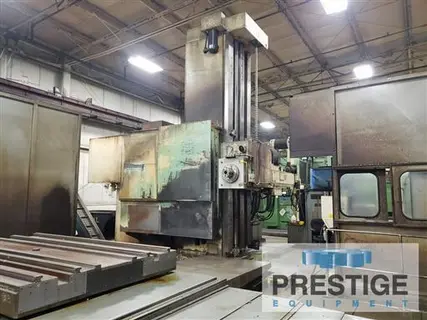

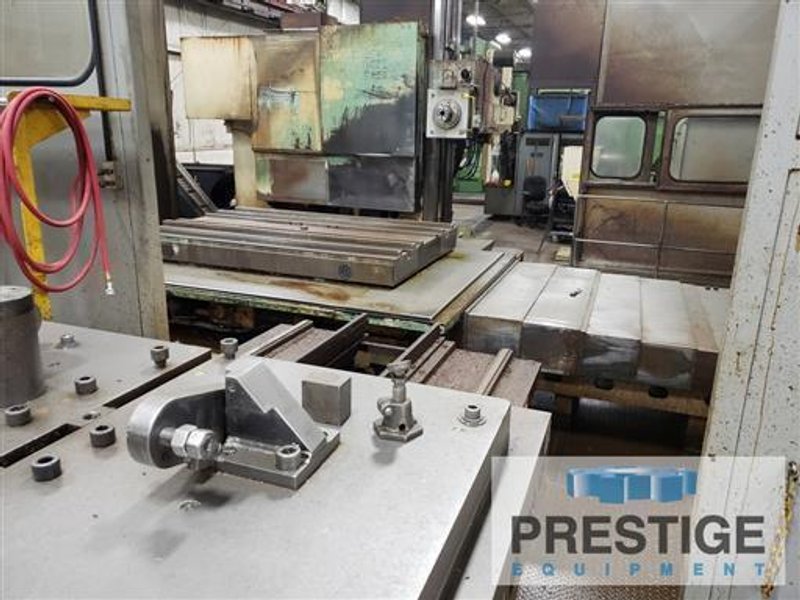

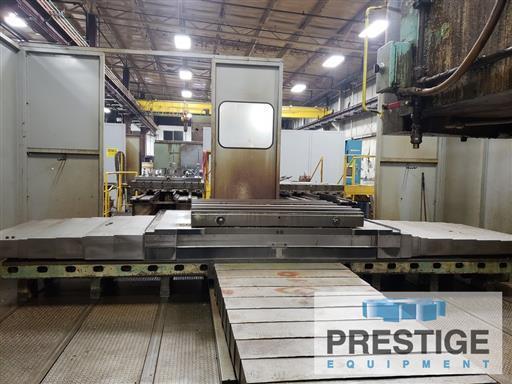

Giddings & Lewis MC70 7" CNC Table Type Horizontal Boring Mill w/2-Pallet Shuttle

Specifications:
Spindle Diameter 7"
Taper In Spindle #50
Vertical Head Travel, Y-Axis 115"
Table Cross, X-Axis 118"
Spindle Travel, Z-Axis 60"
Saddle Travel, W-Axis 84"
Pallet Size #1 60" x 84"
Pallet Size #2 60" x 96"
Table Load Capacity 50,000 lbs
B-Axis, Table Rotation 360,000 Degrees
Spindle Speeds:



Equipped With:
G & L 8000B CNC Control
120-Station Automatic Tool Changer
Pallet Shuttle System
60" x 84" Pallet #1
60" x 96" Pallet #2
Ball Screw and Independent AC Servo Motors
Thru-Spindle & Flood Coolant
Air Blast For Tool Changer
Numeriprobe Part Probe System
Tool Length Verifier
Manual Latch Plate with 6 Cam Locks for Attachment Changes
3-Way Column with Replaceable Box Ways
Triple Outrigger Table Supports
Steel Sliding Way Covers On X & W Axis
Chip Conveyor with Elevator
75 HP Spindle Drive 460/3/60 Cycle


NOTE: Inspect Under Power In Plant!
