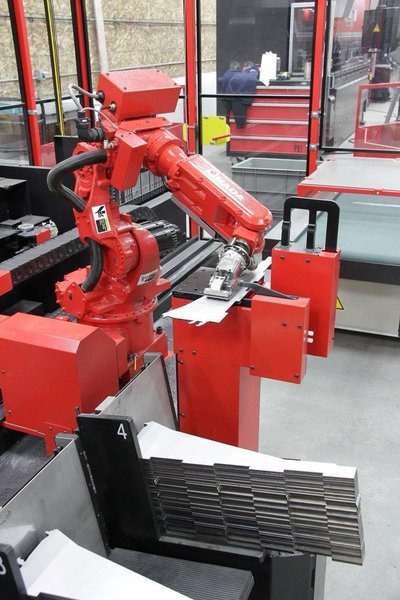

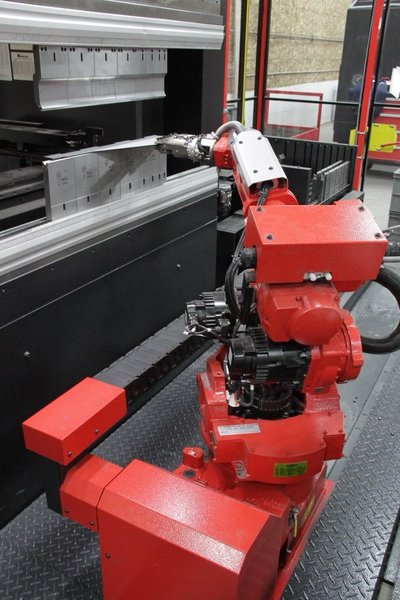

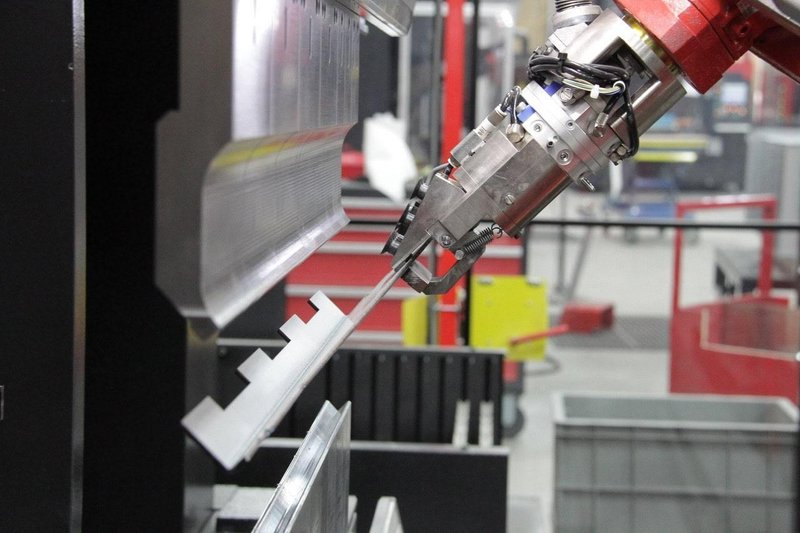

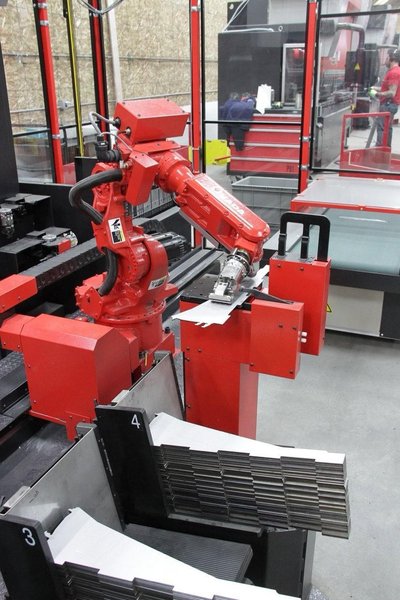

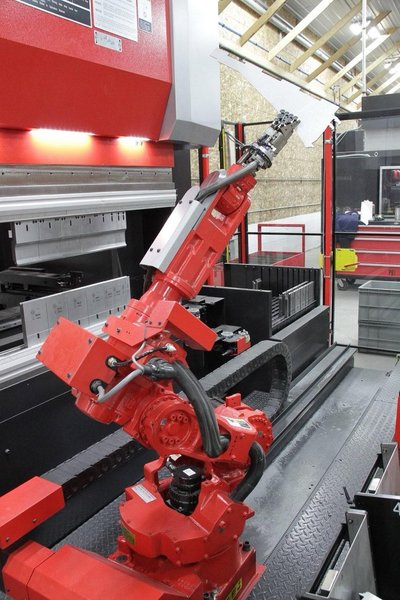

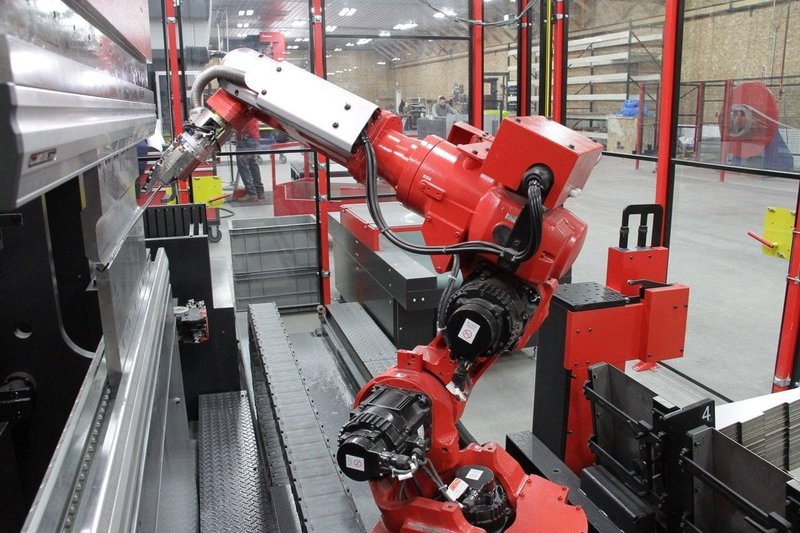

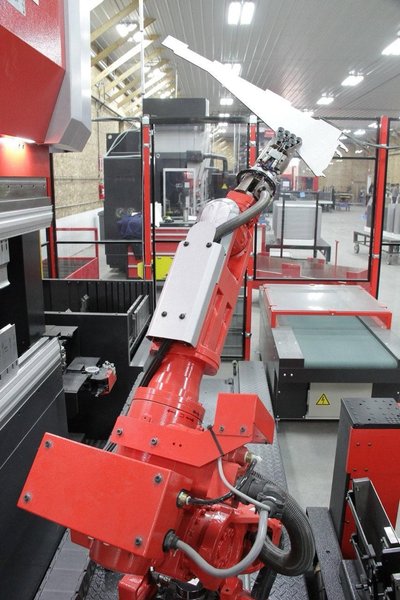

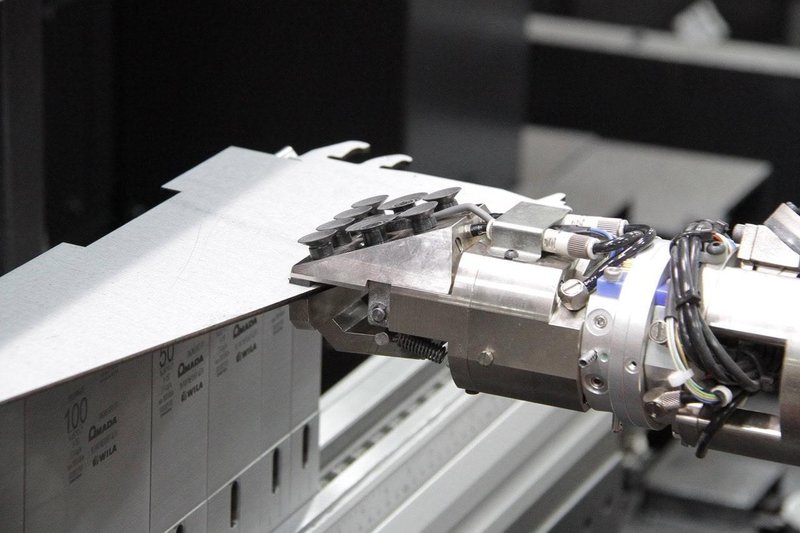

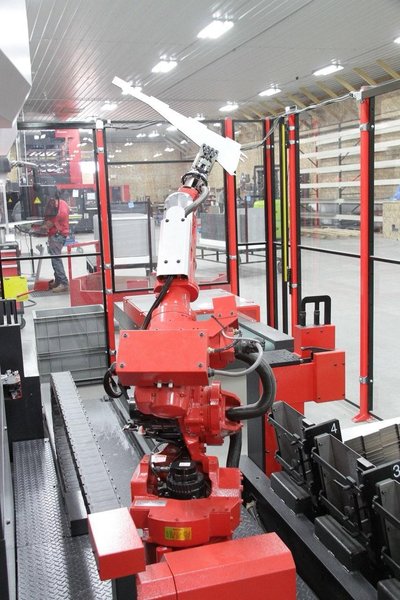

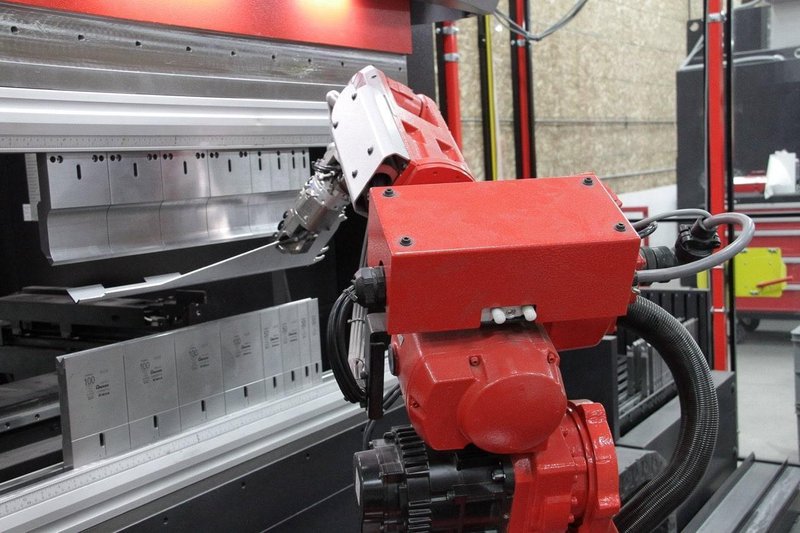

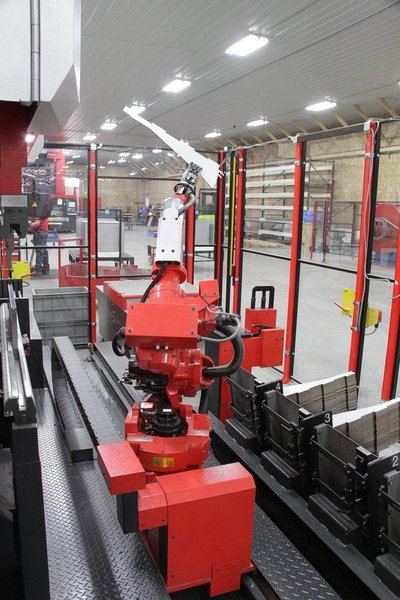

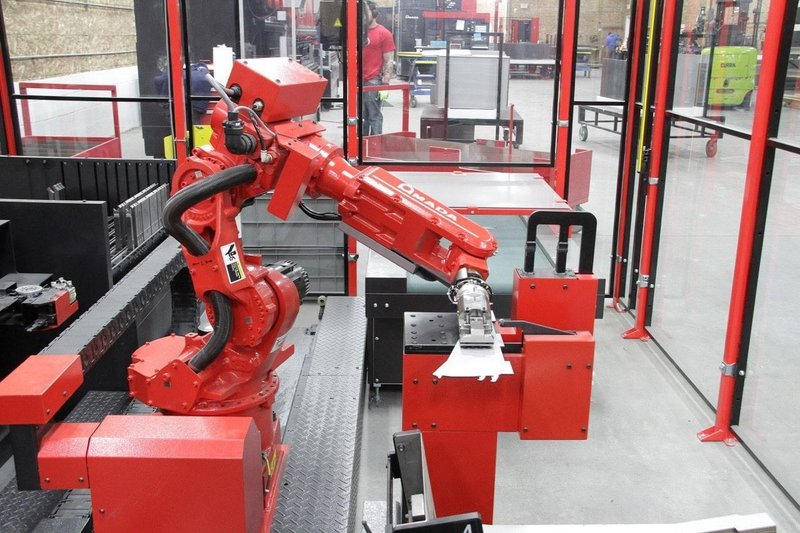

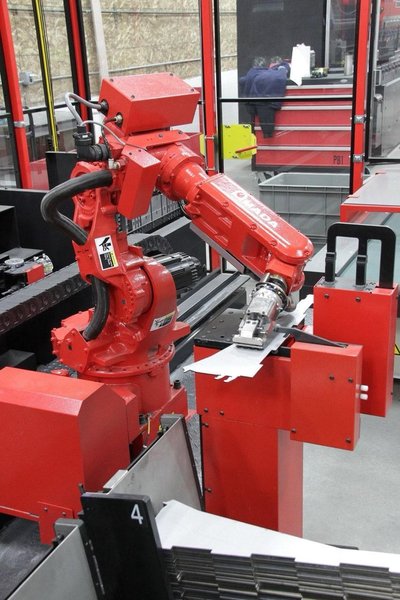

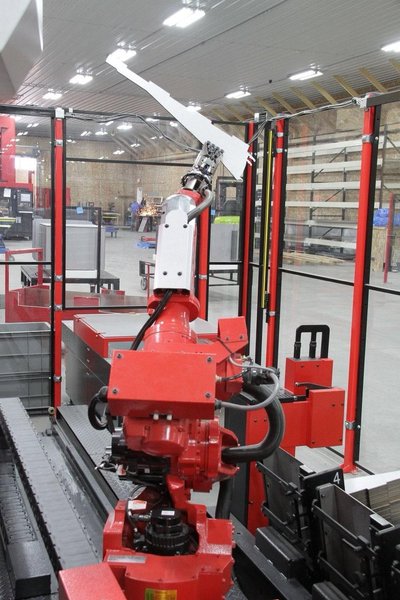

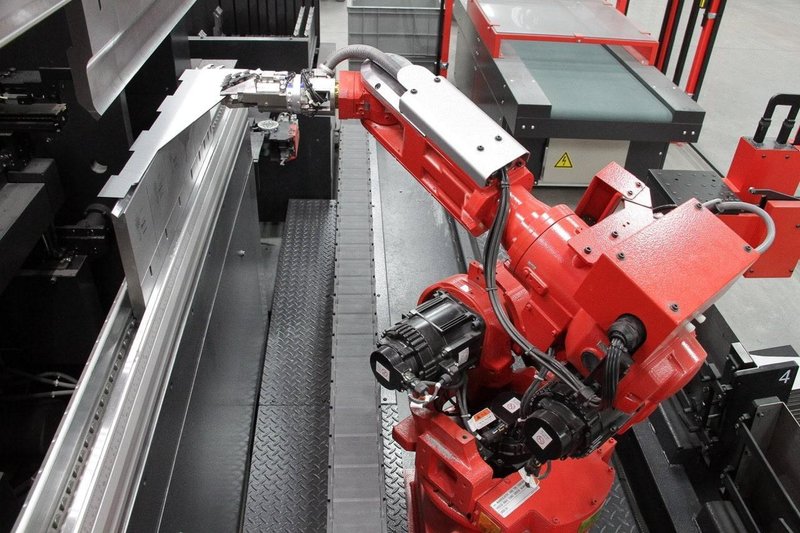

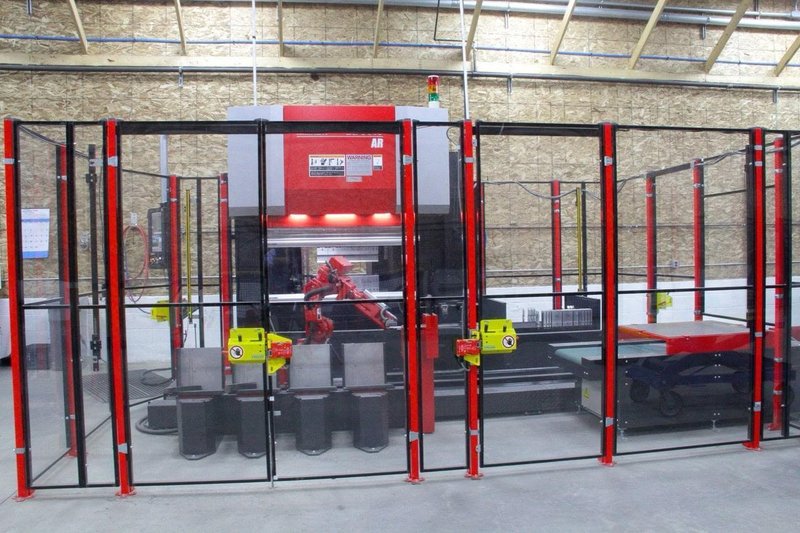

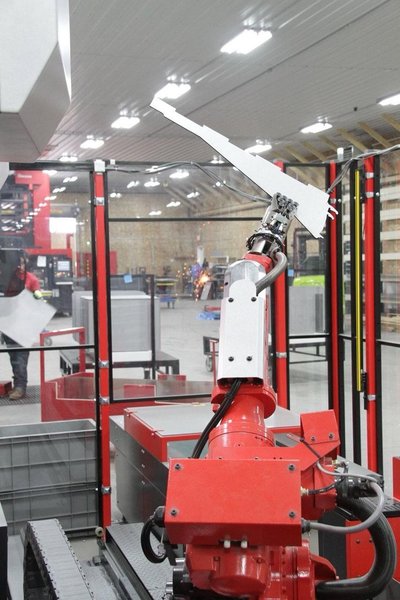

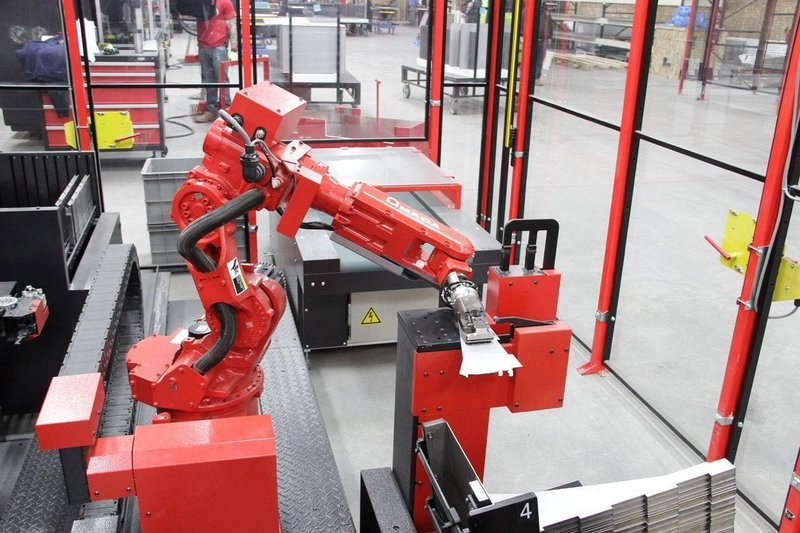

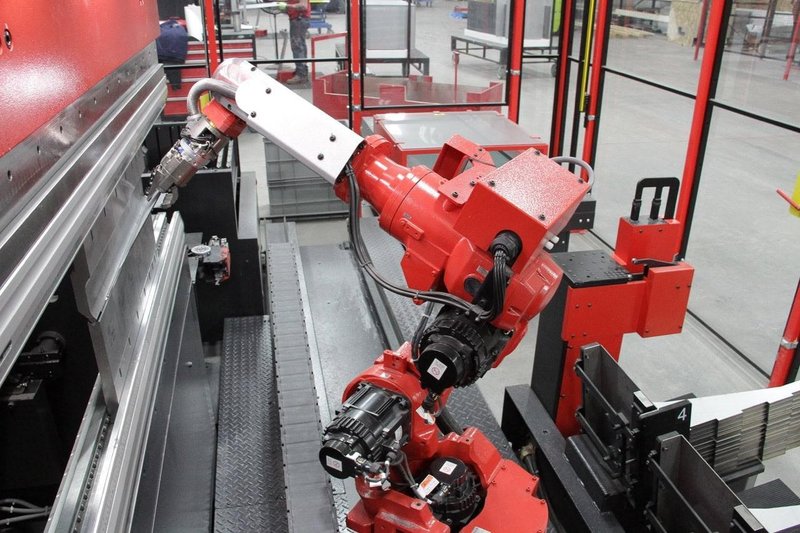

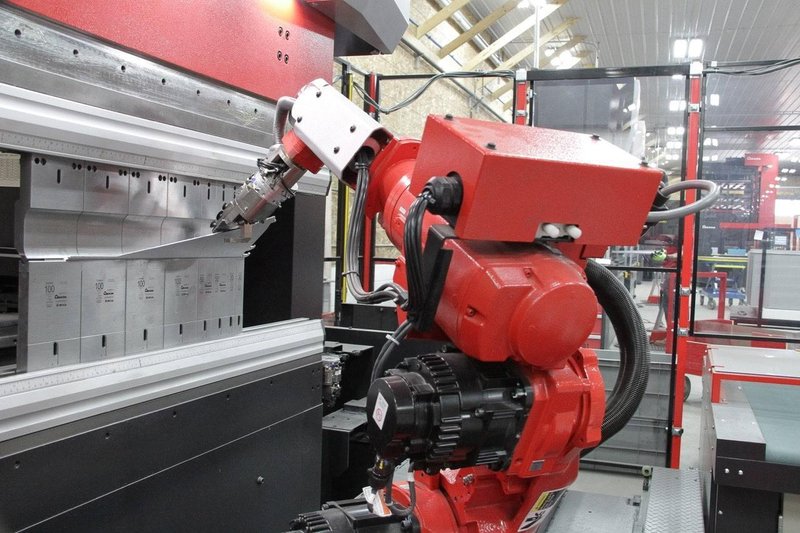

60 Ton x 4′ Amada EG6013 Automated Bend Cell, 2017 – 6 -Axis Robot, 7-Axis Backgauge

Maximum Tonnage Capacity: 67 Tons Maximum Bending Length: 53.1″ Stroke Length: 6″ Open Height: 16.5″ Approach Speed: 8.7″/sec. Bend Speed: 1″/sec. Return Speed: 8.7″/sec. Floor Space: 211″ L x 154″ W x 105″ H Weight Of Brake: 8,200 Pounds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Robot Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axis Configuration: 6-Axis Carriage Axis: 120″ Max. Part Weight: 22 Pounds Maximum Reach P-Point: 39.25″ Tool Holder Length: 49.2″ Max. Tool Length: 31.5″ Number Of Tools: 10

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– AMNC 3i CNC Control With Vertical 18.5″ Multi-Touch Display – Dual Electric Servo Power Drive – Automatic Tool Changer – Yaskawa MH6S-10 High Precision 7-Axis Bending Robot   – 7-Axis Potentiometer Backgauge With Side Gauge System – High-Rigidity Frame For Large Open Height And Stroke – 3 Gripper Station, Seamless Tool Change To Production – Load/Unload To Drop Box Or Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes Assorted Tooling. List Available Upon Request.
