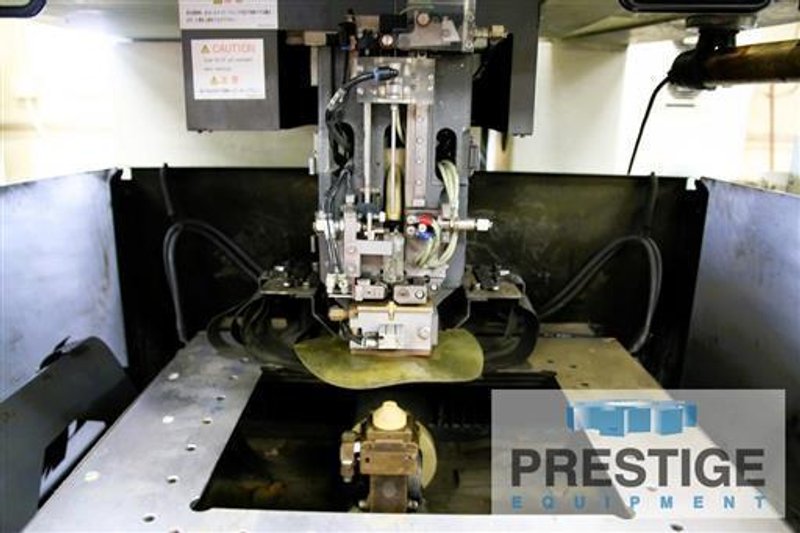

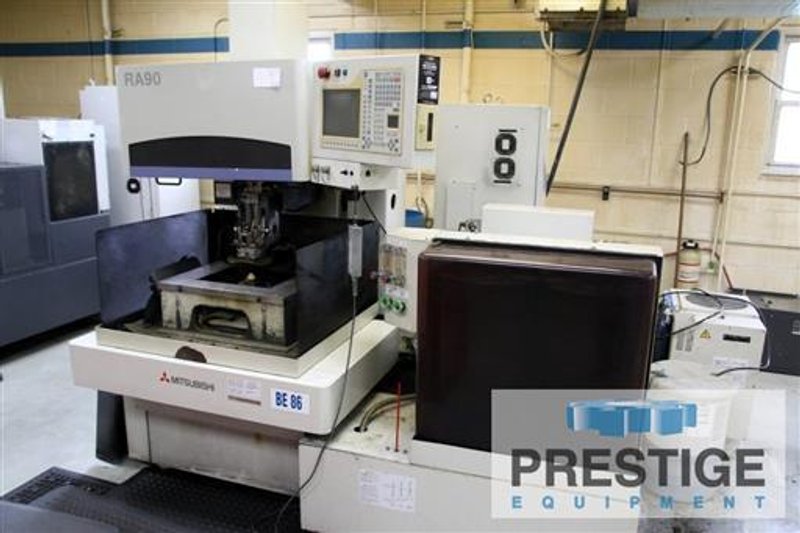

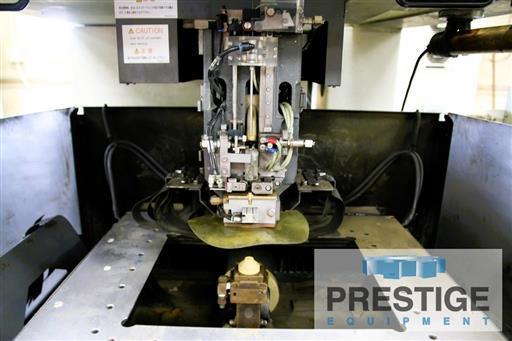

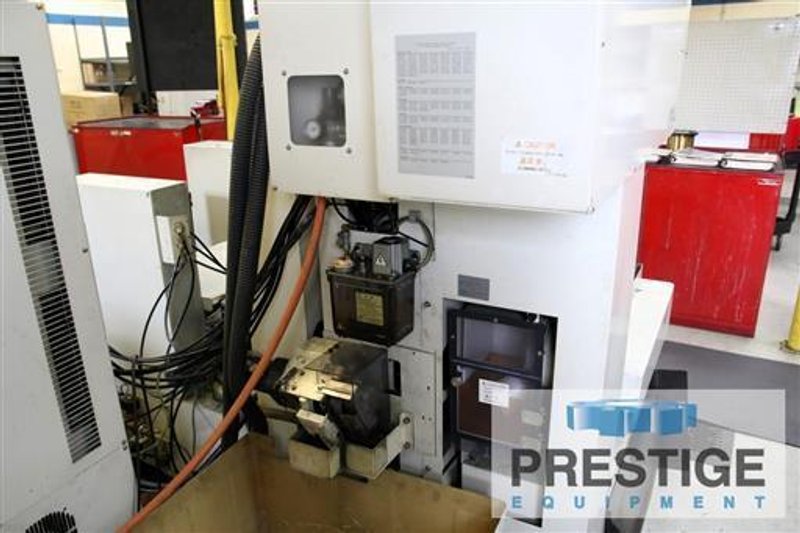

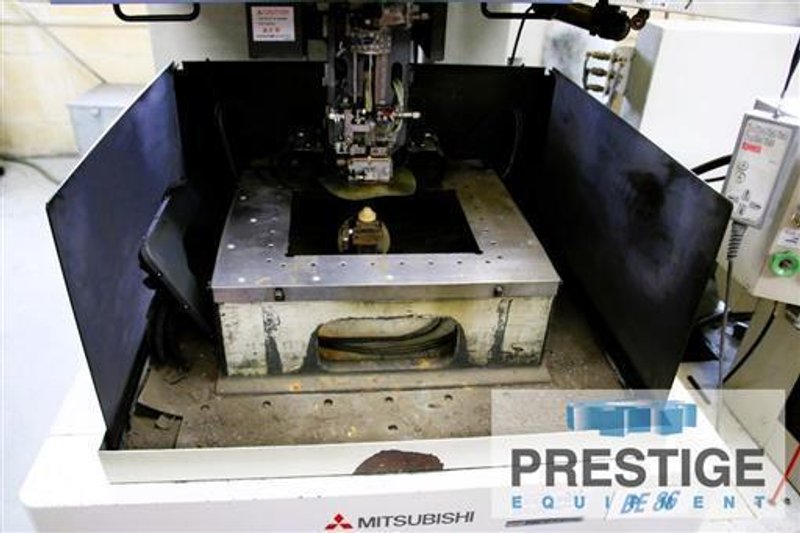

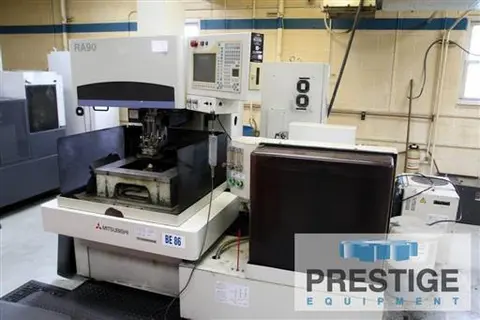

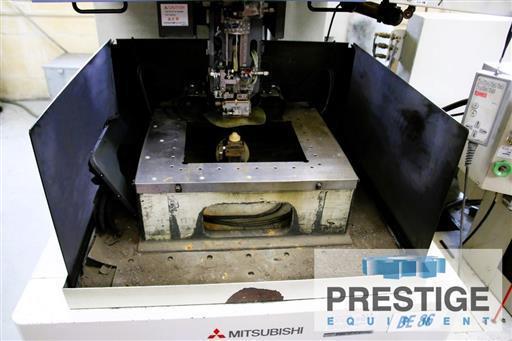

Mitsubishi RA90 Wire EDM
Brand
Category
Type
Model
RA90
Stock #
43763
Year
2000
Condition
Not specified
Location
Not specified
|
SPECIFICATION:

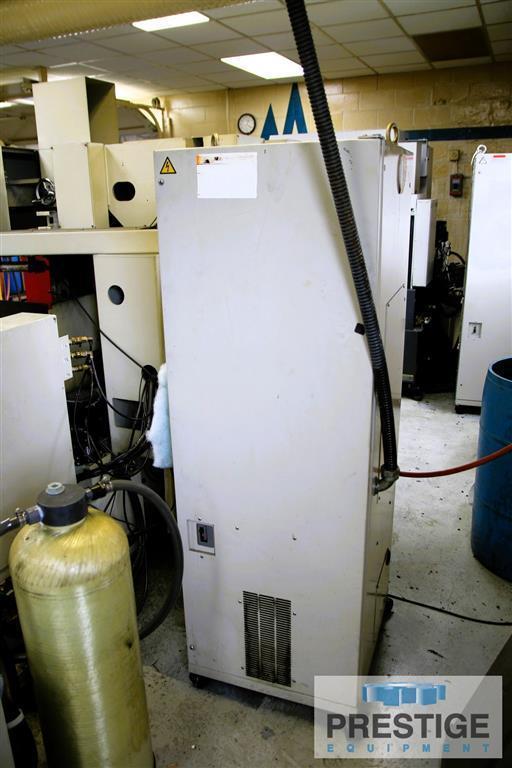

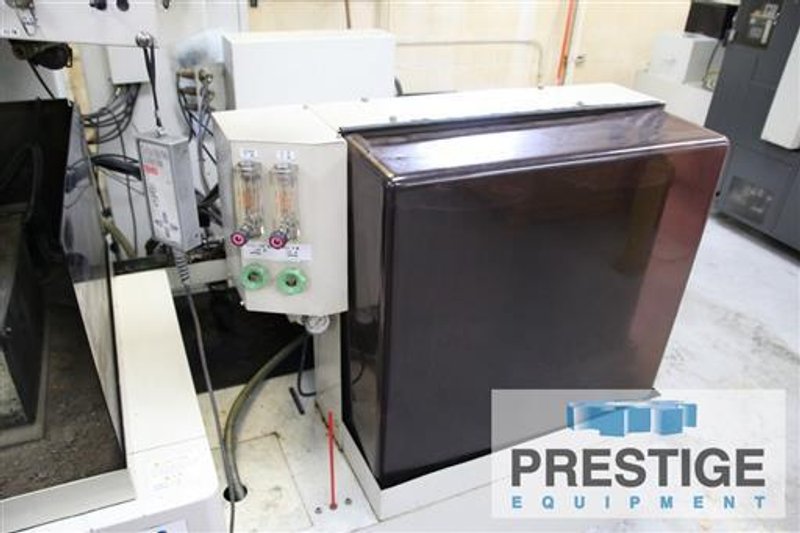

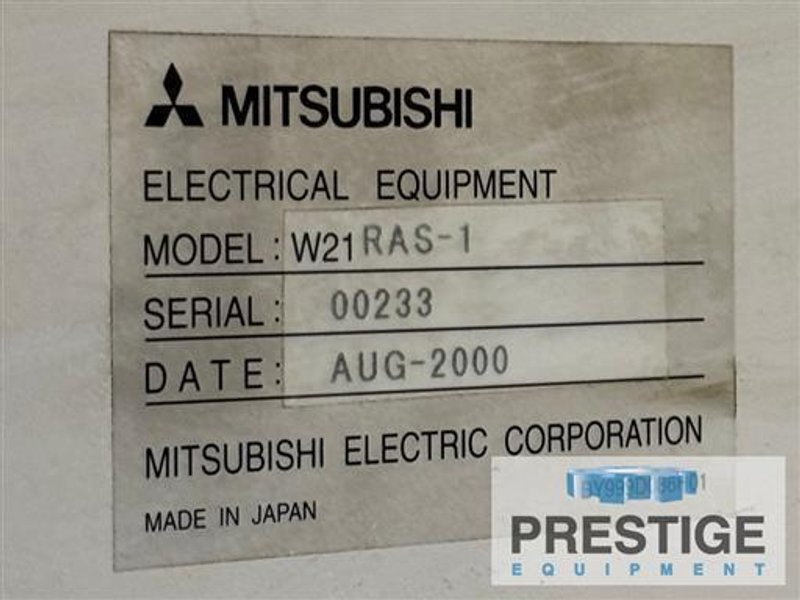

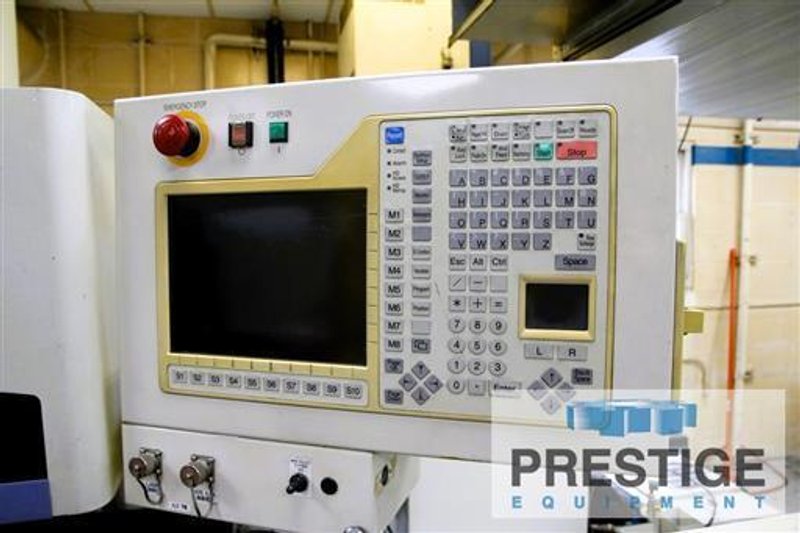

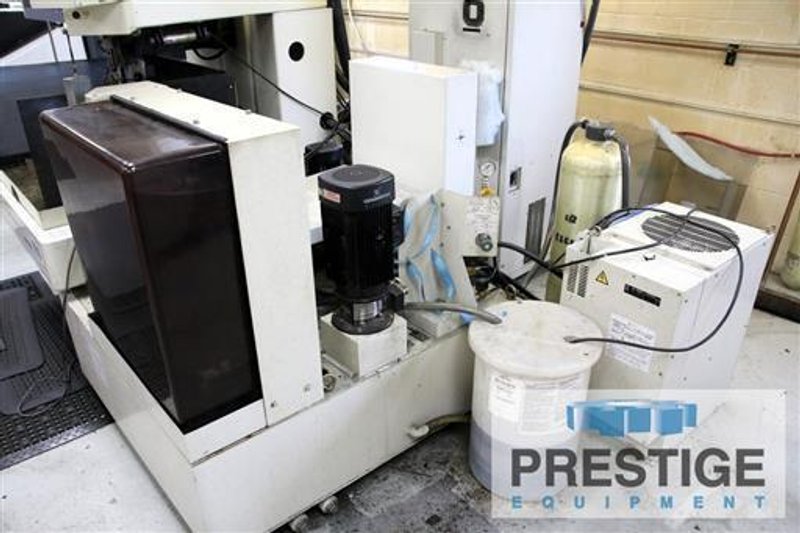

X-Axis Travel 12.6" Y-Axis Travel 9.8" Z-Axis Travel 6.49" U/V Travel 1.25" x 1.25" Taper Capability 15 Deg @ 4.0" Workpiece Dimensions 33.8" x 29.9" x 6.3" Max. Workpiece Weight 770 Lbs. Table Dimensions 22.5" x 18.8" Wire Spool Size 22 Lbs Table Rapid Feed 51.18 IPM Wire Diameter Range .004" - .012" Approx. Dimensions 57" x 77" x 80" Approx. Weight 4,210 Lbs Equipped With: Mitsubishi RAS-1 CNC Control S/N 0233 Hand Pendant Controller Mitsubishi TR90D Dielectric Fluid Reservoir Unit Cooler 15 KVA Transformer LOCATION: Under Power In Midwest CNC Machining Facility |
