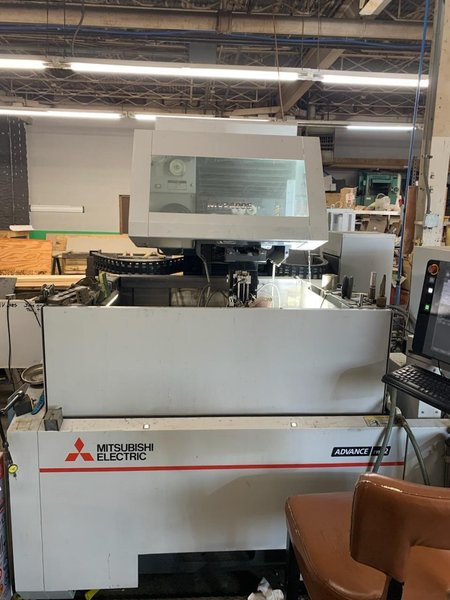

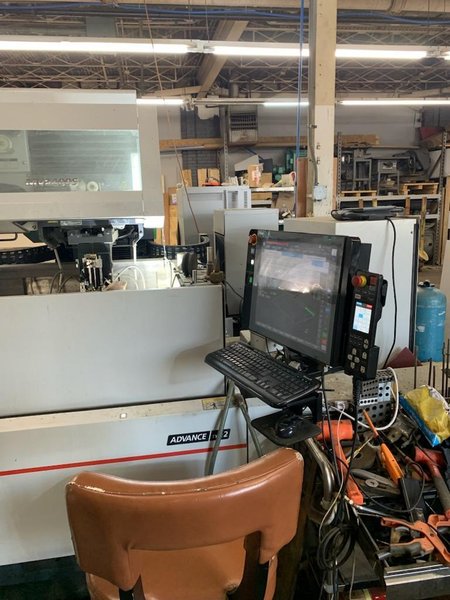

Mitsubishi MV2400S Advance CNC Wire EDM, New 2022

Name: Mitsubishi MV2400S Advance CNC Wire EDM, New 2022
Brand: MITSUBISHI
SKU: 56753
Availability: PreOrder

Brand

MITSUBISHI

Minnesota

Machining Travels ( X X Y X Z )	23.6" x 15.7" x 12.3"
U/V Travel	+/- 3"
Table Dimensions	33" x 25.2" (3-Sided)
Inside Table Dimensions	41.3" x 32.3"
Maximum Workpiece Size	23.6" x 15.7" x 12.3"
Maximum Submerged Workpiece Weight	3,300 lbs
Taper Capacity	+-15 deg @ 10"
Wire Diameter Range Possible	0.004"~0.012"
Wire Guides Included	0.010"
Minimum Resolution	.000002"
Table Rapid Feed	51.2"/Min
Min Hole Diameter For Autothread	.020"
Max Wire Spool Size	22 lbs
Filter Tank Capacity	260 Gal
Dimensions	Approx. 106" x 120" x 85"
Weight	8100 pounds
Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism
