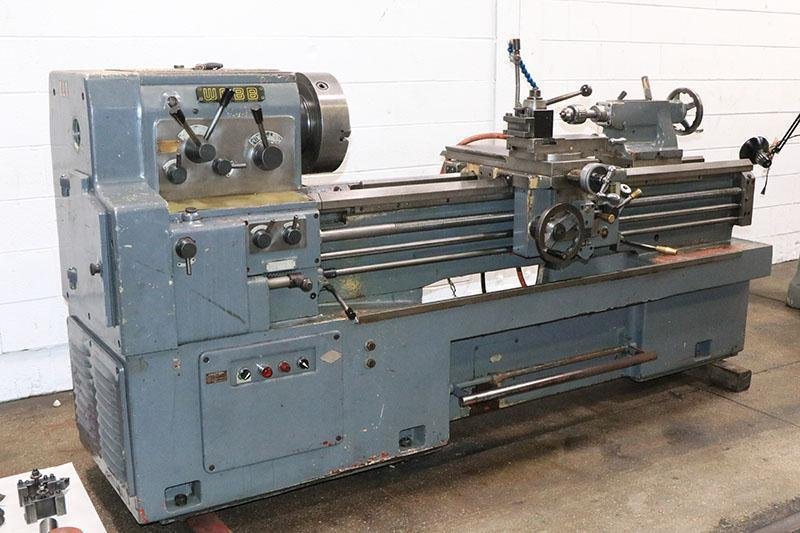

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe, Model 1759G

Brand

WEBB

Category

Lathes & Turning Machines

Type

Lathes, Gap Bed

Model

1759G

Stock #

4830

Year

1981

Condition

Used

Location

New Jersey

REQUEST FINANCING

Specifications
Files & Videos

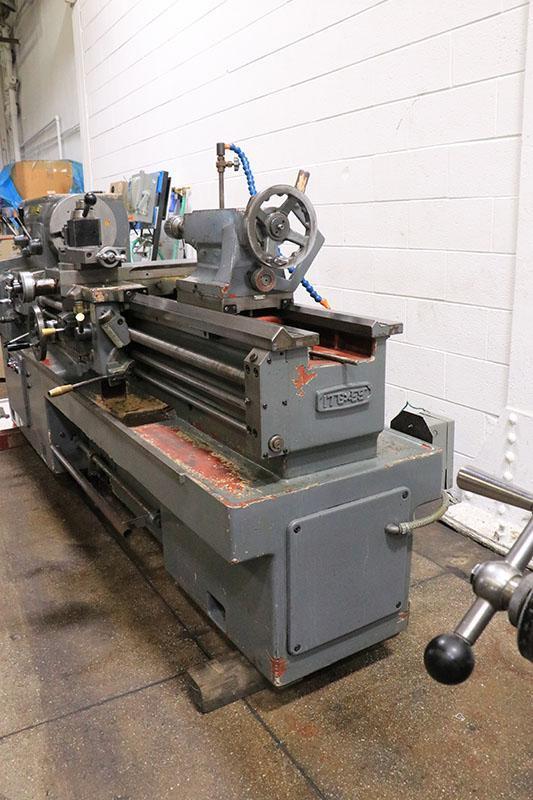

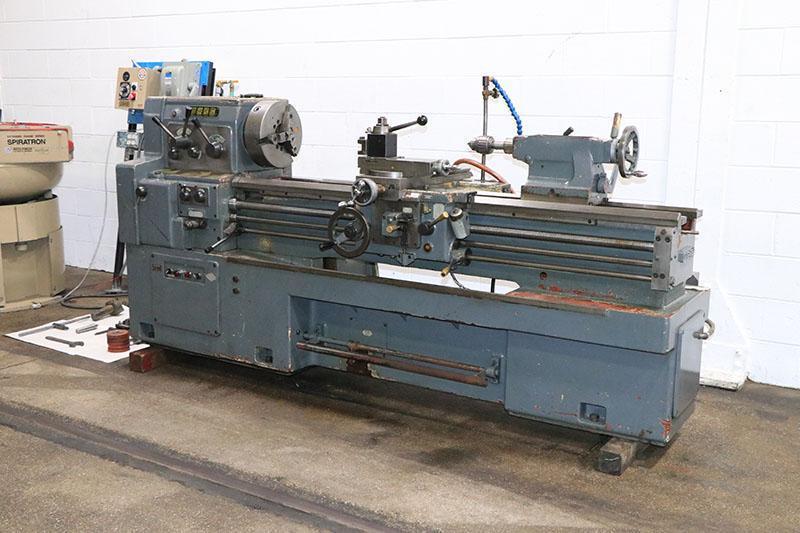

17"/25-1/2" x 59" WEBB Gap Bed Engine Lathe

Model: 1759G
New: 1981

SPECIFICATIONS:

SWING OVER BED ....................... 17-1/8"

SWING IN REMOVABLE GAP .............. 25-9/16"

SWING OVER CROSS SLIDE ............... 9-3/4"

HOLE THRU SPINDLE .................... 2-3/64"

DISTANCE BETWEEN CENTERS ............. 59"

SPINDLE NOSE ......................... ASA A1-6

BED WIDTH ............................ 13-3/4"

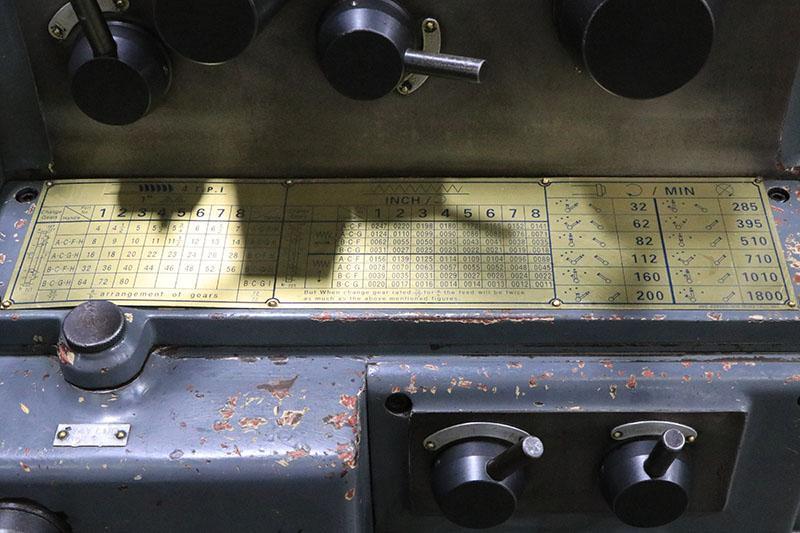

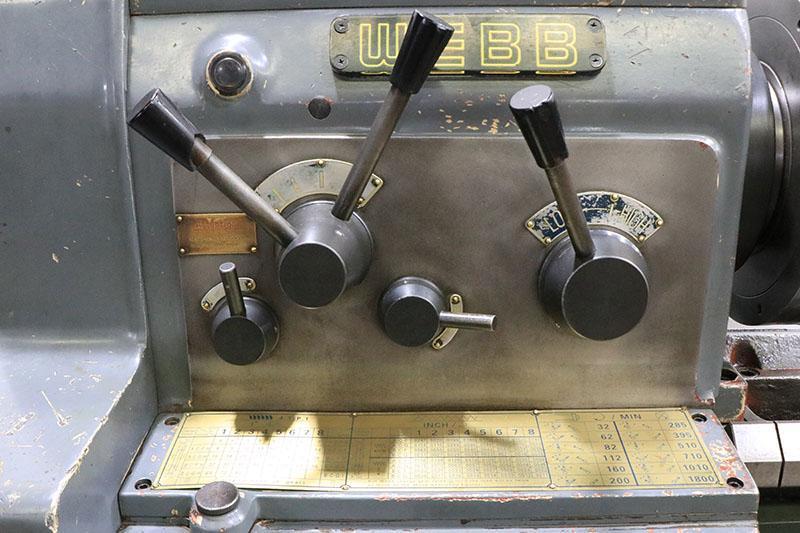

SPINDLE SPEED RANGE (12) ............. 32 - 1800 RPM

LONGITUDINAL FEED RANGE ............. .0018 - .0247 IPR

CROSSFEED RANGE ..................... .00156 - .011 IPR

ENGLISH THREADING RANGE ............. 4 - 80 TPI

METRIC THREADING RANGE ............... .25 -7mm

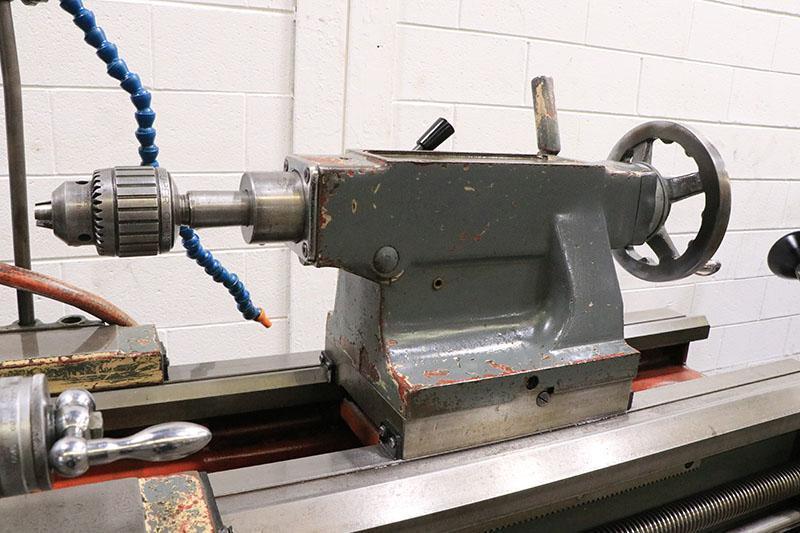

TAILSTOCK SPINDLE TRAVEL ............. 6"

TAILSTOCK SPINDLE TAPER .............. #4MT

APPROX WEIGHT ........................ 5,000 LBS

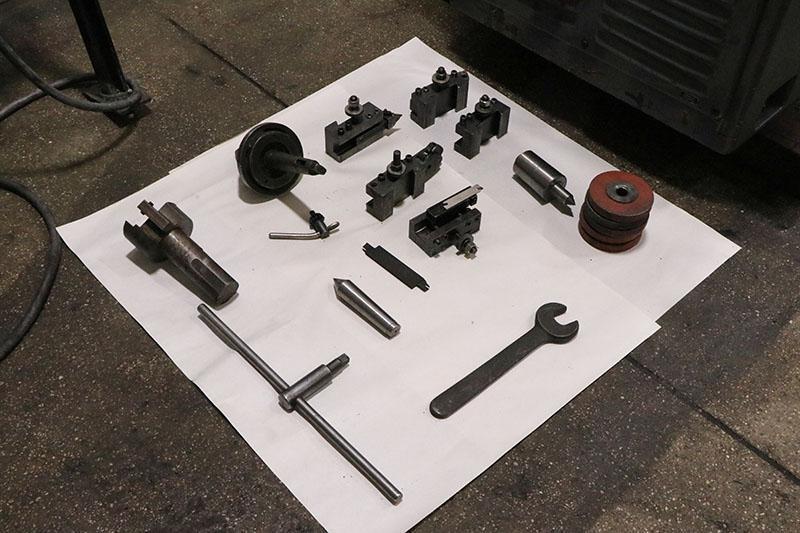

EQUIPPED WITH:

INCH/METRIC THREADING CAPABILITY

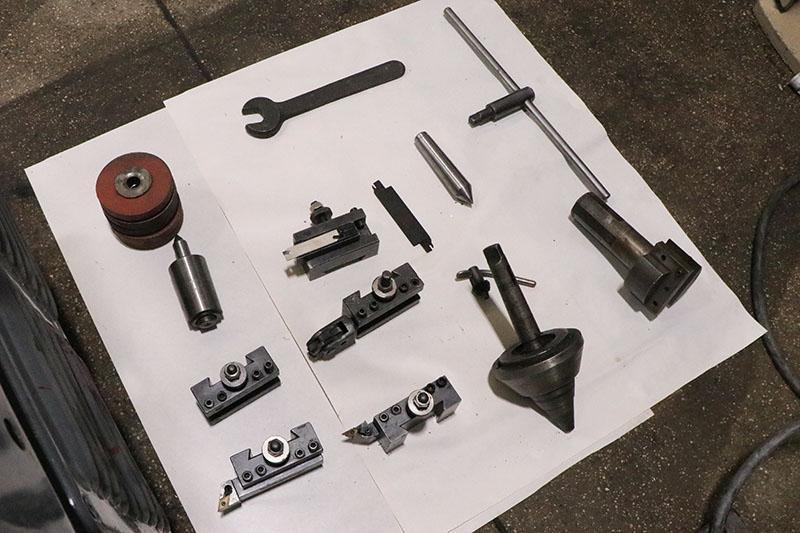

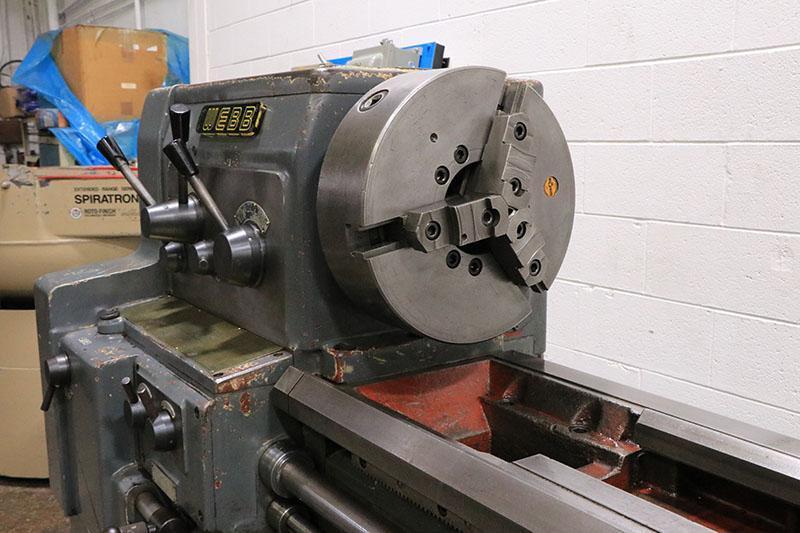

12" ROHM 3-JAW CHUCK

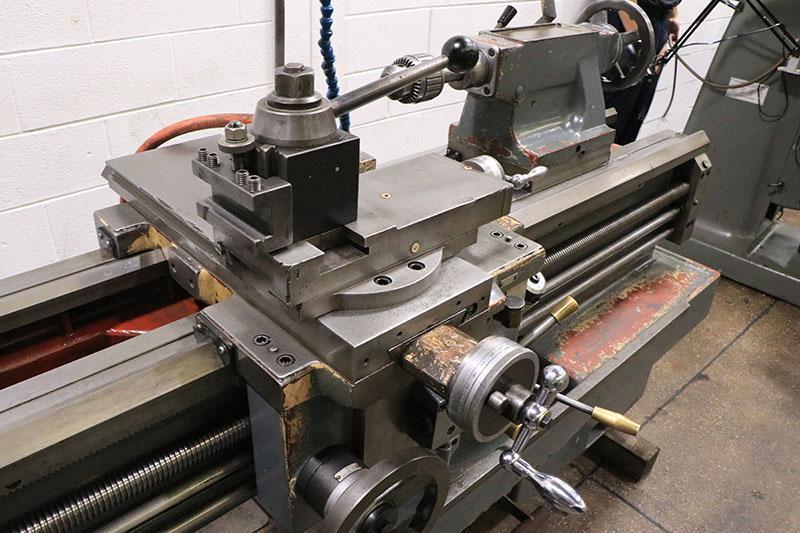

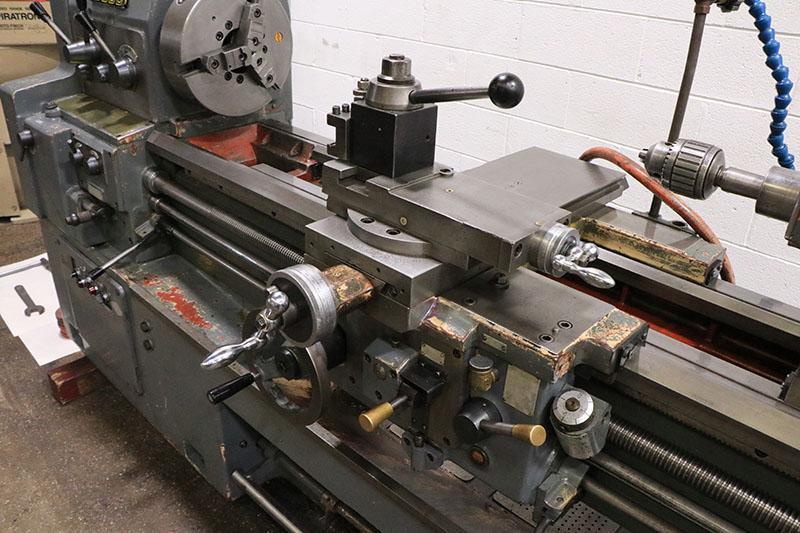

ALORIS MODEL: CA QUICK CHANGE TOOLPOST

THREAD DIAL INDICATOR

COOLANT SYSTEM

FOOTBRAKE

HARDENED & GROUND BED WAYS

5 HORSEPOWER MAIN MOTOR - 220/440 VOLT 3 PHASE

FOB: Origin
