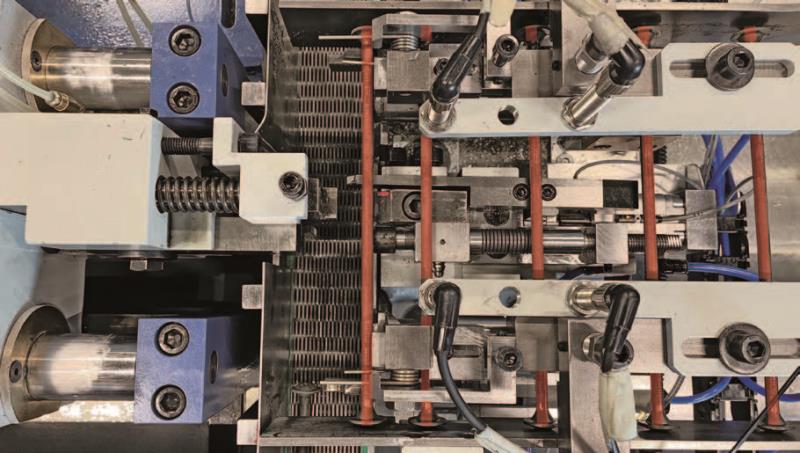

AMBA model HRH Hydraulic Rod Header

These machines are suitable for Upsetting, Extruding, Collar Work, Etc.

A single machine can perform the following operations
fully automatically:
? Cutting of up to a 12 mm | 0.5 ? diameter rod
? Pre-/intermediate-form and fi nish upsetting ?
also with spring-mounted tools
? Upsetting of fl at head screws ? up to 25 mm | 1 ? head
diameter, gentle on tools in up to three stations
? Finished blanks in large quantities ? by centrally dividing
the formed double-headed blank into two blanks for
screw production
? Ideal for linking with a high-speed threading roller
? Different series for the best possible compromise
between forming capacity and speed

Examples for the use of Rod-Header:
Stud-bolt blanks, muffler hangers, mandrels, building bars

Machine Features:
* Open Die - Single / Double Stroke Capacity
* Magazine or Hand Feed
* Unlimited Blank Length / Adjustable Stroke Length
* Quick Set-Up / All Tooling Easily Accessible
* Small Floor Space Requirement

* Six Models: Size Range: 10 - 20mm
* Blank Length Range: 80 - 750mm
* Production output up to: 50ppm
