Manville Rod Header Model 5B
Brand
Category
Type
Model
5B
Stock #
11502
Year
Not specified
Condition
Used
Location
Not specified
|

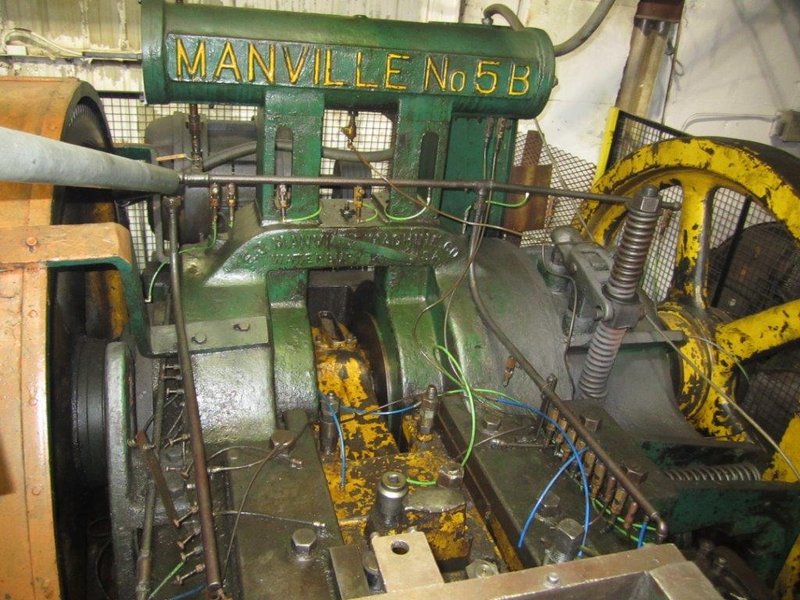

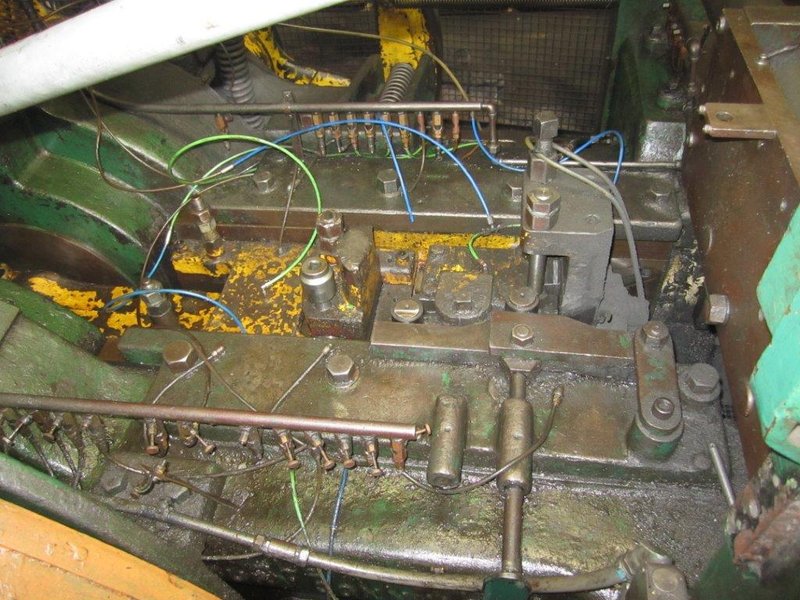

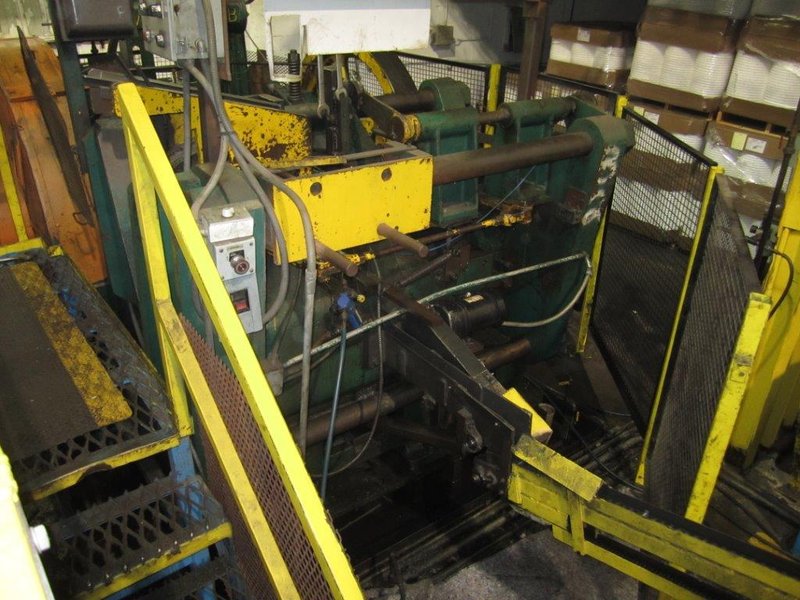

One Used 3/4" Manville Model 5B Open Die Double Stroke Magazine Fed Rod Header, Serial No 4852
3/4" Max. wire diameter 18" Max. part length (Can be up to 32" with slight change) 3-1/2" Square Grip dies x 7" long. Approx. 25 PPM. Equipped with Magazine feeder Motorized chain escapement conveyor Extended gather and pull-off (approx. 3-1/2") Gear drive A/C motor and controls. This machine was originally a coil fed machine. Dimensions: 11'-1" W x 13'-2" L x 9'-7" T Weight: Approx. 72,500 lbs. |
