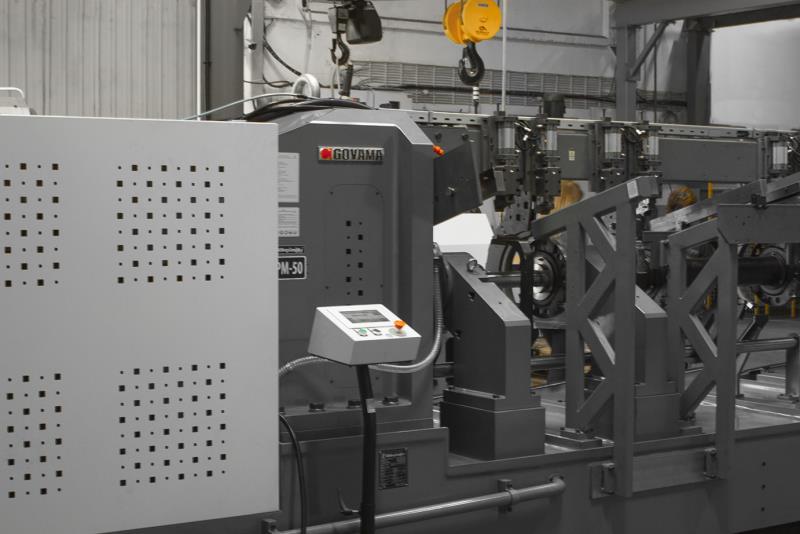

BRANDT GPM SERIES Model GPM-50 Planetary Die Double End Thread Rolling Machine

The GPM series models offer single or double ended thread rolling, from diameters of 6-33mm (1/4"-1-1/4") either via the standard magazine feeder, or automated via straightening & cutting option attachments. Bending attachments also available as an option for production of a variety of bent products such as J-bolts, U-bolts, etc.

With advanced construction and operation logic having rotation of main spindle & product carriers fully synchronized, die lifetime is greatly enhanced

Min-Max Workpiece Dia: 20-33mm
Pitch: up to 4mm
Max Thread Length: up to 200mm
Total Length of Part: min 1.5m - max 4m
Main Motor: 55kW
Speed Range: 10-40rpm
Performance (Cylcle time for 1200mm total lgth):
M20 (3/4"): 10-35 pc/min
M24 (1"): 9-30 pc/min
M27 (1-1/8"): 8-21 pc/min
M33 (1-1/4"): 8-21 pc/min
