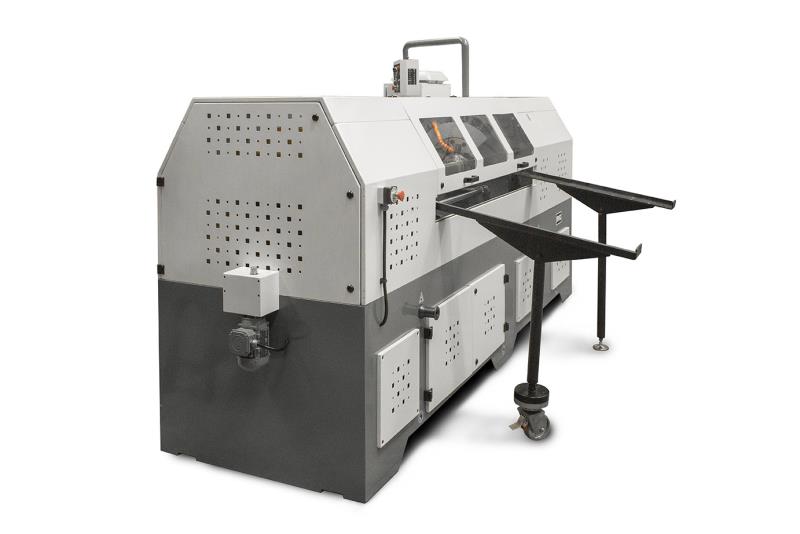

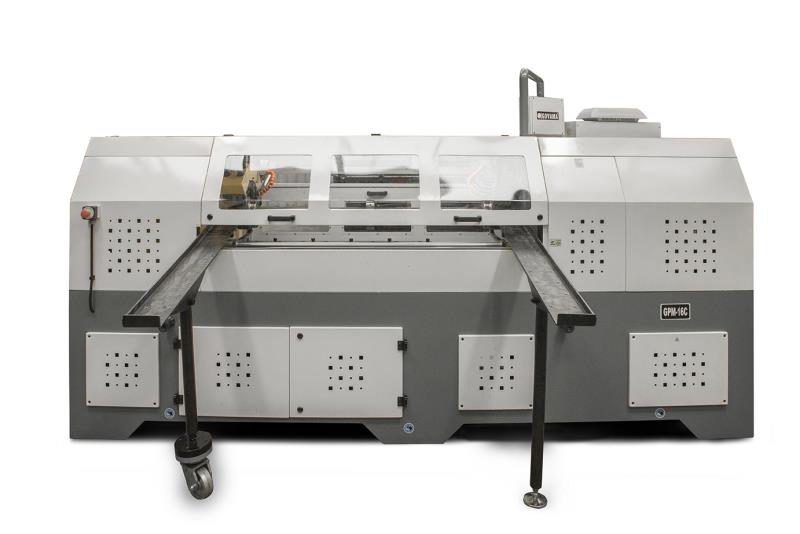

BRANDT GPM SERIES Model GPM-25C Planetary Die Double End Thread Rolling Machine
Brand
Not specified
Category
Model
GPM SERIES
Stock #
New
Year
Not specified
Condition
Used
Location
Not specified
|

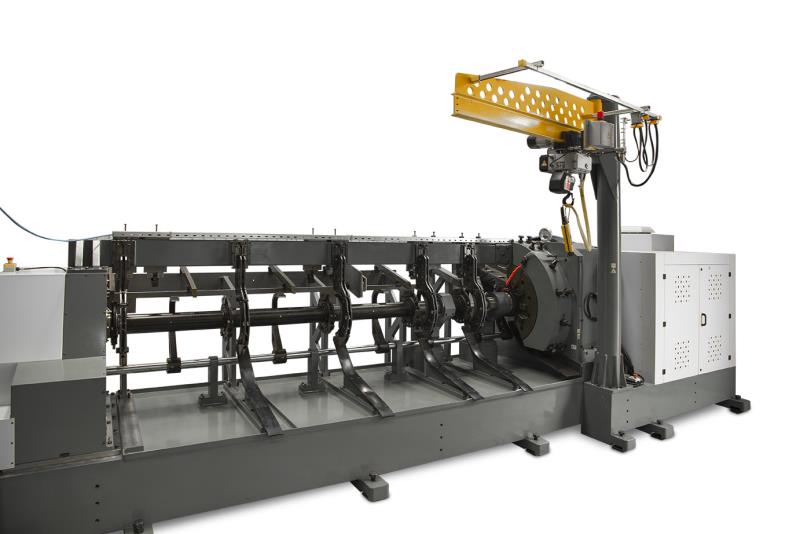

The GPM series models offer single or double ended thread rolling, from diameters of 6-33mm (1/4"-1-1/4") either via the standard magazine feeder, or automated via straightening & cutting option attachments. Bending attachments also available as an option for production of a variety of bent products such as J-bolts, U-bolts, etc.

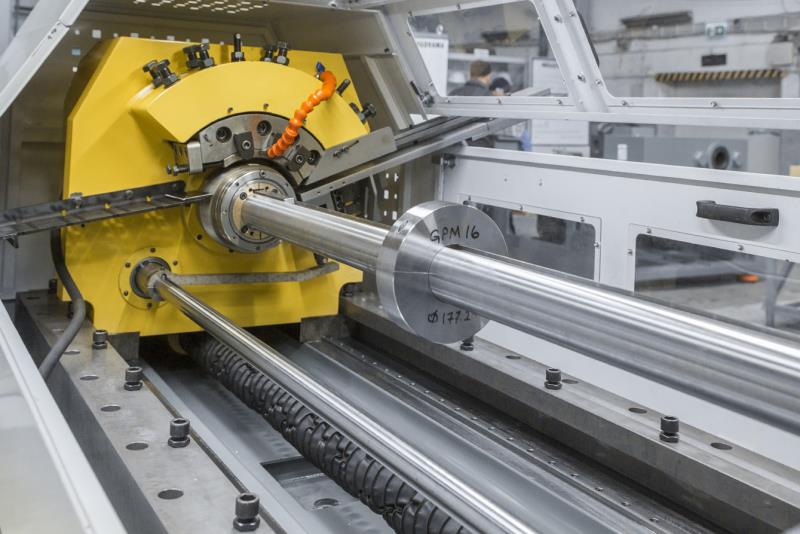

With advanced construction and operation logic having rotation of main spindle & product carriers fully synchronized, die lifetime is greatly enhanced Min-Max Workpiece Dia: 11-24mm Pitch: up to 3mm Max Thread Length: up to 150mm (each end) Total Length of Part: min 400mm - max 1500mm Main Motor: 46kW Speed Range: 25-50rpm Location: |
