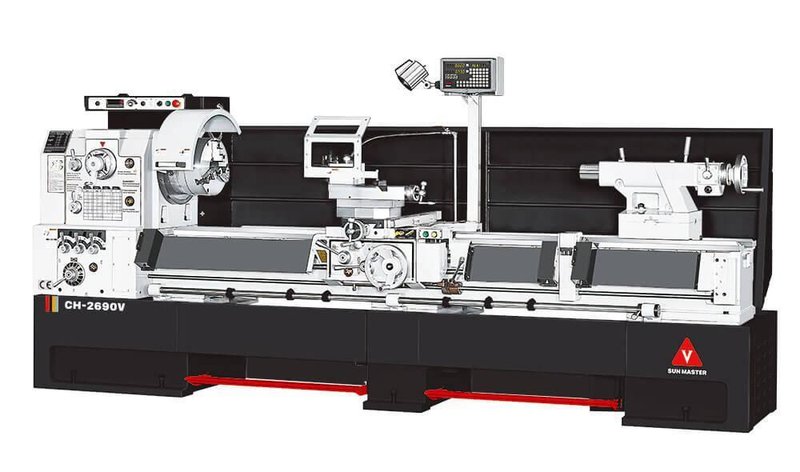

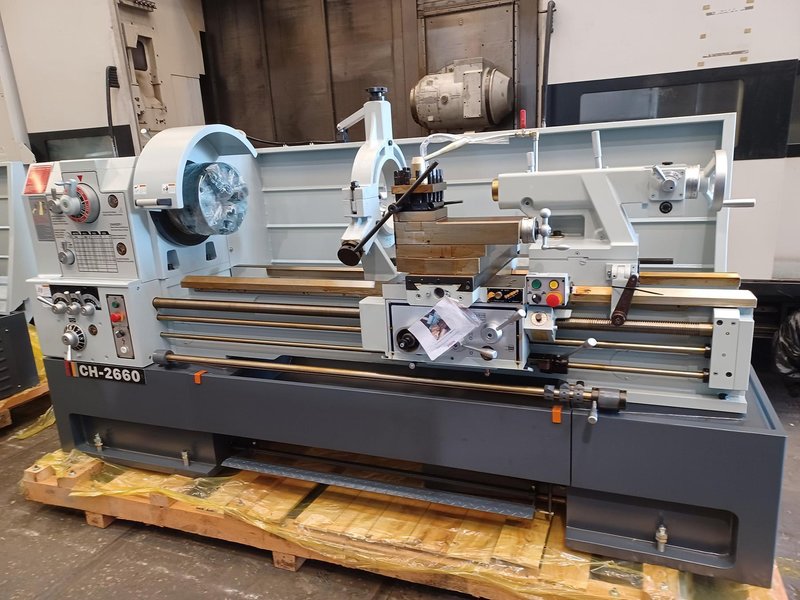

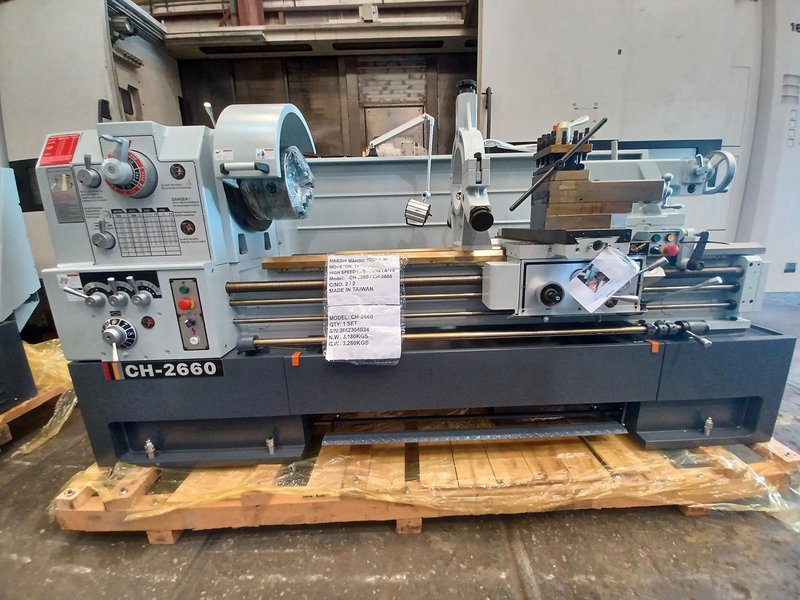

30" x 120" Sunmaster Engine Lathe
Brand
Not specified
Category
Type
Model
CH30120
Stock #
20441
Year
2024
Condition
Not specified
Location
Texas
| Weight | 8200 pounds |
| Main Motor | 15 |
| Swing In Gap | 39 inches |
| Swing | 30 inches |
| Dimensions | 187" X 45" |
| Swing Over Cross Slide | 21.5 inches |
| RPM | 1200 |
| Spindle Bore | 4 inches |
| Centers | 120 inches |
|
Swing Over Bed: 30"
Swing Over Cross Slide: 21.5" Swing in Gap: 39" Gap Width: 10.6" Distance Between Centers: 120" Bed Width: 15.7" Spindle Speeds: (12) 13 - 1200 RPM Spindle Motor: 15 HP Spindle Bore: 4-1/16" Spindle Taper and Center: MT-7 / MT-5 Spindle Nose: D1-11 Feed Ranges: 16 Longitudinal Feeds: 0.0012 - 0.039 Cross Feeds: 0.0004 - 0.0117 Leadscrew Diameter / Pitch: 1.77" / 4 Inch Threads: (44) 2 - 72 TPI Metric Threads: (39) 0.2 - 14 MM Compound Travel: 9" Cross Slide Travel: 15.8" Tailstock Quill Travel: 10" Tailstock Quill Diameter: 3.15" Tailstock Taper: MT-5 Coolant Pump Motor: 1/8 HP OAD (Approximate): 187" x 45" x 67" Weight (Approximate): 8,200 Lbs. Note: All Specifications Subject to Verification Machine Priced Equipped with the Following Options:
|
|
