72" X 1/4" X 50,000# PAXSON CTL LINE W/ TWO LEVELERS

72” X 1/4” X 50,000# PAXSON CTL LINE W/ TWO LEVELERS

THICKNESS RANGE: .040" - .250"

COIL CAPACITY: 50,000#

COIL WIDTH: 8" - 73"

COIL ID: 20" - 24"

COIL OD: 42" - 80"

LINE SPEED: 150 FPM

BACKED UP HEAVY FLATTENER: .135" - .250"

BACKED UP LIGHT LEVELER: .040" - .135"

SHEET CUT LENGTH: 24" - 240" (360" MAX ON END DISCHARGE)

COMPLETE LINE WITH:

PAXSON L-TYPE COIL CAR

FLOOR STANDING / SELF CONTAINED HYDRAULICS

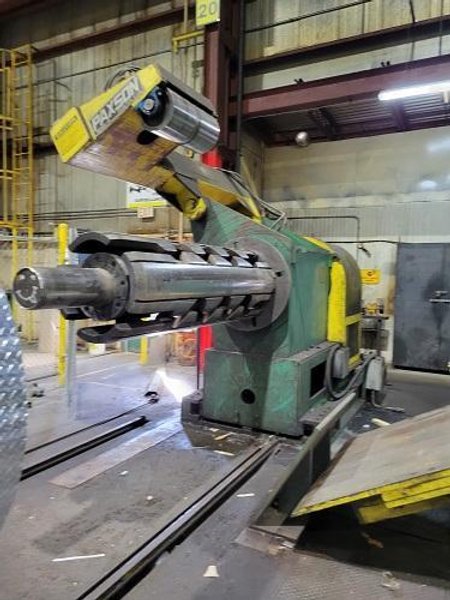

MANDREL UNCOILER

SLIDING BASE

SLIDING OUT BOARD BEARING SUPPORT

POWERED HOLD DOWN ROLL

HYDRAULIC EXPANSION

WATER COOLED BRAKE

PEELER TABLE

11 ROLL PAXSON HEAVY GAUGE FLATTENER

4 FLIGHTS OF TOP & BOTTOM BACK-UPS

MOTORIZED BACK-UP ROLL ADJUSTMENT

ENTRY PINCH ROLLS

EDGE GUIDES

212 HP DC DRIVE

HYDRAULIC BACK UP ADJUSTMENTS

MOTORIZED TILT

17 ROLL PAXSON LIGHT GAUGE LEVELER

SLIDING BASE

5 HIGH DESIGN

17 WORK ROLLS

7 FLIGHTS TOP & BOTTOM BACK-UPS

5 FLIGHTS MOTORIZED WITH INDIVIDUAL ADJUSTMENTS

ENTRY PINCH ROLLS

159 HP DC MOTOR

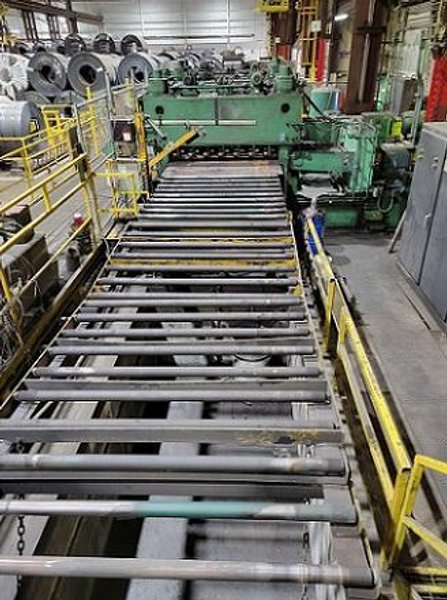

LOOPING PIT CASCADE ROLLS

LOOPING PIT CROSS OVER TABLE

DC SERVO FEED MEASURING ROLL 32 HP

PAPER INTERLEAVE

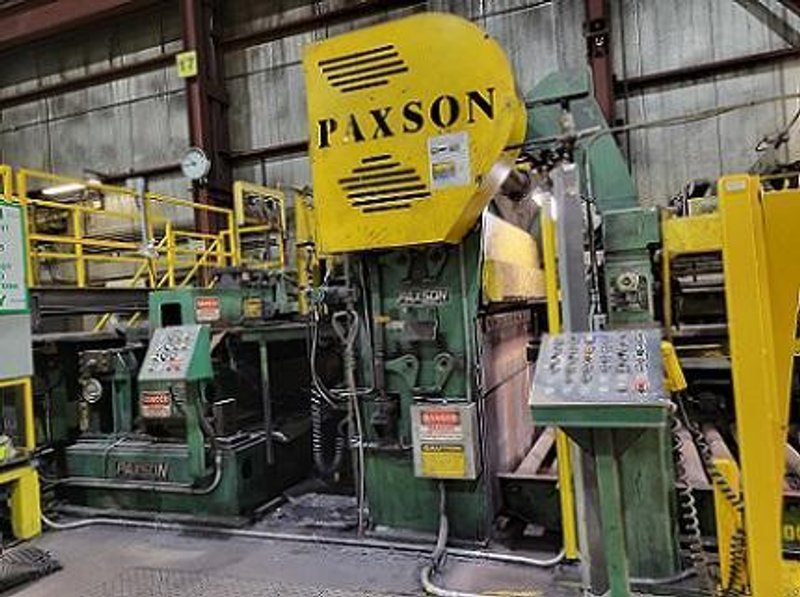

PAXSON HIGH SPEED SHEAR

HYDRAULIC ENTRY EDGE GUIDES

MOTORIZED KNIFE ADJUSTMENT

DOWN CUT DESIGN

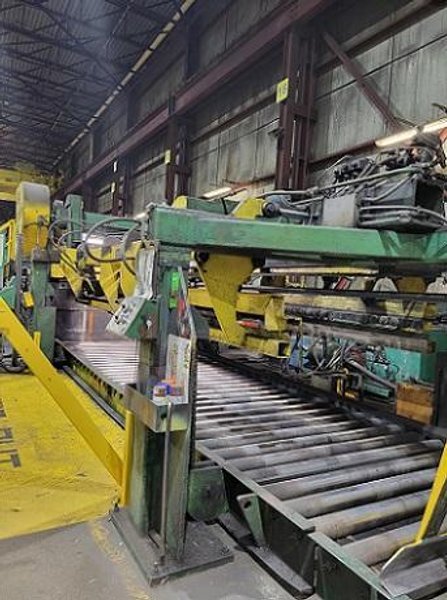

PAXSON STACKER

DROP TYPE DESIGN

LIFT TABLES

SIDE SQUARING

MOTORIZED END STOP

30' MOTORIZED EXIT CONVEYOR

OPERATOR PUSH BUTTON STATION

UNICO DIGITAL READOUTS

SPARE ROLLS
