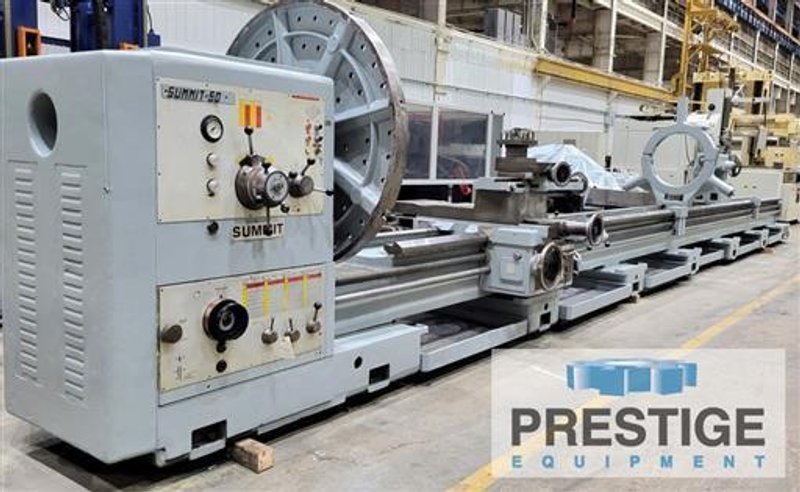

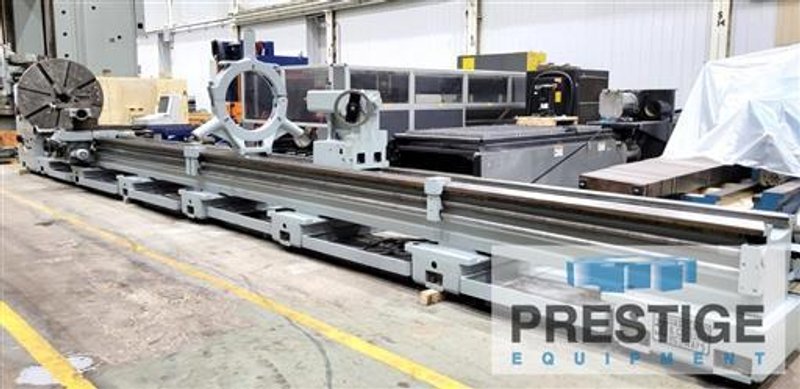

Summit 50 51" x 464" Manual Lathe with Taper Attachment

SPECIFICATIONS:
Maximum Swing Over Bedways 51"
Maximum Swing Over Carriage 35.44"
Maximum Swing In Gap 62"
Distance Between Centers 464"
Weight Capacity, Unsupported 25,000 Lbs
Weight Capacity, With 1-Steady Rest 35,000 Lbs
Spindle Speeds 6-500 RPM
Spindle Speeds 18
Inch Thread Range (99)................. .5-84 .5-84
Metric Thread Range (55) .5-56
Module Thread Range (49) .5-28
Spindle Hole Diameter 6.12"

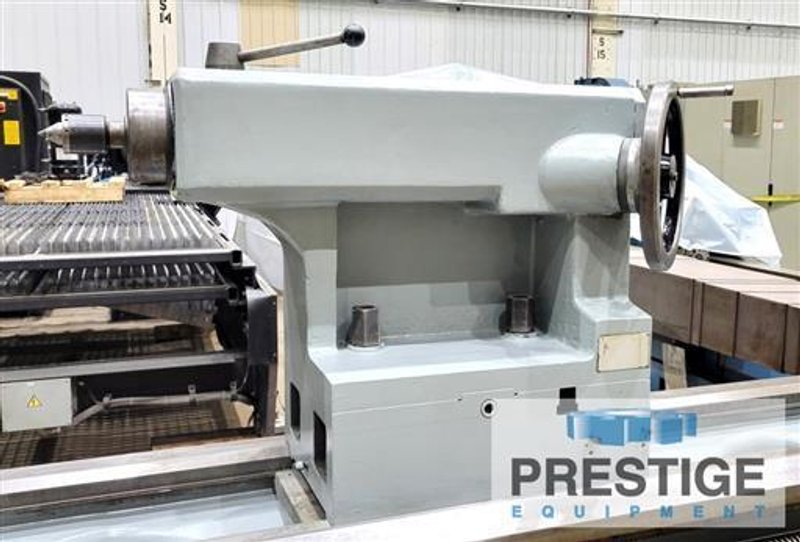

Tailstock Quill Diameter 6
Tailstock Travel 15"
Electrics 220/3/60



Equipped With:

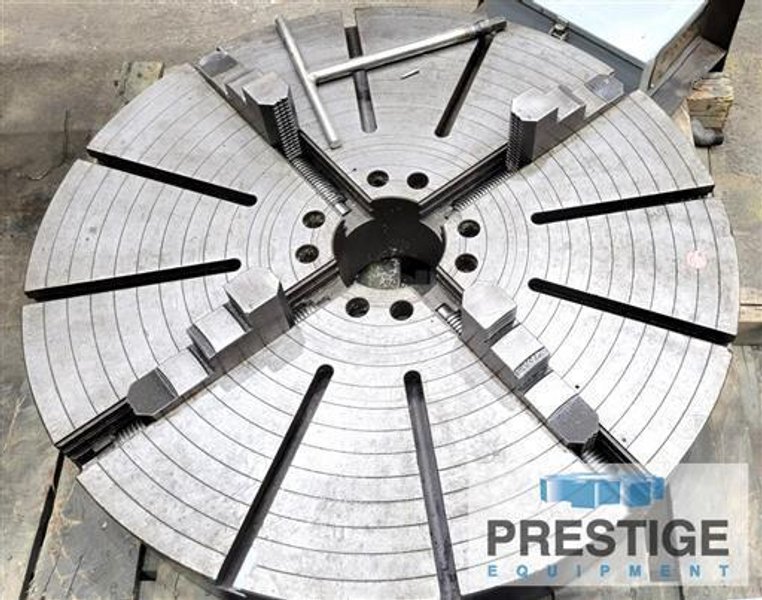

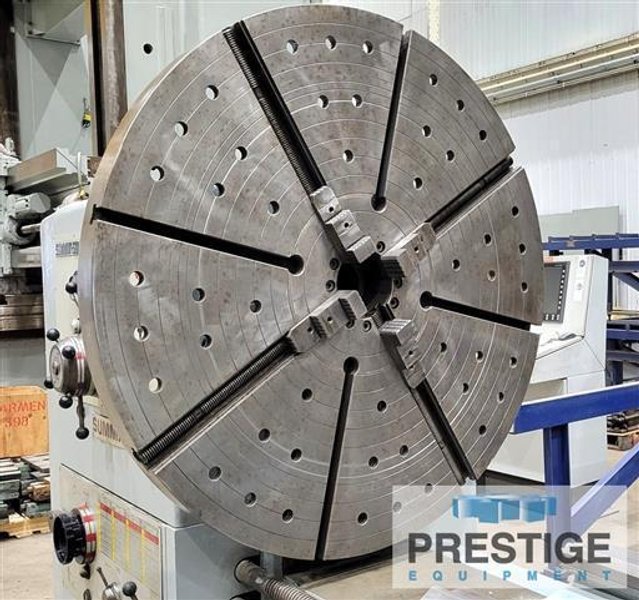

59" 4-Jaw Chuck
39" 4-Jaw Chuck

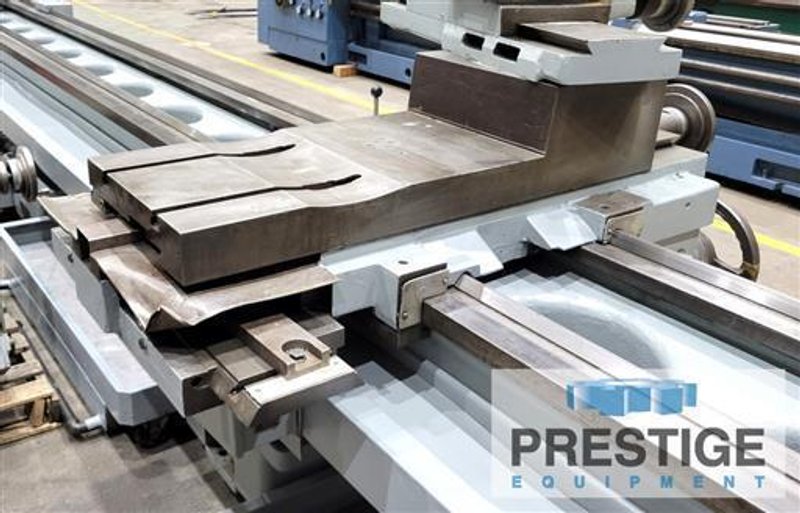

Taper Attachment

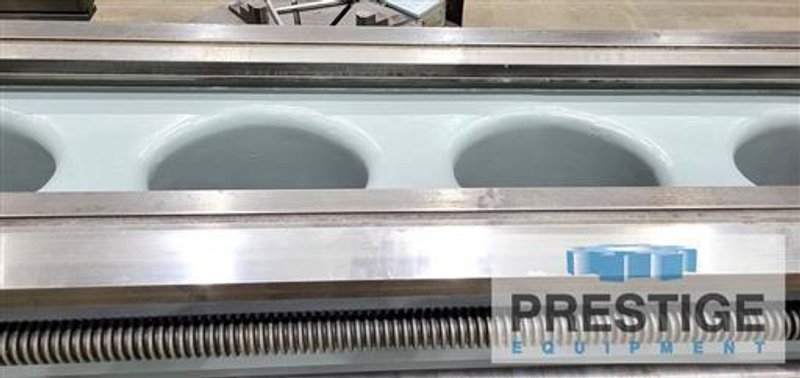

Hardened Ways
Inch/Metric Threading

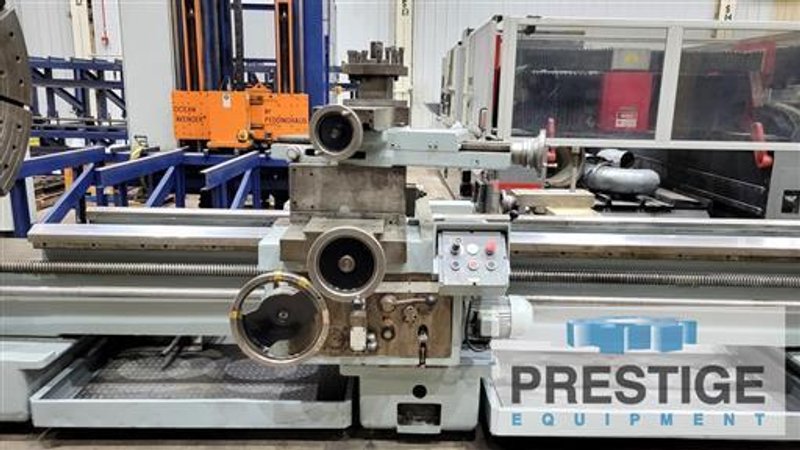

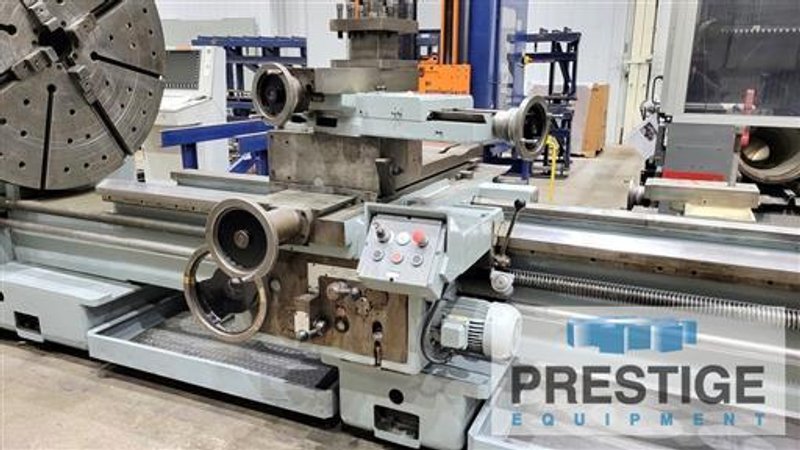

4-Way Tool Post
6-Way Rapid Traverse
Power Compound

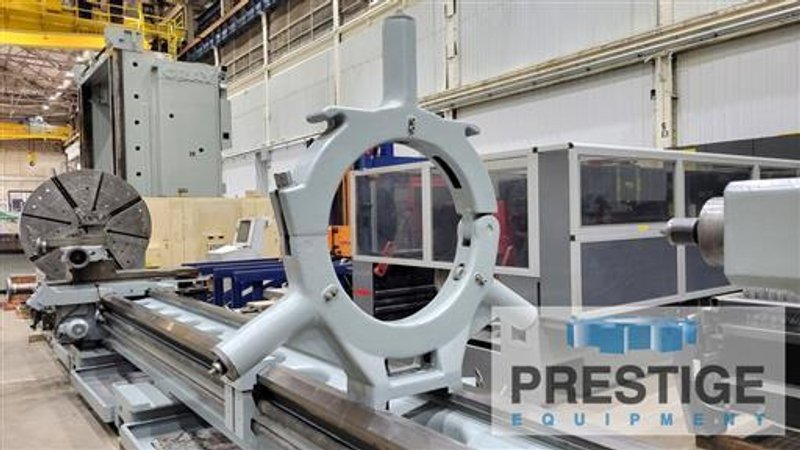

27" Roller Type Steady Rest
Chip Pan
30 HP Main Motor


NOTE: Inspect In Our Philadelphia PA Warehouse
