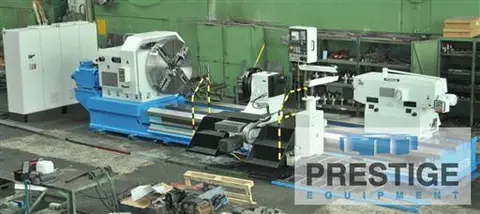

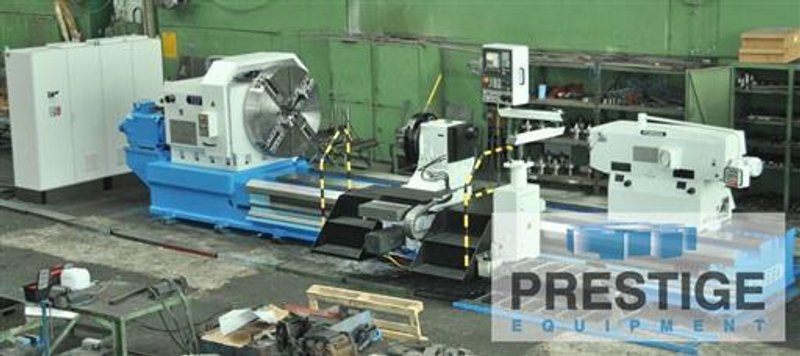

Poreba TCF-200 78" x 315" CNC Lathe, New Rebuild

Specifications:
Swing over bed 78.74"
Swing over carriage 62.99"
Distance between centers 314.96"
Weight Between Centers 30 tons
Weight Between Centers, 2-Steadies 40 tons
Spindle speed Ranges 3
Spindle speeds 0.8-250 rpm
Spindle bore 4.13"
Face plate dia 62.99"
Bed way width, overall 59.05"
Number of Bed Ways 3
Bed height 23.62"
Longitudinal feeds 0.1-157 IPM
Cross feeds 0.1-78.74 IPR
Cross slide travel, X1 axis 24.40"
Cross slide travel, X2 axis 15.74"
Tailstock Quill Diameter 11.02"
Tailstock Quill Travel 7.87"
Main motor 95 HP / 71 kW
Rapid feed motor power 4 HP / 3 kW
Tailstock motor power 1.4 HP / 1.1 kW
Overall Length, Approx. 547"
Overall, Weight, Approx 42 tons



Equipped With:
Siemens SINUMERIK ONE CNC Controls w/ 15” Touch Screen
All New Siemens Motors and Drives
Siemens ShopTurn Software option for SINUMERIK ONE
62.99" Face plate with 4 Independent Jaws
4-Station Baruffaldi Vertical Turret (Toolholders Not Included)
New Centers for Headstock and Tailstock
Full Set of leveling Wedges


Rebuild Details: Regrinding of the bed and the carriage plates
New Bearings
New Ball screws
New Electrical equipment
New Electrical cabinet from Rittal
New Kabelschlepp Wire Track
New Linear Measuring Encoders AMO on X1 and X2 Axis
Electronic handheld with spiral cable (6FX2007-1AD03)
Geometry acc. ISO 1708
TOSIBOX remote control
Set of leveling wedges
CE Mark


NOTE: 3-Way Bed to Allow the Carriage to Pass
Tailstock and Steady Rest


DELIVERY: Approx, 9-10 Months from Date of Order
