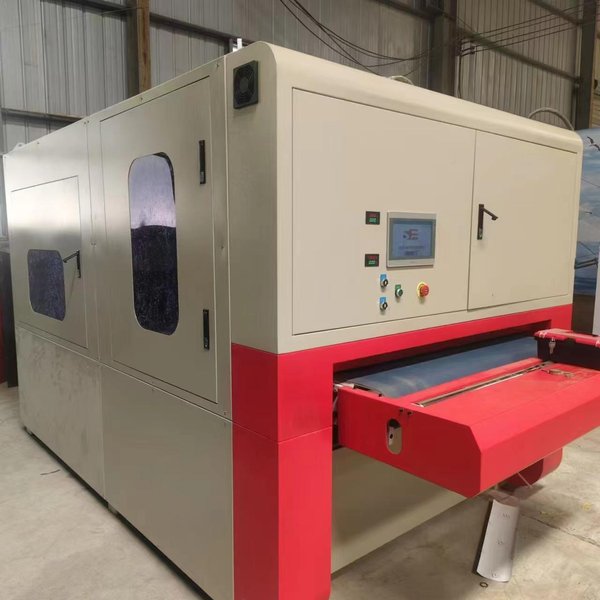

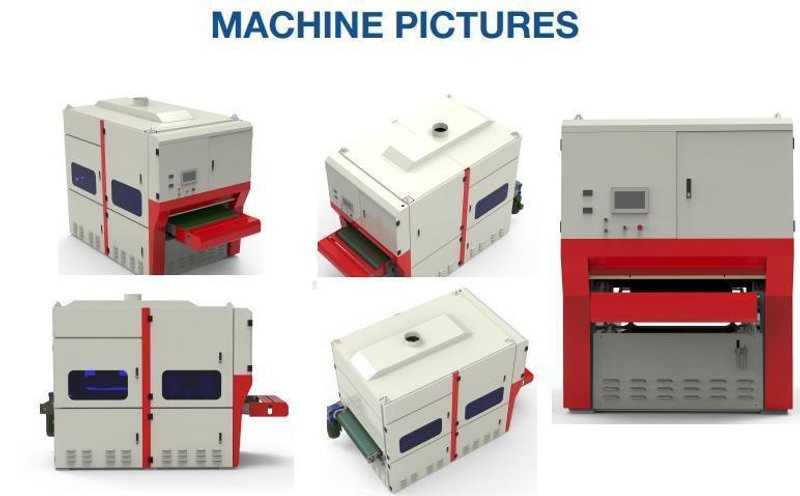

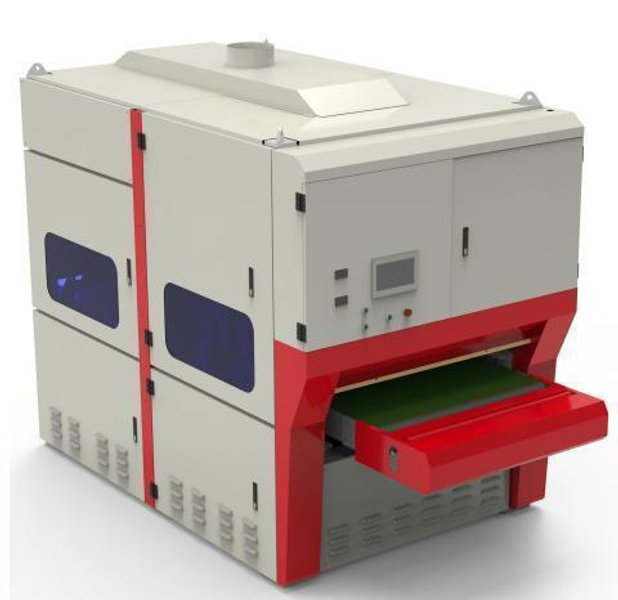

1 - NEW SMC DEBURRING MACHINE, MODEL #: SSD1300

1 - NEW SMC DEBURRING MACHINE, MODEL #: SSD1300

Name: 1 - NEW SMC DEBURRING MACHINE, MODEL #: SSD1300
Brand: SMC
SKU: 86451
Availability: PreOrder

Brand

SMC

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Basic Parameter:
Structure	Two sides sand belt and six edge rounding rollers
Working Width	1,300mm (51.18")
Configuration:
Working Width Range	10mm-1300mm (0.4" - 51.18")
Metal Piece Thickness	1.5mm-50mm (0.06"-1.97")
Minimum Piece Size	50mm50mm1mm (1.97" * 1.97" * 0.04")
Total Power	52.75 kw
Sand Belt Speed	1250r/min
Edge-Rounding Roller Speed (adjustable)	300-1400r/min
Conveyor Running Speed	1-5m/min
Repositioning Accuracy	0.02mm (0.00079")
Working Air Pressure	0.4kp-0.7kp
Control Mode	Manual/automatic
Edge-Rounding Roller Size	280mm50mm40mm*48P (11.024" x 1.97" x 1.58")
Sand Belt Size	2200mm*1310mm (86.61" x 51.58")
Conveyor Size	7060mm1300mm7mm (277.95" x 51.18" x 0.28")
Machine Weight	4000kg (8,818.5lbs)
Machine Overall Dimensions	4100mm2100mm2300mm (161.42" x 82.68" x 90.55")

Equipped With:
(6) Ordinary Sand Belt
(32) Edge-rounding Brush Roller's Piece
Optional Features:
Dust Collector 7.5kw: $7,500.00
Vacuum Table （Option for Stainless steel or aluminum): $5,500.00
Transformer: $3,250.00
